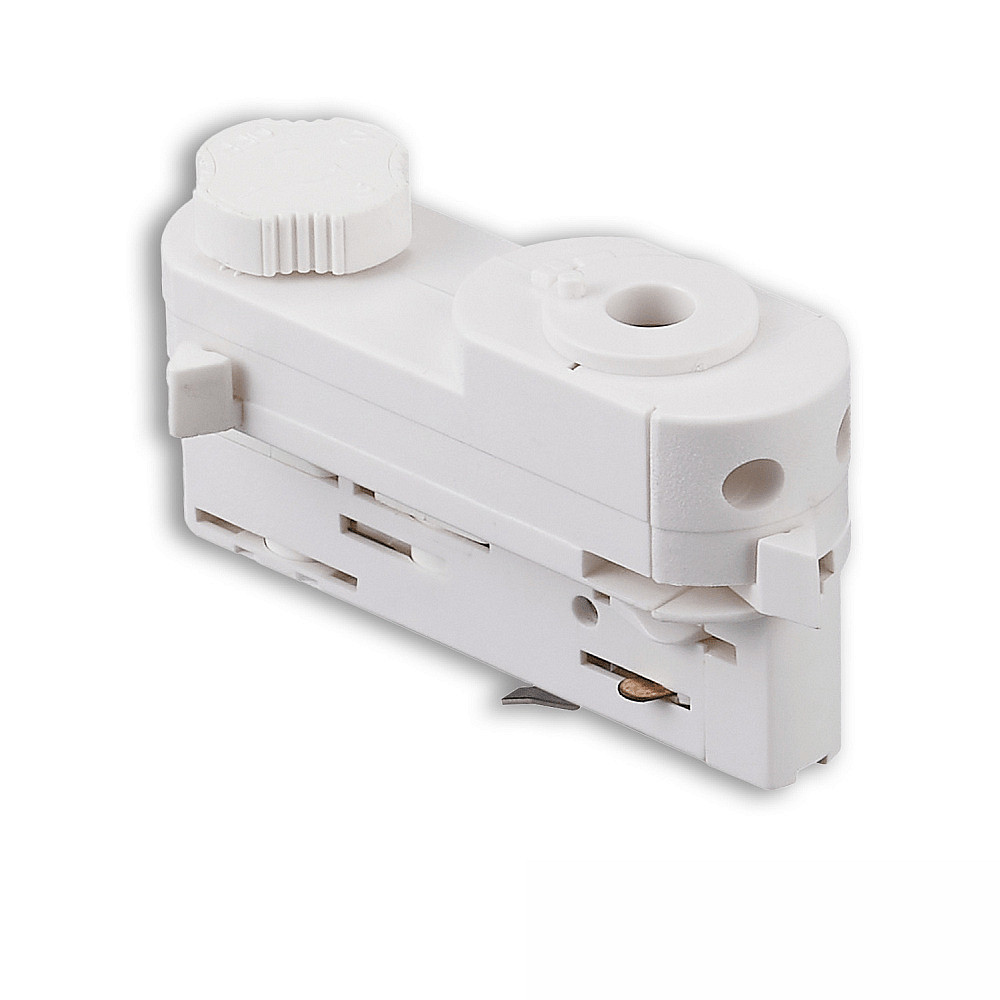

3-phase adapter SURFACE (DALI) DALI controllable, universal

Universal 3-Phase Rail Adapter for Versatile Applications

The 3-phase universal rail adapter from ISOLED is specially designed for luminaires with open cables and allows the easy integration of 230V AC powered pendant lights into standard 3-phase high-voltage rail systems such as EUTRAC, GLOBALtrac, and ECO. Thanks to its universal design, the adapter is manufacturer-independent and thus offers maximum flexibility in lighting design.

Simple Control with DALI Compatibility

This adapter is compatible with DALI DT6 systems, enabling comfortable and precise control of connected luminaires. DALI stands for Digital Addressable Lighting Interface and allows individual switching on and off as well as stepless dimming of the lights. This way, you can optimally adapt your lighting to your needs and use energy efficiently.

Robust and High-Quality Material Design

The adapter is made from a combination of aluminum and plastic, ensuring a stable and durable construction. Weighing only 72 grams, it is easy to handle and yet supports loads up to 10 kilograms, guaranteeing the secure mounting of various luminaires. Protection class 1 provides the necessary protection during electrical operation, while the IP20 rating protects against contact-related ingress.

Scope of Delivery and Technical Details

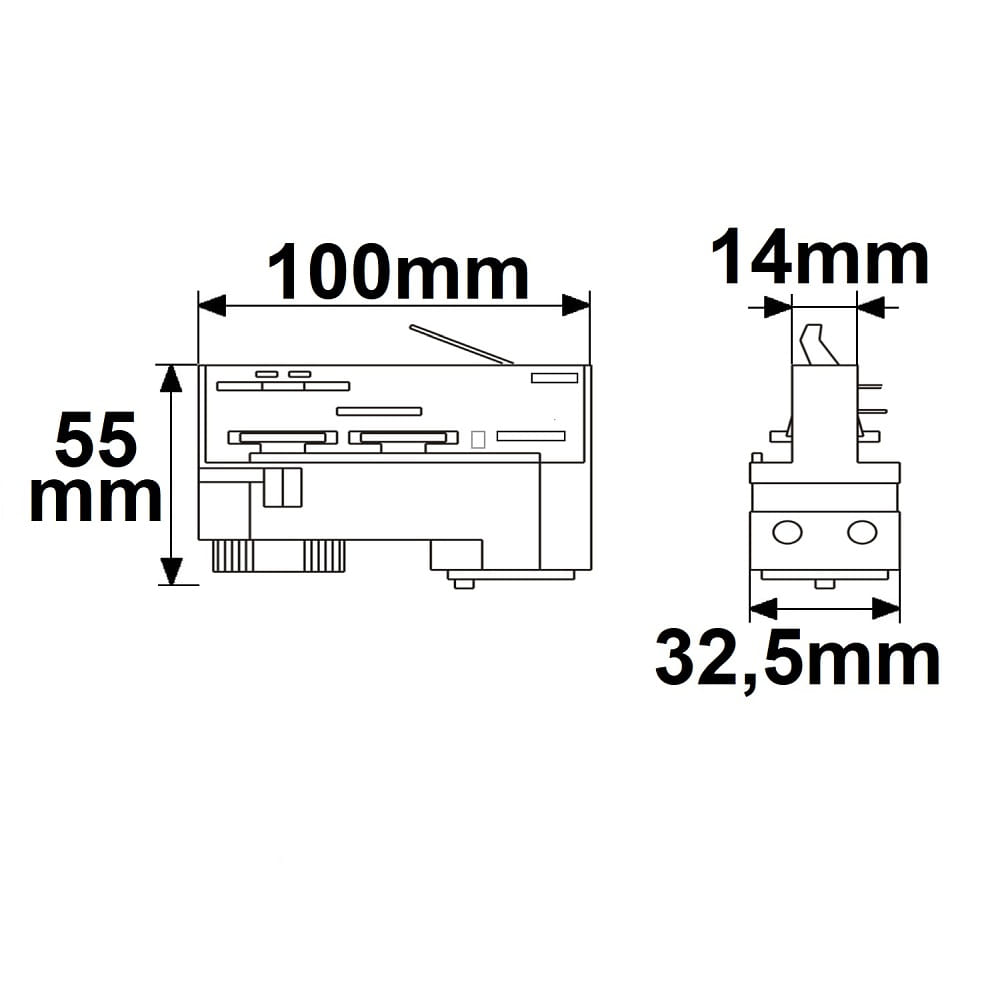

The scope of delivery includes the 3-phase adapter, a switch, and a strain relief that ensure safe and convenient installation. The power rail itself as well as the luminaire are not included but can be easily added. The adapter measures 10 cm in length, 3.25 cm in width, and 5.5 cm in height and is available in black and white, allowing it to blend harmoniously into various room concepts.

Flexible Installation and High Load Capacity

The adapter is installed system-bound on the 3-phase power rail, with a mechanical load capacity of up to 10 kilograms per adapter supporting a wide range of luminaires. The actual load capacity of the power rail depends on the distance between the mounting points, which should be considered during planning. For the integration of other luminaires with open cable ends, an optional insulated screw adapter in a matching color is available, enabling a secure connection.
