3-phase corner connector D LINE/DALI DALI controllable, codable, left-right, white

Accessories for 3-phase power track D LINE DALI - 90° connector left-right with changeover mechanism

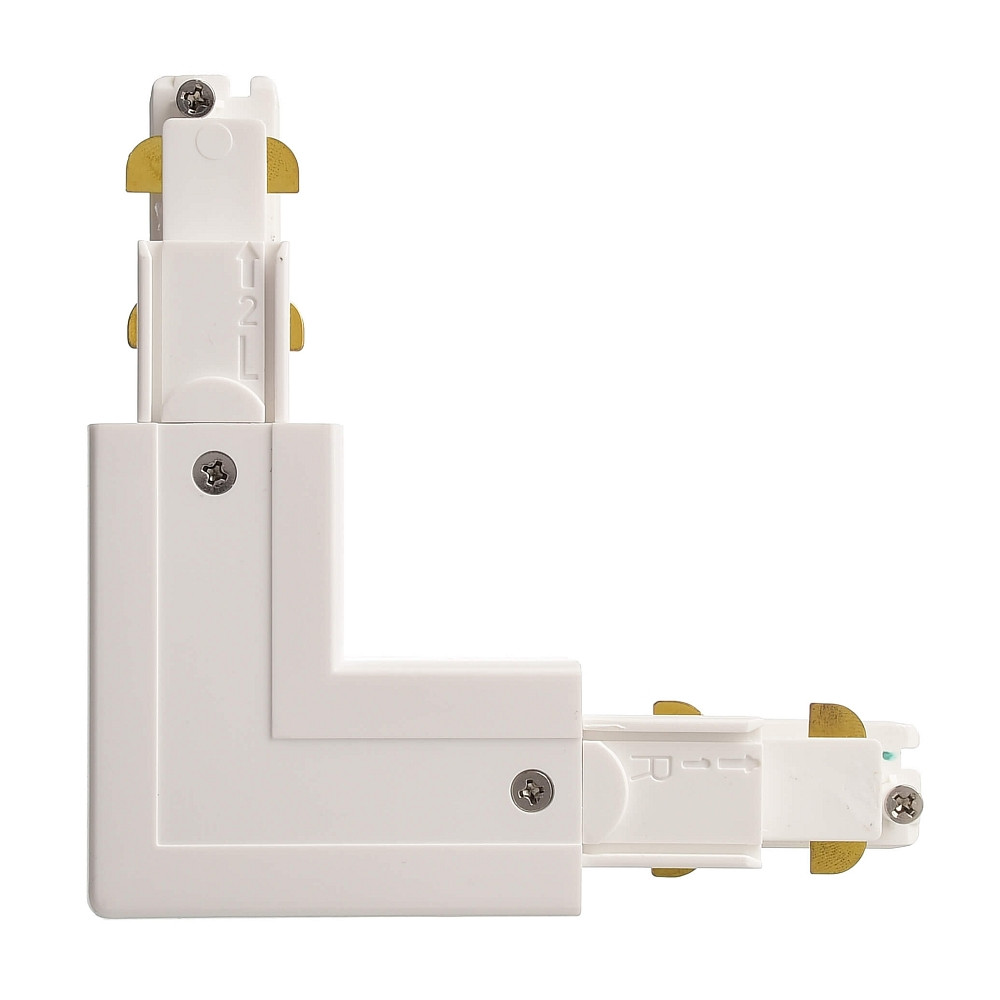

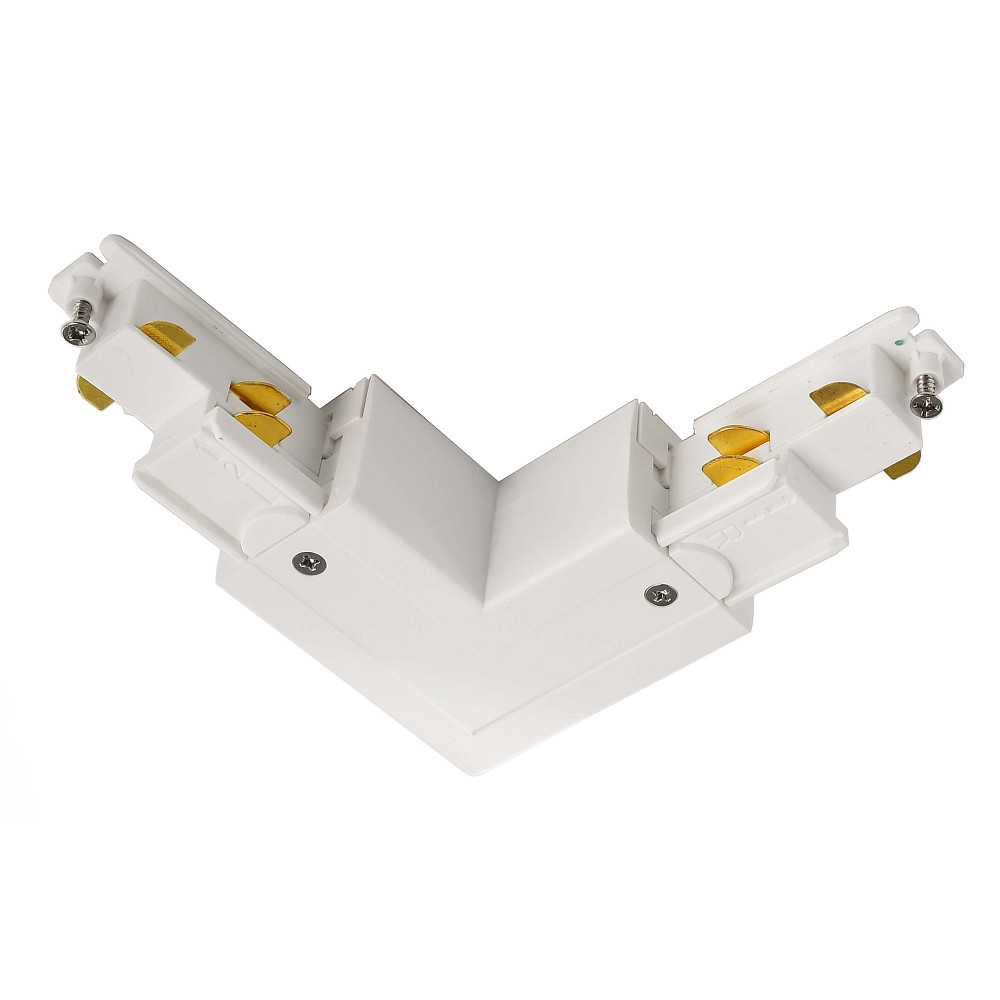

The accessory for the 3-phase power track D LINE DALI is a practical 90° connector that can be mounted both to the left and to the right. Thanks to the changeover mechanism, flexible adjustment to individual needs is possible.

Technical data

The operating voltage is 220-240V~, and the accessory is dimmable. It is suitable for both ceiling and wall mounting and is exclusively for indoor use. The color of the connector is white, and it has a weight of 0.135kg.

Material and protection class

The 90° connector is made of plastic and has the IP protection class IP20. It can be operated with a maximum current rating of 48A and is mounted bound in the track system. The mains frequency is 50-60Hz.

Product type and brand

This accessory is a 3-phase corner connector from the brand Deko-Light. It is specifically designed for use with DALI dimming protocols such as DALI 1.0 / DT6, DALI 1.0 / DT8, DALI 2.0 / DT6, and DALI 2.0 / DT8.

Size and areas of application

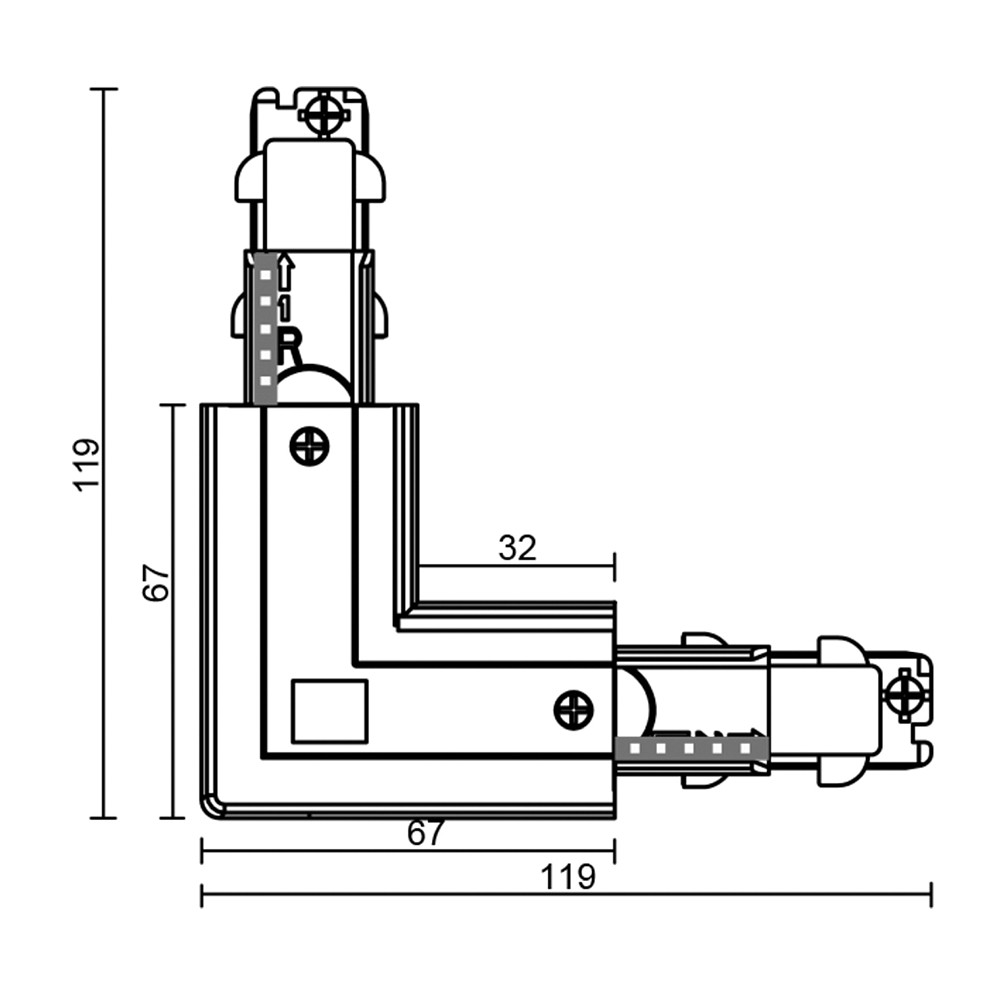

The size of the 90° connector is L/W/H: 11.9/11.9/3.55 cm. It is ideal for connecting different sections of the power track and allows for flexible lighting design. With its modern design and practical functionality, it is an enhancement for any indoor space.
