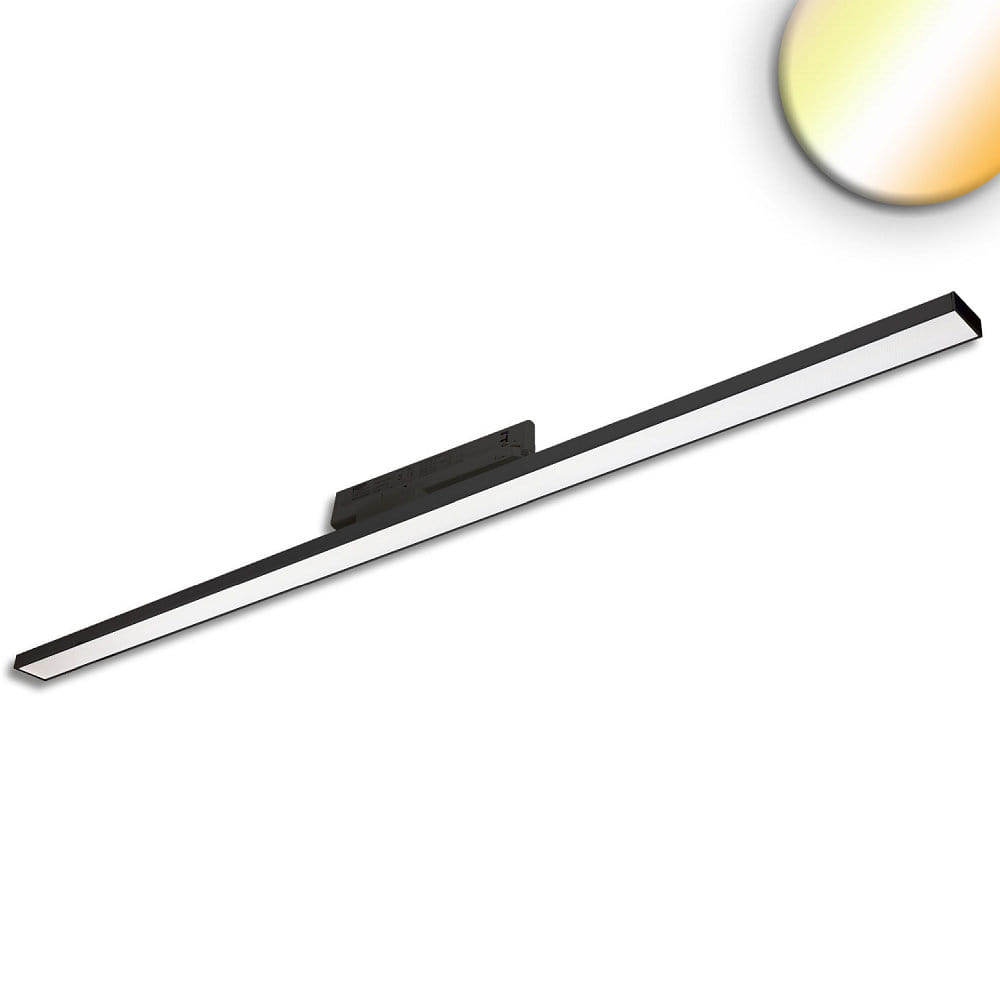

3-phase luminaire LINEAR 120CM (DALI) rigid, DALI controllable, CCT Switch, prismatic IP20, white dimmable

Efficient 3-Phase LED Linear Light with DALI Technology

The 3-phase LED linear light from ISOLED impresses with its modern DALI dimming function, which allows flexible brightness control. With a length of 120 cm and a power consumption of 40 watts, this light offers high luminous efficacy while maintaining a low energy consumption of only 40 kWh per 1,000 operating hours. The light is designed for operation on a 3-phase track system, allowing easy installation and adjustment within the room.

Variable Color Temperatures for Individual Light Ambiance

The light features a CCT switch that provides three different color temperatures (3000K, 3500K, and 4000K). This allows the light to be adjusted from warm white to neutral white to meet different requirements and moods. This flexibility enables a pleasant and natural lighting experience that adapts optimally to various usage situations.

High Light Quality and Uniform Light Distribution

With a color rendering index (CRI) of over 90, the LED linear light ensures excellent color reproduction, making colors appear particularly natural and vivid. The light-diffusing, prismatic light source produces a diffuse light distribution with a beam angle of 120 degrees, providing even illumination without disturbing shadows. The luminous flux is 5100 lumens, ensuring sufficient brightness for various applications.

Durable and High-Quality Design

The light is made of robust aluminum and weighs only 0.99 kg, allowing for easy handling and installation. With an average lifespan of 38,000 hours, it guarantees long-term use without frequent maintenance or replacement. Protection class 1 and IP20 rating ensure solid electrical safety and protection against contact, further increasing reliability during operation.

Complete Set with Integrated LED Light Source and Accessory Information

The scope of delivery includes the integrated LED light source as well as a suitable driver necessary for optimal operation. The 3-phase track, controller, and dimmer are available separately to allow individual system expansion or customization. The light operates at a mains voltage of 220-240 volts and a frequency of 50/60 Hz, making it compatible with common power grids.
