3-phase luminaire LINEAR PRO FOLD DALI rigid, DALI controllable IP20, black dimmable

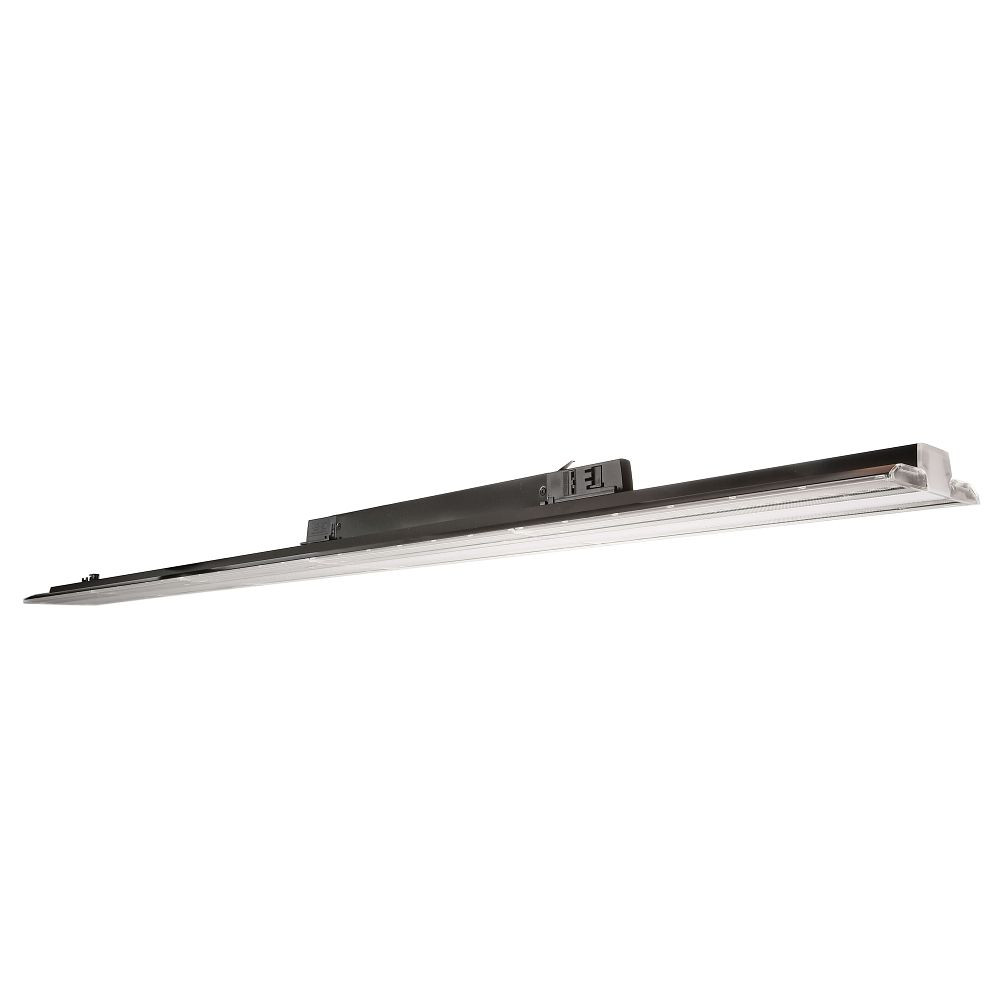

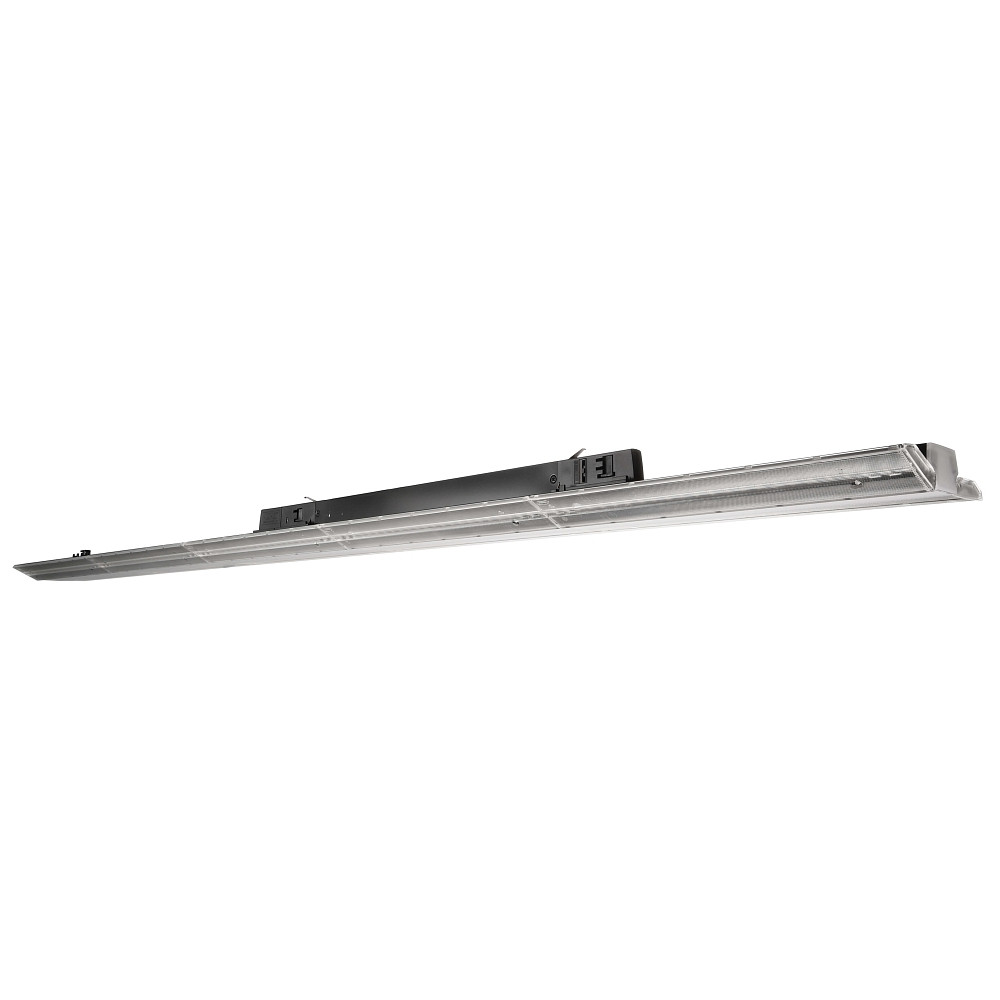

LED 3-phase luminaire LINEAR PRO FOLD

The LED 3-phase luminaire LINEAR PRO FOLD is a rigidly mounted luminaire with a length of 150cm. It has a color rendering index of over 90 (CRI >90) and is DALI controllable. The luminaire has a beam angle of 30° and an operating voltage of 220-240V~.

Technical details

The LED 3-phase luminaire LINEAR PRO FOLD has a power consumption of 50W and an energy consumption of 50kWh/1,000h. It offers a light output of 140lm/W and a luminous flux of 7000lm. The luminaire has an IP protection rating of IP20 and can only be used indoors.

Accessories and dimensions

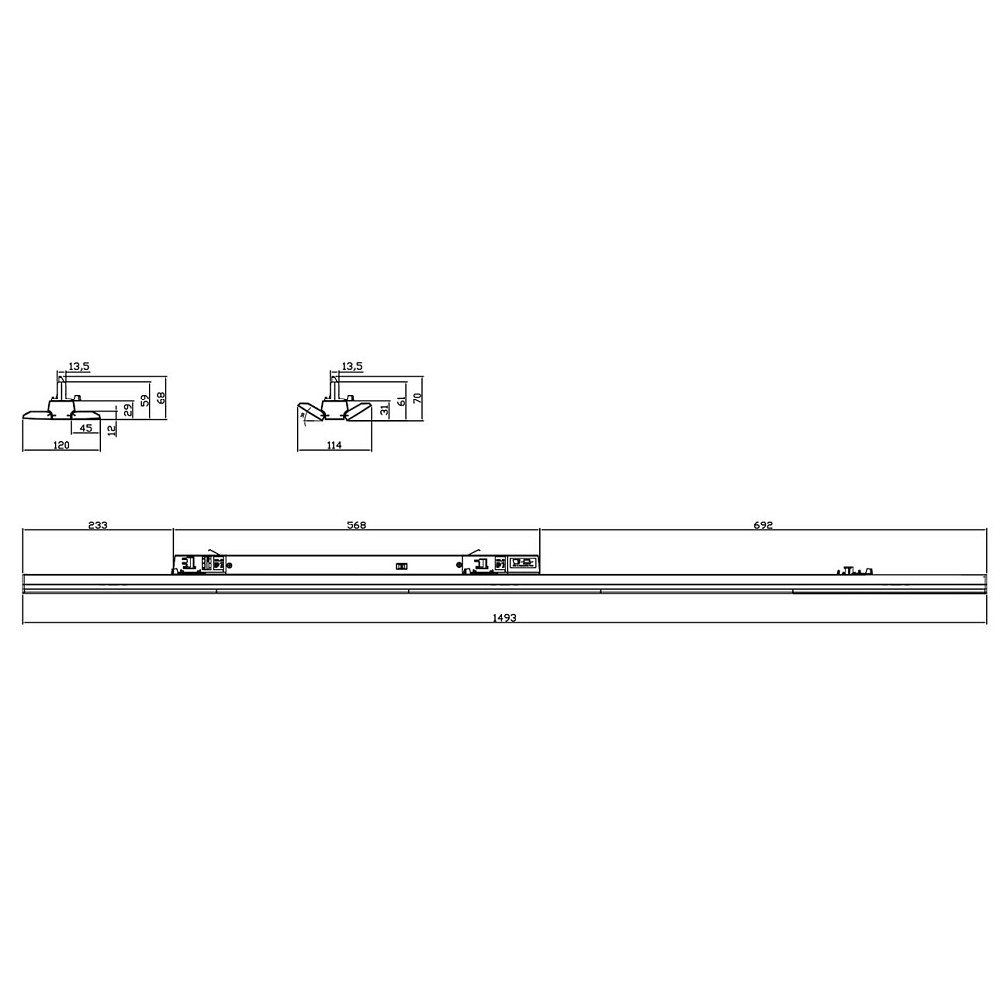

The scope of delivery includes a 3-phase adapter and a driver. Optionally available accessories include a 3-phase track, a controller, a dimmer, and an additional 3-phase adapter. The dimensions of the luminaire are 149.3cm in length, 12cm in width, and 6.8cm in height. The weight of the luminaire is 2.15kg.

Additional information

The LED 3-phase luminaire LINEAR PRO FOLD is a particularly energy-efficient long-field luminaire, specially designed for sales shelves and sales aisles. It offers high light quality with a neutral white light color and a color temperature of 4000K. The luminaire is eligible for BEG funding and features a DALI dimmable system for digital building automation systems.

Quality and material

The LED 3-phase luminaire LINEAR PRO FOLD is made of high-quality aluminum and polymethylmethacrylate (PMMA). It has an average lamp lifespan of 60,000 hours and can be replaced by a professional. With a switching cycle of 100,000 and a plug type adapter, the luminaire is durable and easy to install.
