3-phase spot TRACKSPOT V swivelling, suitable for VDU workstation IP20, black dimmable

Efficient LED Lighting with Modern Design

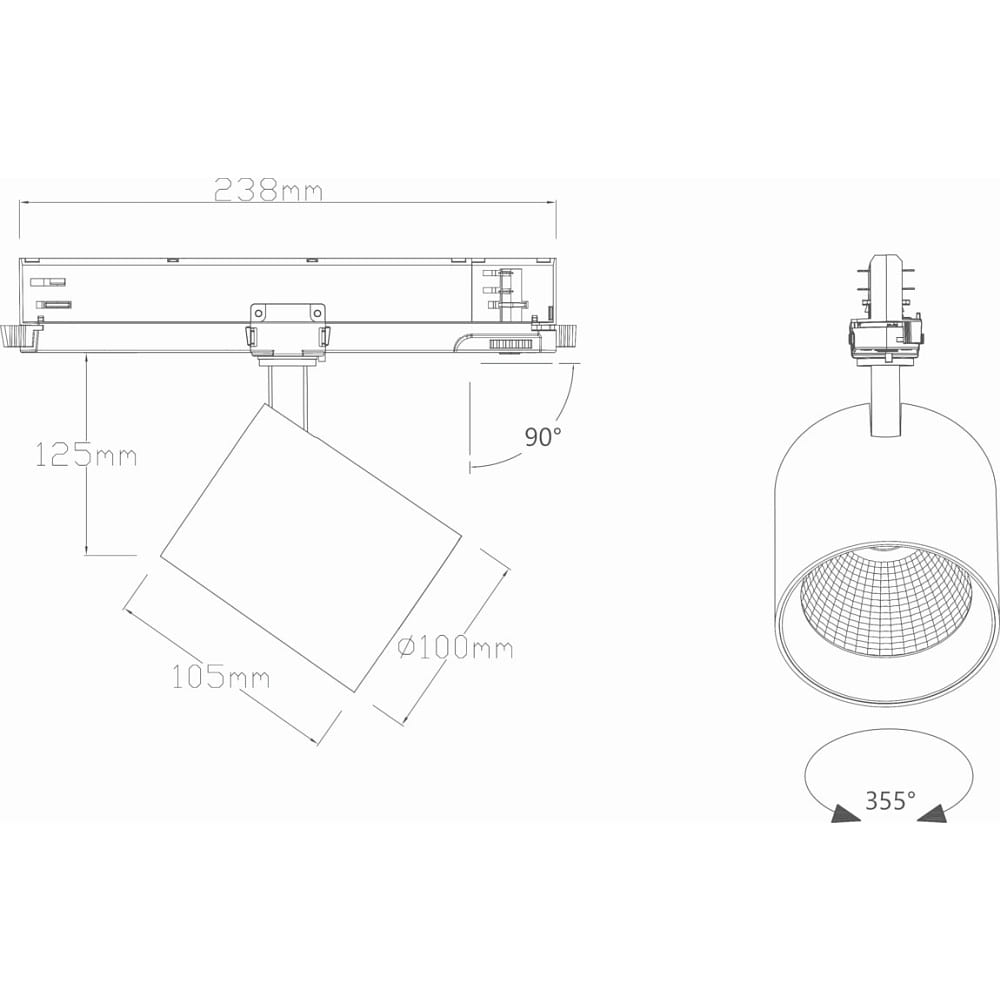

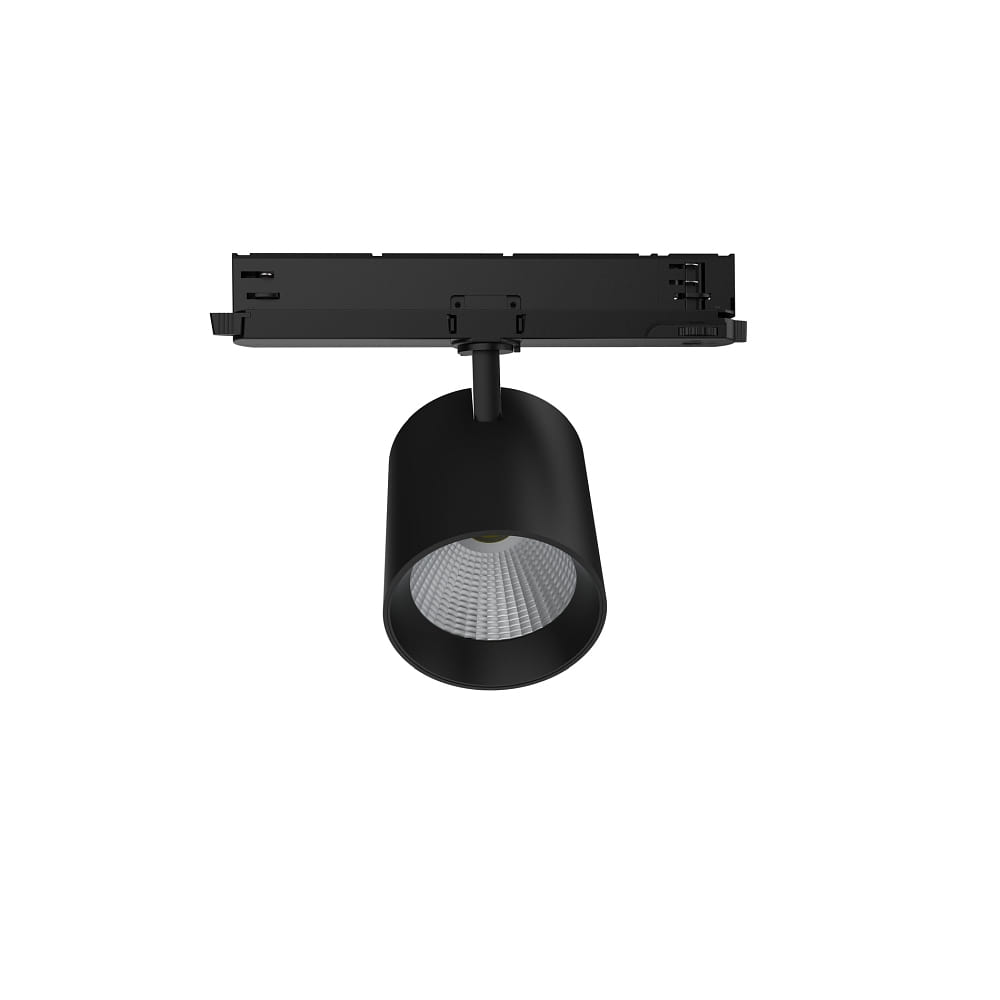

The LED 3-phase spotlight TRACKSPOT V from SLV impresses with its high-quality aluminum construction and elegant black design. With a size of 23.8 cm in width and 14 cm in height, the spotlight blends unobtrusively and stylishly into any environment. The product is equipped with a track adapter that allows for easy and flexible installation. Thanks to the robust material and IP20 protection, the spotlight is well-protected and durable.

Perfect Light Quality for a Pleasant Atmosphere

With a warm white light color at 3000 Kelvin, the TRACKSPOT V provides a pleasant, inviting light. The beam angle of 24° ensures targeted and focused illumination, ideal for accentuating or highlighting specific areas. The luminous efficacy of 127.33 lumens per watt guarantees efficient energy use, while the luminous flux of 1528 to 4758 lumens, depending on the setting, provides sufficient brightness.

Flexible DALI Dimming for Individual Light Control

The spotlight is dimmable via DALI and DALI-2, allowing continuous adjustment of light intensity. This enables precise adaptation of the lighting to different needs. The LED driver is current-controlled and replaceable, simplifying maintenance and replacement. With the possibility to individually adjust the luminous flux, the TRACKSPOT V offers maximum flexibility in light design.

Technical Details for Optimal Performance

The spotlight operates with a power consumption of 12 watts and a supply voltage of 220 to 240 volts. Protection class 2 ensures safe handling without a protective earth connection. With an ambient temperature range from -20 to 35 degrees Celsius, the device is reliable for use in a wide temperature range. Additionally, the spotlight is adjustable, allowing for targeted light alignment and thus optimal lighting conditions.

Reliability and Versatility in Application

The TRACKSPOT V is suitable for use at computer workstations and thus also for work areas with special requirements. The maximum number of luminaires that can be operated on a circuit breaker is 27 with B16 and 44 with C16, allowing flexible planning and expansion of lighting systems. The included driver facilitates commissioning and ensures immediate readiness for use.
