Adjustable LED Spot LED 2-Link SPOT, 1-flame, for LED 2-Link profiles, 10cm, CRi>90, 1.5W 4000K 80m 38°, alu

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

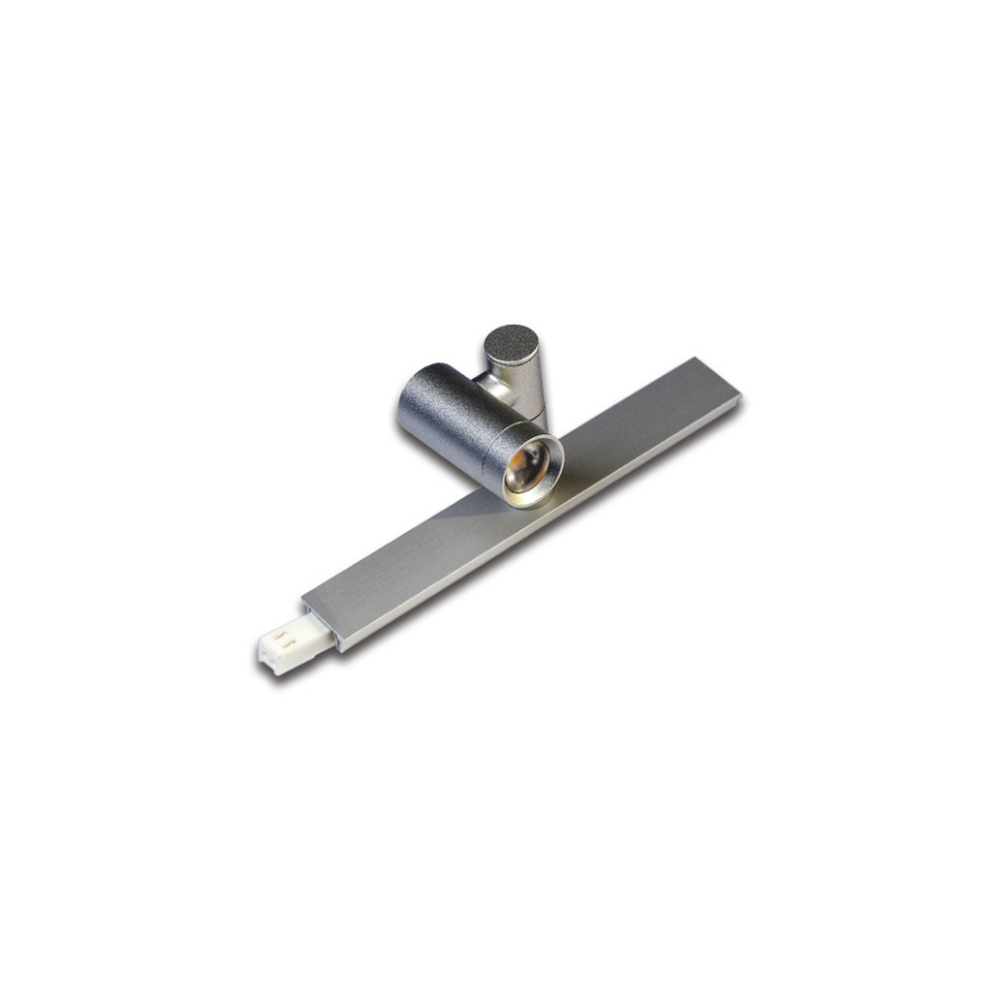

Rotatable and swiveling LED 2-LINK SPOT

The rotatable and swiveling LED 2-LINK SPOT is a 1-light spotlight specifically designed for LED 2-LINK profiles. With dimensions of 10x1.5x4.1 cm (visible part) and a lamp head diameter of 1.5x3.2 cm, it is compact and versatile.

Technical Details

The LED 2-LINK SPOT operates at a voltage of 24V= and has a power consumption of 1.5W. It has a light output of 53lm/W and a luminous flux of 80lm. The light color is neutral white with a color rendering index of 90-100Ra.

Application and Material

The LED 2-LINK SPOT is ideal for use in furniture and is suitable for indoor use only. It is made of high-quality aluminum and plastic in the colors anodized aluminum and satin.

Additional Information

The spotlight has an IP protection rating of 20 and can be easily connected with the LED-24 plug system. With a beam angle of 38° and a focus lens, it provides uniform light distribution. The average lamp lifespan is 60000 hours.

Energy Efficiency and Accessories

The LED 2-LINK SPOT is classified in energy efficiency class G and can be dimmed with compatible accessories. The light source is not replaceable, but is included in the delivery. With its high-quality construction and flexible application possibilities, it is an ideal lighting solution for various applications.

Colour:
satined
housing aluminum / cover matt, satined

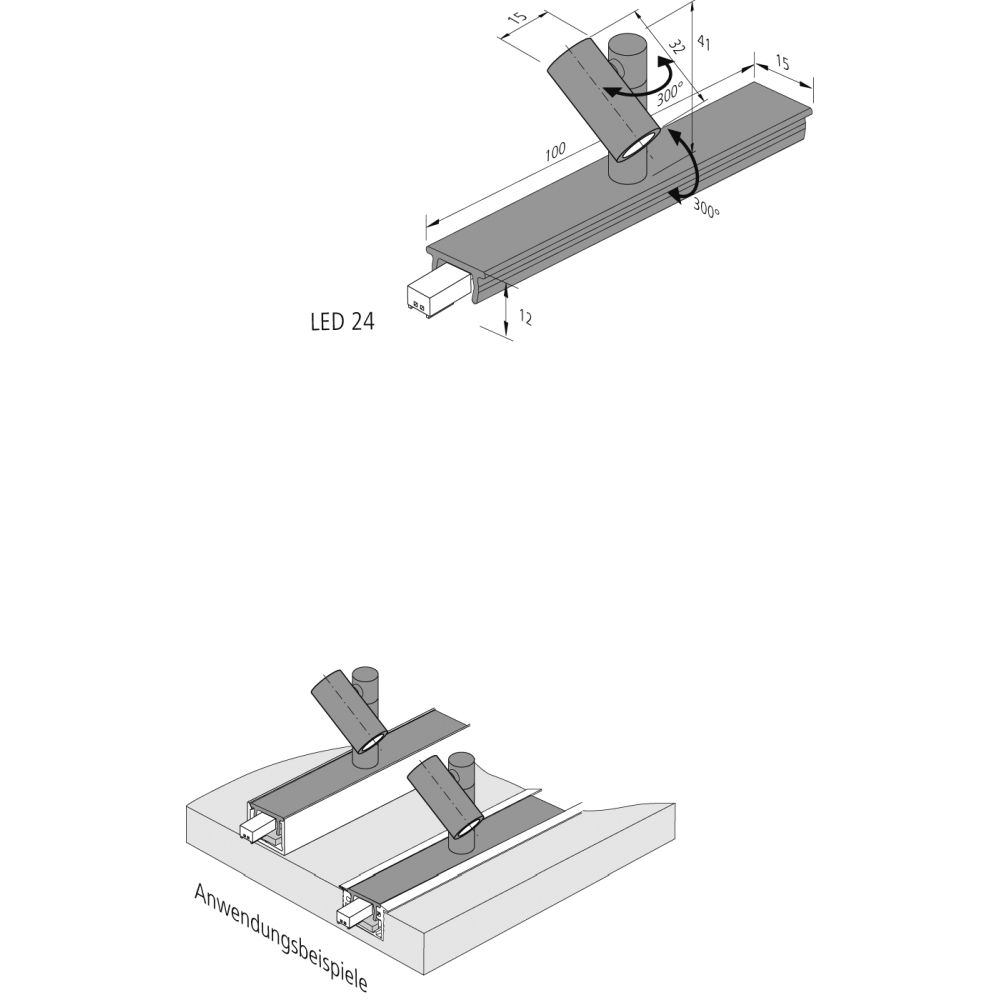

Dimension:
Leuchtenkopf-Ø∕ L: 1,5∕ 3,2 cm
Sichtbarer Teil mit Profil-Einsatz-L∕ B∕ H: 10∕ 1,5∕ 4,1 cm
Material:
aluminium
plastic
Product type:
track spot
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Power consumption:
1,5 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Voltage:
LED 24 low-voltage plug
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
80.00 lm
Light yield:
53.00 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Fitting opening square/rectangular width:
10 cm
Fitting opening square/rectangular length:
1,5 cm
Mounting:
surfaced mounting
Protection class:
3
IP-protection class:
20
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
1359795
Article number:
HE-61002130103
Brand:
Hera
Manufacturer:
Hera
