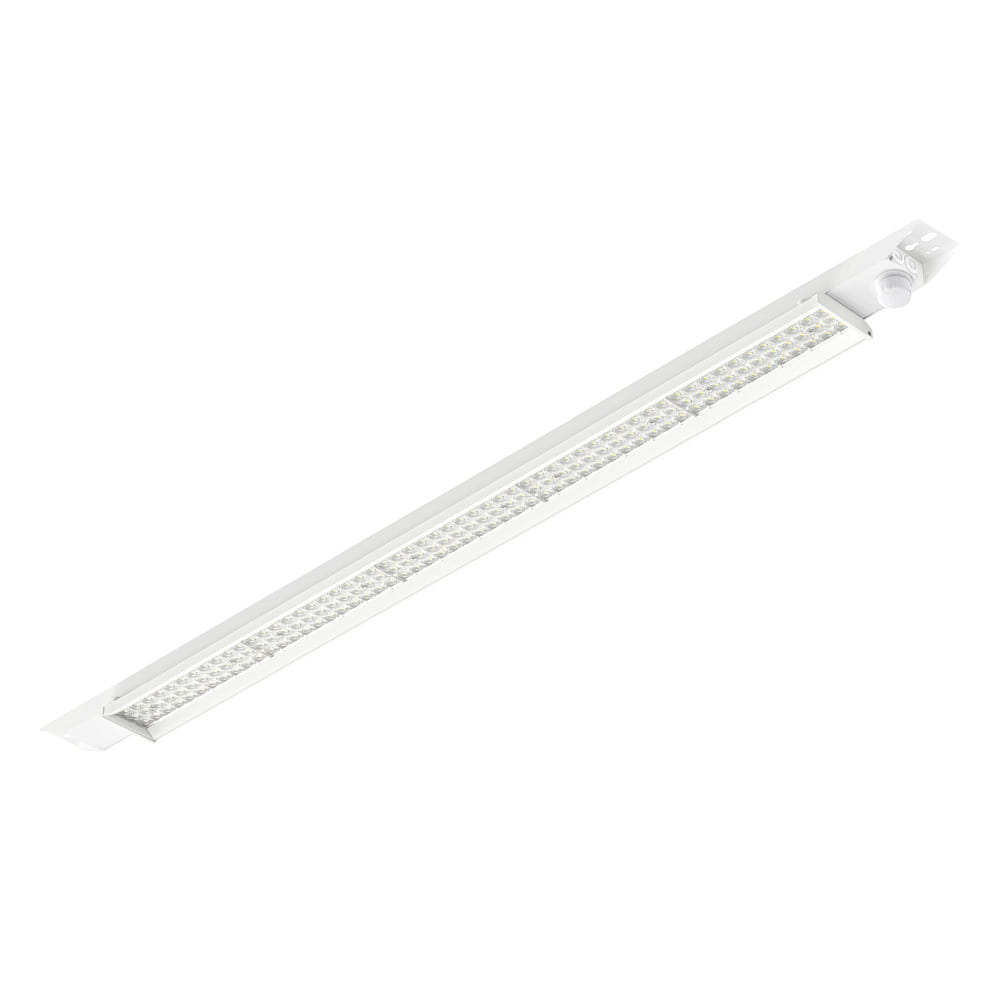

ceiling luminaire BATTEN INDUSTRY C IP23, white dimmable

Modern LED Ceiling Light with High Light Output

The LED ceiling light BATTEN INDUSTRY C from SLV impresses with its efficient luminous efficacy of 190.63 lm/W and a power consumption of only 32 watts. With a luminous flux of up to 13,400 lumens, it provides bright and even illumination. The neutral color temperature of 4000 Kelvin offers a pleasant, daylight-like light that is versatile in use. The high-quality white steel housing gives the luminaire a modern yet robust appearance.

DALI Dimming Function for Individual Light Control

The BATTEN INDUSTRY C is equipped with a DALI and DALI-2 compatible dimming function, allowing continuous adjustment of the luminous flux. This makes it easy to adapt the brightness to personal needs and ensures an optimal lighting atmosphere. The integrated LED driver is current-controlled and replaceable, which facilitates maintenance and ensures a long service life of the luminaire.

Robust Construction and Protection Class IP23

With protection rating IP23, the luminaire is protected against the ingress of solid foreign objects and water spray. This provides a reliable and safe lighting solution. Protection class 1 offers additional safety through grounding of the housing. Ambient temperatures from -20 to 40 °C are easily tolerated, making the luminaire suitable for various environments.

Practical Dimensions and Mounting Options

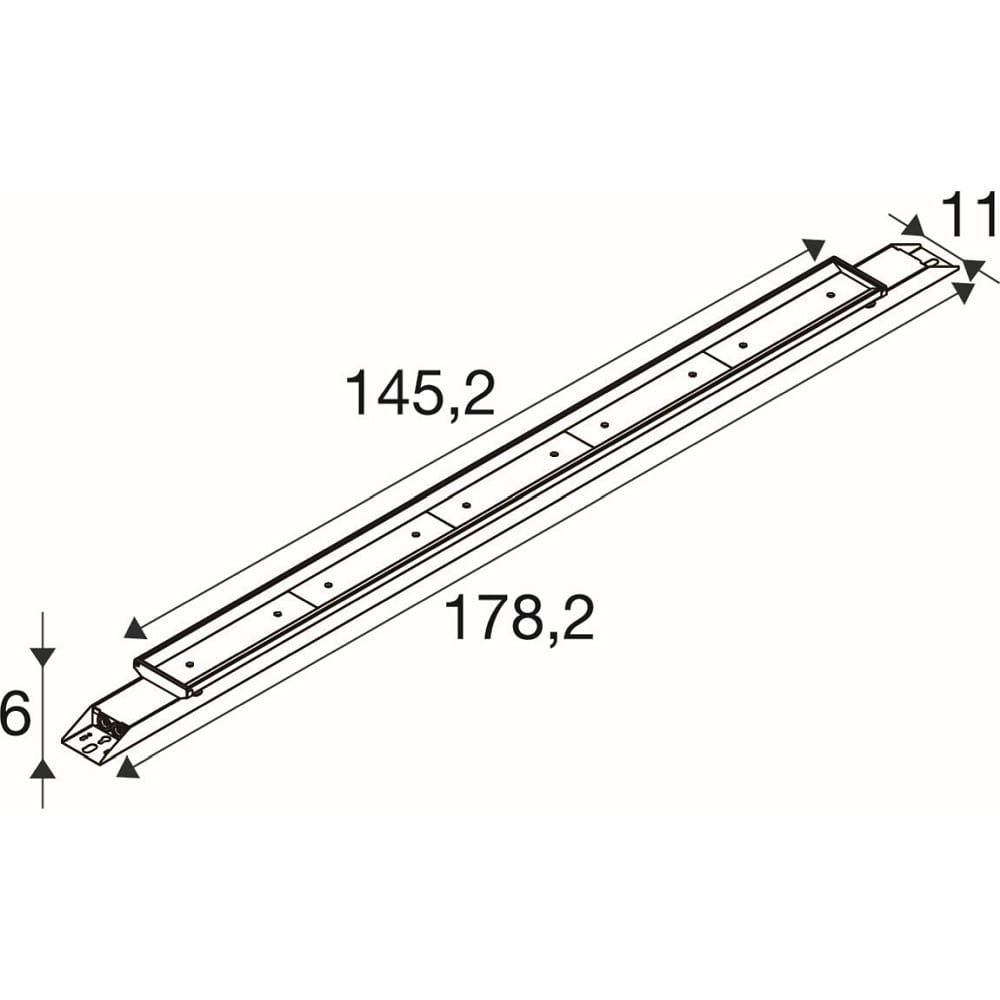

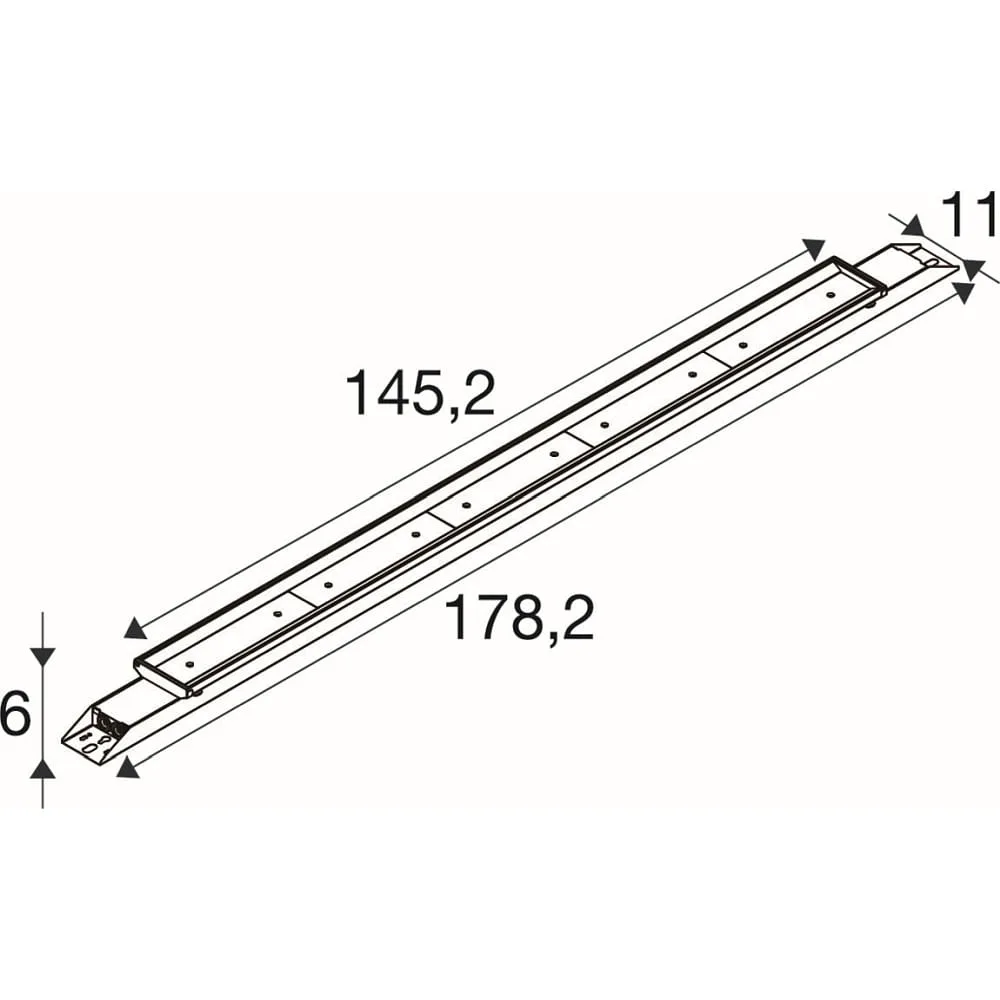

The ceiling light measures 178.2 cm in length, 11 cm in width, and 6 cm in height. It is suitable for pendant suspension, offering flexible mounting options. The luminaire is not adjustable but impresses with an even light distribution. Additionally, the maximum number of luminaires per circuit breaker is specified as 21 with B16 and 35 with C16, which simplifies the planning of larger lighting installations.

High Light Quality and Color Consistency

The luminaire offers color consistency with a McAdam ellipse of SDCM3, ensuring a consistent and pleasant light color. This means the light appears without visible color deviations. The neutral light color supports natural color rendering and promotes a comfortable visual environment. The supplied driver is already integrated, so the luminaire is ready for immediate use.
