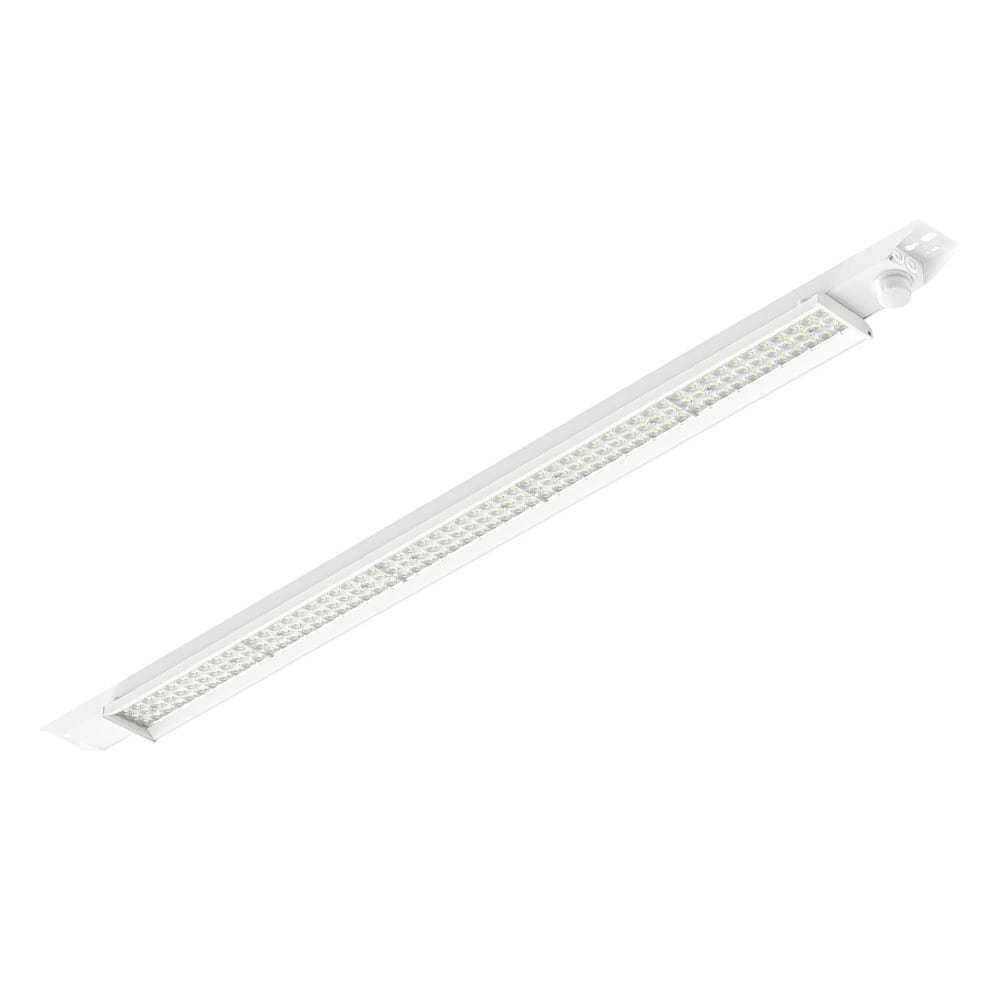

ceiling luminaire BATTEN INDUSTRY P IP23, white dimmable

High-Quality LED Ceiling Light with Efficient Illumination

The LED ceiling light BATTEN INDUSTRY P from SLV impresses with its powerful performance of 73 watts and a luminous efficacy of 197.37 lumens per watt. With a luminous flux ranging from 15,000 to 25,000 lumens, this fixture provides bright and even illumination. The light color is neutral white at 4000 Kelvin, producing a pleasant and natural light that is ideal for a wide variety of applications.

Modern Design and High-Quality Materials

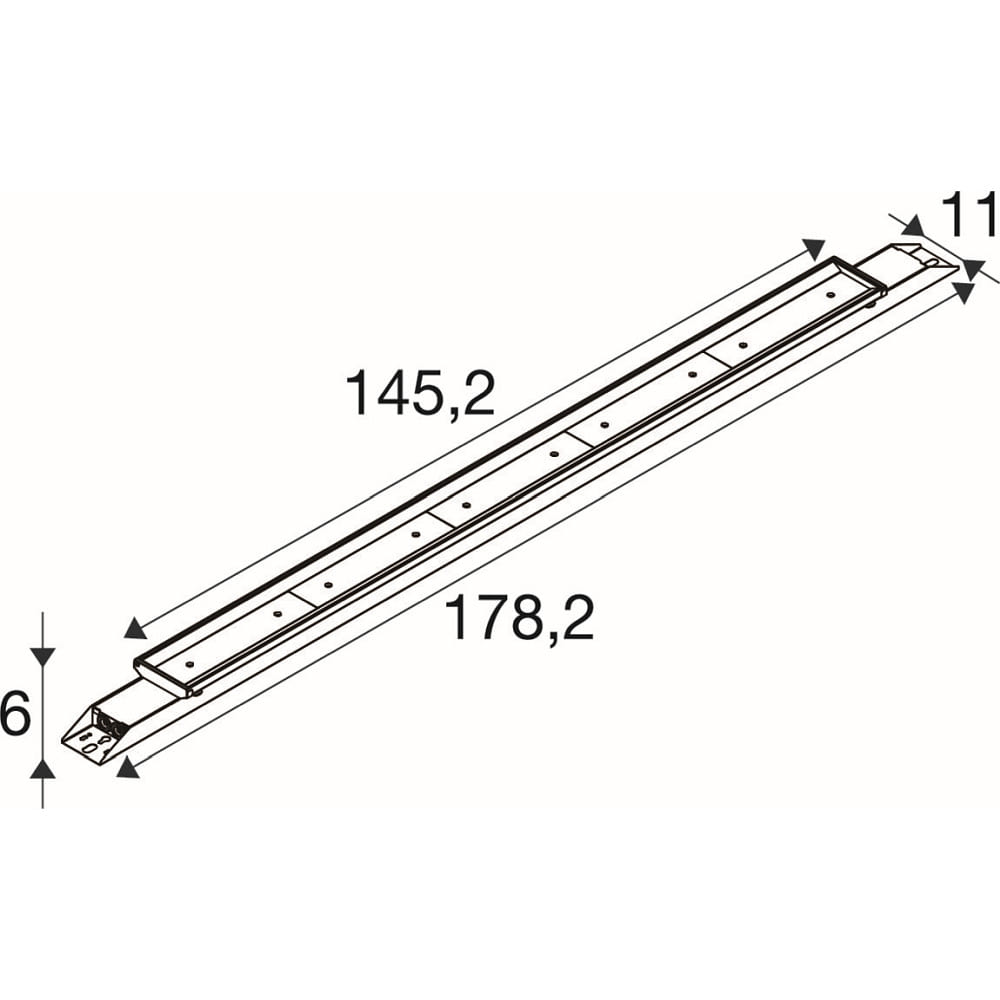

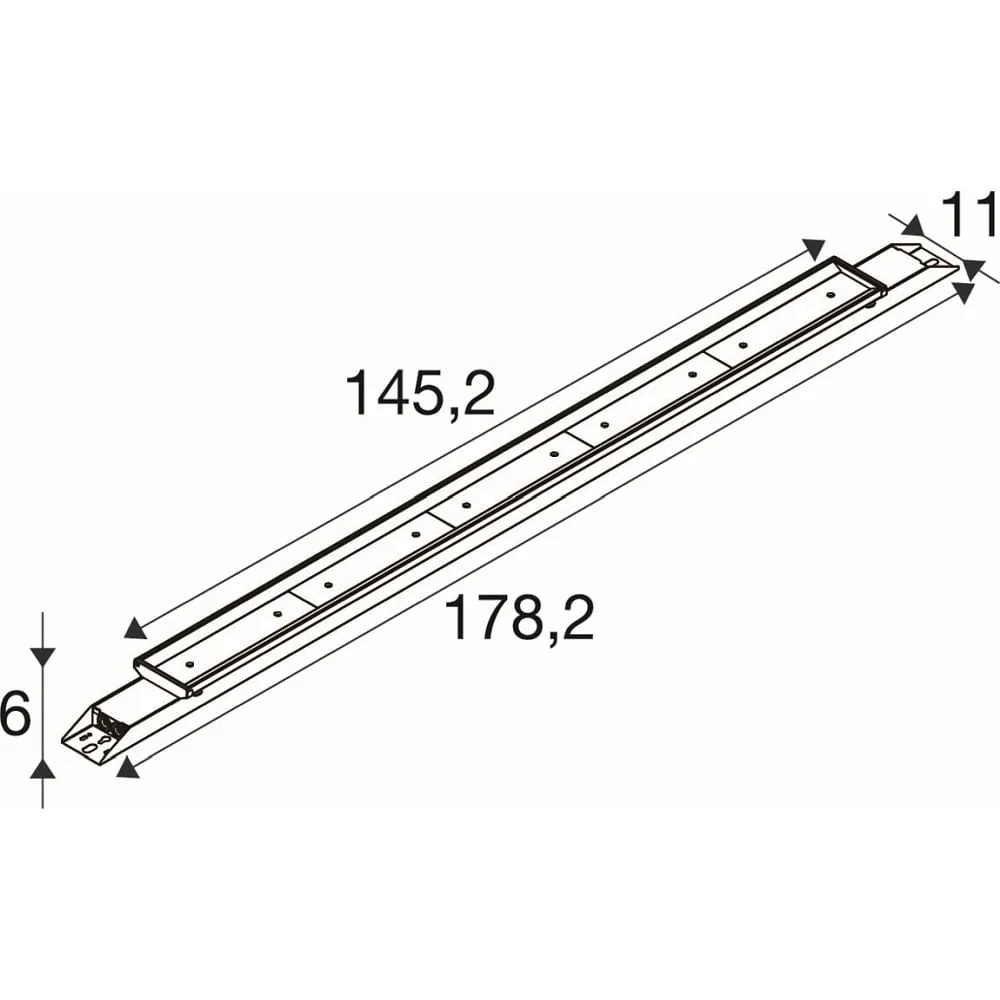

The fixture is made of robust steel and features a simple, white design that blends harmoniously into many environments. With dimensions of 178.2 cm length, 11 cm width, and 6 cm height, it is flat and unobtrusive. The ceiling light is not adjustable but is suitable for pendant mounting, offering additional flexibility during installation.

DALI Dimming for Individual Light Control

A special highlight of this ceiling light is its DALI and DALI-2 dimmability. This allows the luminous flux to be continuously adjusted to optimally suit different needs. Control is via a current-controlled LED driver, which is included in the delivery and is also replaceable, simplifying maintenance and extending the fixture’s lifespan.

Robust Protection Class and Optimal Safety

With a protection rating of IP23, the fixture is protected against solid foreign objects and spray water, ensuring high safety. Protection class 1 also guarantees safe operation through protective earth connection. The fixture is designed for ambient temperatures from -20 to 40 degrees Celsius, providing reliable function even under demanding conditions.

Technical Details for Professional Applications

The operating voltage is 220 to 240 volts, which corresponds to the standard in many installations. The color consistency of the LEDs is rated at SDCM3, ensuring uniform light color without visible color deviations. Additionally, the maximum number of fixtures that can be operated on a circuit breaker is clearly defined: 11 on B16 and 18 on C16. This facilitates planning and installation in larger lighting systems.
