ceiling recessed luminaire KADUX DOUBLE 2 flames, DALI controllable, cardanic swivelling IP20, black dimmable

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

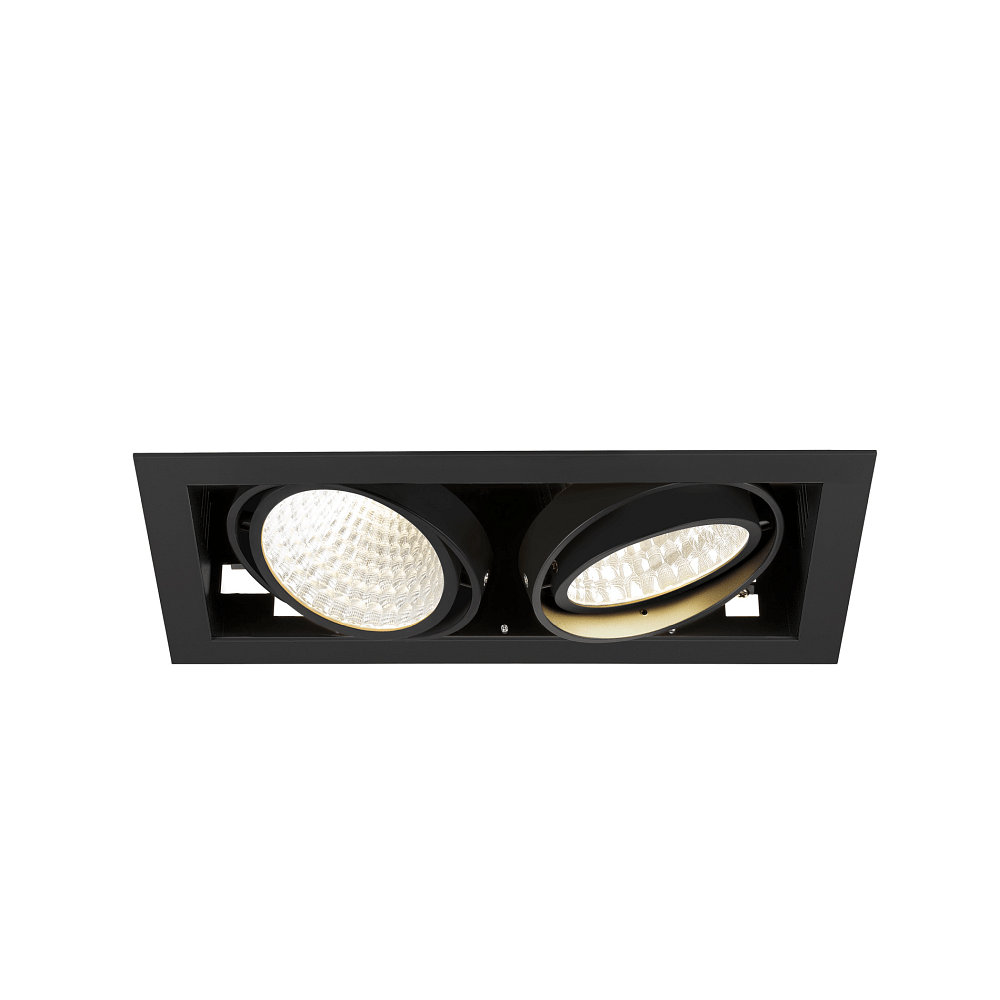

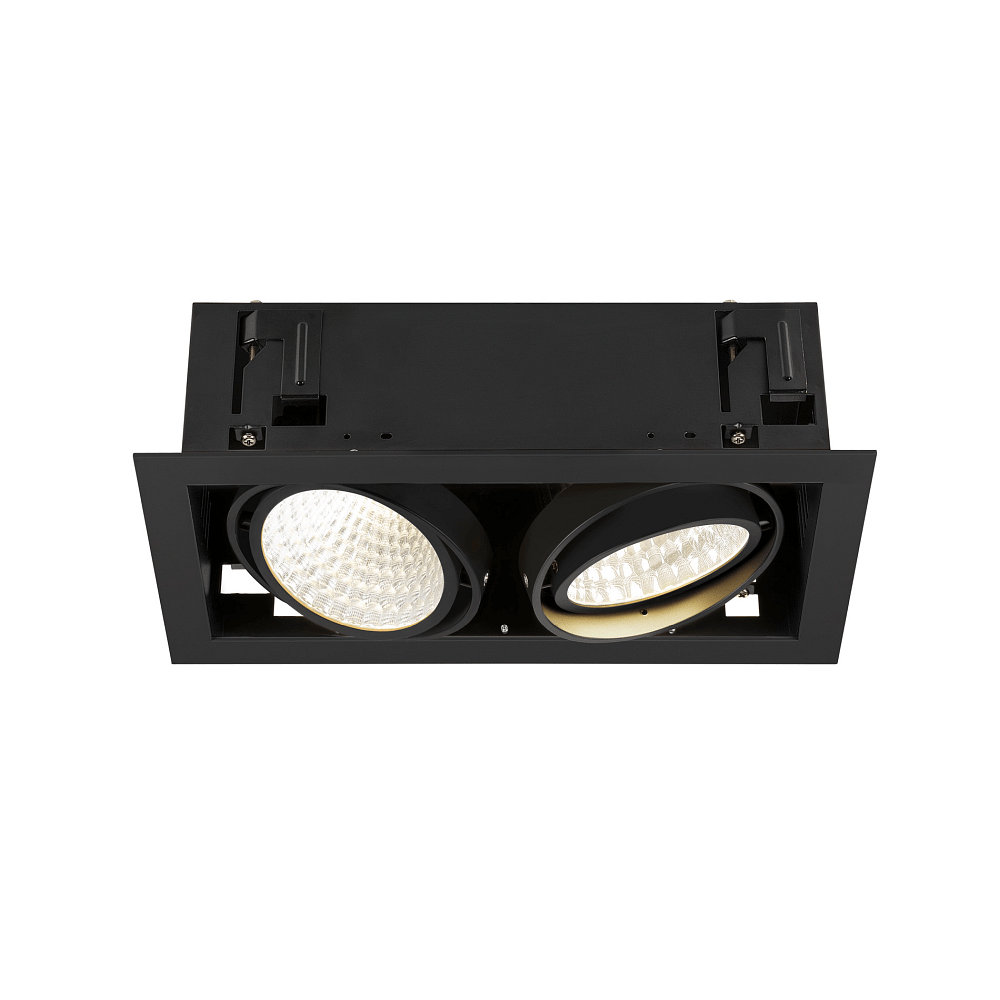

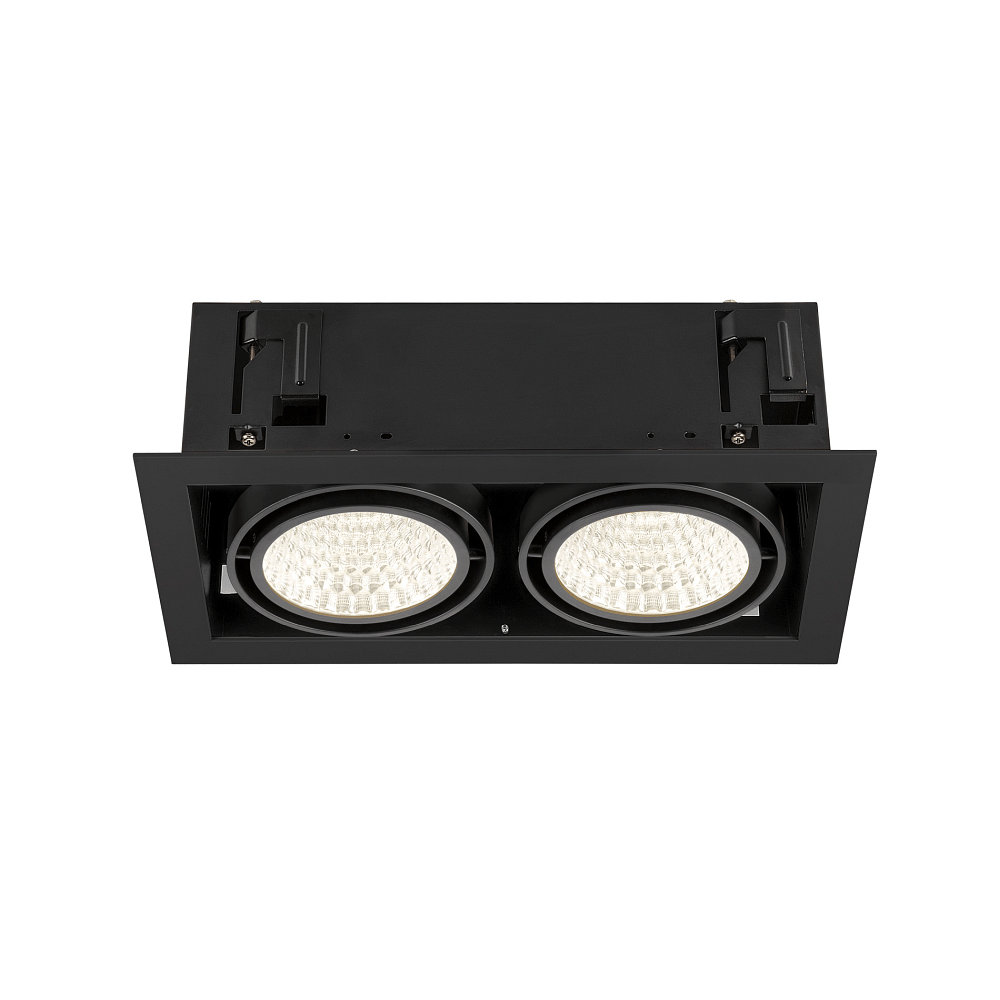

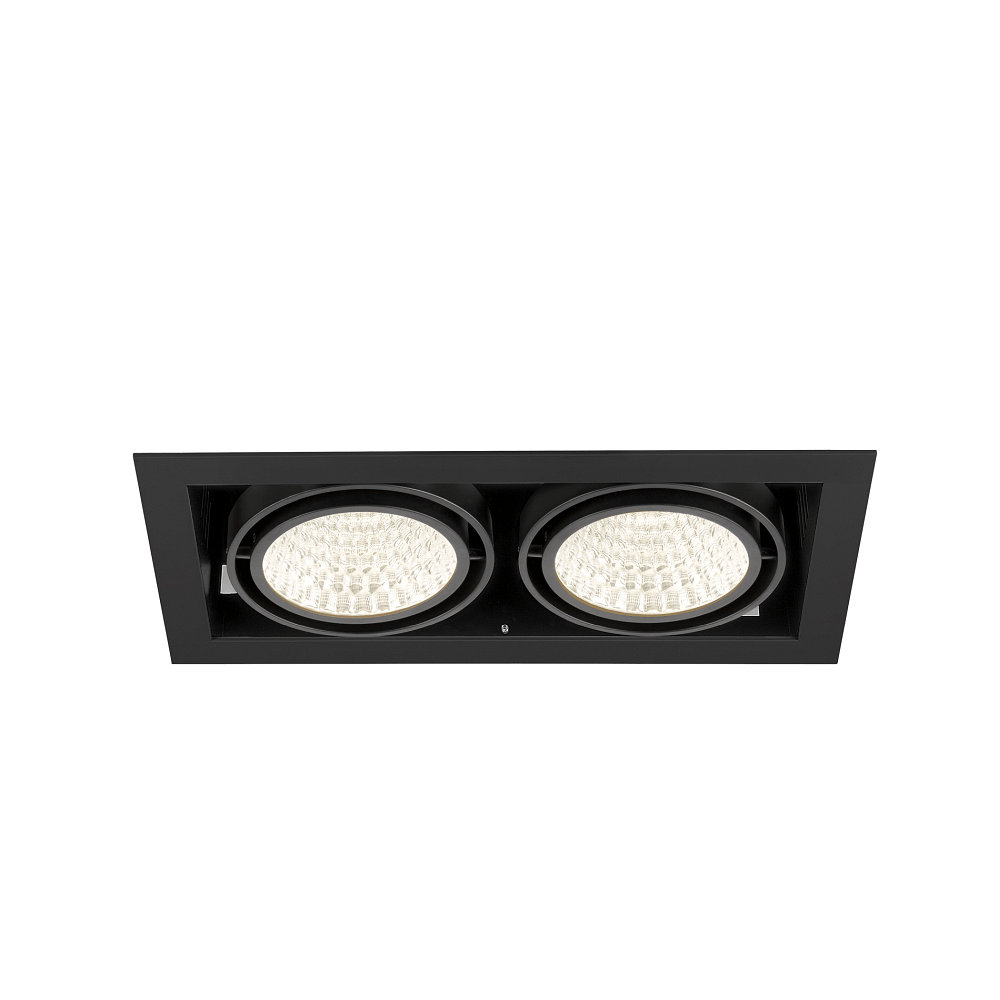

High-Quality LED Recessed Ceiling Spotlight KADUX DOUBLE

The LED recessed ceiling spotlight KADUX DOUBLE from SLV impresses with its modern, rectangular design and high-quality workmanship made of painted aluminum and steel. With dimensions of 37 x 19.5 x 12.5 cm, it is ideally suited for installation in hollow ceilings. The two swiveling lamp heads can be adjusted 30° to both sides, allowing the light direction to be flexibly adapted to individual needs. The robust housing ensures a long service life and reliable operation over many years.

Efficient and Brilliant Light Quality

The KADUX DOUBLE delivers a neutral white light color with 4000 Kelvin and offers excellent color rendering with a CRI value of over 90 Ra, making colors appear particularly natural and vivid. With a light output of 6800 lumens and an efficacy of 125.93 lm/W, the spotlight provides bright and even illumination. The light distribution is direct with a beam angle of 30°, ideal for targeted lighting. The average lifespan of the LEDs is 50,000 hours, which speaks for long-term use without frequent replacement.

Innovative DALI-2 Dimming Function and Smart Control

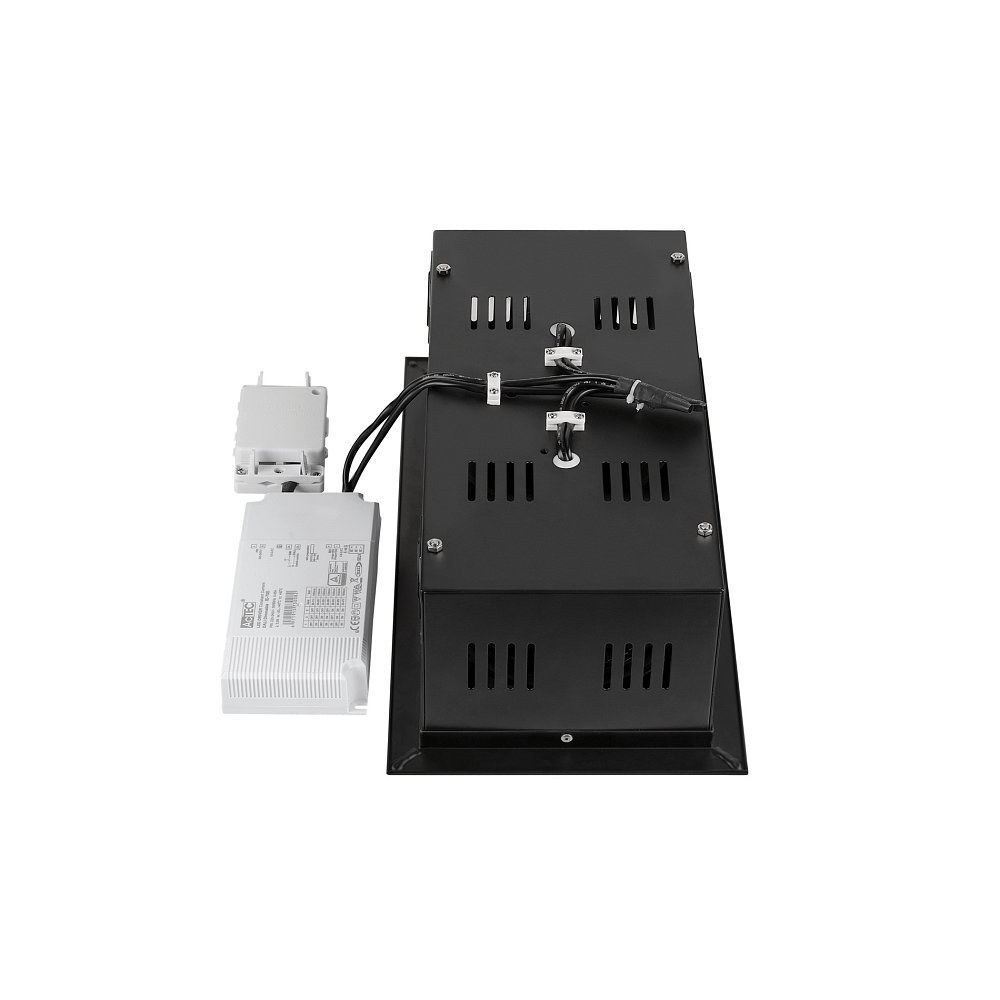

The recessed spotlight is equipped with state-of-the-art DALI-2 technology and offers stepless dimming, which can also be controlled via a push-dimmer. This allows the spotlight to integrate perfectly into digital building automation systems and enables flexible adjustment of light intensity to different moods and requirements. The integrated connection box with through-wiring and the external driver ensure easy installation and safe operation at 220-240 V AC with a low-voltage output.

Robust Construction and Easy Installation

The installation of the KADUX DOUBLE as a recessed ceiling spotlight is quick and secure thanks to four integrated clip springs. The maximum material thickness is 2.5 cm, allowing installation in various ceiling types. The device is ENEC certified, thus meeting high safety and quality standards. With a weight of 2.8 kg, the spotlight is also designed to be stable and durable. Protection class 2 guarantees safe operation without a protective conductor.

Various Versions and Practical Accessories

The KADUX DOUBLE is available in different versions, including warm white (3000K) or neutral white (4000K) light color as well as in black or white with black inner surfaces. Besides the two-lamp version, there is also a single-lamp version. The scope of delivery includes the connection box, through-wiring, and driver, while controllers and dimmers are available as optional accessories. The KADUX series also offers other luminaires with integrated LED modules or for replaceable reflector lamps, providing suitable solutions for different lighting requirements.

Colour:
black
Glass color:
clear
Reflector color:
silver,faceted

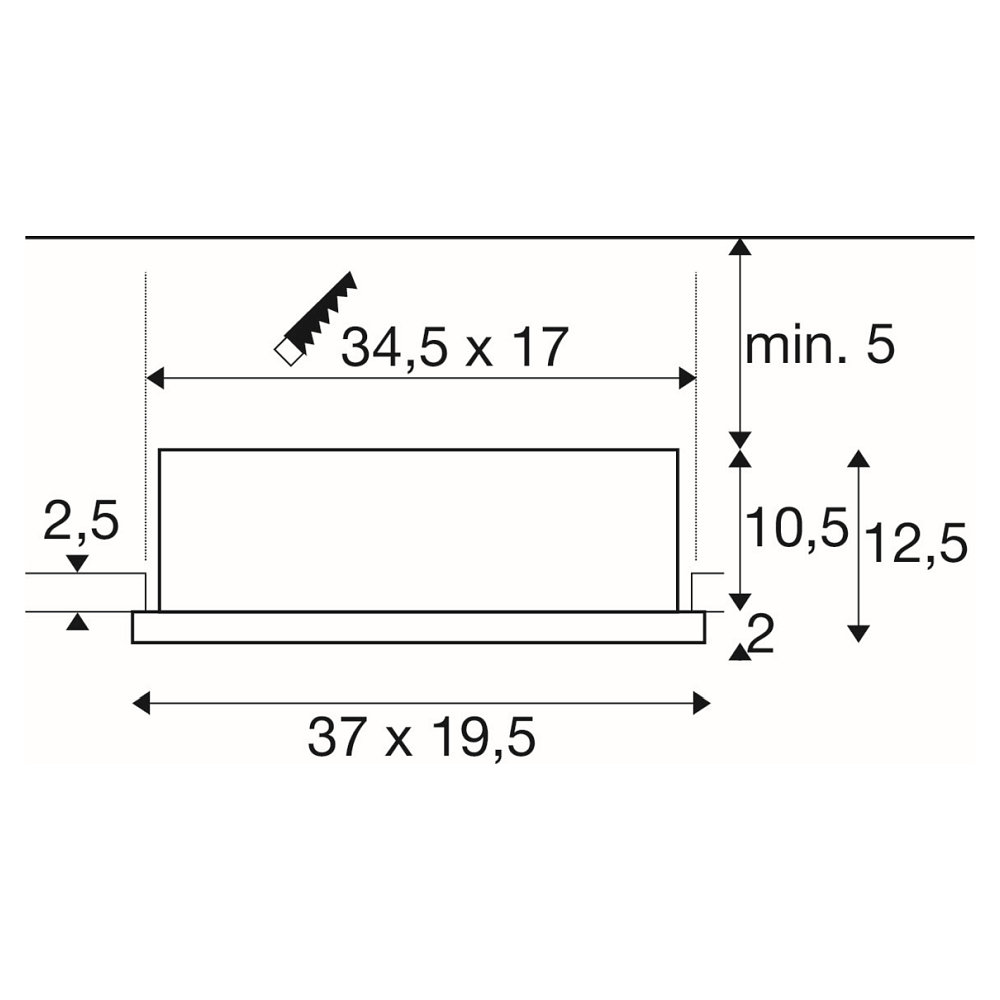

Dimension:
total-L∕ B∕ H: 37∕ 19,5∕ 12,5 cm
visible part-L∕ B∕ H: 37∕ 19,5∕ 2 cm
max. material thickness-H: 2,5 cm
Material:
aluminium
steel
lacquered
Weight:
2,8 kg
Product type:
recessed spotlight
Lamp shape:
square
Accessories:
connection box - included in delivery
through wiring - included in delivery
driver - included in delivery
controller - not included in delivery
dimmer - not included in delivery
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
push dimmer,DALI-2
Power frequency:
50/60 Hz
Power consumption:
54 W
Emitting angle:
30 °
Number of bulbs:
2
Light colour:
neutral white
Light emission:
direct
Beam direction:
swivelling
Light flux:
6800 lm
Light yield:
125,93 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
1A
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
12,5 cm
Fitting opening length:
34,5 cm
Fitting opening width:
34,5 cm
Wire/connection lead diameter:
2,52 mm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
Product ENEC tested:
yes
Additional information:
Material thickness ceiling: 25mm max.
System power: 54W
Color consistency (McAdam ellipse): SDCM6
ambient temperature:
-20 ... +40 °C
Energy efficiency category:
D
EPREL No:
2093766
Energy consumption:
54 kWh/1.000 h
Article number:
1008574
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
