ceiling recessed luminaire KADUX SINGLE 1 flame, DALI controllable, cardanic swivelling IP20, black dimmable

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

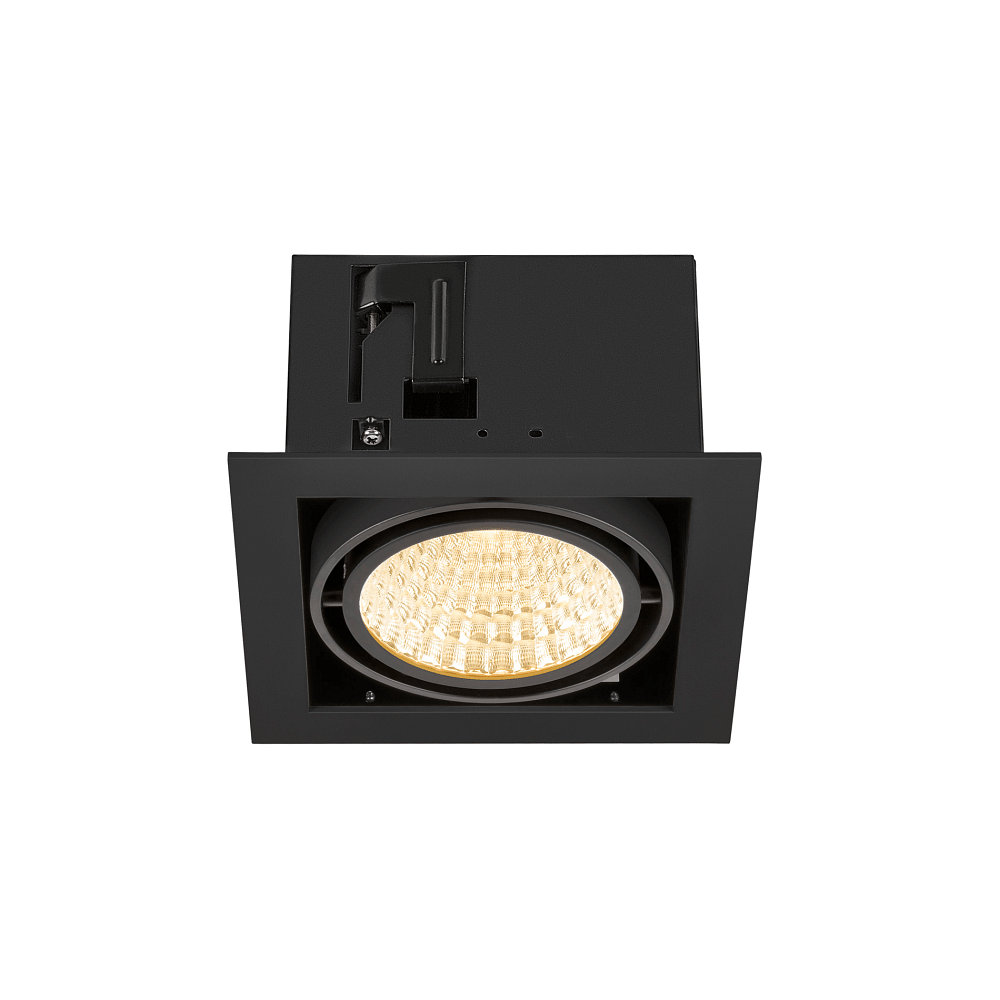

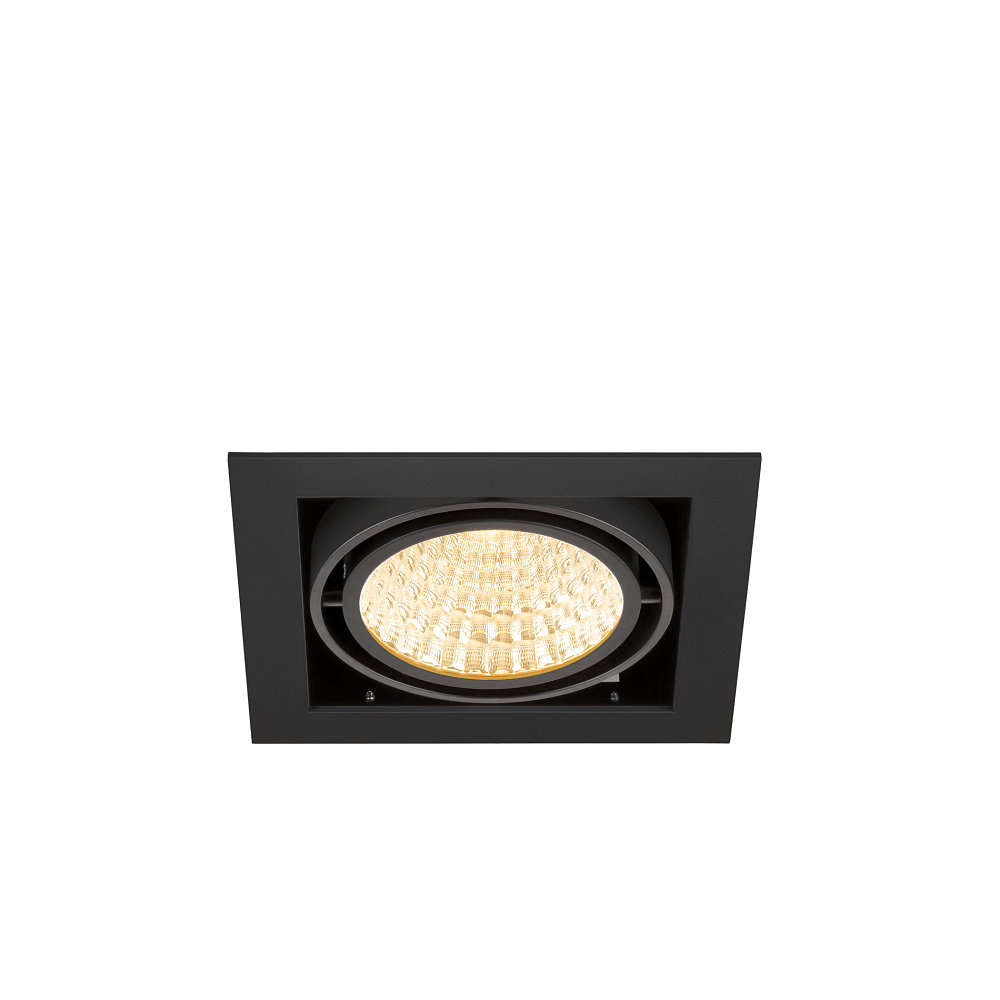

High-Quality LED Recessed Ceiling Spotlight KADUX SINGLE

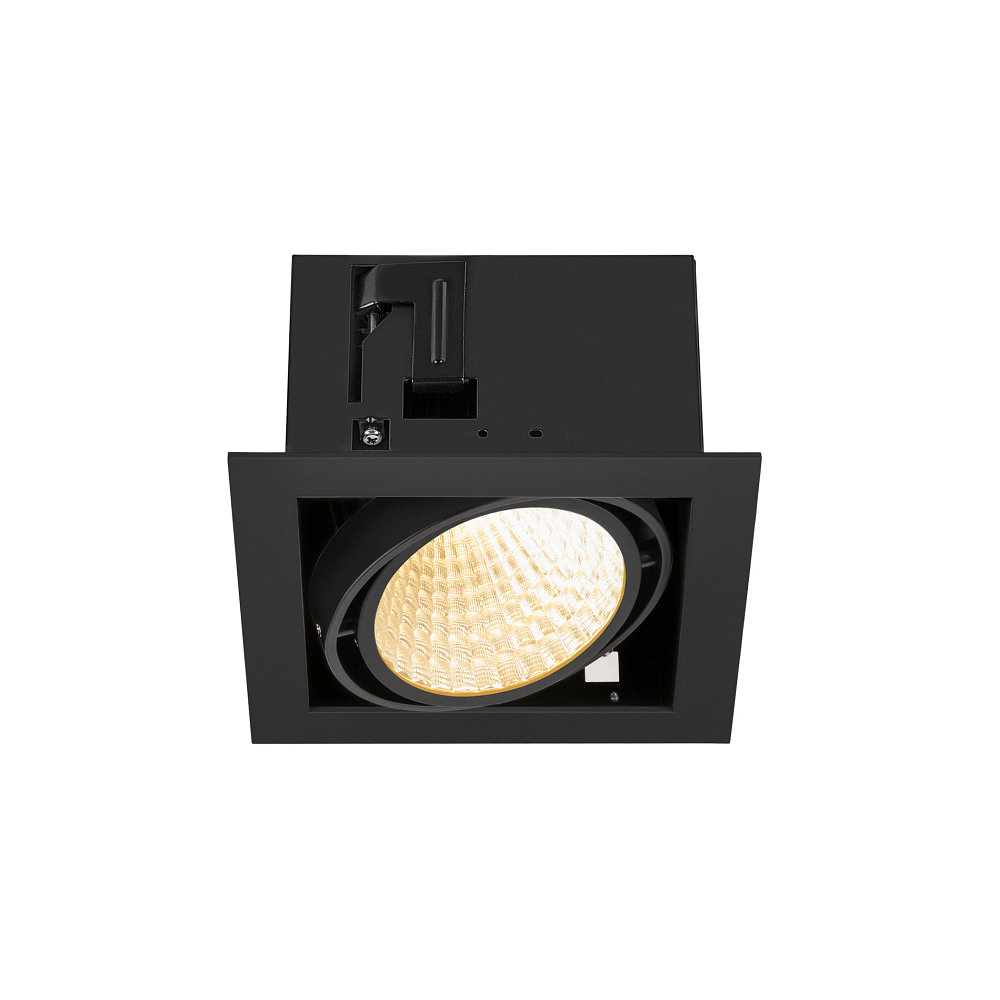

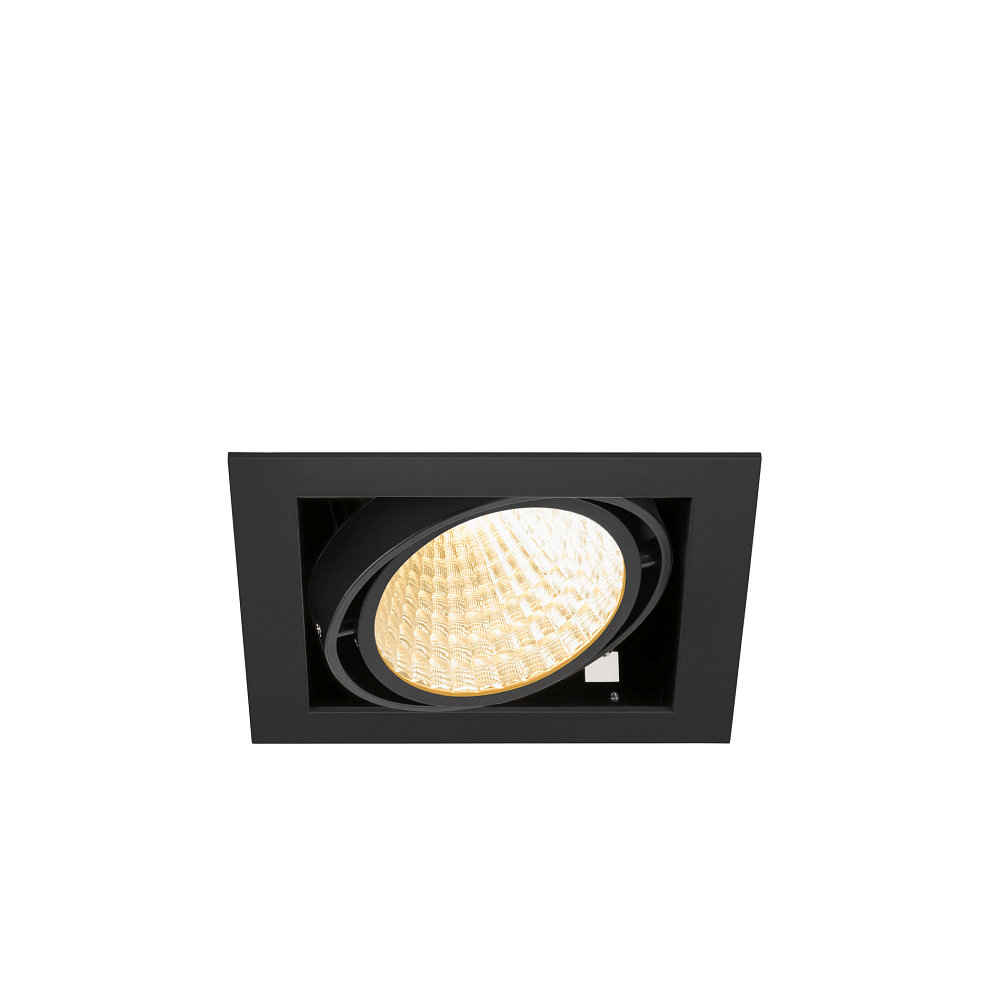

The LED recessed ceiling spotlight KADUX SINGLE from SLV impresses with its first-class workmanship and modern technology. Featuring a robust housing made of painted aluminum and steel, it offers a durable and stable solution for your lighting needs. The square shape with an adjustable, round light head allows flexible light orientation, which can be tilted 30° to both sides. This enables precise focusing of the light beam on desired areas.

Efficient Light Output and Excellent Color Rendering

This recessed spotlight delivers an impressive light output of 3050 lumens at 27 watts with a luminous efficacy of 112.96 lm/W. The warm white light color at 3000 Kelvin creates a pleasant atmosphere, while the high color rendering index of over 90 Ra guarantees natural and authentic color representation. The color consistency corresponds to SDCM6, ensuring uniform light quality without visible color differences.

Intelligent DALI-2 Dimmability and Easy Installation

The luminaire is equipped with state-of-the-art DALI-2 dimmability and can be dimmed steplessly via DALI, DALI-2, or a push dimmer. This makes the spotlight ideal for digital building automation systems. Installation is as a recessed luminaire with an installation depth of 12.5 cm and a maximum material thickness of 2.5 cm. Thanks to the integrated spring clips and the supplied connection box with through-wiring, installation is simple and secure.

Robust Technology for Long Service Life and Safe Use

The KADUX SINGLE has an average lifespan of 50,000 hours, making it particularly durable and low-maintenance. The energy-saving LED technology consumes only 27 kWh per 1,000 operating hours. For safe and reliable operation, an external driver converts the mains voltage of 220-240 V AC into a constant low voltage DC of 350 mA. Protection class 2 and ENEC certification ensure the highest safety standards during operation.

Versatile Variants and Accessories Included

The spotlight is available in various versions, including models with a white frame and black interior as well as single- or double-lamp versions. The scope of delivery includes the connection box, through-wiring, and driver, while controllers and dimmers can be ordered separately. With a protection rating of IP20, the luminaire is suitable for dry areas and, thanks to its compact dimensions of 19.5 x 19.5 x 12.5 cm, it blends unobtrusively into any ceiling.

Colour:
black
Glass color:
clear
Reflector color:
silver,faceted

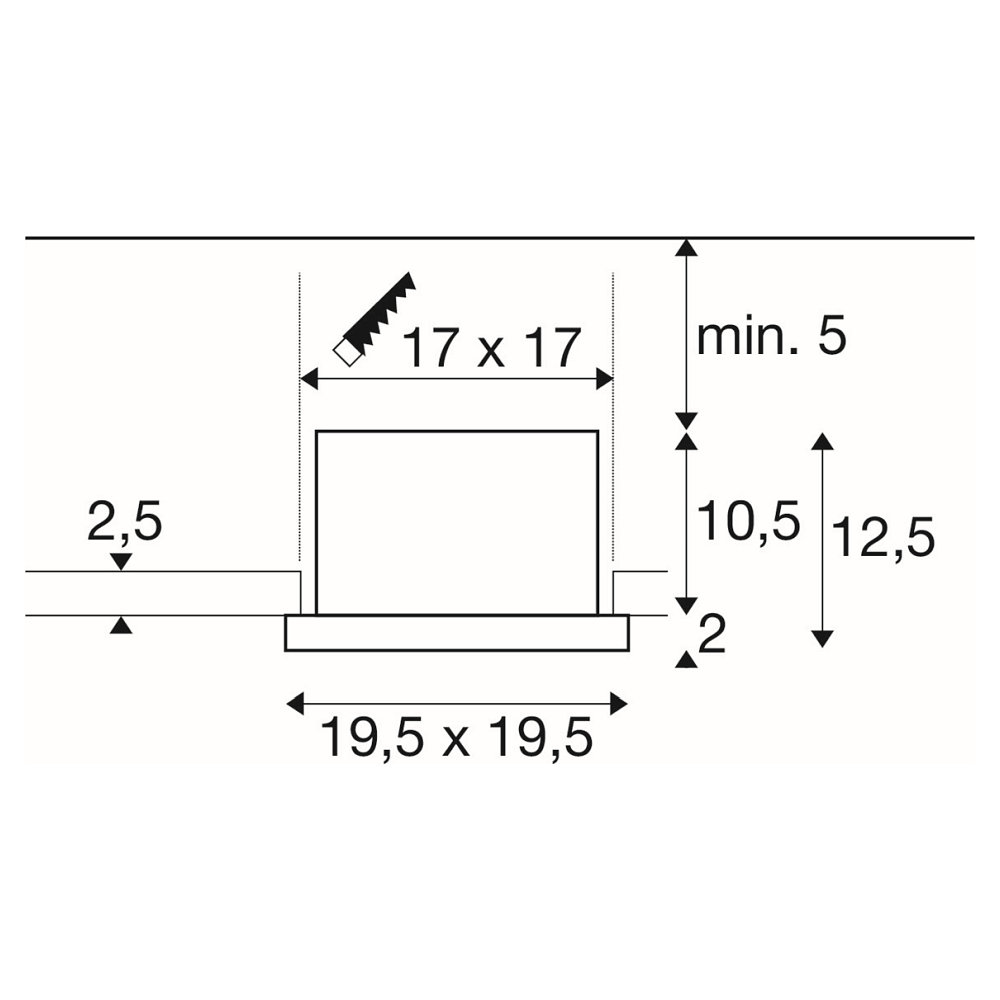

Dimension:
total-L∕ B∕ H: 19,5∕ 19,5∕ 12,5 cm
visible part-L∕ B∕ H: 19,5∕ 19,5∕ 2 cm
max. material thickness-H: 2,5 cm
Material:
aluminium
steel
lacquered
Weight:
1,48 kg
Product type:
recessed spotlight
Lamp shape:
square
Accessories:

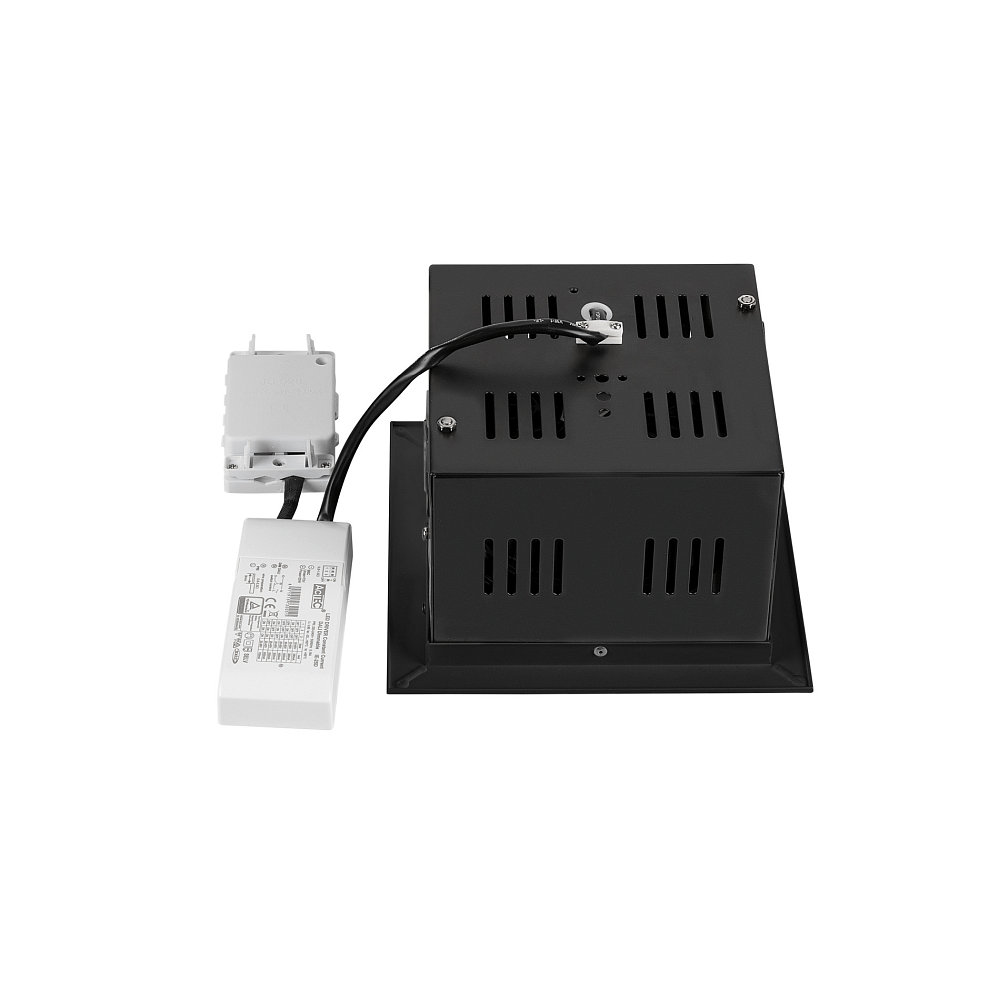

connection box - included in delivery
through wiring - included in delivery
driver - included in delivery
controller - not included in delivery
Dimmer - not included in delivery
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
push dimmer,DALI-2
Power frequency:
50/60 Hz
Power consumption:
27 W
Emitting angle:
30 °
Number of bulbs:
1
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
3050 lm
Light yield:
112,96 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
1A
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
12,5 cm
Wire/connection lead diameter:
2,52 mm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
Product ENEC tested:
yes
Additional information:
Material thickness ceiling: 25mm max.
System power: 27W
Color consistency (McAdam ellipse): SDCM6
ambient temperature:
-20 ... +40 °C
Energy efficiency category:
D
EPREL No:
1411562
Energy consumption:
27 kWh/1.000 h
Article number:
1008568
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
