control gear LONG-FLAT DIM CV - 24V 50-150W voltage constant, 1 channel, black

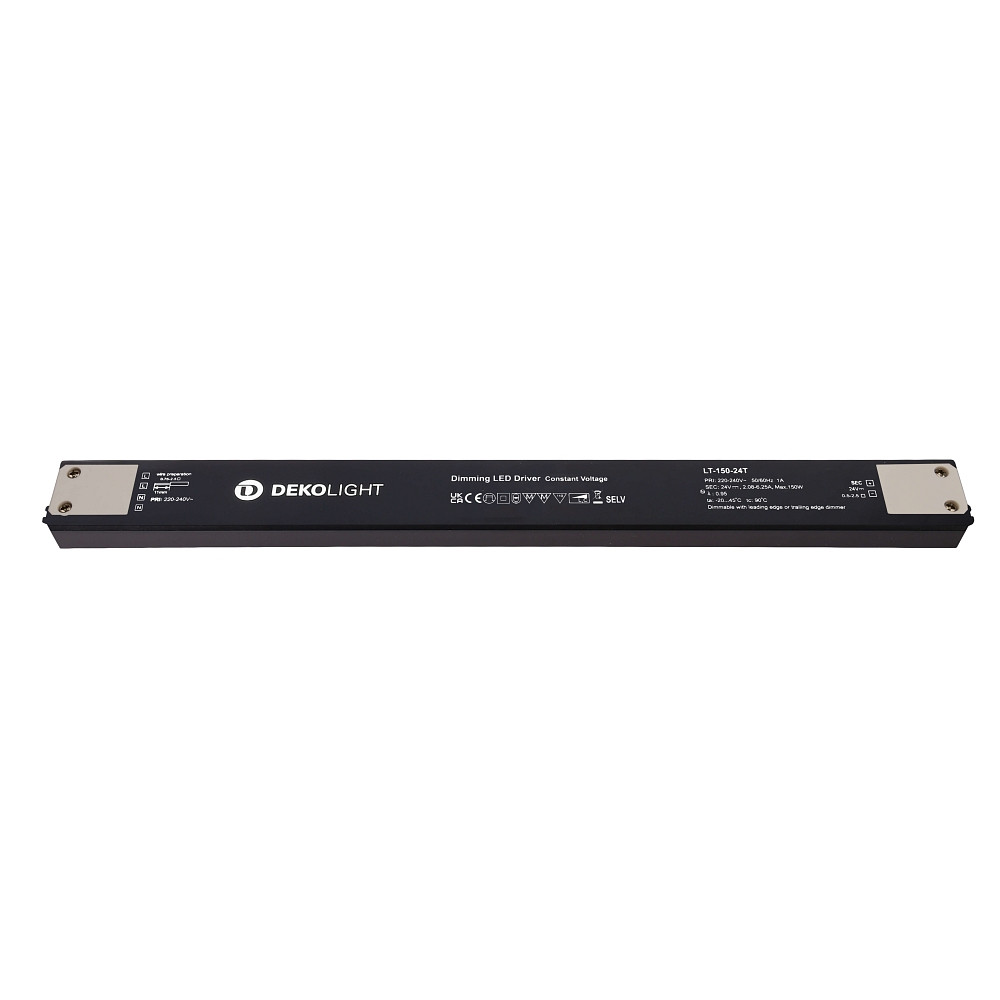

LED operating device LONG-FLAT DIM CV

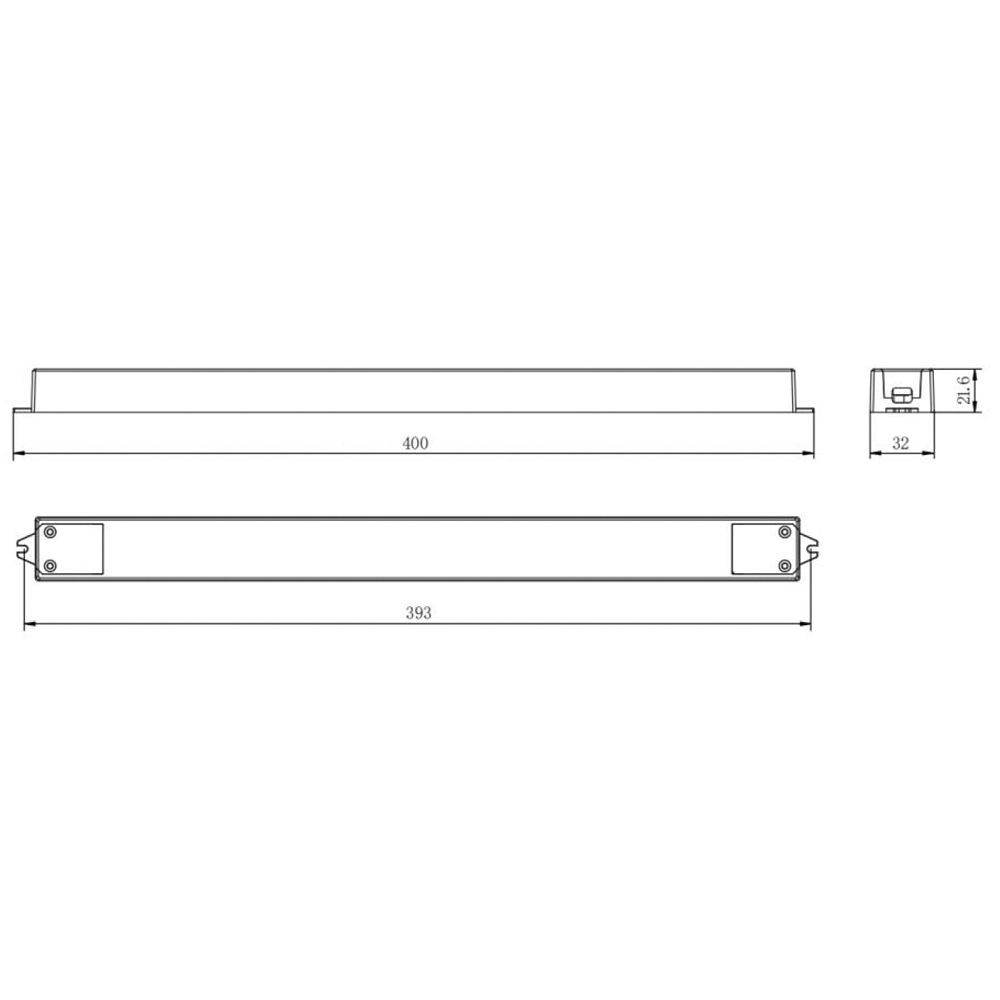

The LED operating device LONG-FLAT DIM CV from Deko-Light offers an operating voltage of 24V DC and a power output of 50-150W. It is voltage constant and dimmable, allowing the brightness of the LEDs to be adjusted as needed. With dimensions of 40 x 3.2 x 2.16 cm and a weight of 0.235kg, it is compact and easy to install.

Technical details

The operating device has a constant current of 2080-6250mA and can be operated with an input voltage of 220-240V~. It supports dimming types phase cut and phase cut and is suitable for indoor use. The housing is black and made of polycarbonate (PC).

Reliable performance

With an average lamp life of 50000 hours and a switching cycle count of 100000, the operating device offers reliable performance. The power factor is 0.95 and the maximum switching current is 75 A at a maximum time of 300 µs. The ambient temperature should be between -20 and +45 °C.

Easy installation

The LED operating device is connected via a terminal connection and has a mains connection via terminals. The IP protection rating is IP20 and the mains frequency is between 50-60Hz. Thanks to its compact size and low weight, it is easy to handle and mount.

Versatile application

Thanks to its high reliability and versatile adjustment options, the LED operating device LONG-FLAT DIM CV is suitable for use in various areas. Whether in residential areas, offices, or retail stores - it provides individual lighting and creates a pleasant atmosphere.
