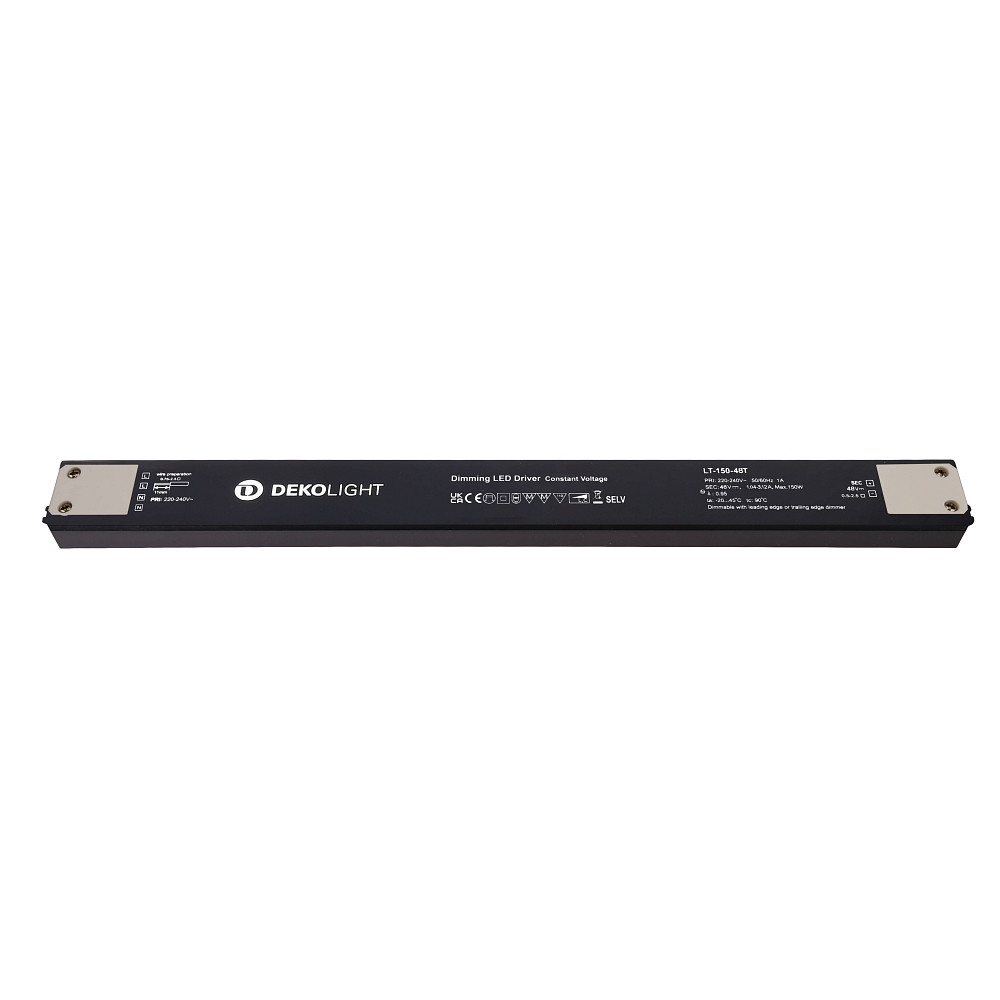

control gear LONG-FLAT DIM CV - 48V 50-150W voltage constant, 1 channel, black

LED Operating Device LONG-FLAT DIM CV

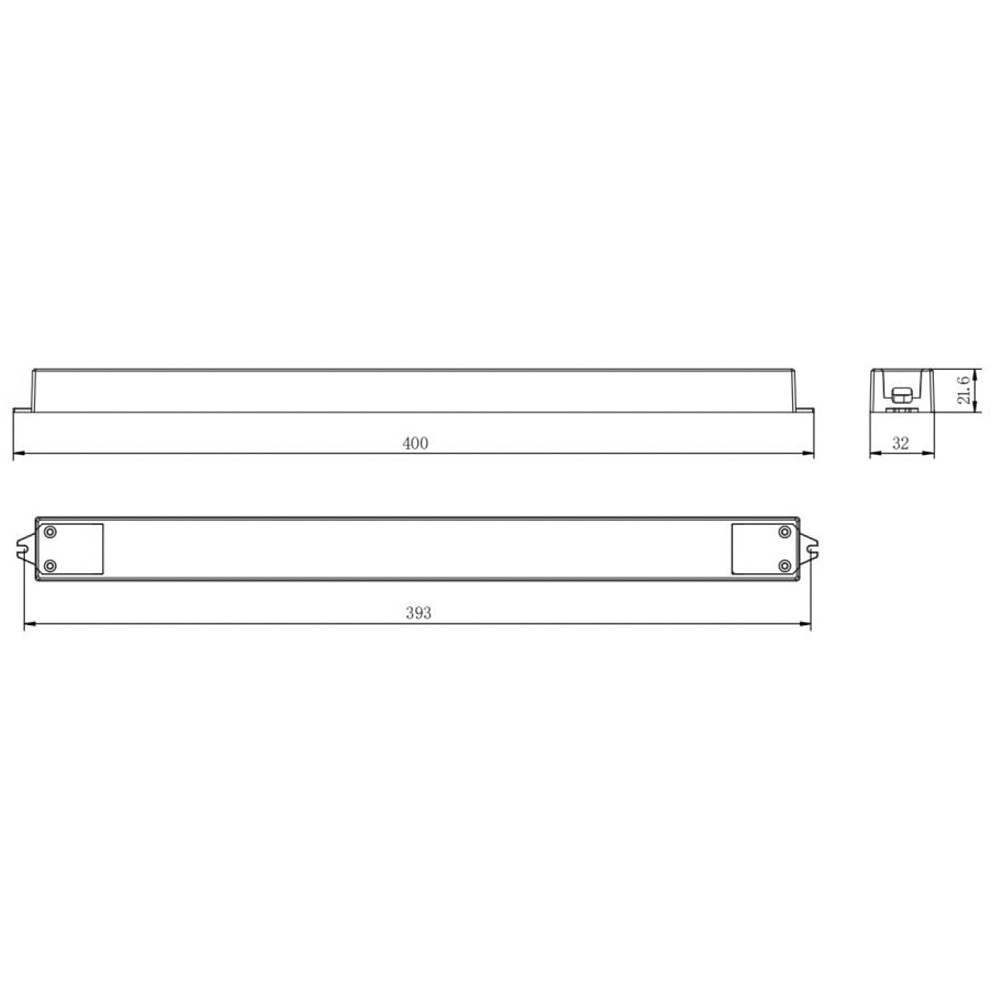

The LED operating device LONG-FLAT DIM CV from Deko-Light is ideal for indoor use. With an operating voltage of 48V DC and a power of 50-150W, it provides a reliable power supply for your LED luminaires. Thanks to its compact size of only 40 x 3.2 x 2.16 cm, it can be easily and discreetly installed.

Easy Dimming

Thanks to the dimming function of the operating device, you can adjust the brightness of your LED lighting as needed. The device supports both phase-cut dimmers and phase-cut dimmers, allowing you to adjust the light intensity to your liking.

High Quality and Durability

The LED operating device impresses not only with its reliability, but also with its high-quality workmanship. With a constant current of 1040-3125mA and a power factor of 0.95, it ensures that your LED luminaires are optimally supplied. The average lamp life of 50000 hours also guarantees a long service life.

Safe and Efficient

Thanks to the IP20 protection class, the operating device is protected against dust and contact. The operating temperature range of -20 to +45 °C ensures that the device functions optimally even under extreme conditions. With a maximum switch-on current of 75 A and a switching cycles of 100000, the operating device is also particularly efficient and durable.

Versatile Connection Options

The LED operating device has a network connection via terminal and a plug type terminal connection, allowing for easy installation. With a mains voltage of 220-240V~ and a mains frequency of 50-60Hz, the device is versatile and offers maximum flexibility in application.
