corner connector LINEAR10 FLEX - 0.5W 24V CRI927 with lighting, white

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

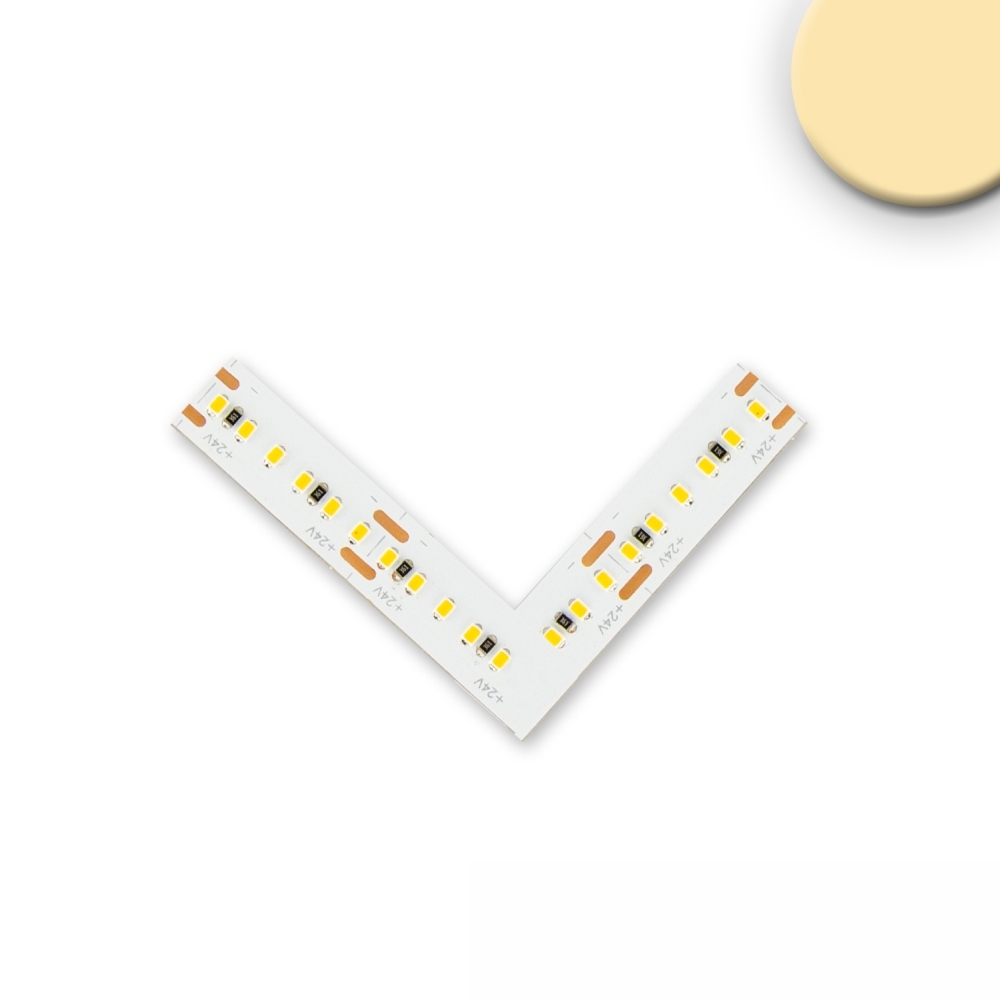

High-Quality Corner Connector for Linear10 Flex Strip

The corner connector from ISOLED is specially designed for the Linear10 flex strip and ensures a secure and stable connection at corners and edges. With a power consumption of 0.5 watts, it offers an efficient lighting solution that integrates seamlessly into your lighting system. Thanks to the IP20 protection rating, the connector is well protected against dust, which enhances the product's durability.

Optimal Color Temperature for Pleasant Light

The corner connector emits a warm white light with a color temperature of 2700 Kelvin. This light creates a cozy and inviting atmosphere in any room. With a high color rendering index (CRI) of over 90, colors are rendered especially naturally and vividly, significantly improving the quality of your lighting.

Energy-Efficient and Dimmable Lighting

With an operating voltage of 24 volts and a power of 10 watts, the corner connector is both energy-efficient and powerful. The integrated dimmability via PWM pulse width modulation allows for stepless adjustment of brightness. This way, you can customize the light to your needs while saving energy at the same time.

Robust Material for Long Service Life

The corner connector is made of high-quality plastic and copper, making it particularly robust and durable. Copper ensures optimal electrical conductivity, while the plastic protects the product from mechanical influences. This combination guarantees reliable performance over many years.

Trust the ISOLED Brand

ISOLED stands for quality and innovation in lighting technology. The corner connector for the Linear10 flex strip is an example of the high manufacturing quality and technical precision that characterize the company. With this product, you receive an efficient, durable, and flexible solution for your lighting projects.

Colour:
white
Dimension:
L∕ W∕ H: 3,4∕ 3,4∕ 0,2 cm
strip-W: 1 cm
Material:
plastic
copper
Product type:
corner connector
Accessories:
Dimmer - not included in delivery
LED Strip - not included in delivery
Treiber - not included in delivery
Application area:
only suitable for indoor use
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
PWM dimming
Power consumption:
10 W
Emitting angle:
120.00 °
LED can be replaced :
no
Bulb type:
LED
Light colour:
extra warm white
Light emission:
direct
Light yield:
40 lm/m lm/W
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
90-100 Ra
1A
Contact gap:
0,7 mm
Wire/connection lead diameter:
0,5 ² mm
Mounting:
recessed mounting
surfaced mounting
system based mounting
IP-protection class:
IP20
Additional information:
Very good colour rendering.
Transformer power: 21 VA
ambient temperature:
0 ... +40 °C
Energy efficiency category:
F
EPREL No:
821908
Energy consumption:
10 kWh/1.000 h
Article number:
ISO-115187
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
