DALI dimmer OLED DALI-2 PUSH DIM DT8 / DC / 350MA / MASTER MULTI COULOUR PWM 4 channel, blue

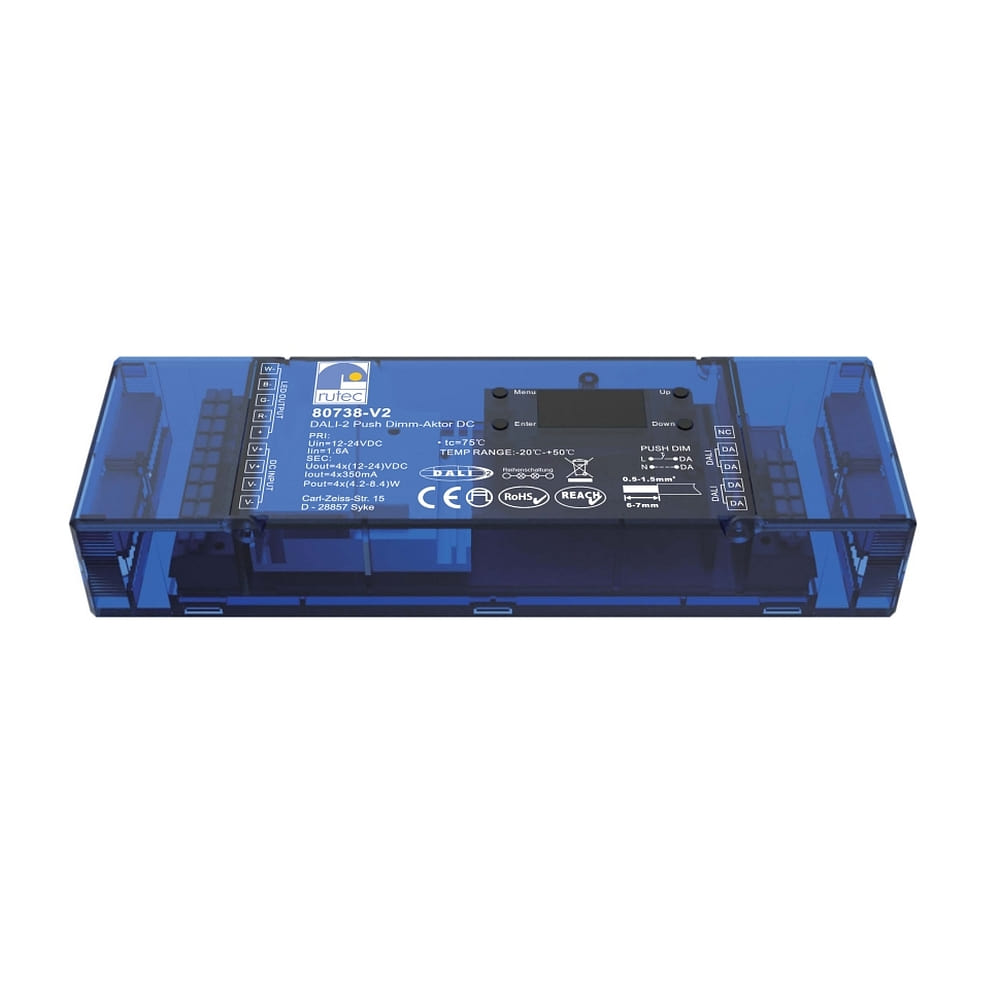

Rutec Projekt DALI-2 Push Dimm-Actuator DC DT8

The DALI-2 Push Dimm-Actuator from Rutec Projekt is a versatile dimmer for single-color lighting. With 4 channels PWM and integrated DALI MASTER function, it offers maximum flexibility.

Technical Details

The dimm-actuator has a maximum current rating of 0.35A and can be operated in a temperature range of -20 to +50 °C. It has a terminal connection and supports DALI-2 DT8 PUSH sensor technology.

OLED Display and Easy Installation

Thanks to the OLED display on the surface of the dimm-actuator, easy and quick installation is possible. All DT8 color types (XY, Tc, RGBW, Push-Dim) can be controlled with this device.

Compatibility and Performance

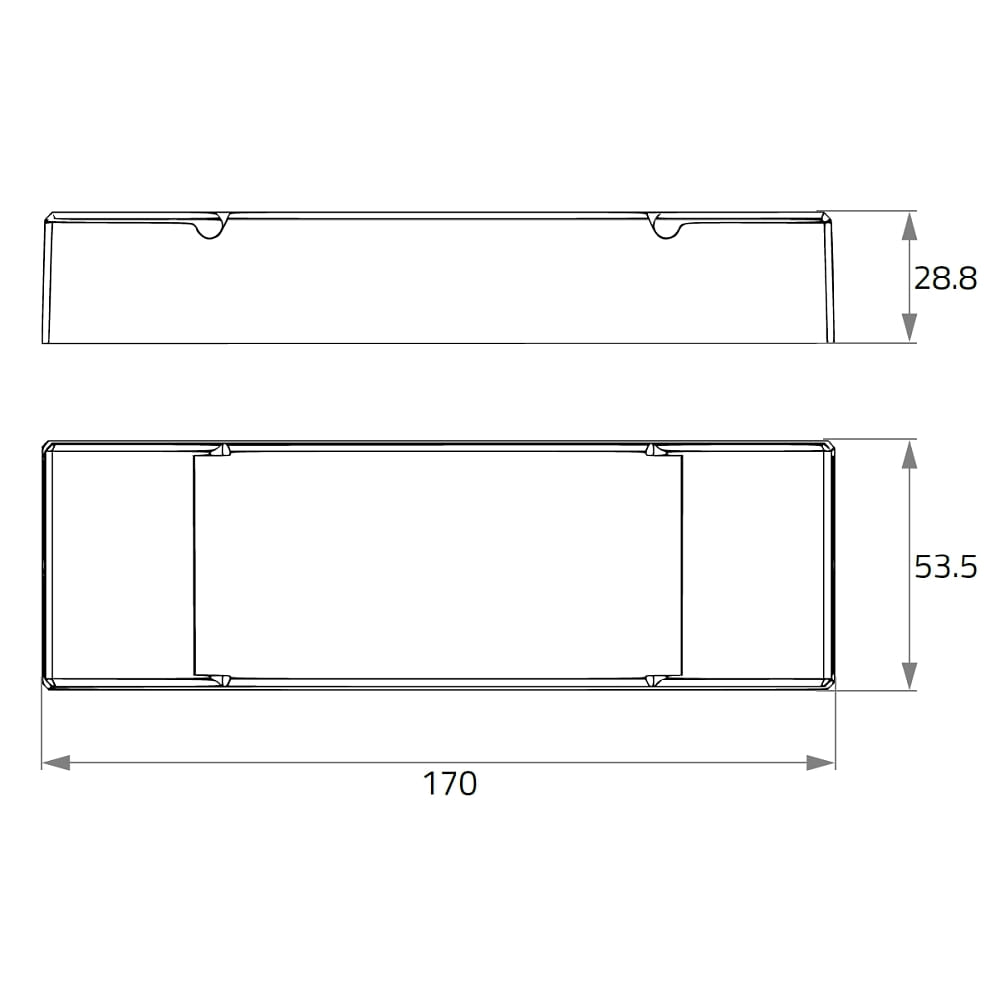

The DALI-2 dimmer is compatible with an operating voltage of 12-24V= and has a protection class of 3 and an IP protection rating of IP20. It has a size of 17 x 5.35 x 2.88 cm and a maximum power of 4x 4.2W @12V or 4x 8.4W @24V.

Additional Information

With just one DALI address, you can control each device and keep track on the integrated display. For more details, please refer to the product datasheet or manual.
