downlight CYRA+ XL - Ø 320MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable

Rutec

Print product information sheet▶

question regarding the article

Rutec downlight CYRA+ XL - Ø 320MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable

Print product information sheet▶

question regarding the article

£ 155,01

excl. Shipping costs / incl. 20 % VAT
RRP (manufacturer): £ 223.49

Price below RRP

Shipping time: out of stock

Product no.: RU-C+XL-1-1-NW-80-60-12
EAN: 4012094189796
In stock: 0

Alternative product variants:

downlight CYRA+ XL - Ø 320MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable downlight CYRA+ XL - Ø 320MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable downlight CYRA+ XL - Ø 320MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable downlight CYRA+ XL - Ø 320MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Description
Technical details

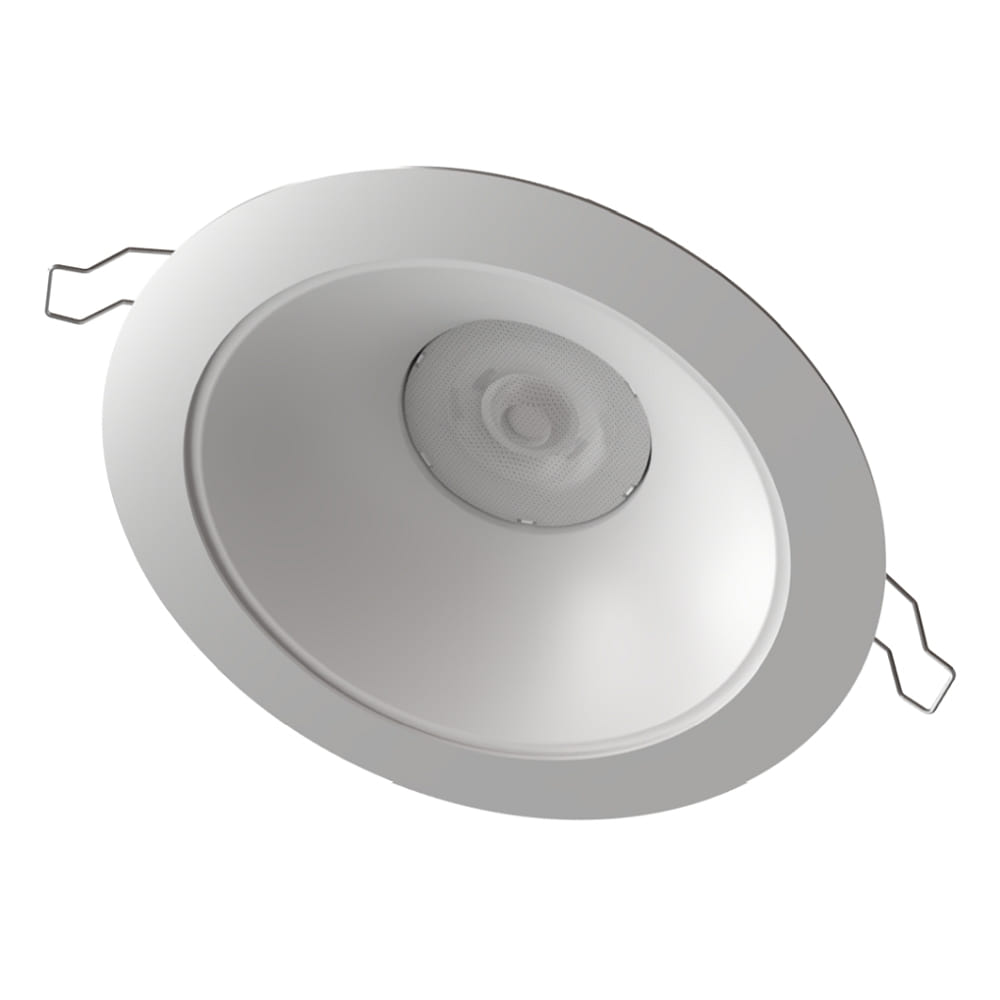

Efficient LED Downlight CYRA+XL

The LED Downlight CYRA+XL by Rutec is a highly efficient and durable recessed luminaire, ideal for new installations or replacing older fixtures. With a power consumption of 7/9/14W and a luminous flux of 1050/1300/2090lm, this downlight provides a neutral white, symmetrical light output with good color rendering for general lighting.

Versatile Adjustment Options

Thanks to the ability to adjust the power level/brightness via DIP switch on the driver, the CYRA+XL Downlight offers flexibility in adapting to different requirements. It also has a wide input voltage tolerance of 220-240V AC, 50-60Hz / 180-280V DC, making it versatile for various applications.

Easy Installation and High Comfort

With tool-less installation in existing ceiling cutouts and the option of variable ceiling cutout from Ø27.5 to 30cm, installing the CYRA+XL Downlight is easy and convenient. With an input luminous flux of <15 UGR, it is also suitable for lighting at screen workstations.

Technical Details and Accessories

The LED Downlight CYRA+XL comes with accessories such as clip springs, dimmer switches, lens, reflector, and driver, ensuring optimal use of the downlight. With a color rendering index of >80Ra and an energy efficiency class of C, this recessed luminaire offers excellent performance.

Environmentally Friendly Lighting Solution

The CYRA+XL Downlight is not only energy-efficient and long-lasting but also environmentally friendly. With an average lamp lifespan of 60000 hours and an energy consumption of 14kWh/1,000h, this downlight is a sustainable lighting solution for various applications.

RAL color value:

9016

Reflector color:

mat,traffic white

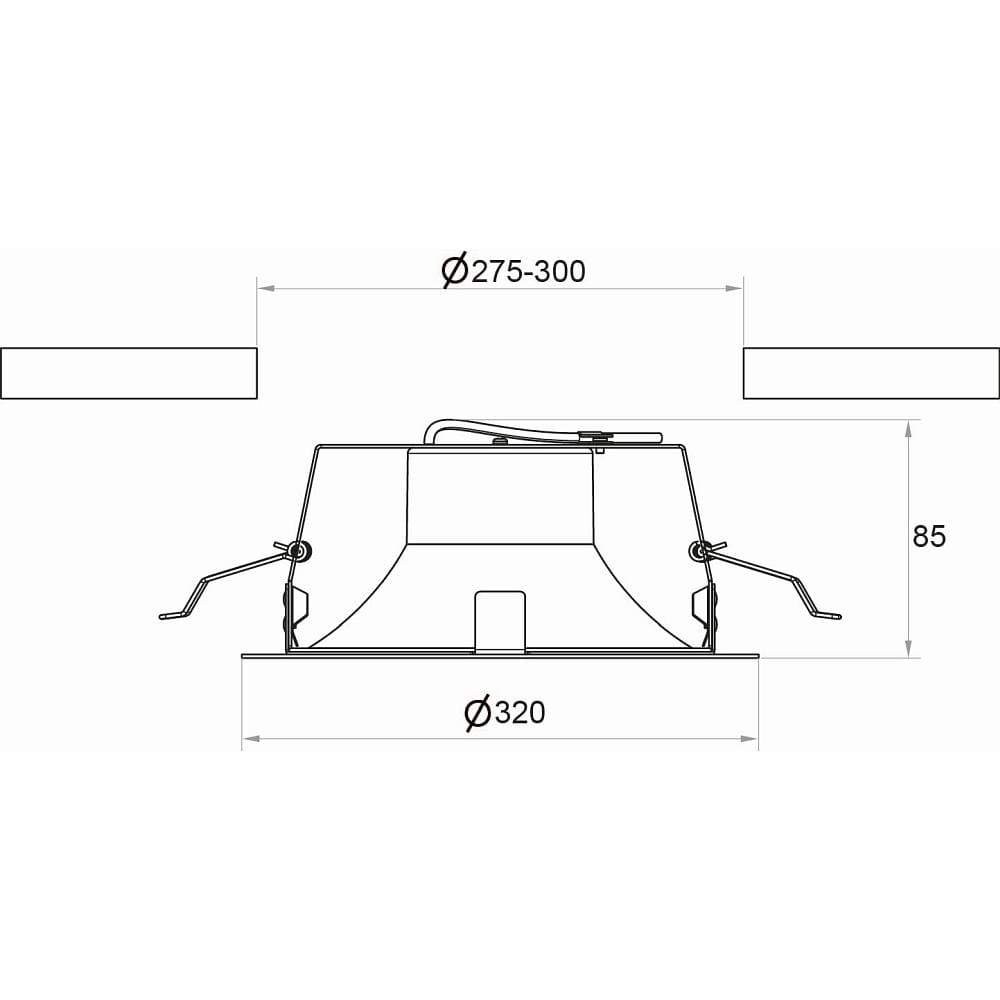

Dimension:

H: 8,5 cm
min. material thickness-Ø: 0,1 cm
max. material thickness-Ø: 3 cm
LED driver-L∕ B∕ H: 19,16∕ 5,84∕ 2,3 cm

Material:

aluminium
polymethylmethacrylat (PMMA)
steel sheet
galvanised
powder coated

Product type:

downlight

Accessories:

clip springs - included in delivery
dimming switch - included in delivery
lens - included in delivery
reflector - included in delivery
driver - included in delivery
controller - not included in delivery
dimmer - not included in delivery

Operating voltage:

220-240 V~

Dimmable:

yes

Dimmability:

DALI,in several steps,push dimmer

Power consumption:

7/9/14 W

Emitting angle:

60 °

Number of bulbs:

Beam direction:
