downlight SMD-68-230V-ROUND swivelling, built-in version IP20, traffic black dimmable

High-Quality LED Retrofit Downlight for Precise Lighting

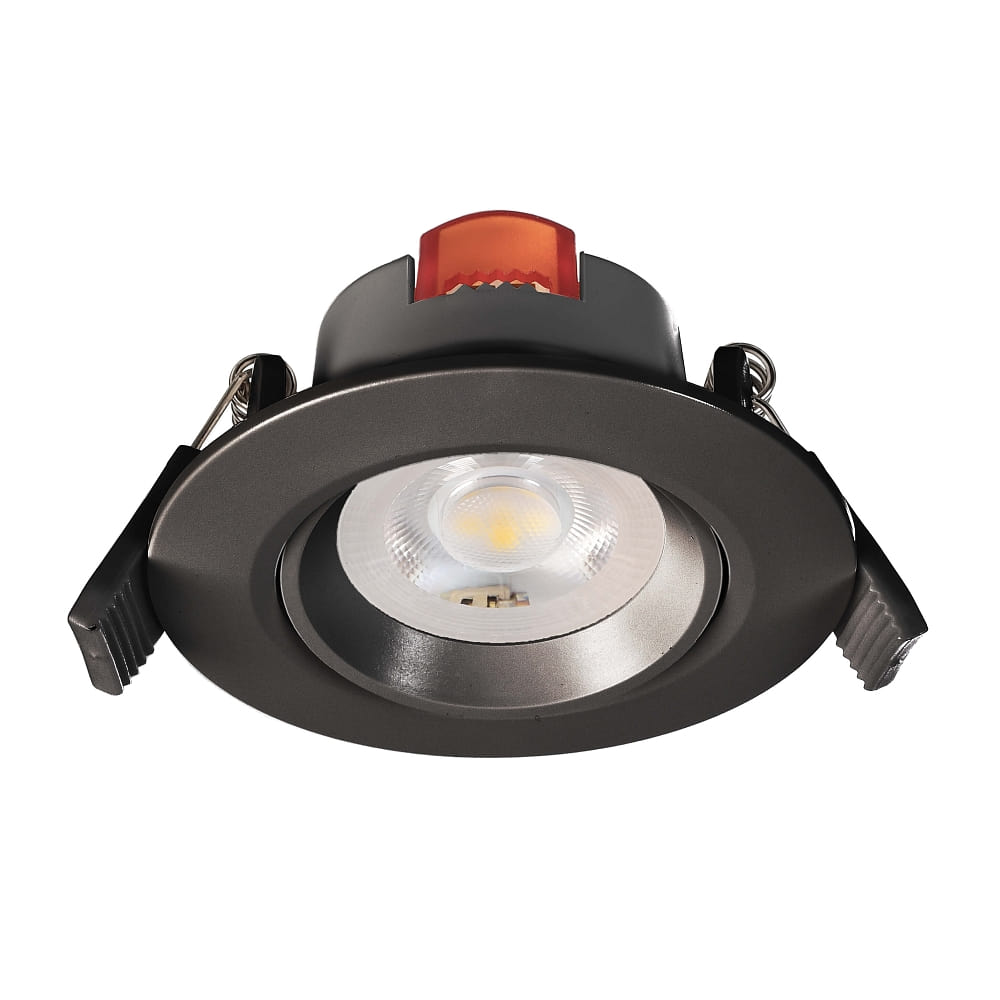

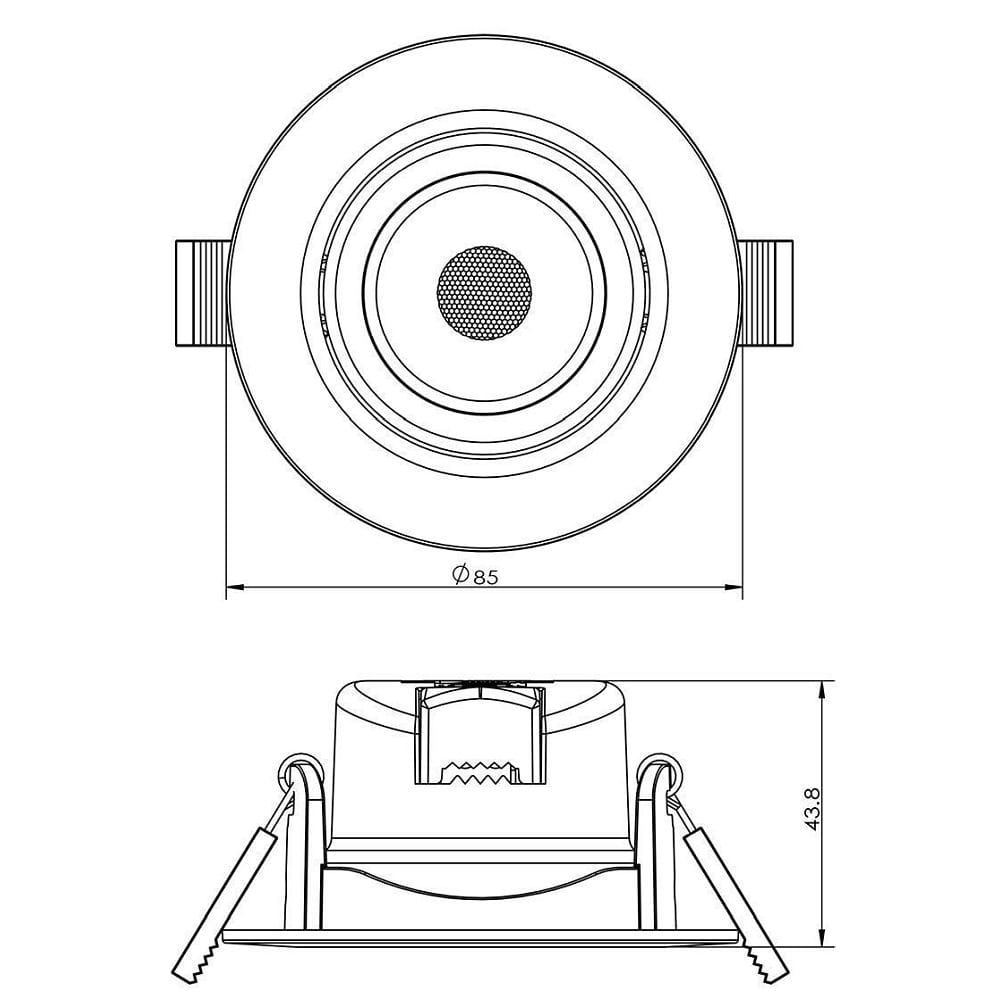

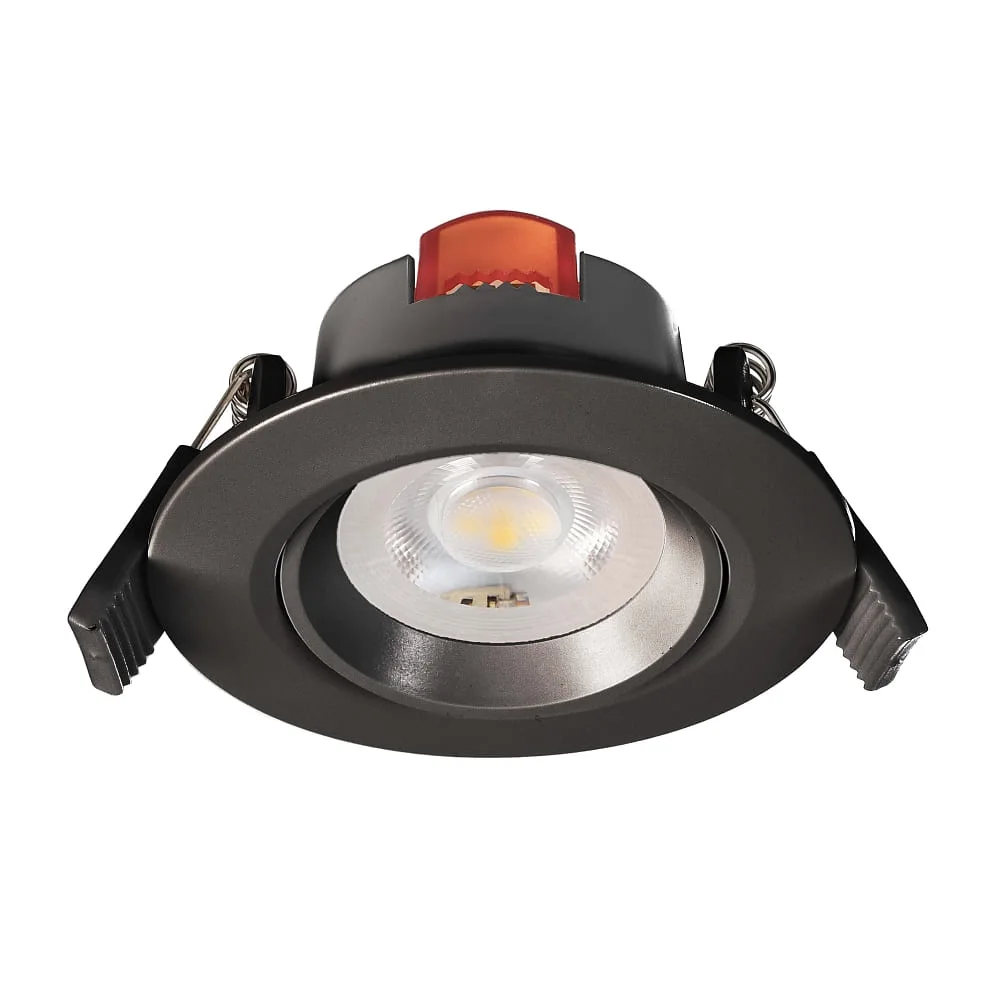

The LED retrofit downlight SMD-68-230V-RUND from Deko-Light is a modern ceiling light distinguished by its slim design and adjustable LED module. With a diameter of 8.5 cm and an installation depth of only 4.13 cm, it fits perfectly into standard 68 mm drill holes, enabling easy renovation or new installation. The adjustable LED module with 36° movement allows flexible light direction to illuminate targeted areas.

Efficient and Long-Lasting LED Technology

Equipped with seven SMD LEDs of type 2835, this downlight delivers a luminous intensity of 589 candela and a luminous flux of 540 lumens. The LED is permanently installed and non-replaceable, ensuring an especially long lifespan of up to 30,000 hours. With an energy consumption of only 6.5 watts, the fixture is very economical and features a power factor of 0.9, further optimizing energy efficiency.

Pleasant Light Quality with Warm White Color Temperature

The light color is warm white with a color temperature of 3000 Kelvin, creating a cozy and comfortable atmosphere. The color rendering index is above 80 Ra, making colors appear natural and vibrant. Symmetrical light distribution and a beam angle of 45° ensure even illumination without disturbing shadows. The clear cover provides a medium-wide, direct light emission, optimally adapted to various room conditions.

Comfortable Control and Easy Installation

The downlight is equipped with an internal dimmable LED driver connected directly to 230V AC. Dimming is possible via conventional phase-cut dimmers, both leading edge and trailing edge, allowing flexible brightness adjustment. Secure and simple installation is ensured by fixed spring clips and a practical clamp connection for the mains connection. The light weight of only 68 grams further facilitates handling.

Reliability and Versatile Applications

The LED retrofit downlight impresses with protection class 2 and protection rating IP20, protecting it from dust and contact. The fixture is designed for ambient temperatures from -5 to +40 °C and withstands up to 50,000 switching cycles. With a color consistency of 6 SDCM, it provides consistent light quality throughout its entire lifespan. Available in various housing and light colors, this downlight can be adapted flexibly to individual design preferences and provides efficient, long-lasting general lighting.
