Flat LED under-cabinet luminaire LED Top-Stick FMT with touch dimmer, IP20, CRi> 95, LED24 connection, 60cm, 10W 4000K

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Hera Flat LED under-cabinet luminaire LED Top-Stick FMT with touch dimmer, IP20, CRi> 95, LED24 connection, 60cm, 10W 4000K

Elegant and Efficient LED Under-Cabinet Light TOP-STICK FMT

The LED under-cabinet light TOP-STICK FMT from Hera impresses with its slim, angular design made of anodized aluminum, guaranteeing a modern and high-quality appearance. With a length of 60 cm and a construction height of only 0.8 cm, it fits perfectly to furniture and wall surfaces without appearing intrusive. The light distribution is diffuse, providing an even illumination that is pleasant to the eye.

Technical Details and Performance Features

The light operates at a power of 10 watts and offers a luminous efficacy of 63 lumens per watt, resulting in a total luminous flux of 1135 lumens. The color temperature is neutral white (4000K), ideal for natural and clear lighting. The color rendering index of over 95 Ra ensures that colors appear especially true and brilliant. The average lifespan of the LED is an impressive 60,000 hours, so you can enjoy the lighting for a long time.

Practical Functions and User Comfort

An integrated touch dimmer allows easy and stepless adjustment of brightness. The built-in memory function automatically restores the previous dimming state after a power outage, providing additional comfort. The light operates with a supply voltage of 24 volts DC and is designed for surface mounting. The connection cable with a length of 250 cm ensures flexible installation options.

Scope of Delivery and Mounting Accessories

The scope of delivery includes all important accessories in addition to the light itself, such as connection cable, dimmer, screws, connecting plugs, and a touch sensor. The power supply unit is not included. For easy installation, an additional adhesive tape is attached to the back, which provides extra hold for lengths over 600 mm. The protective film should be removed before installation to protect the surface.

Protection and Safety

The LED under-cabinet light TOP-STICK FMT is rated according to protection class 3 and has an IP20 protection rating, protecting it against the ingress of solid foreign objects. The light is designed so that the connection cable exits at the back, allowing tidy and secure cable management. Weighing only 0.1 kg, it is lightweight and easy to handle, which additionally facilitates installation.

Colour:
anodised aluminium
Dimension:

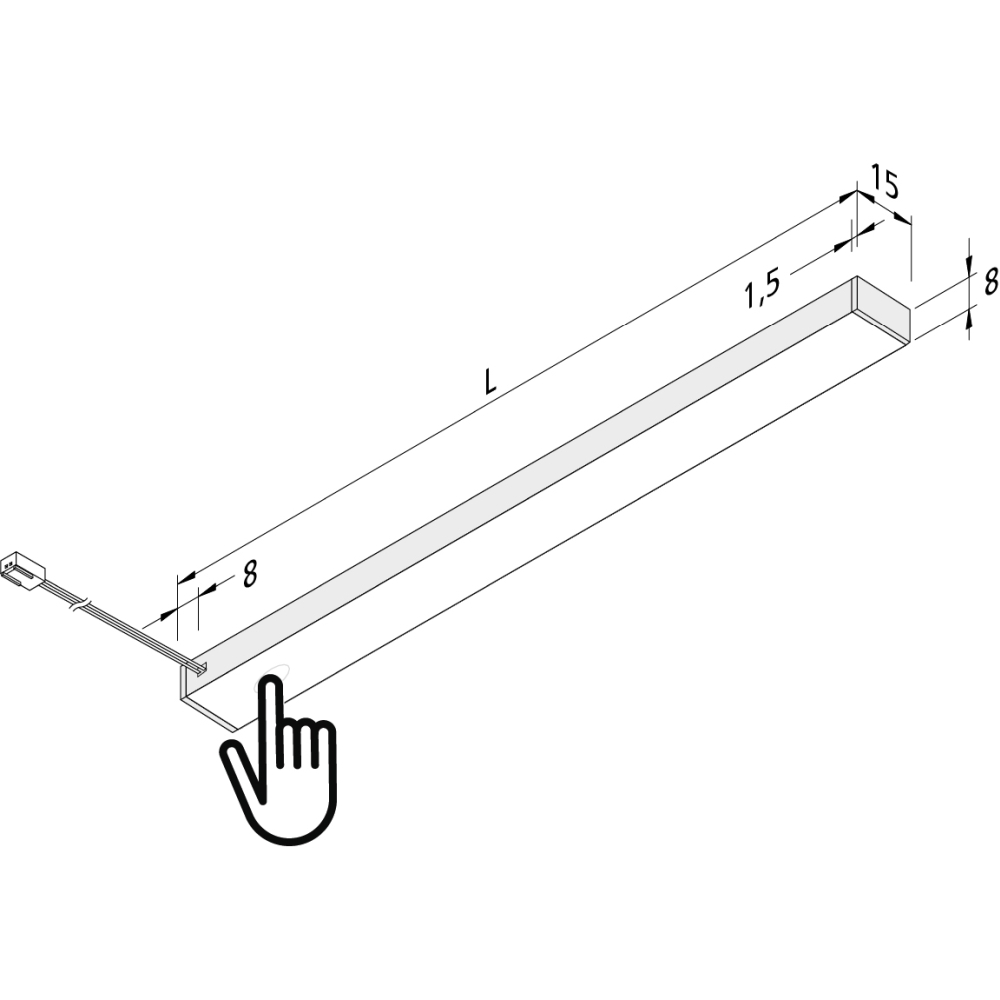

total-L∕ B∕ H: 60∕ 1,5∕ 0,8 cm
Material:
anodised aluminium
Weight:
0,1 kg
Product type:
undershelve
Lamp shape:
square
Bulbs in delivery:
yes
Accessories:
connection cable - included in delivery
Dimmer - included in delivery
screws - included in delivery
connecting plug - included in delivery
touch sensor - included in delivery
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
furniture
wall
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
itegrated touch dimmer
Power consumption:
10 W
Emitting angle:
110 °
LED can be replaced :
no
Number of bulbs:
1
Light colour:
neutral white
Light emission:
diffuse
Beam direction:
down
Light flux:
1135 lm
Light yield:
63 lm/W
Nominal current:
417 mA
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
>95 Ra
Permissions for mounting on flamabel surfaces:
Suitable for direct mounting in and on surfaces of unknown flammability
Length of connection lead:
250 cm
Plug type:
LED 24 plug-in system
Mounting:
surfaced mounting
Protection class:
3
IP-protection class:
IP20
Energy efficiency category:
G
EPREL No:
942989
Article number:
HE-61001427223
Purchasing quantity:
1 piece
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
