Flat surface mount LED luminaire LED Top-Stick H, IP20, with LED 24 connecting cable, CRi> 95, 31cm, 7.5W 3000K

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

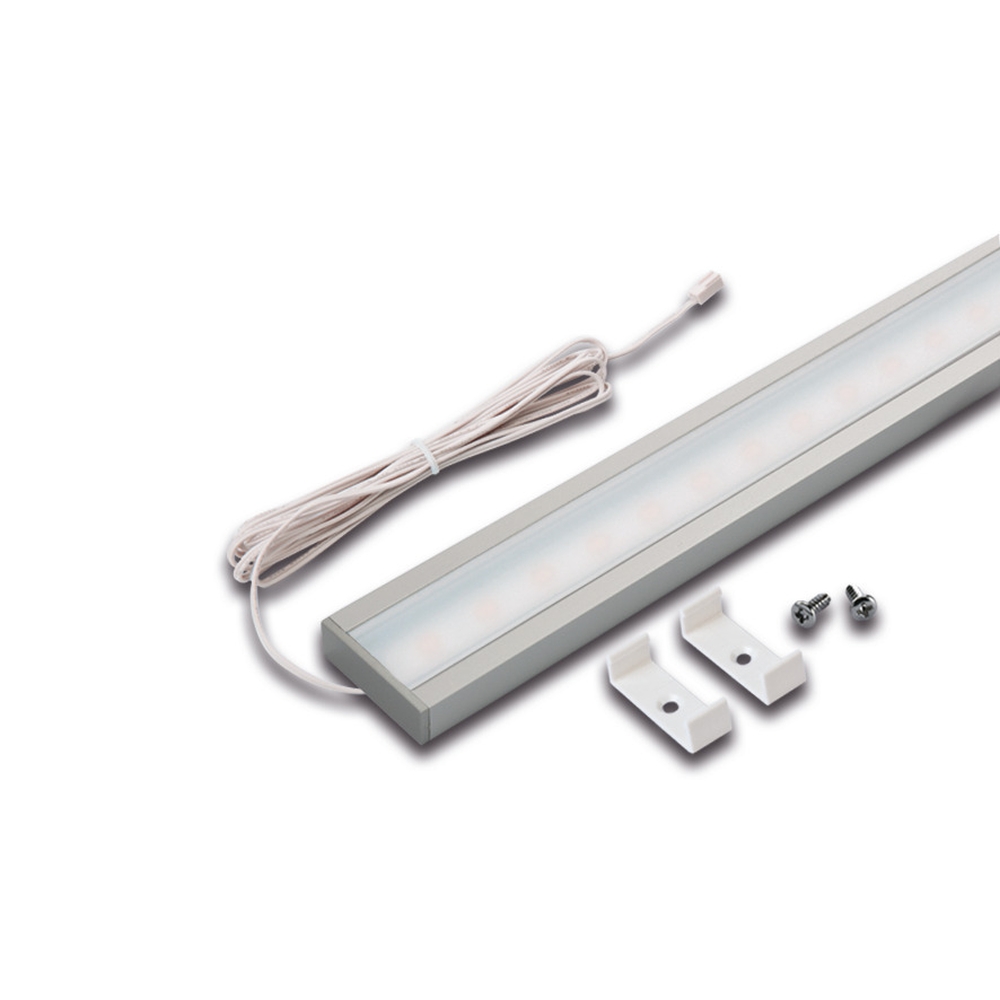

Flat LED surface-mounted luminaire LED TOP-STICK H

The flat LED surface-mounted luminaire LED TOP-STICK H from Hera is a high-quality lighting solution for indoor areas. With a power consumption of 7.5W and a luminous flux of 405lm, it provides pleasant lighting in furniture or on the wall. The LED technology ensures high energy efficiency and a long lifespan of up to 60,000 hours.

Technical details and applications

The surface-mounted luminaire has an operating voltage of 24V and a constant current of 315mA. With a color rendering index of 90-100Ra and a color rendering level of 1A, it offers natural and detailed light reproduction. The light color is warm white, creating a cozy atmosphere. The IP protection rating is 20 and the material consists of aluminum and plastic.

Installation and connection

The LED TOP-STICK H is connected via an LED-24 plug system and can be easily installed. With an LED-24 plug type, the installation is straightforward. The luminaire is suitable for indoor use only and is ideal for use in living spaces, offices, or shops.

Accessories and features

The operating device is not included in the scope of delivery but can be purchased separately. The LED is not replaceable, but its long lifespan of 60,000 hours eliminates the need for frequent replacement. The symmetrical light distribution ensures uniform room illumination.

Additional information and certifications

The LED surface-mounted luminaire has an energy efficiency class of G and a color temperature of 3000K. With dimming function and corresponding accessories, the brightness can be individually adjusted. The wide beam angle of more than 80° achieves a large-area illumination. The flat LED surface-mounted luminaire LED TOP-STICK H is a reliable and energy-saving lighting solution for indoor areas.

Colour:
housing aluminum / cover opal

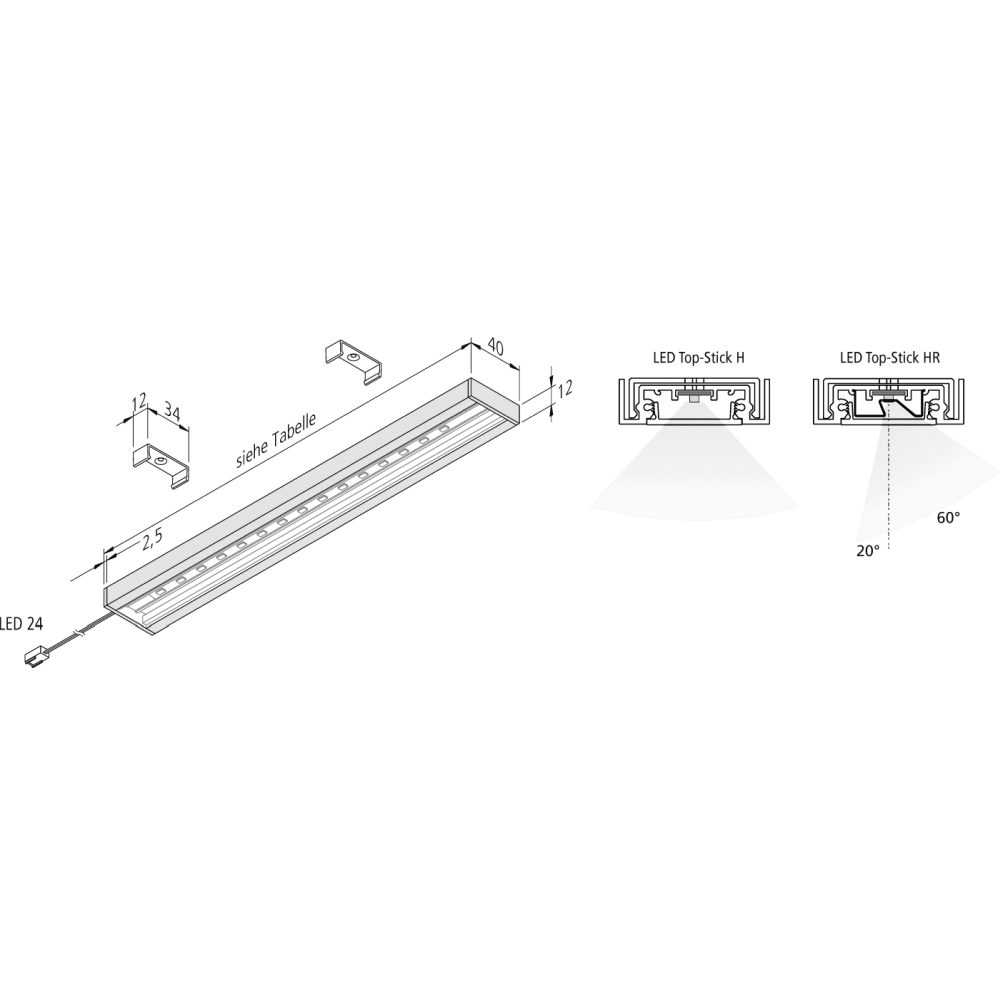

Dimension:
L∕ B∕ H: 31∕ 4∕ 1,2 cm
Material:
aluminium
plastic
Product type:
linear luminaire
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
wall
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Constant current:
315 mA
Power consumption:
7,5 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
warm white
Light emission:
symmetriccal
Light flux:
405 lm
Light yield:
52 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Lamp current:
315 mA
Mounting:
surfaced mounting
Protection class:
3
IP-protection class:
20
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
933151
Article number:
HE-61001420102
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
