floor recessed luminaire DASAR® L DALI swivelling, square, asymmetrical, dimmable IP65/IP67, stainless steel dimmable

High-Quality LED Recessed Floor Light with Asymmetric Light Distribution

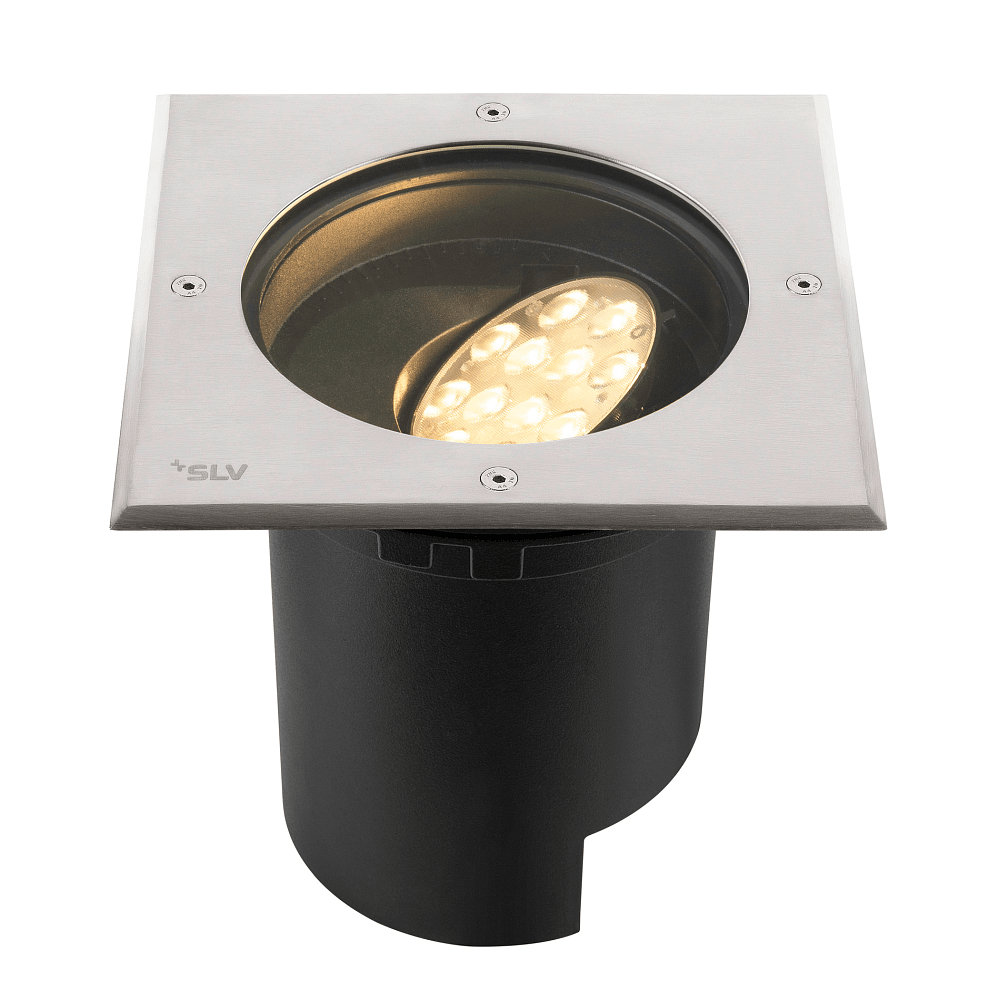

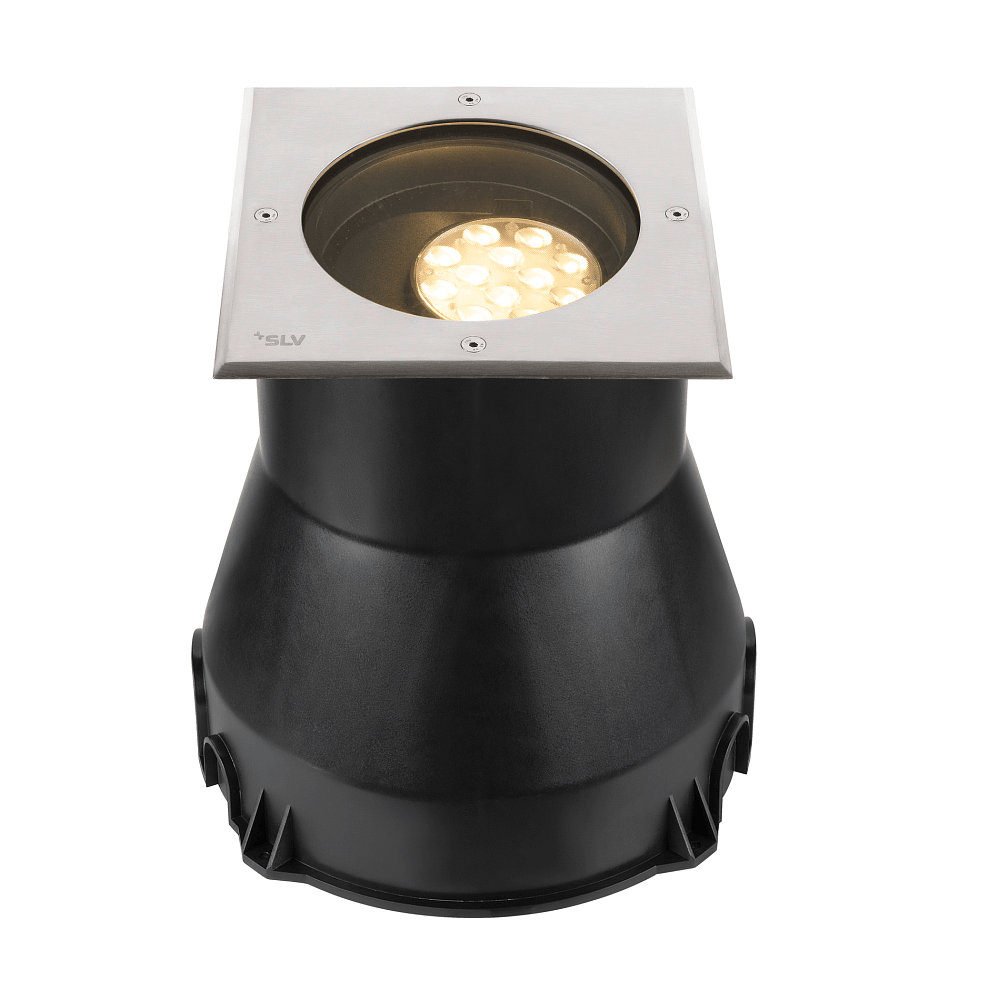

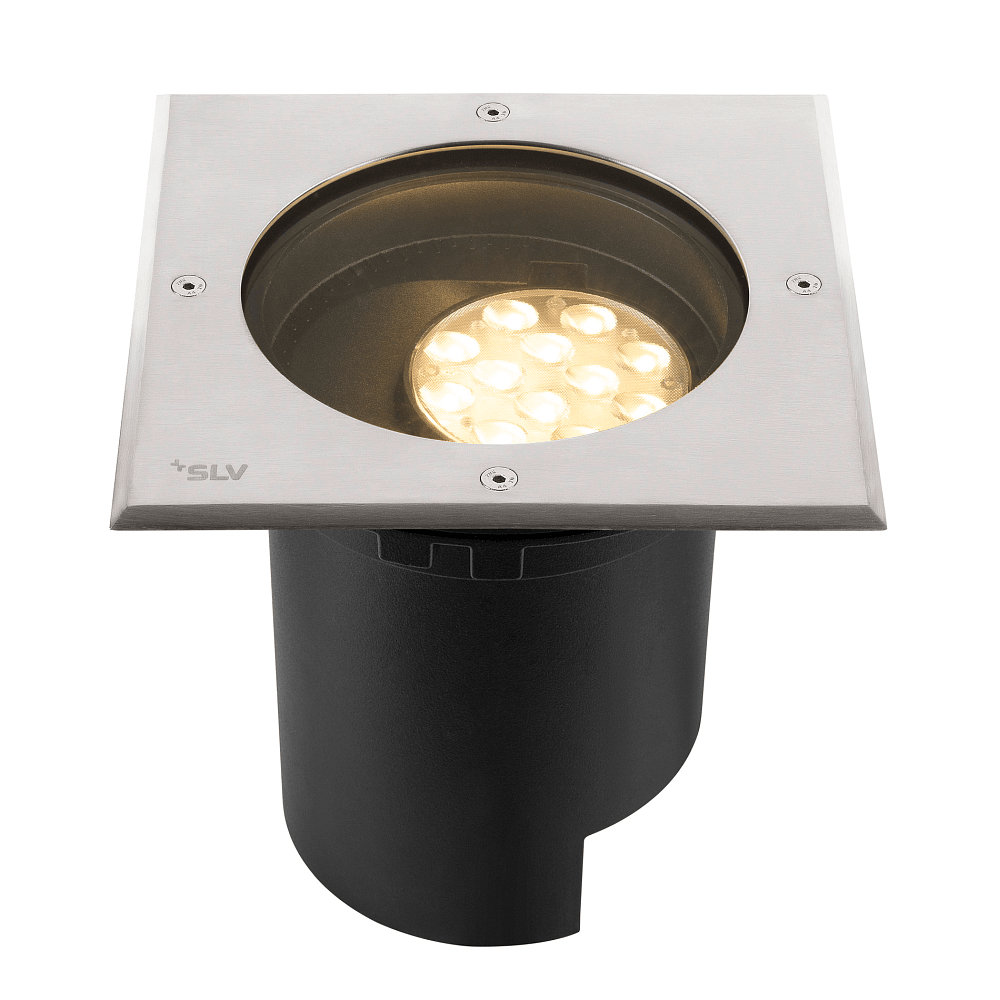

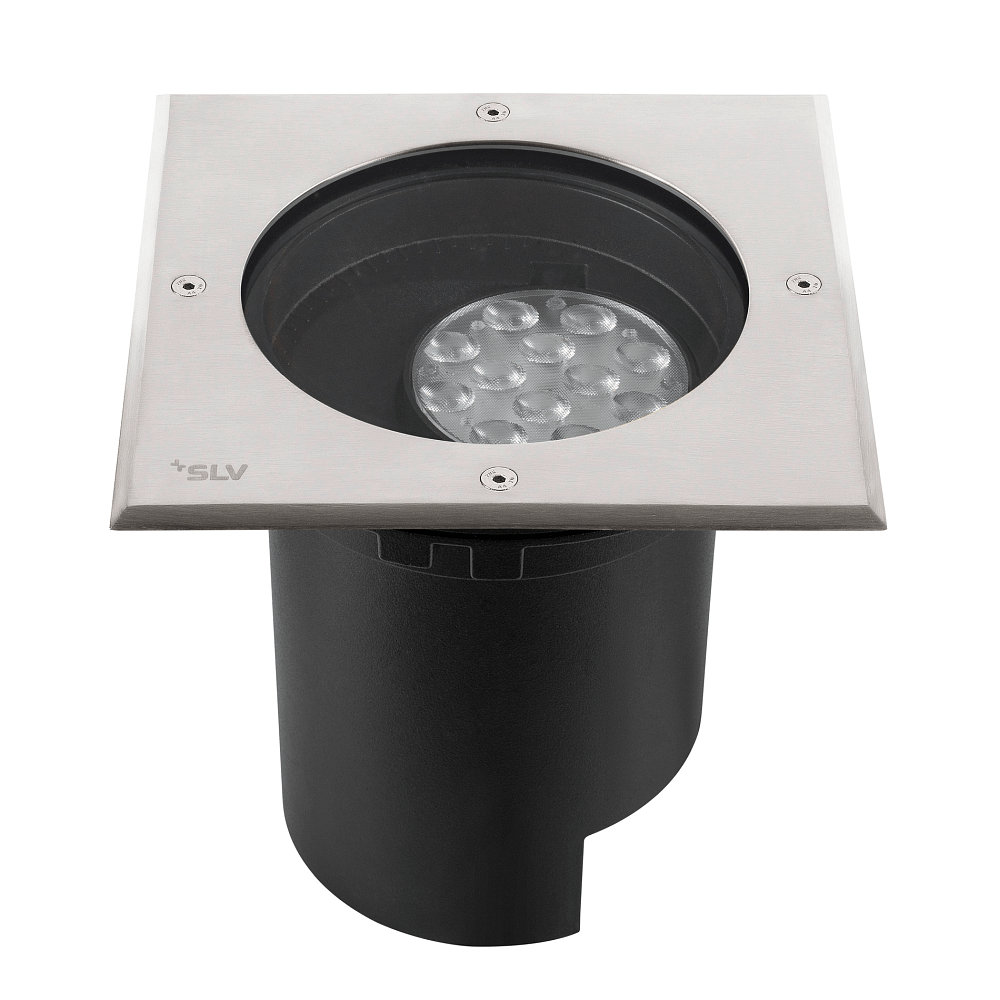

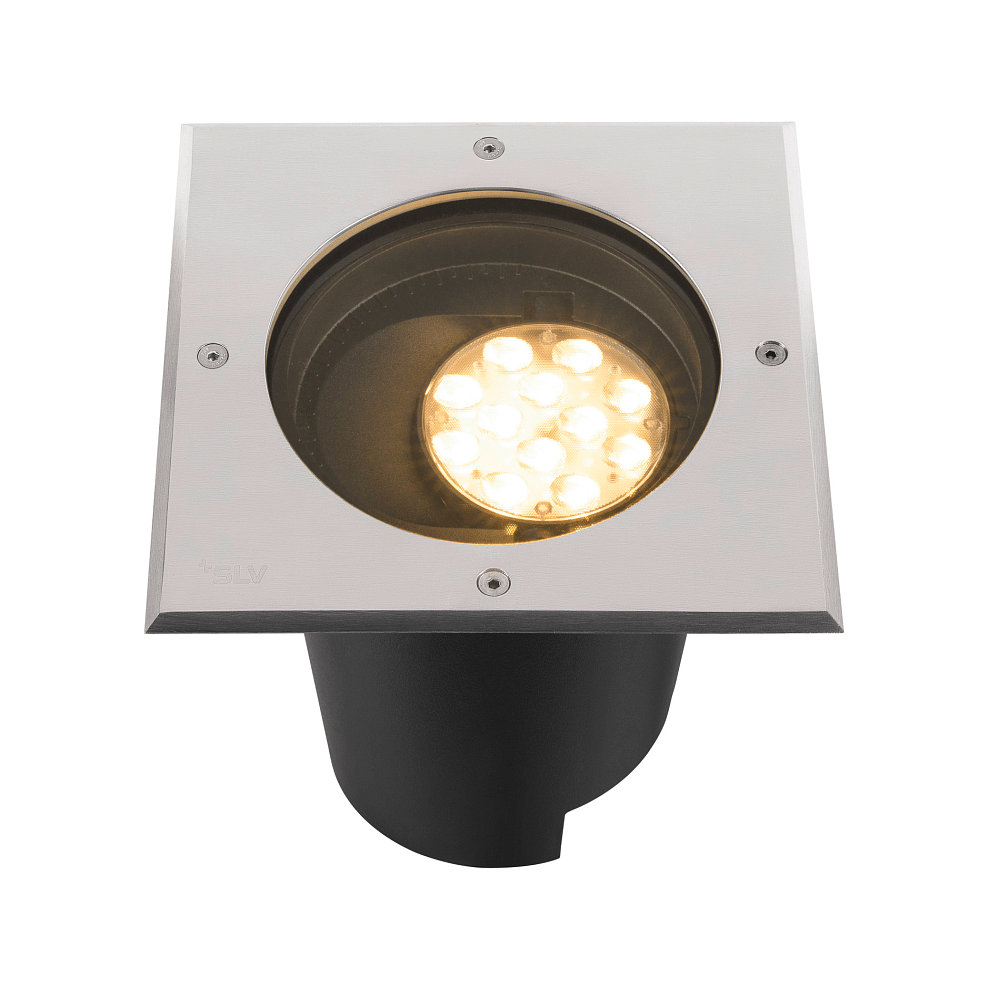

The LED recessed floor light DASAR® L ASYM impresses with its high-quality craftsmanship and innovative technology. With a power consumption of 19 watts, it produces warm white light at 3000 Kelvin and a luminous flux of 1800 lumens. The asymmetric light module can be tilted by 30 degrees, allowing the light beam to be optimally directed. The luminaire features a square trim made of robust stainless steel 316 and a shatterproof protective glass, ensuring a long service life of up to 50,000 hours.

Robust and Durable for Diverse Applications

Thanks to its high load capacity of up to 2000 kilograms, the DASAR® recessed floor light is walkable and drivable. Protection classes IP65 and IP67 provide protection against dust, heavy rain, and temporary submersion in water. Additionally, the luminaire offers IK10 impact protection, making it resistant to vandalism, accidents, and severe hail. This makes the light particularly robust and durable under demanding conditions.

Easy Integration and Flexible Control

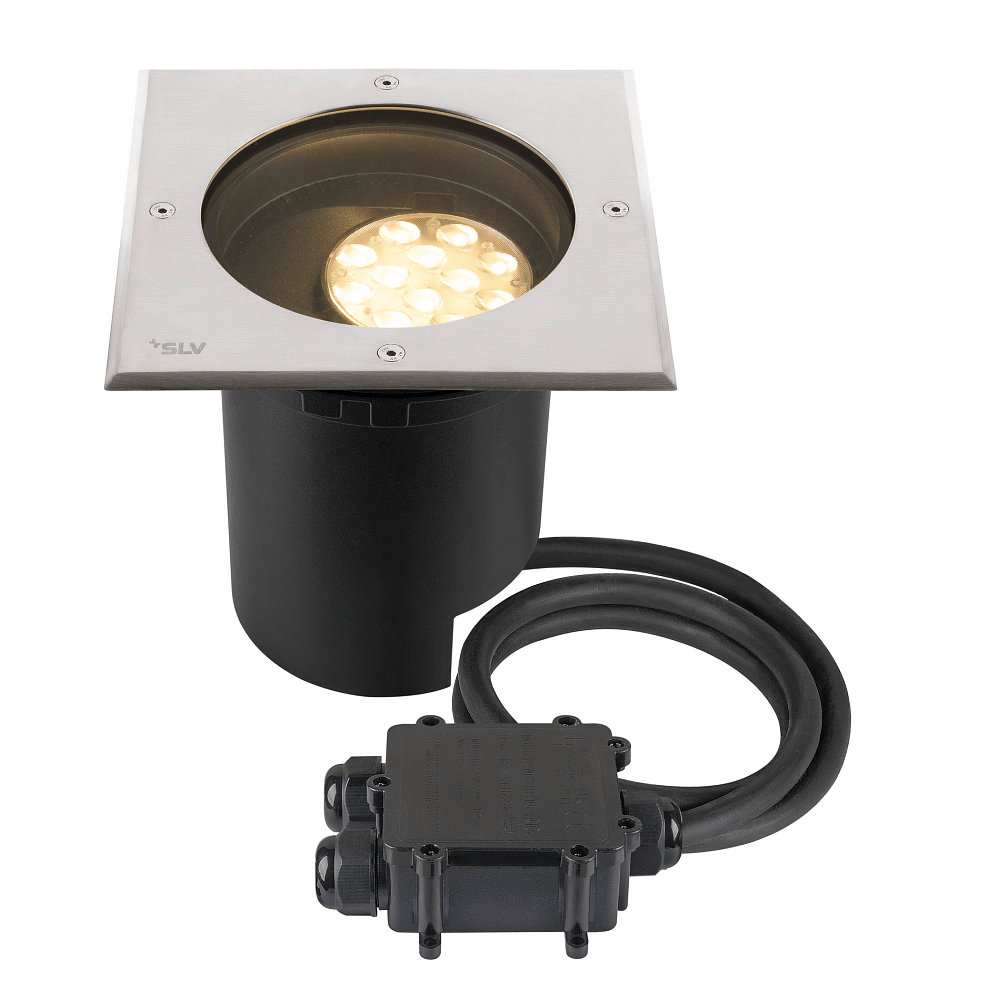

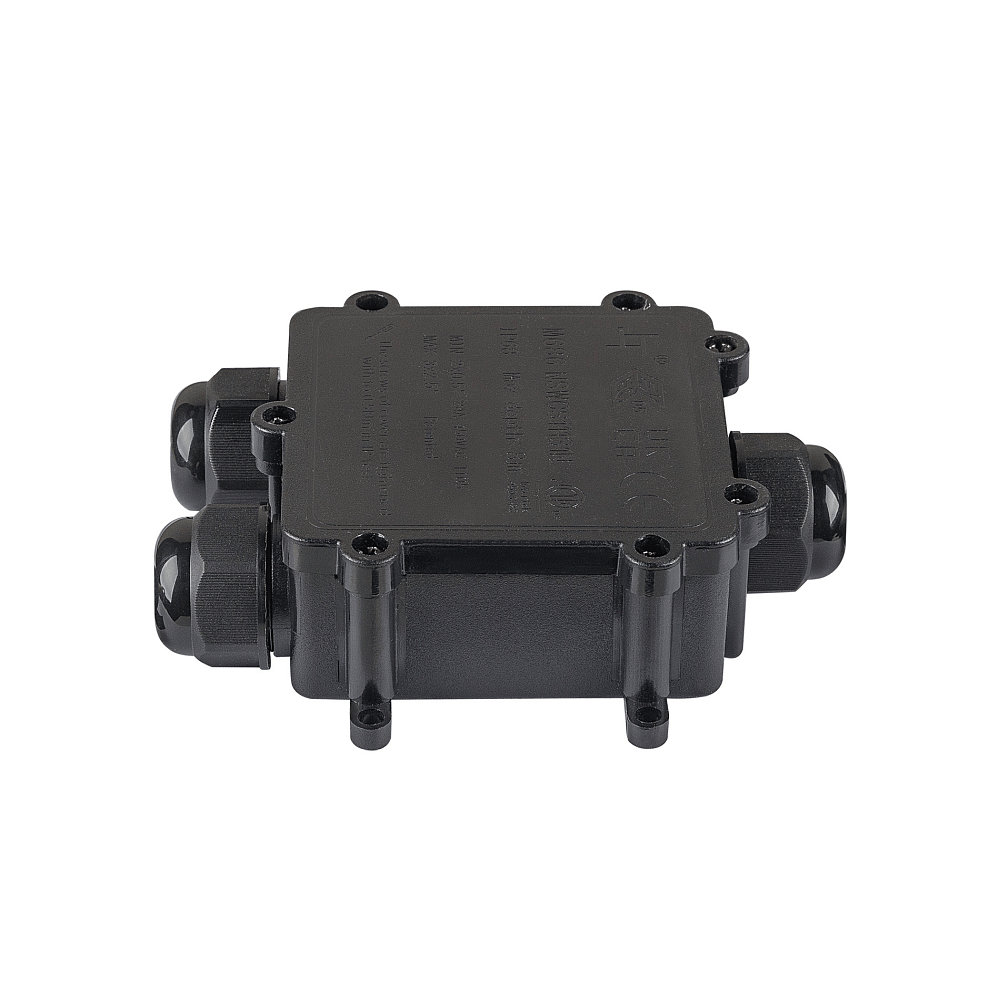

The luminaire is equipped with a pre-wired mains connection and an integrated connection box, simplifying installation. The supplied LED driver enables flicker-free operation with a very low stroboscopic effect of 0.1. The DASAR® L ASYM is continuously dimmable via DALI or push dimmer, allowing optimal integration into modern building control systems and IoT networks. This enables precise adjustment of light intensity to meet specific requirements.

Technical Details and Dimensions

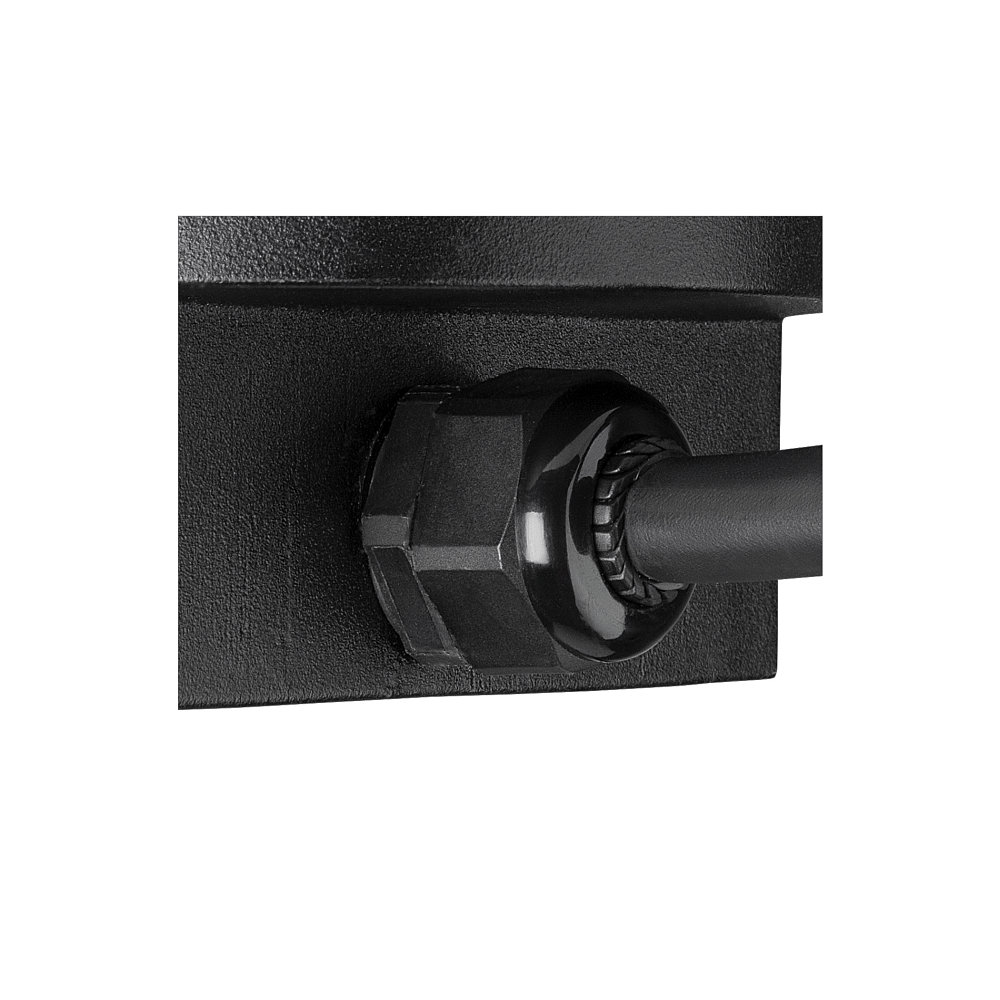

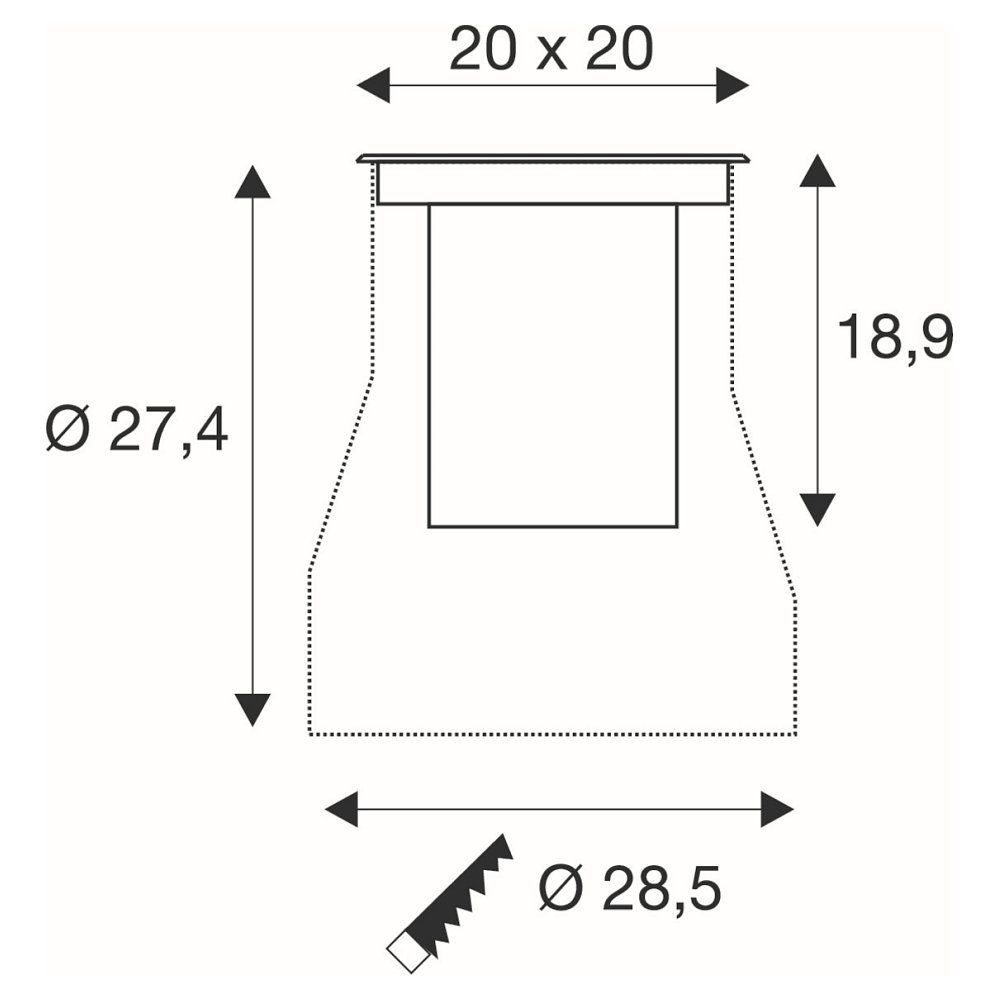

With an installation depth of 27.4 cm and an installation opening diameter of 28.5 cm, the luminaire fits into various recessed floor systems. The luminaire measures 20 x 20 x 18.9 cm (L x W x H) and weighs 3.6 kg. The connection cable is 105 cm long and suitable for cable diameters from 9 to 13.5 mm. The operating voltage is 220-240 V with a mains frequency of 50/60 Hz. The maximum surface temperature is 60 °C, and the color rendering index is over 80 Ra, ensuring natural color representation.

Versatile Accessories and Design Options

The scope of delivery includes the luminaire, a connection box, connection cable, and through-wiring; the controller, dimmer, and installation pot are available separately. The luminaire is crafted in a stainless steel finish with aluminum and glass materials. In addition to asymmetric light distribution, the model is also available with symmetric light output. For individual lighting solutions, SLV also offers various sizes and trim shapes to suit different requirements and applications.
