furniture luminaire AR 45 ZOOM 17-50° built-in version, switchable, focusable 1 IP20, black

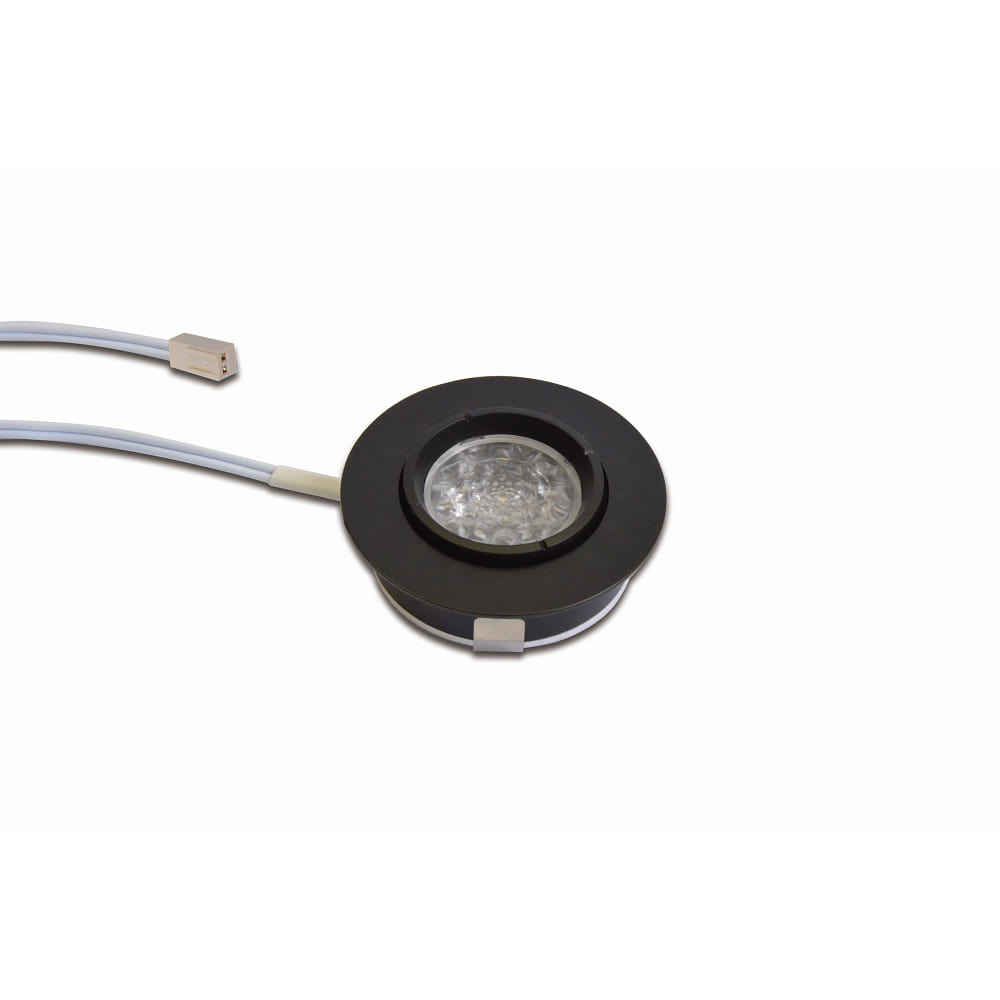

LED Furniture Recessed Light AR 45 ZOOM, round, focusable 17-50°

The LED Furniture Recessed Light AR 45 ZOOM is a compact light that is perfect for small drill diameters of 45mm. With a system power of 3 watts and a continuously adjustable beam angle from 17° to 50°, the light direction can be individually adjusted by rotating the inner ring.

Technical Details

The furniture light has a beam angle of 17-50°, a color temperature of 3000K, and a color rendering index of >90Ra. The luminous efficacy is 58lm/W, and the average lamp life is 35000 hours. The light has a protection class of 3 and an IP protection rating of IP20.

Installation and Operation

The LED Furniture Recessed Light AR 45 ZOOM can be quickly and easily mounted with snap hooks, alternatively, mounting with an optional mounting spring is also possible. The light comes with a 250cm long connection cable including a Hera LED 24 plug. For operation, an LED driver is required, which is voltage-controlled and has a Hera LED 24 plug socket.

Design and Material

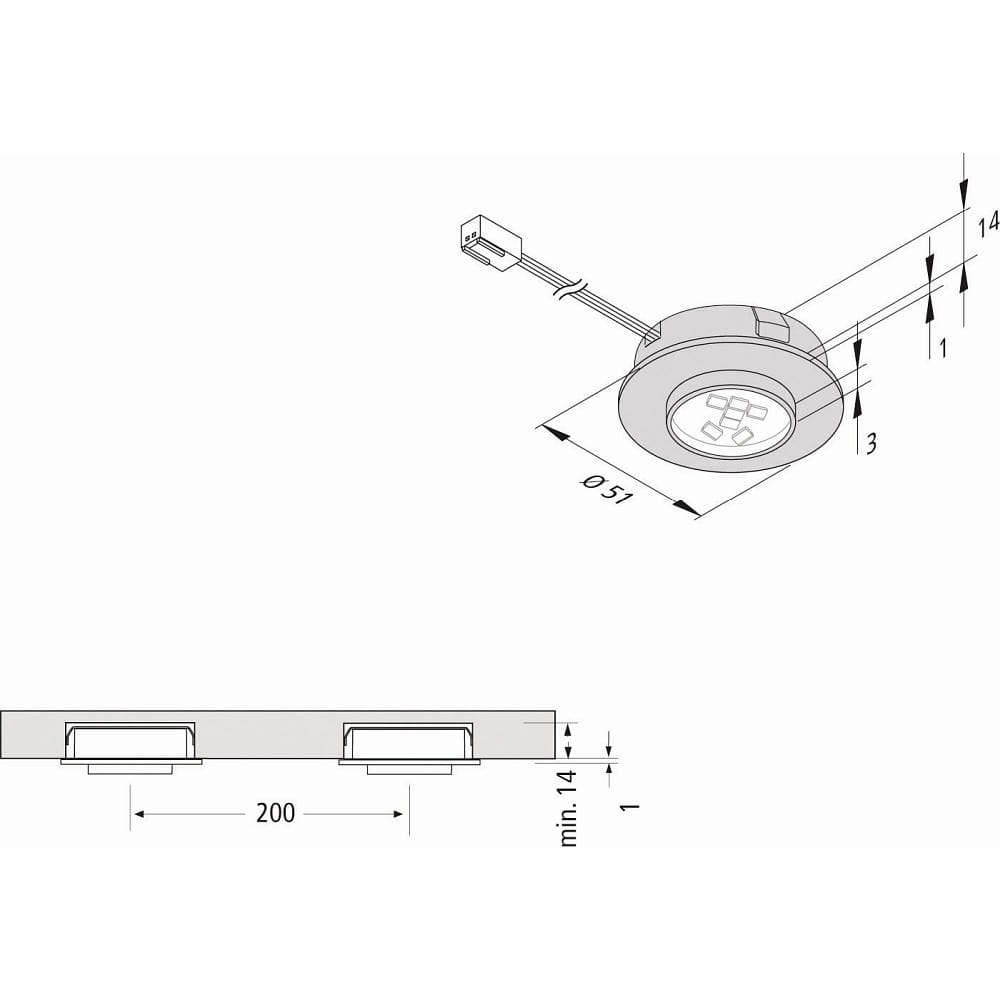

The furniture light impresses not only with its technical features but also with its modern design. The light is made of sturdy metal and has a total size of Ø 5.1 cm and a height of 1.8 cm. The visible part has a diameter of 5.1 cm and a height of 0.4 cm. The trim has a diameter of 5.1 cm and a height of 0.1 cm, while the ring has a height of 0.3 cm.

Safety and Compatibility

The LED Furniture Recessed Light AR 45 ZOOM is safe to operate with 24V DC low-voltage direct current (SELV). It complies with the guidelines for photobiological safety according to EN 62471: RG0 and has a color consistency (MacAdam) of SDCM 3. The light is also available in various housing colors and light colors.
