furniture luminaire AR 45 ZOOM 17-50° built-in version, switchable, focusable 1 IP20, black

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

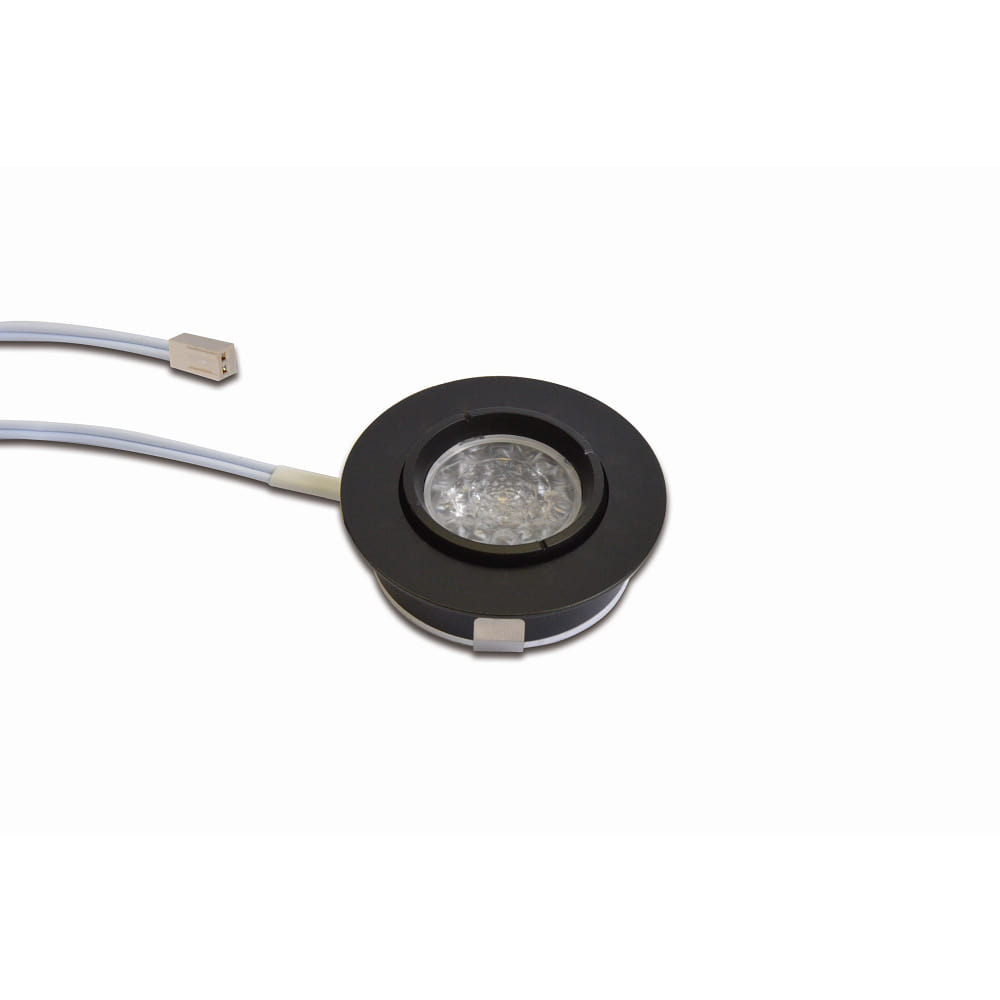

LED Furniture Recessed Light AR 45 ZOOM

This compact LED furniture recessed light AR 45 ZOOM from Hera is ideal for small drill diameters (Ø 45mm). With a system power of 3 watts and a continuously adjustable beam angle from 17° to 50°, it offers versatile lighting options for your furniture.

Practical Features

By rotating the inner ring, the beam angle of the light is flexibly adjustable, allowing for individual customization. The rigid light head with focus lens ensures direct light output, and the sturdy metal construction guarantees a long lifespan.

Easy Installation and Safe Application

Thanks to the snap hooks, the installation of this recessed light is quick and uncomplicated. Alternatively, the light can also be mounted with an optional mounting spring. It comes with a 250cm connection cable including a Hera LED 24 connector for easy installation.

Safe Operating Voltage and High Quality

The LED furniture recessed light AR 45 ZOOM operates at a safe operating voltage of 24V DC low-voltage direct current. It complies with photobiological safety according to EN 62471: RG0 and offers very low tolerance for deviations in light color. The high color rendering index of >90Ra ensures natural and vibrant colors.

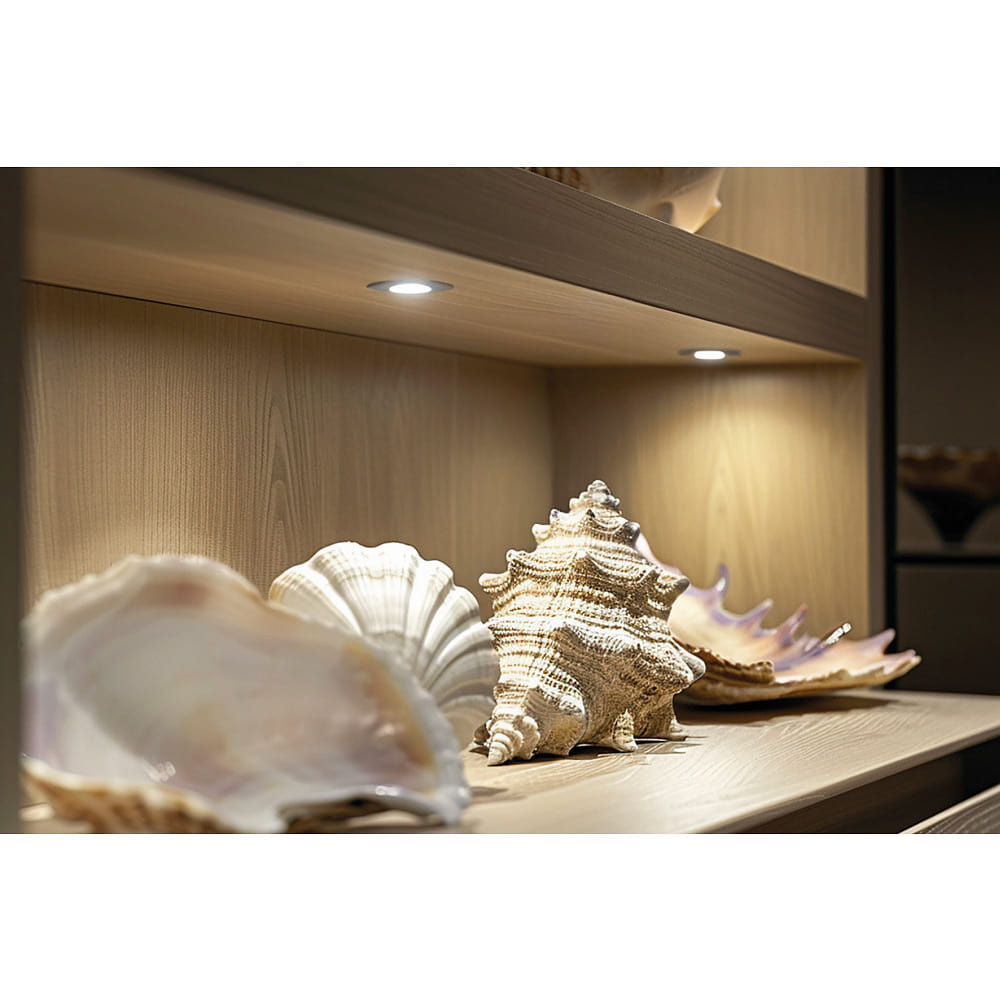

Versatile Applications

Whether as a furniture light, recessed light, or under-cabinet light - the LED furniture recessed light AR 45 ZOOM from Hera is suitable for various applications. Available in different housing colors and light colors, the light can be customized to suit your needs.

Colour:
black
Glass color:
clear
prisma
Cable color:
white

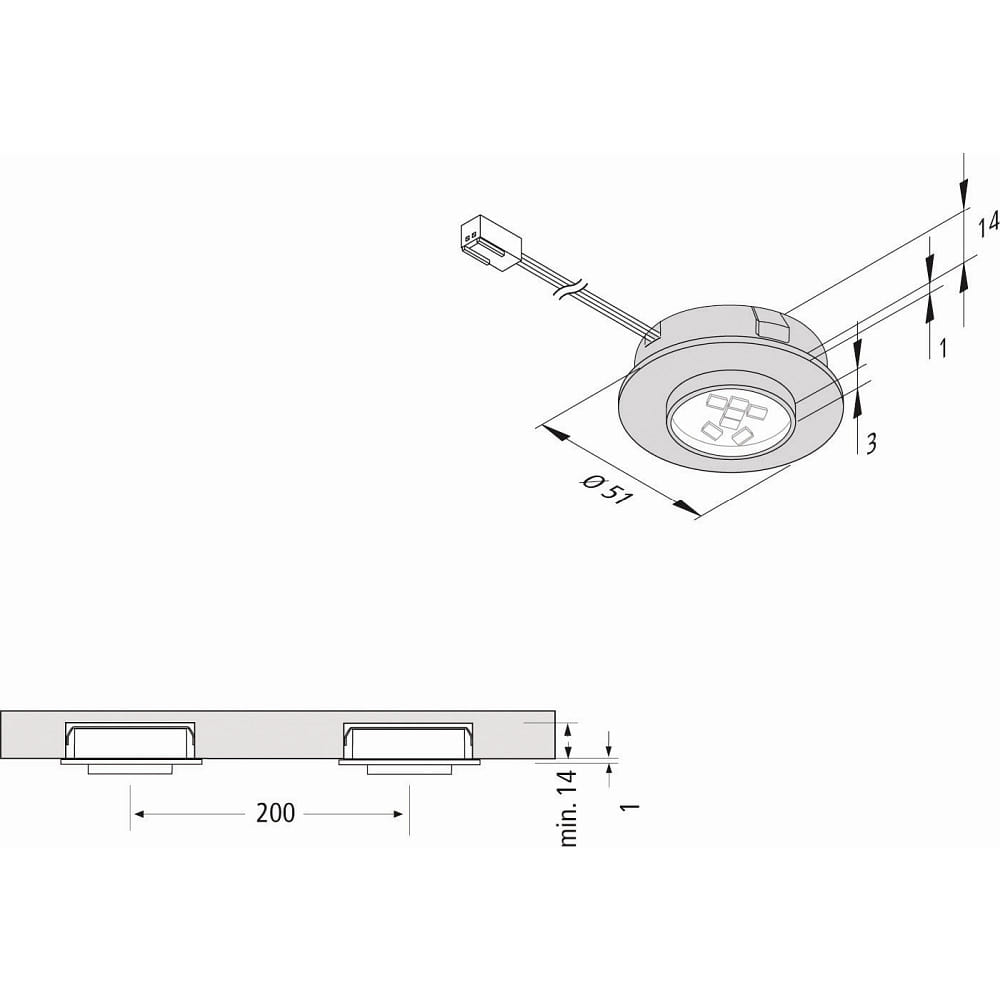

Dimension:
total-Ø∕ H: 5,1∕ 1,8 cm
visible part-Ø∕ H: 5,1∕ 0,4 cm
cover-Ø∕ H: 5,1∕ 0,1 cm
ring-H: 0,3 cm
Empfohlener Lichtpunkt-Abstand-L: 20 cm
Material:
aluminium
plastic
Weight:
0,062 kg
Product type:
furniture luminaire
Accessories:
connection cable - included in delivery
plug - included in delivery
control gear - not included in delivery
Socket of the bulb:
1
Operating voltage:
24 V=
Dimmable:
no
Power consumption:
3 W
Emitting angle:
17-50 °
Beam direction:
down
Light flux:
175 lm
Light yield:
58 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
35000 h
Colour rendering index:
>90 Ra
1A
IK-Rating:
IK00 no impact resistance
Permissions for mounting on flamabel surfaces:
Suitable for direct mounting in and on surfaces of unknown flammability
Admissible burning position:
13
Length of connection lead:
250 cm
Protection class:
3
IP-protection class:
IP20
ambient temperature:
-5 - 35 °C
Article number:
HE-20203533003
Purchasing quantity:
1 piece
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
