LED driver with constant voltage EL-4-350

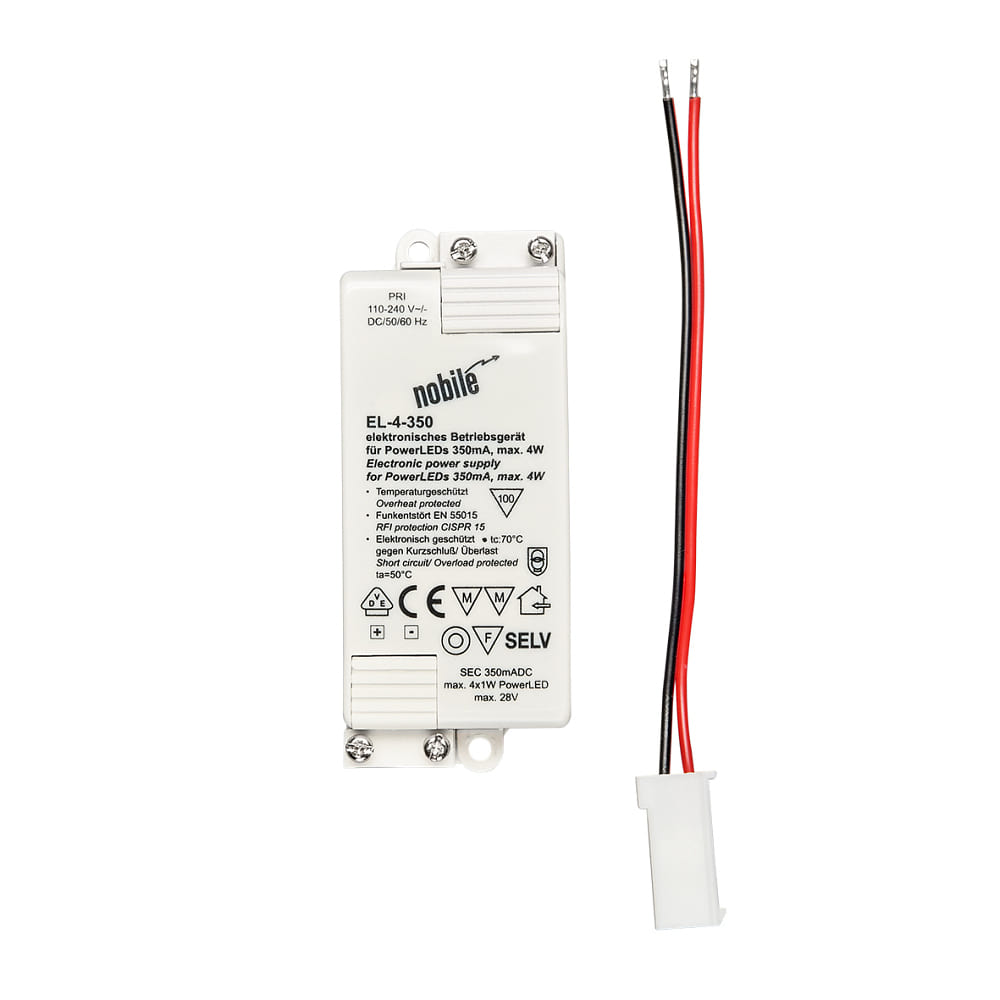

High-Quality LED Driver EL-4-350 from nobilé

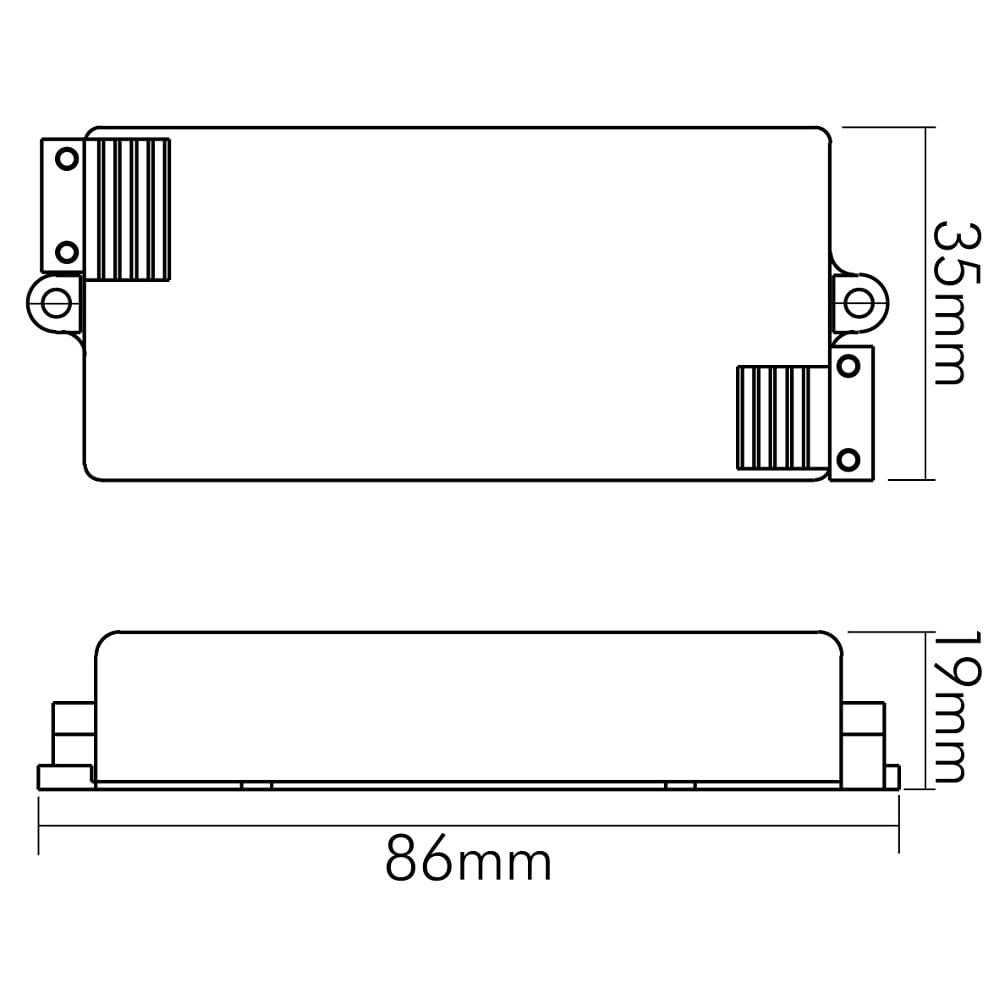

The LED driver EL-4-350 from the brand nobilé impresses with its compact design and high-quality workmanship. With dimensions of 8.5 x 3.5 x 1.9 cm and a weight of only 40 grams, the device is particularly space-saving and lightweight. The housing is made of durable plastic in classic white, which discreetly blends into various environments. Protection class 2 and IP20 protection rating ensure safe handling and protection against foreign objects.

Energy-Efficient Performance and Voltage Range

The driver operates with a power consumption of 1 to 4 watts and is designed for an operating voltage of 220 to 240 volts. The mains frequency is 50/60 Hz, making the device flexible in use. The constant current operation ensures a stable and uniform power supply for LED lights, which extends the lifespan of the connected LEDs and provides consistent brightness.

Technical Details and Connections

The LED driver is equipped with covered screw terminals and strain relief on the primary side, allowing for safe and easy installation. On the secondary side, there is a 2-pole AMP socket that guarantees a reliable connection. The cables on both sides are of type H03VVH2-F with a conductor cross-section of 0.75 mm². The cable length on the secondary side is 20 cm, allowing for flexible mounting.

Safety and Protection Features

The EL-4-350 driver is ENEC certified, which stands for compliance with high safety and quality standards. It also features temperature protection that activates at 100 °C to prevent overheating. The measurement point for the maximum temperature is 70 °C, further enhancing operational safety. These protection mechanisms ensure reliable and long-lasting operation.

Versatile Applications and Advantages

Thanks to the safe and stable constant current supply, the driver is ideal for various LED lighting applications. The combination of low energy consumption, high safety, and easy installation makes the EL-4-350 an excellent choice for anyone seeking a reliable and efficient power supply for their LED systems. The compact size also allows for easy integration into a wide range of lighting projects.
