LED panel luminaire FR 68-LED, recessed/surface mount, round, IP44, LED24 connection, CRi>90, 4W 4000K 270lm 110°, inox look

High-Quality LED Panel Light FR 68-LED from Hera

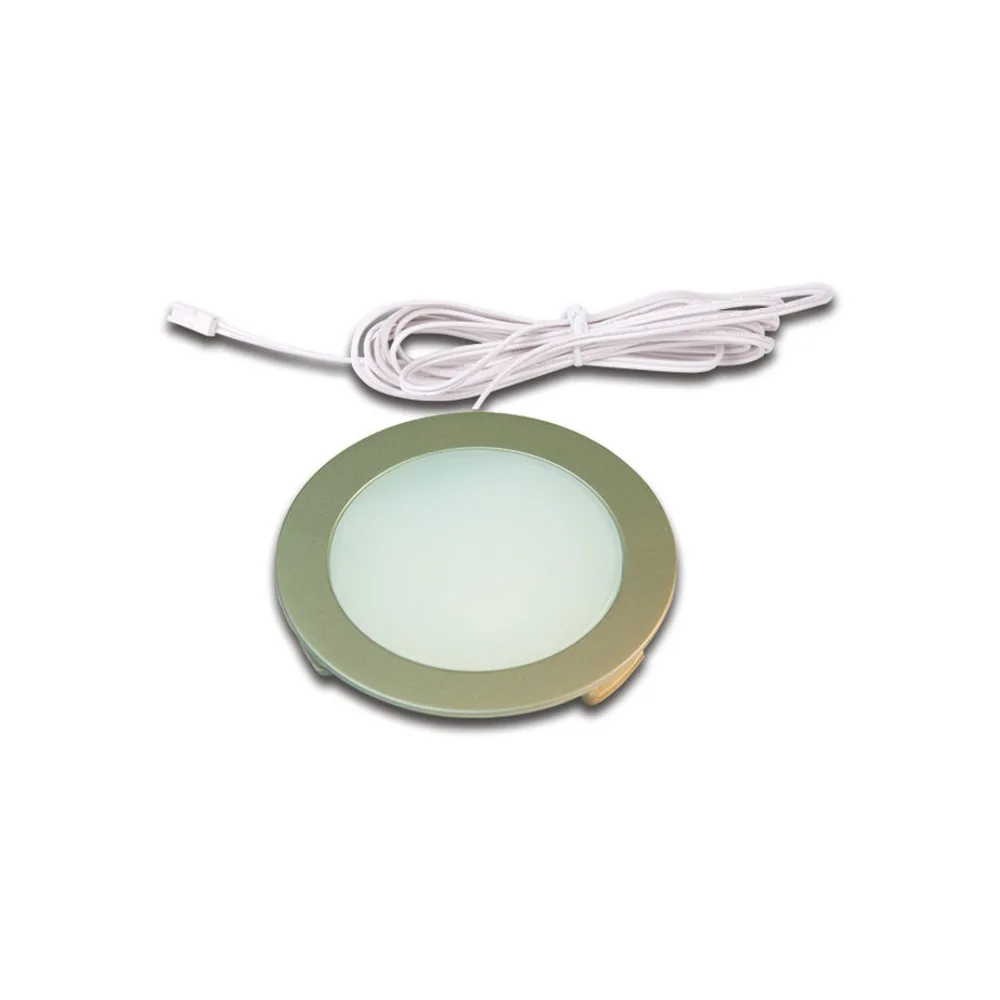

The LED panel light FR 68-LED from Hera impresses with its modern design and efficient performance. With a diameter of 7.5 cm and a height of 1.4 cm, it is round and particularly space-saving. The luminaire is available in elegant stainless steel with an opal cover that ensures pleasant light distribution. Thanks to its symmetrical light distribution and an emission angle of over 80°, it provides even and wide illumination for various applications such as ceilings or furniture.

Technical Details and Energy Efficiency

The panel light has a power consumption of only 4 watts and generates a luminous flux of 270 lumens. This corresponds to a luminous efficacy of 68 lumens per watt, which indicates very efficient energy use. The light color is neutral white with a color temperature of 4000 Kelvin. The color rendering is excellent with a CRI value of over 90, meaning colors are displayed very naturally and lifelike. The average lifetime of the integrated LEDs is an impressive 54,000 hours.

Installation and Mounting

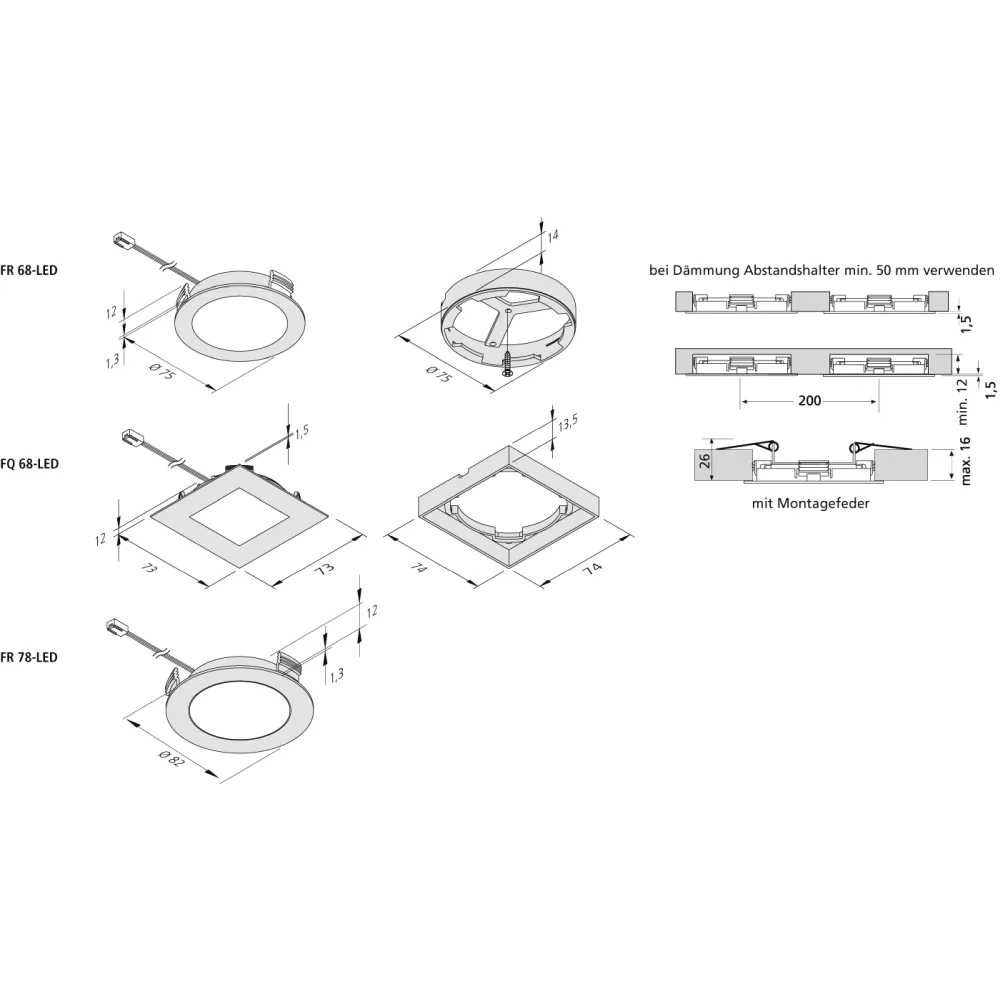

The FR 68-LED is designed for recessed installation and requires a round cut-out with a diameter of 6.8 cm. Installation is straightforward via the LED-24 plug system, which allows for easy connection with the matching driver. The driver is not included in the delivery and must be purchased separately. The luminaire is rated protection class 3 and designed for ambient temperatures from -5 to 35 °C. Wiring is done with a conductor cross-section of 0.21 mm² and 2 poles.

Quality and Safety

The LED panel light meets high safety and quality standards. It is photobiologically safe according to EN 62471 (RG0), meaning there are no health risks from the light. The luminaire was manufactured without glow wire testing according to IEC 60695-2-11 and offers consistent color rendering without visible color deviations thanks to a color consistency value of SDCM3. The rigid optics and diffuse light distributor ensure pleasant and glare-free illumination.

Versatility and Additional Features

This panel light is equipped with non-replaceable LEDs housed in a robust plastic casing. Despite the permanently installed light sources, the luminaire is dimmable with appropriate accessories, allowing flexible adjustment of light intensity. Combining high light quality, durable technology, and easy installation, the FR 68-LED from Hera is an ideal solution for demanding lighting scenarios.
