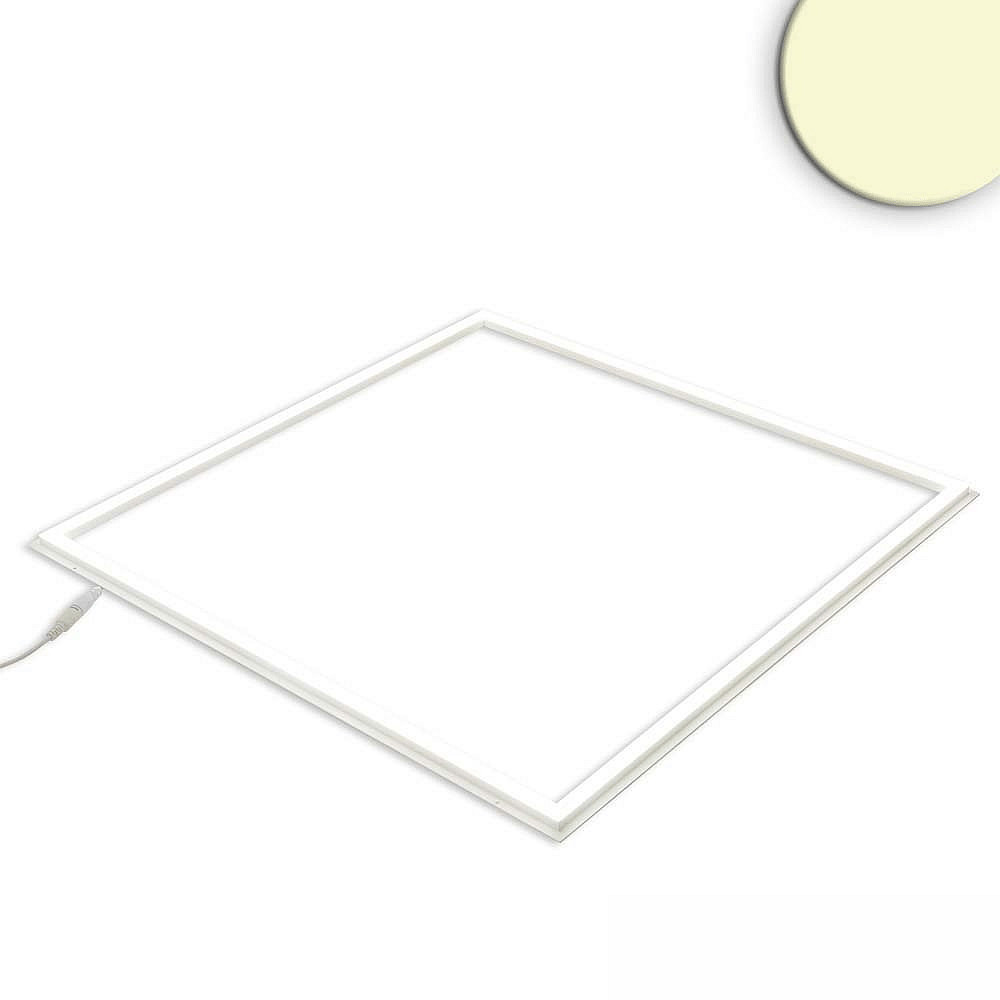

LED panel PANEL FRAME 600 for VDU workstation, DALI controllable, dimmable 40W 3600lm 3000K 120° 120° CRI 80-89

ISOLED

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.
To business registration
Colour:
white
Dimension:

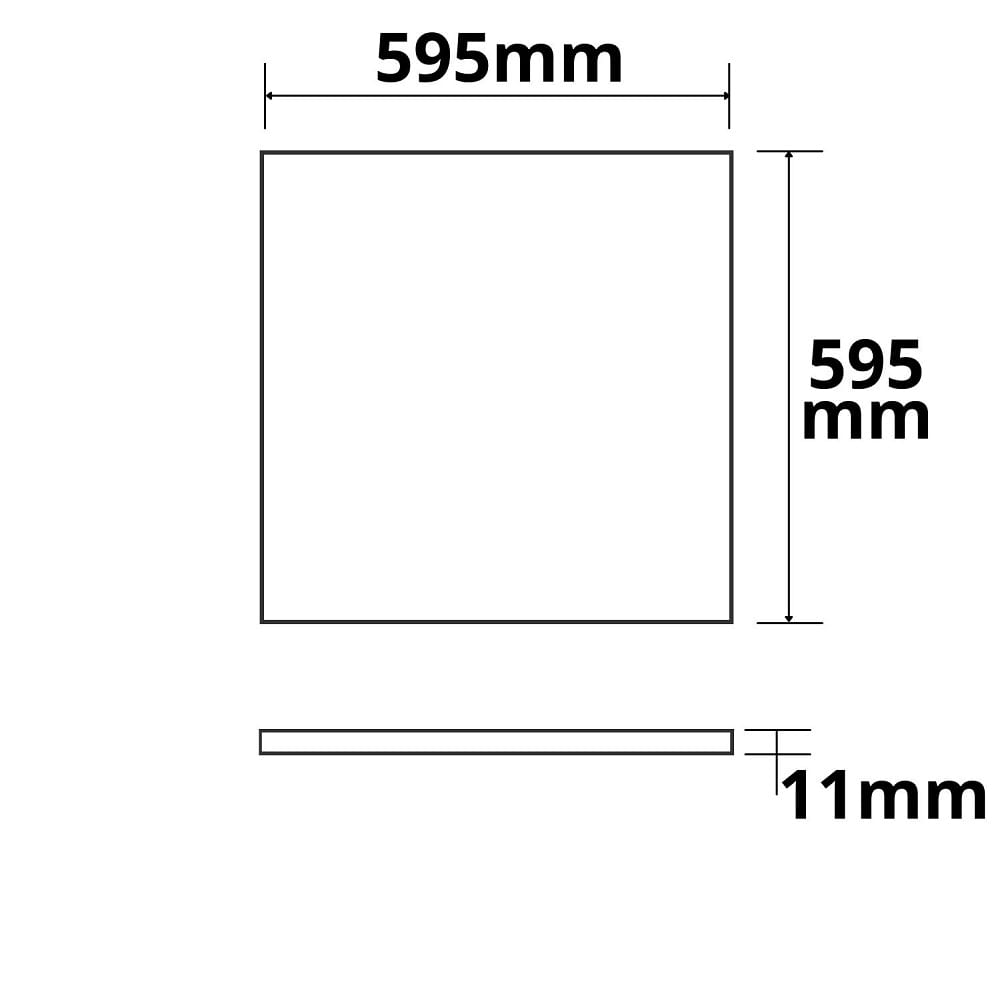

outside-L∕ W: 61,5∕ 61,5 cm
inside-L∕ W∕ H: 59,5∕ 59,5∕ 1,1 cm
Material:
aluminium
Product type:
LED panel
Lamp shape:
square
Bulbs in delivery:
yes
Accessories:
control gear - included in delivery
Montagezubehör - not included in delivery
Dimmer - not included in delivery
Application area:
only suitable for indoor use
Field of application:
wall
ceiling
Operating voltage:
50 V=
Dimmable:
yes
Dimmability:
DALI, trailing edge, switch dimming
Power consumption:
40.00 W
Emitting angle:
120.00 °
LED can be replaced :
no
Bulb type:
LED
Light colour:
warm white
Light emission:
diffuse
Light flux:
3600 lm
Light yield:
95 lm/W
Nominal current:
880-100 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
80-89 Ra
1B
Fitting opening square/rectangular width:
59,5 cm
Fitting opening square/rectangular length:
59,5 cm
Wire/connection lead diameter:
0,75 ² mm
Plug type:
clamping connection
Mounting:
mounting accessories required
surfaced mounting
recessed mounting
IP-protection class:
IP40
Additional information:
Transformer power: 21 VA
ambient temperature:
-20 ... +60 °C
Energy efficiency category:
E
EPREL No:
820545
Energy consumption:
40.00 kWh/1.000 h
Article number:
ISO-115178
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
