LED power supply EL-8R-350 NON-DIM MP round, current constant, multipower, on/off, white

Versatile LED Round Converter from nobilé

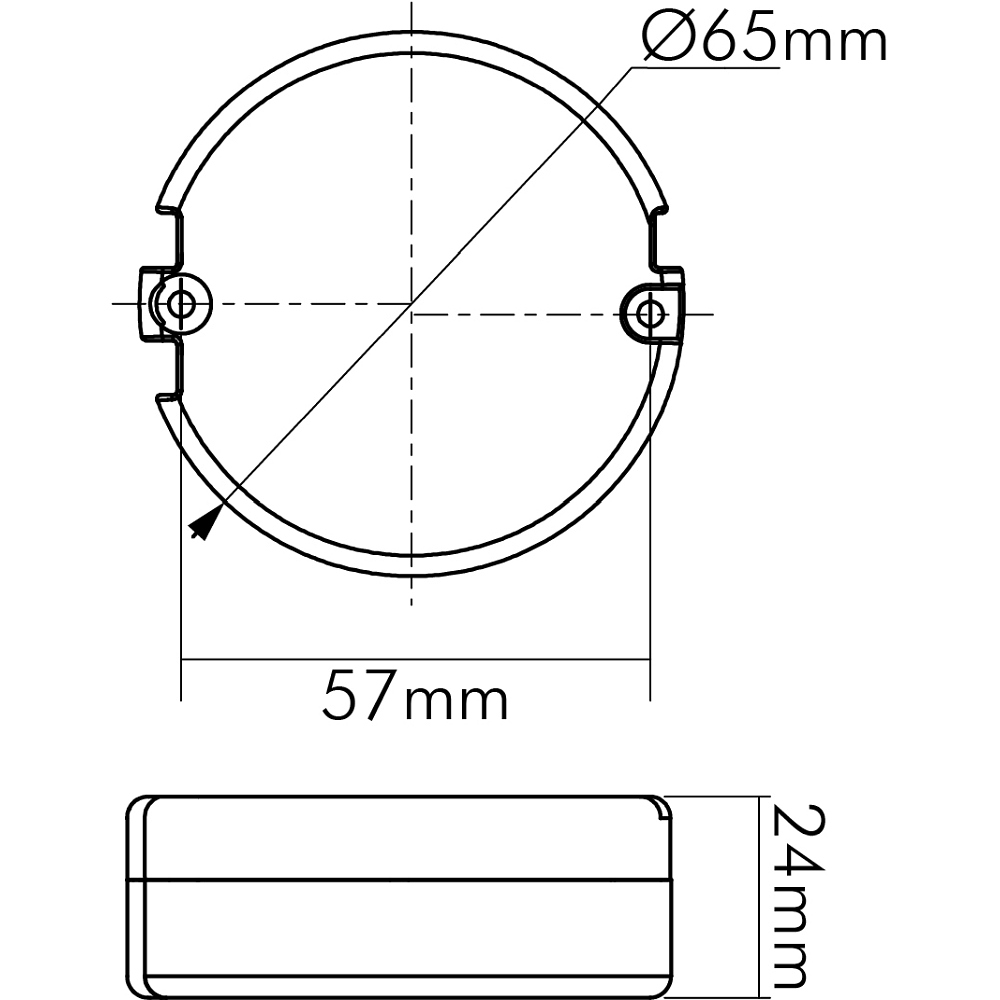

The LED round converter EL-8R-350 from nobilé is a reliable and high-quality LED driver specifically designed for operating switchable LED luminaires and LED bulbs. With an operating voltage of 220-240V AC and a frequency of 50-60Hz, this converter is optimally matched to common power grids. Its compact size of 6.5 cm in diameter and 2.4 cm in height makes it particularly space-saving, while the white polycarbonate housing ensures durable and robust construction.

Easy Installation and Secure Connection Options

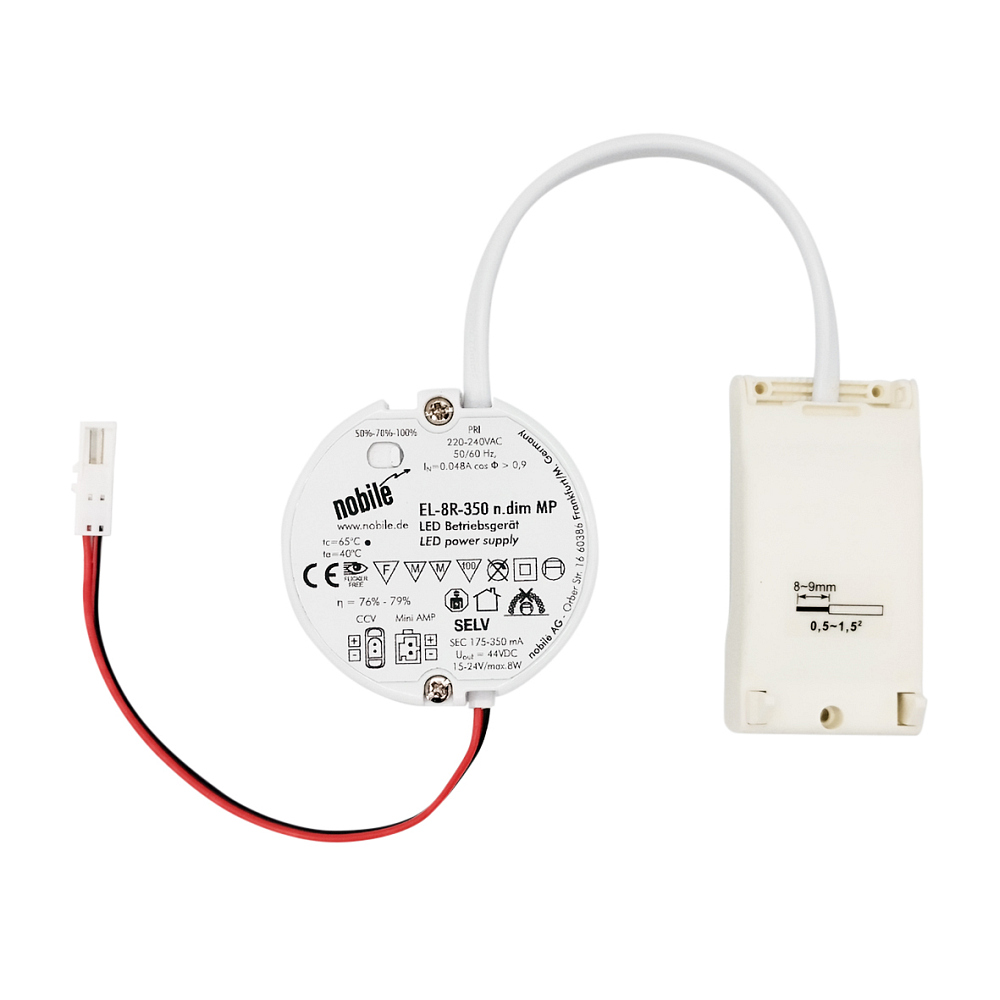

The LED driver comes with an external connection box that provides a pre-wired primary side with terminal blocks for cables from 0.5 to 1.5 mm². This ensures safe and easy installation. The 20 cm long secondary connection cable features an integrated AMP socket with reverse polarity protection, making the connection of LED luminaires especially safe and quick. The scope of delivery also includes AMP plugs, connection box, connection cable, switch, and through wiring, making commissioning even more convenient.

Adjustable Power and Energy Efficiency

A special highlight of this LED converter is the multipower function with an adjustable slider that allows three power levels (100%, 70%, and 50%). Depending on the selected power profile, the constant current output delivers between 175 and 350 mA, enabling optimal operation of various LED luminaires. With a power output from 5 to 8 watts, the device is ideal for energy-efficient lighting solutions, while the power factor at full load is above 0.55, ensuring efficient power consumption.

High Safety and Reliable Operation

The EL-8R-350 is equipped with multiple safety features that make operation particularly safe. These include shutdowns in the event of short circuit, overload, and overtemperature, preventing damage to the device and the connected lighting. Flicker-free operation ensures pleasant light without disturbing flicker effects. Furthermore, the device meets the glow wire test according to IEC 60695-2-10 at 850°C, highlighting its high heat resistance and quality.

Practical Additional Features and Flexible Application

Thanks to the integrated switch, the LED round converter is easily dimmable and can thus be adapted to different lighting needs. Protection class 2 and protection rating IP20 guarantee safe operation at ambient temperatures from 0 to 40°C. Weighing only 95 grams, the device is easy to handle and, due to its static, switchable design, very versatile in use. Overall, the nobilé EL-8R-350 offers a modern and flexible solution for the control and supply of LED lighting systems.
