LED Spot LED Point S, with M8x1 thread, 2 lenses, 350mA connection, anodised alu, 1W 4000K 115lm 20°/30°

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

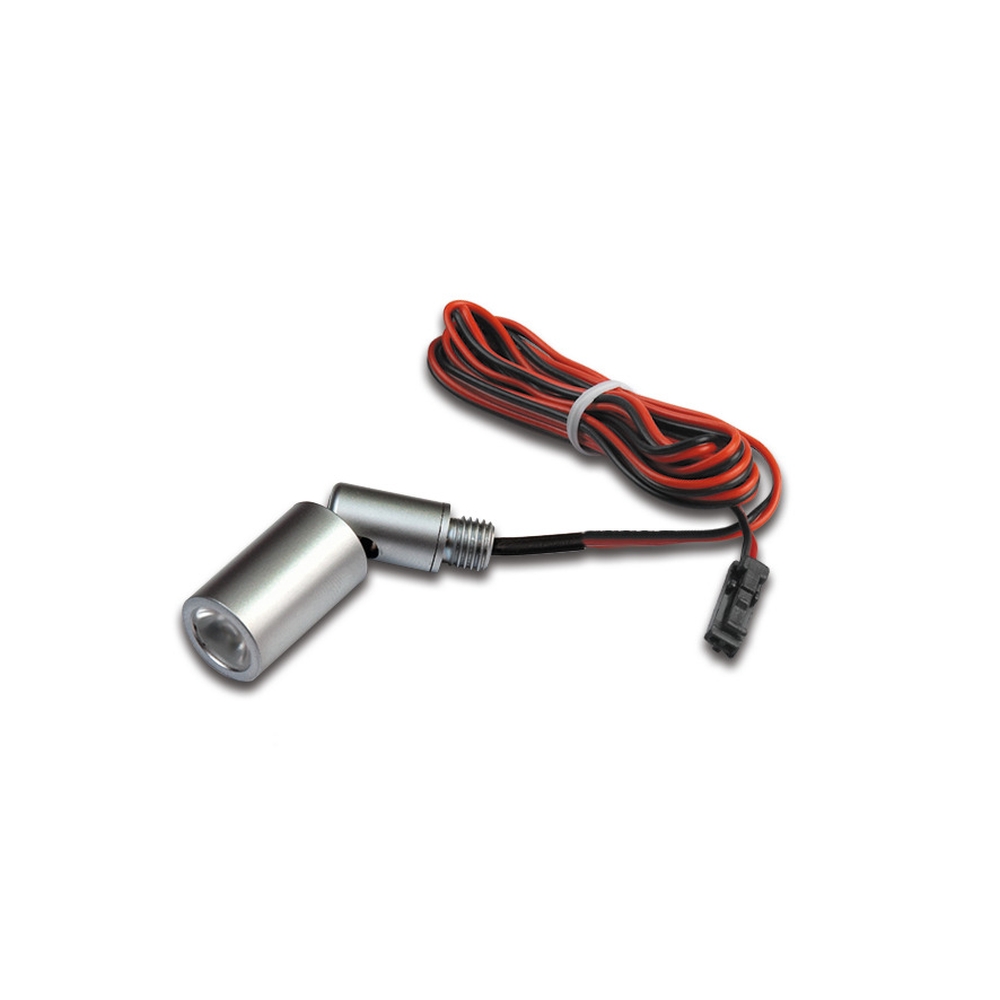

LED Spot LED Point S

The LED Spot LED Point S is equipped with an M8x1 thread and comes with 2 interchangeable lenses. It is powered by 350mA and the housing is made of anodized aluminum.

Technical Details

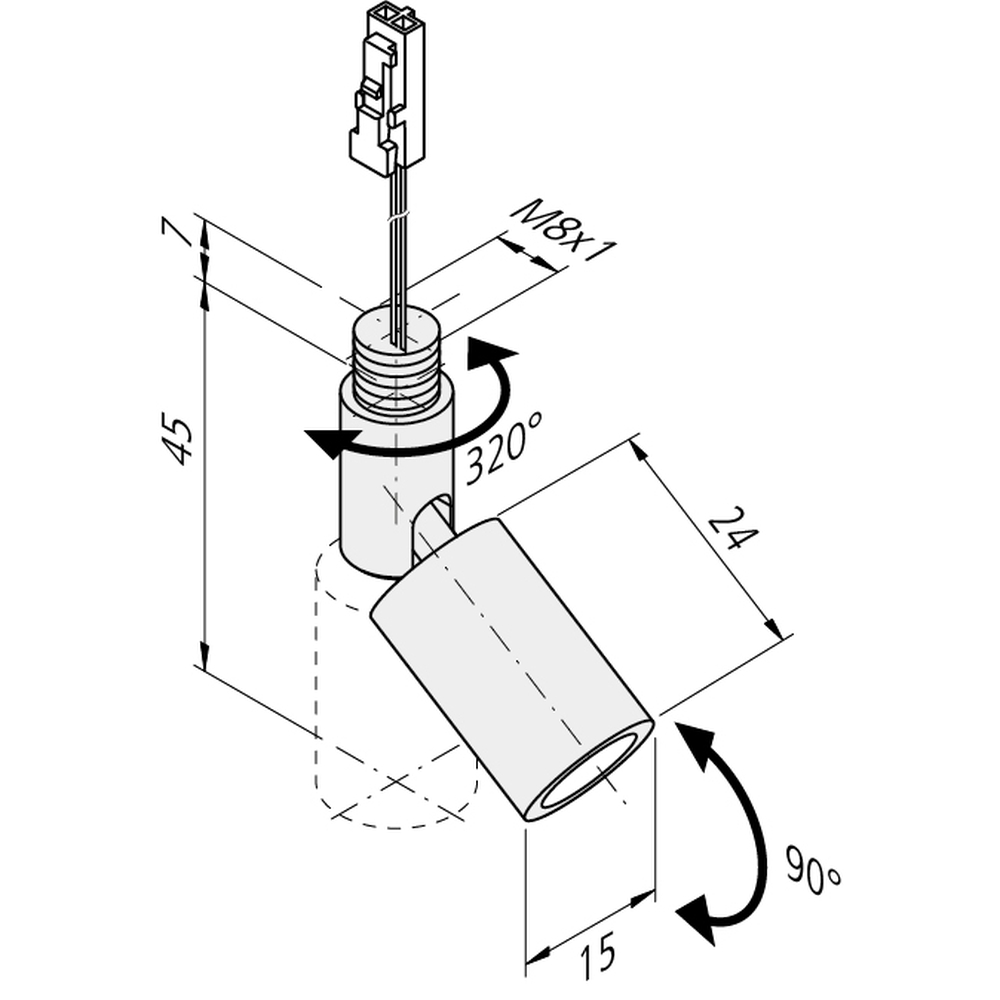

The visible size of the LED spot is a diameter of 1.5 cm and a length of 4.5 cm. It has a swivel range of 320° and is suitable for use in furniture. The color of the spot is matte aluminum.

Light Quality

The light color of the LED spot is neutral white with a light output of 115lm/W. The color rendering index is between 80 and 89Ra and the color rendering level is 1B. The light distribution is symmetrical.

Additional Information

The LED spot is suitable for indoor use and can be connected via the LED-350 plug system. It has a swivel range of 90° and is approved as a furniture light according to VDE 0710 part 14/04.82.

Energy Efficiency and Accessories

The LED spot has a power consumption of 1W and an average lamp life of 60000 hours. It is classified in energy efficiency class E and can be dimmed with appropriate accessories. Included in the delivery are the lens and plug, connection cable and operating device are not included.

Colour:
satined
housing aluminum / cover matt, satined
Dimension:
Sichtbarer Teil in gerader Stellung-Ø∕ L: 1,5∕ 4,5 cm
Material:
aluminium
plastic
Product type:
object luminaire
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
connection cable - not included in delivery
2 interchangeable lenses: 20° (delivery state) / 30° - included in delivery
LED 350 plug - included in delivery
Application area:
only suitable for indoor use
Field of application:
furniture
Dimmable:
yes
Dimmability:
with optional features only
Constant current:
350 mA
Power consumption:
1 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Voltage:
350mA constant current plug
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
115.00 lm
Light yield:
115.00 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK00 no impact resistance
Lamp current:
350 mA
Swivel range:
90 °
Turning range:
320 °
Fitting opening circle :
0,8 cm
Mounting:
recessed mounting
Protection class:
3
IP-protection class:
20
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
E
EPREL No:
885655
Article number:
HE-61001720103
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
