LED under-cabinet luminaire LED ADD-ON Mini, 25cm, IP20, LED24 connection, CRi>90, dimmable, 4.3W 4000K 280lm 110°, alu

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

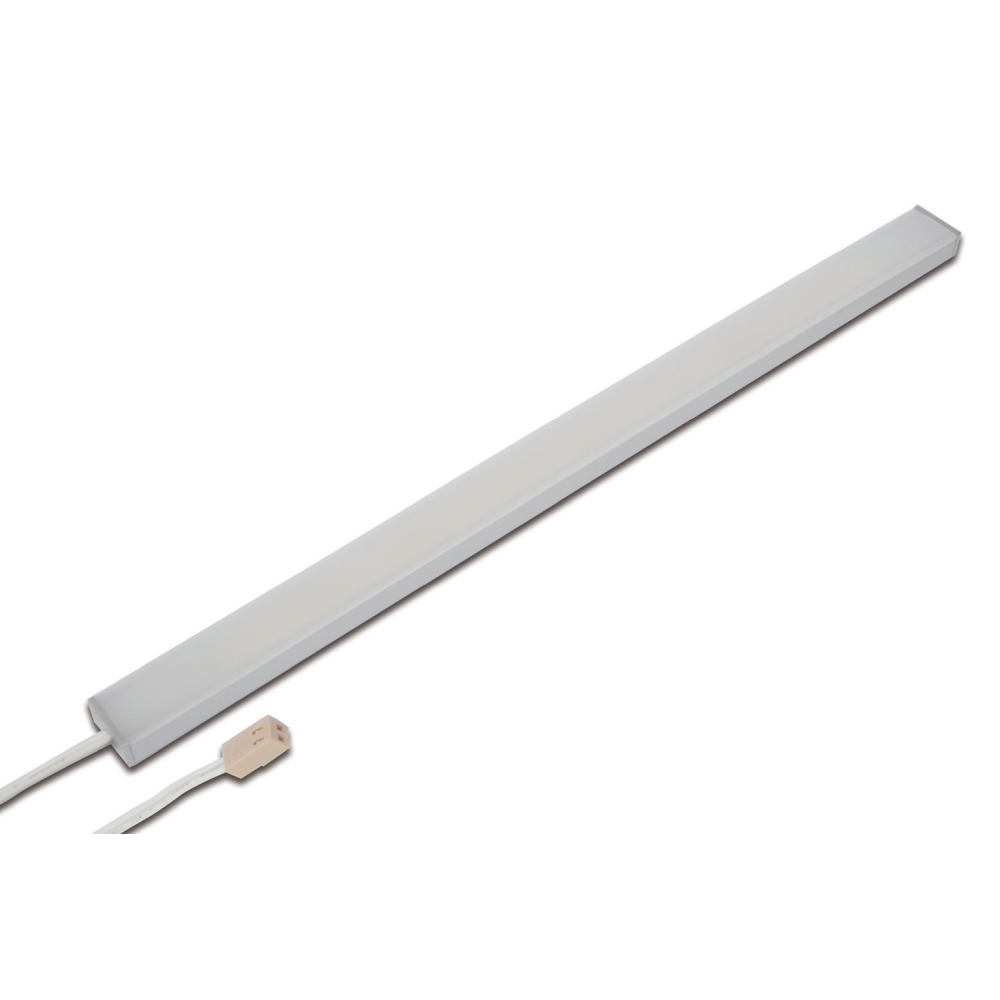

LED Under Cabinet Light LED ADD-ON Mini, 25cm, IP20, LED-24 Connection, CRI>90, dimmable

The LED Under Cabinet Light LED ADD-ON Mini is a high-quality lighting solution for furniture and walls indoors. With a size of 25 x 1.5 x 0.8 cm, it fits perfectly in various environments. The light has a color rendering index of 90-100Ra and a color rendering grade of 1A, ensuring excellent light quality.

Technical Data and Features

The LED Under Cabinet Light has a power consumption of 4.3W and a lamp rated current of 180mA. With a color temperature of neutral white and a luminous flux of 250lm, it provides pleasant lighting. The light distribution is symmetrical, and the materials aluminum and plastic ensure durability and robustness.

Installation and Connection

The under cabinet light is installed using surface mounting and the LED-24 plug-in system connection. Protection class 3 and an operating temperature range of -5 to 35°C ensure safe use. The light is dimmable and can be individually adjusted with the appropriate accessories.

Additional Information

The LED Under Cabinet Light has an extremely wide beam angle of over 80° and features a diffuser for even light distribution. With an average lamp lifespan of 60,000 hours and an energy efficiency class G, the light is a sustainable lighting solution. The EPREL No. 929140 and the color temperature of 4000K complete the package.

Scope of Delivery and Accessories

The light bulbs are included in the delivery of the LED Under Cabinet Light. Please note that the operating device is not included in the delivery and must be purchased separately. With the LED-24 plug-in system and connector type, installation is simple and straightforward.

Colour:
housing aluminum / cover opal
Dimension:

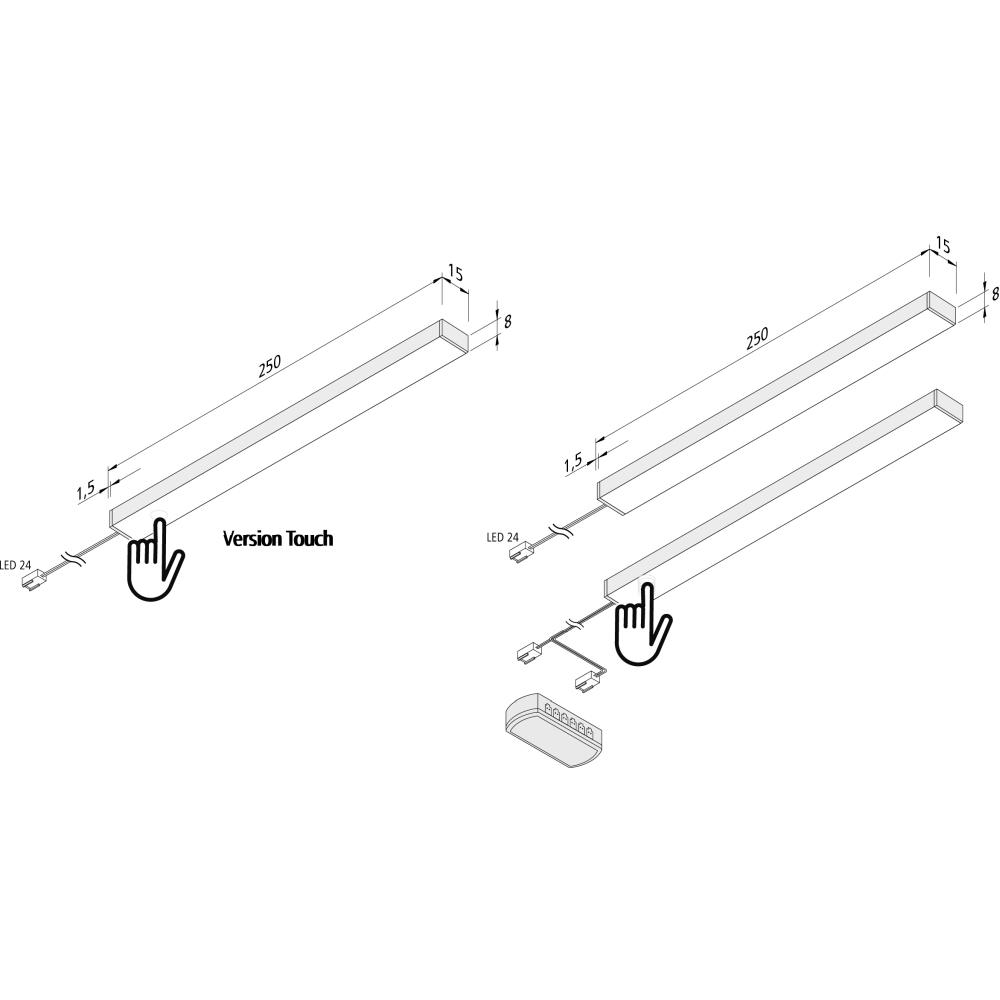

L∕ B∕ H: 25∕ 1,5∕ 0,8 cm
Material:
aluminium
plastic
Product type:
undershelve
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
wall
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Constant current:
180 mA
Power consumption:
4,3 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
250 lm
Light yield:
58.00 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Lamp current:
180 mA
Mounting:
surfaced mounting
Protection class:
3
IP-protection class:
20
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
929140
Article number:
HE-61001222103
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
