LED under-cabinet luminaire LED Slim-Pad F, IP20, with IR dimmer, homogeneous area light, LED24 connection, 5W 3000K, black

LED Under-cabinet Light LED SLIM-PAD F, IP20, with IR Dimmer

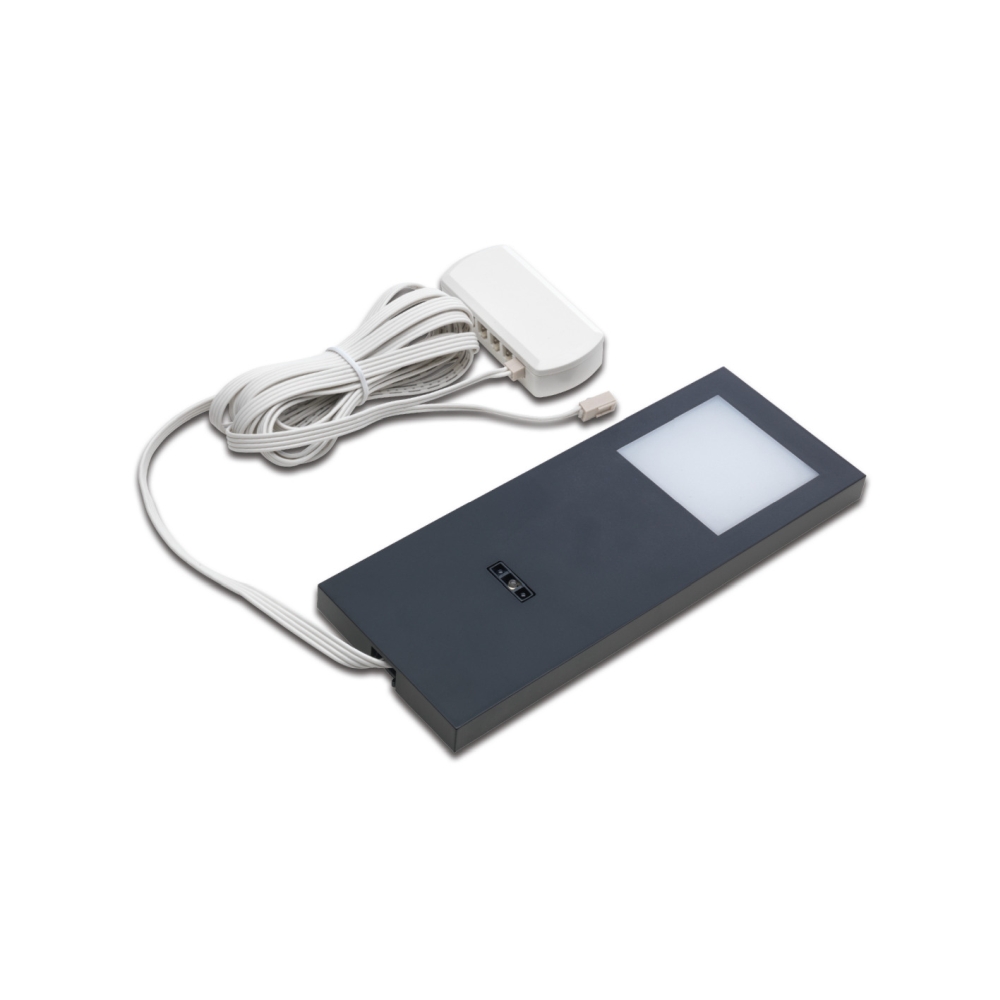

The LED under-cabinet light LED SLIM-PAD F from Hera is an elegant and modern lighting solution for furniture and walls. With a homogeneous surface light and a beam angle of 110°, it provides uniform illumination without distracting shadows. The luminaire has an LED-24 connection and can be controlled with a touchless IR dimmer, which also offers an orientation light function.

Technical Details and Applications

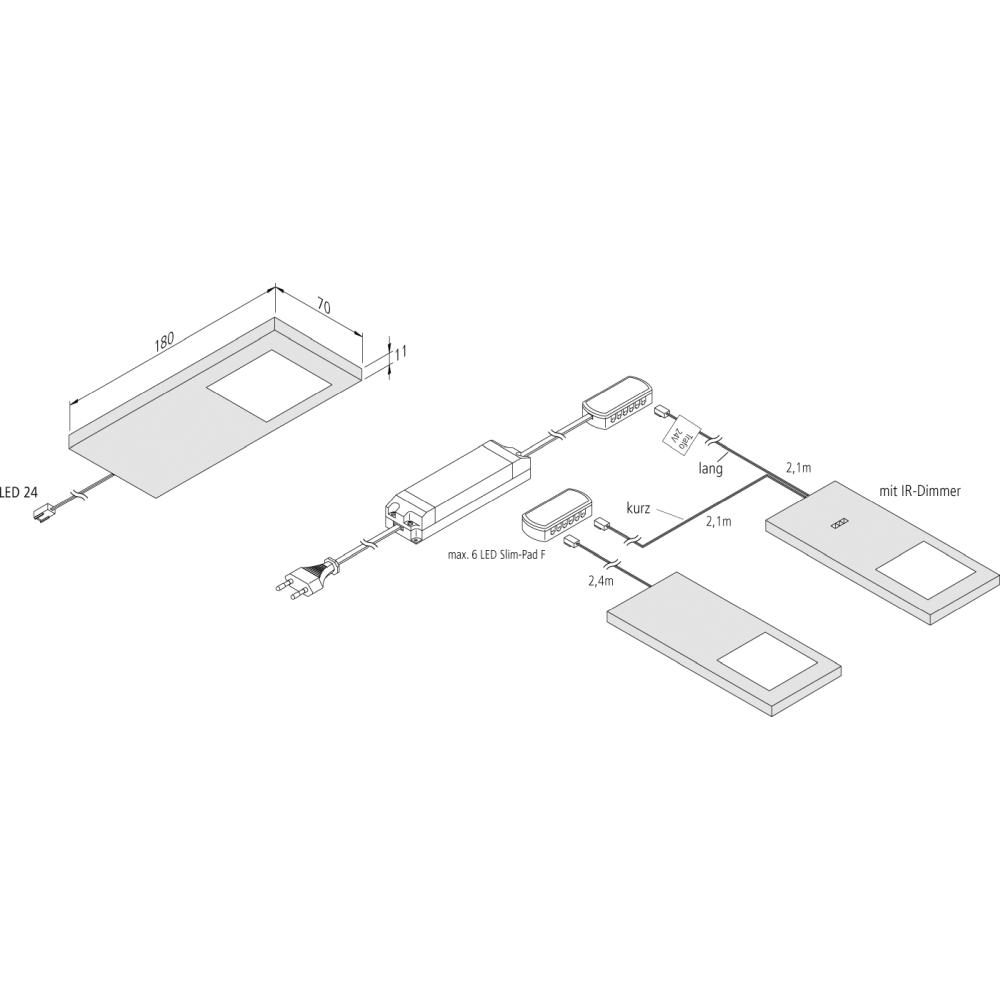

The LED under-cabinet light has an operating voltage of 24V= and a constant current of 210mA. With a power consumption of 5W and a warm white light color, it generates a luminous flux of 285lm with a light output of 57lm/W. The dimensions of the luminaire are 7 x 1.1 x 18 cm and it is suitable for indoor use only. The luminaire is mounted by surface mounting and the material is made of plastic.

Dimmability and Additional Information

The LED under-cabinet light is dimmable with the included IR dimmer, which also has a memory function to restore the previous dimming state after power loss. The beam angle is extremely wide at 110° and the light distribution is achieved through a diffuser. The plug type is an LED-24 plug system and the luminaire's protection class is 3. Thanks to the integrated dimmer and gesture control, operation is easy and convenient.

Longevity and Energy Efficiency

The LED under-cabinet light has an average lamp life of 60,000 hours and an energy efficiency class of G. The color rendering index is between 80-89Ra and the color temperature is 3000K. The luminaire has a voltage-controlled LED operating device and meets the glow wire test according to IEC 60695-2-11 without restrictions.

Accessories and Package Contents

The package includes a dimmer and an operating device for the LED under-cabinet light. The luminaire can effectively and energy-efficiently illuminate not only furniture but also walls. With its slim design and opal design, it harmoniously blends into any interior and creates a pleasant atmosphere.
