LED under-cabinet luminaire LED Top-Stick FIR with IR sensor + signal light, IP20, CRi> 95, LED24 connection, 120cm, 20.9W 3000K

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

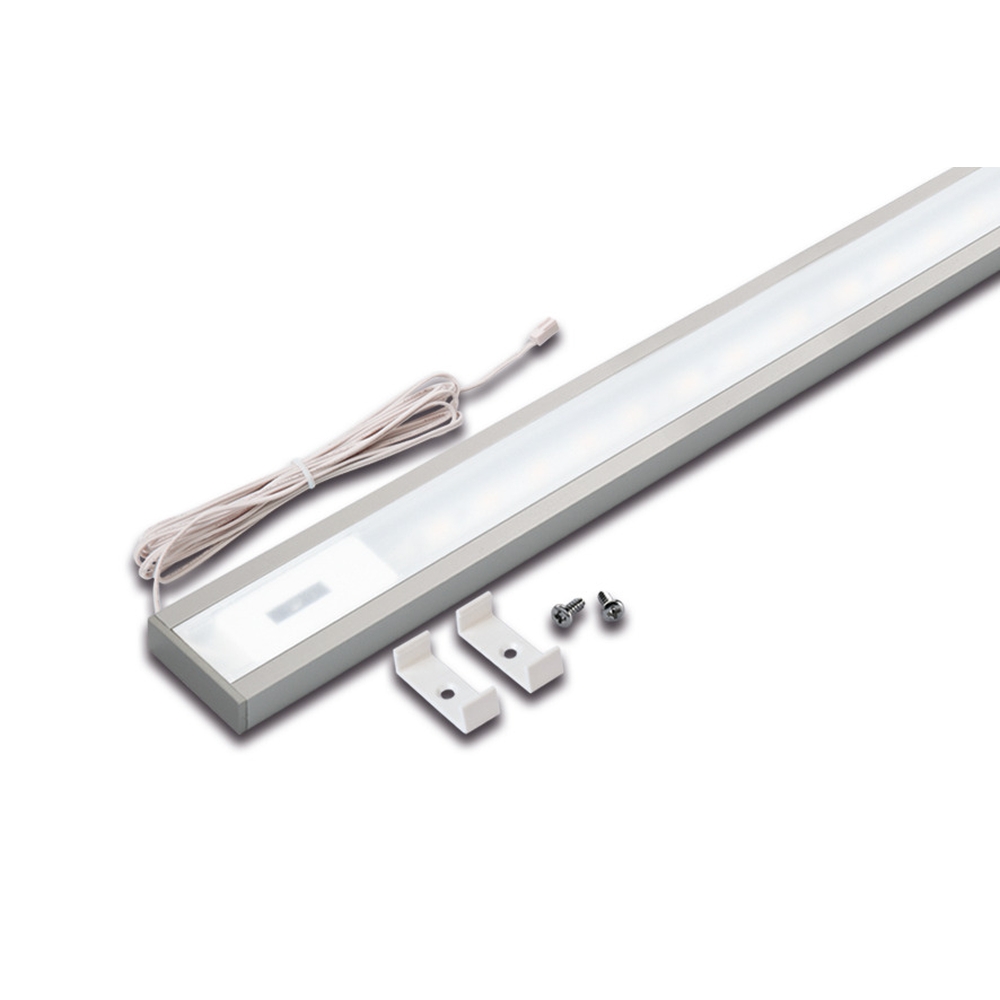

LED Under Cabinet Light LED TOP-STICK FIR with IR Sensor + Orientation Light

The LED under cabinet light LED TOP-STICK FIR from Hera is an innovative lighting solution for furniture and walls in indoor spaces. With a color rendering index of over 95Ra, it provides excellent color reproduction and a pleasant light atmosphere. The integrated IR sensor and orientation light make operation particularly convenient.

Technical Data and Features

The LED under cabinet light has a power consumption of 24.4W and a luminous flux of 1285lm. The light color is warm white and the light efficiency is 51lm/W. The beam angle is 110° and the light distribution is diffuse. The size of the light is 120 x 4 x 1.2 cm. The housing is made of aluminum and plastic.

Installation and Connection

The installation is surface-mounted and the operating voltage is 24V=. The LED under cabinet light features an LED-24 plug system for the power connection. The connection is made via a constant current of 1020mA. The light source is fixed and not replaceable. Accessories such as the operating device are not included.

Additional Information and Certifications

The LED under cabinet light complies with protection class 3 and has an IP protection rating of 20. The average lamp lifespan is 60000 hours. The color temperature is 3000K and the color rendering index is 1A. The energy efficiency class is G. Additionally, the light is EPREL certified with the number 949313.

Applications and Dimming Function

Thanks to its wide range of applications, the LED under cabinet light is ideal for various furniture pieces and walls in indoor spaces. With the appropriate accessories, the light is dimmable to adjust the light intensity individually. The high-quality construction and durable technology make the LED TOP-STICK FIR a reliable lighting solution for indoor spaces.

Colour:
housing aluminum / cover opal
Dimension:

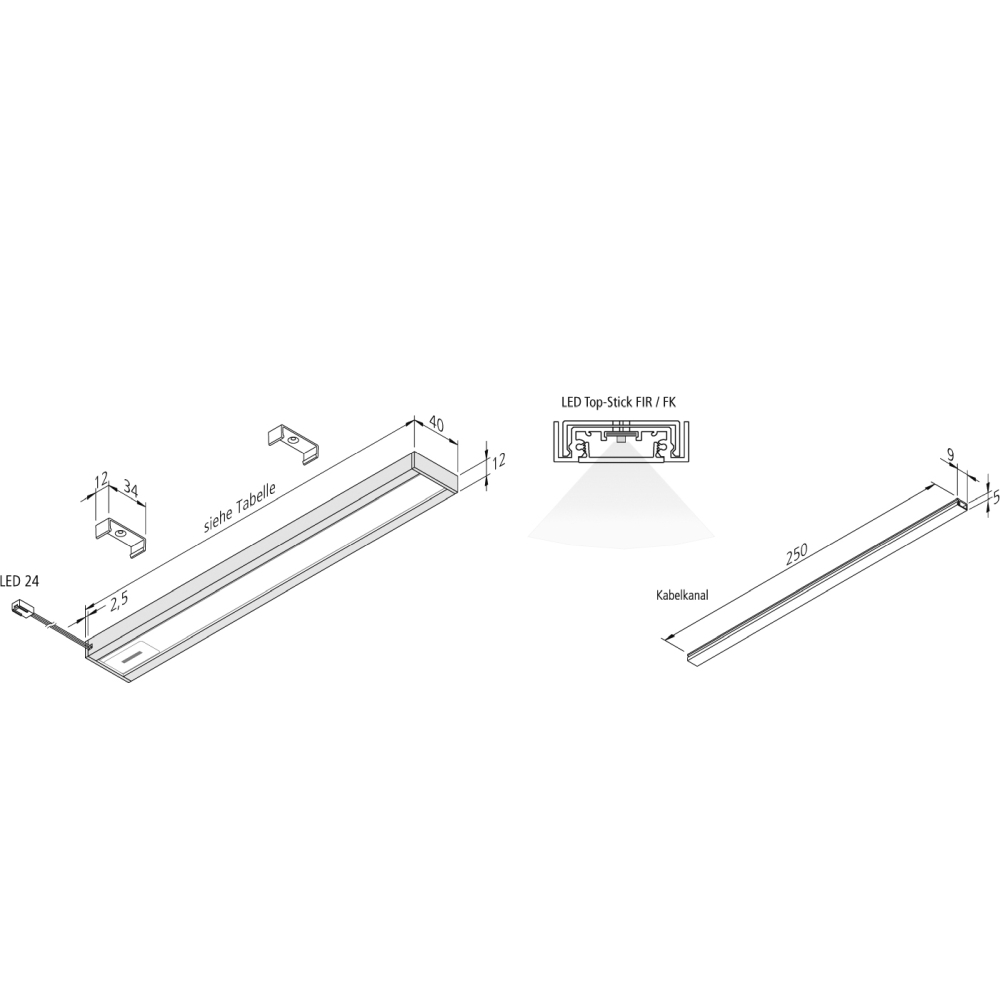

L∕ B∕ H: 120∕ 4∕ 1,2 cm
Material:
aluminium
plastic
Product type:
undershelve
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
wall
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Constant current:
1020 mA
Power consumption:
24,4 W
Emitting angle:
110 °
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
warm white
Light emission:
Gestreut
Light flux:
1285 lm
Light yield:
51 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Lamp current:
1020 mA
Mounting:
surfaced mounting
Protection class:
3
IP-protection class:
20
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
949313
Article number:
HE-61001425402
Brand:
Hera
Manufacturer:
Hera
