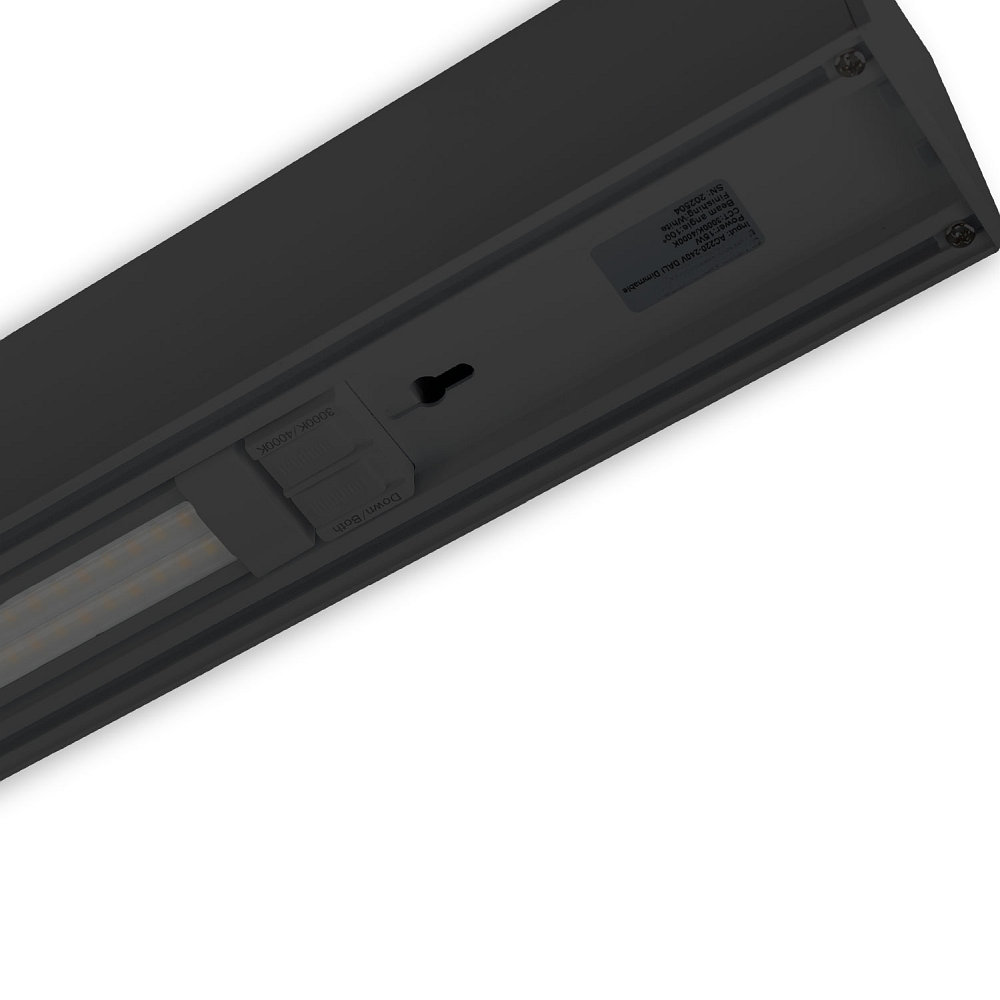

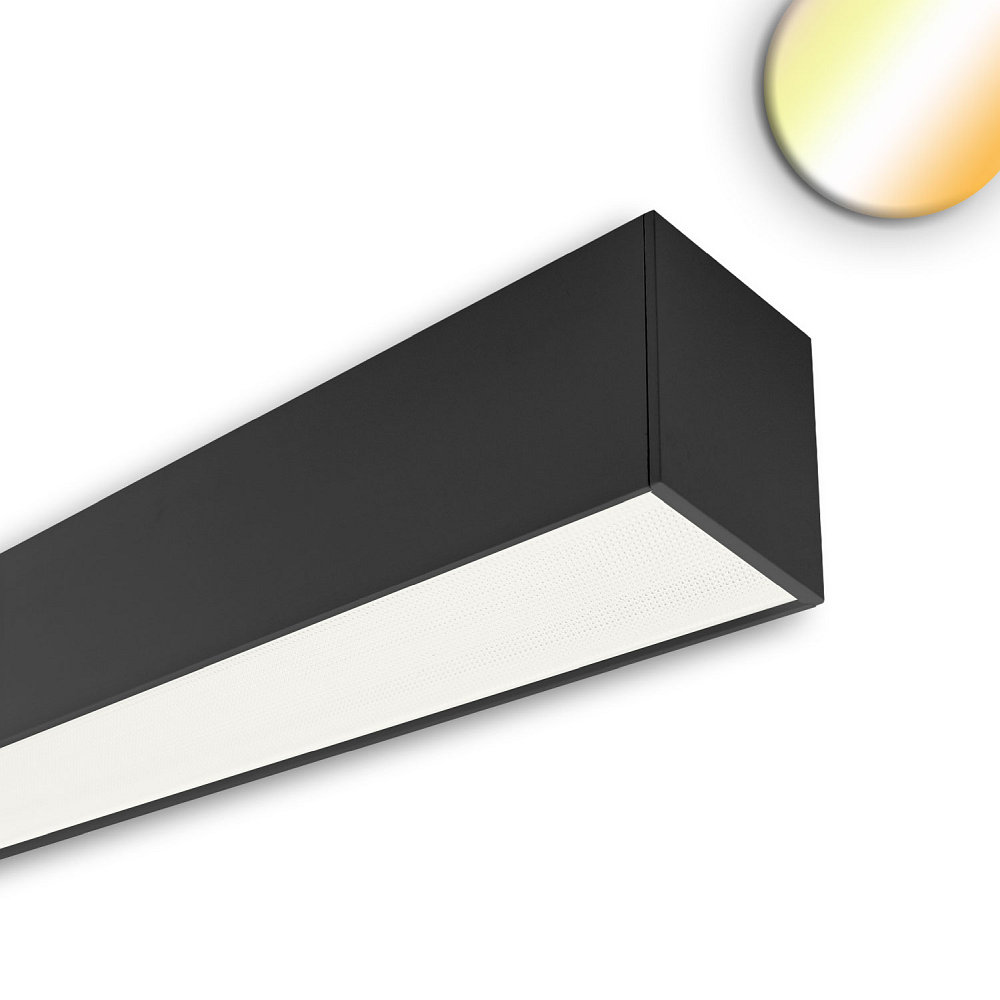

luminaire module LINKLINE50 60 IP20, black dimmable

Efficient LED UP Module for Modern Lighting

The LED UP module for the LINKLINE50 pendant lamp offers a powerful and energy-efficient lighting solution with only 5 watts of power consumption. With a luminous flux of 600 lumens, it provides sufficient brightness while keeping energy use low. This module is specially designed to ensure a long lifespan of up to 33,000 hours, significantly reducing replacement and maintenance efforts.

Flexible Color Temperatures for Individual Lighting

The module offers two adjustable color temperatures: warm white at 3000 Kelvin and neutral white at 4000 Kelvin. This flexibility allows the light to be adapted according to needs and mood. The color rendering index ranges between 80 and 89 Ra, ensuring natural and vivid color reproduction. Colors are thus displayed clearly and authentically.

High-Quality Materials and Compact Design

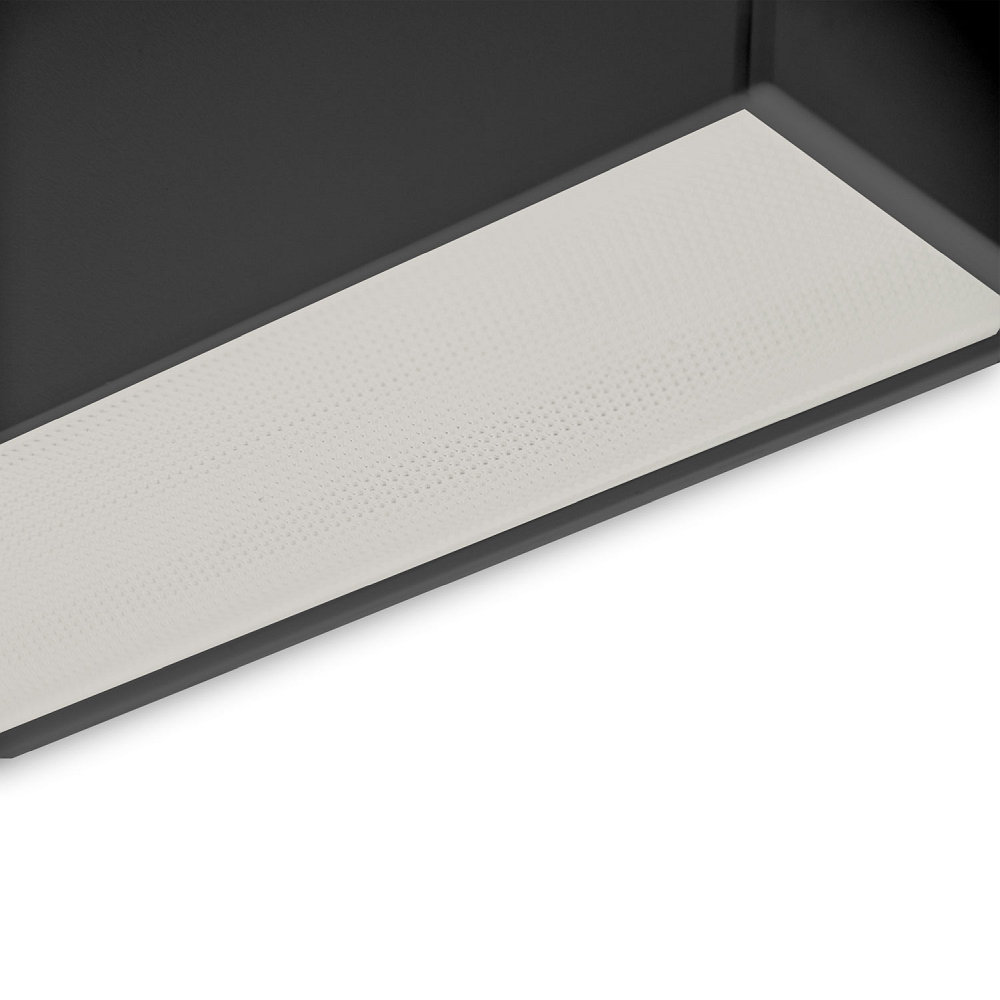

The LED module is made of robust aluminum and features an elegant black design. With dimensions of 31.3 x 3.2 x 1.7 cm, it is particularly slim and unobtrusive. The integrated reflector ensures even light distribution, optimally illuminating the room. The high-quality material guarantees a long service life and good heat dissipation.

DALI Dimming Function for Individual Light Control

The LED UP module is DALI-dimmable, allowing simple and precise control of light intensity. This enables optimal adjustment of lighting to different situations and needs. The module operates at a supply voltage of 38 volts DC and requires a separate driver, which is not included in the delivery.

Reliable Protection and Easy Integration

With protection class IP20, the module is protected against contact, increasing safety when handling. It is designed for use in various lighting systems and can be easily installed thanks to its modular construction. The ISOLED product impresses with its combination of performance, flexibility, and quality – ideal for demanding lighting projects.
