Outdoor Multi cable connector for 2 cable 4-14 mm, 2-5 cores 0.5-4 mm², max. 450V AC/24A

Reliable Multi Cable Connector M25 for Versatile Applications

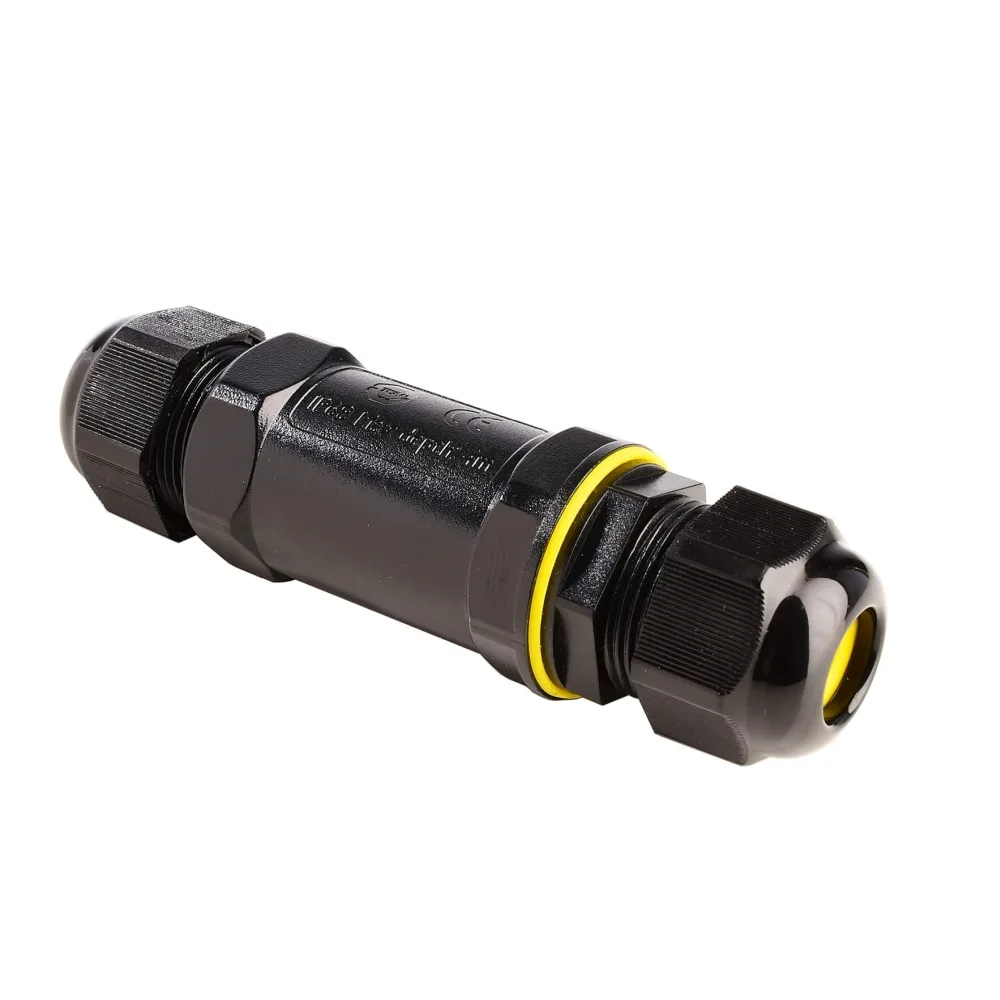

The Outdoor Multi Cable Connector M25 from Deko-Light is the ideal solution for securely connecting two cables with diameters ranging from 4 to 14 mm. It is suitable for cables with 2 to 5 cores and a cross-section of 0.5 to 4 mm². Thanks to its robust design, this product ensures a stable and durable connection that performs reliably even under demanding conditions.

Robust Design with High-Quality Material

The housing of the cable connector is made of durable polyamide and is equipped with a rubber seal. This combination provides high resistance and long service life. The black and yellow color scheme facilitates visibility and handling. Additionally, the material is chosen to withstand temperatures from -20°C to +120°C, enabling the connector to operate reliably across a wide temperature range.

Waterproof and Secure Thanks to IP68 Protection

With an IP68 rating, the cable connector is waterproof up to a depth of 2 meters. This feature ensures that no moisture penetrates the interior, keeping the electrical connections safe. The waterproof M25 cable gland additionally offers optimal protection against water and dust. As a result, the connection remains intact and secure even under challenging conditions.

Flexible Application with Included Adapter Bushings

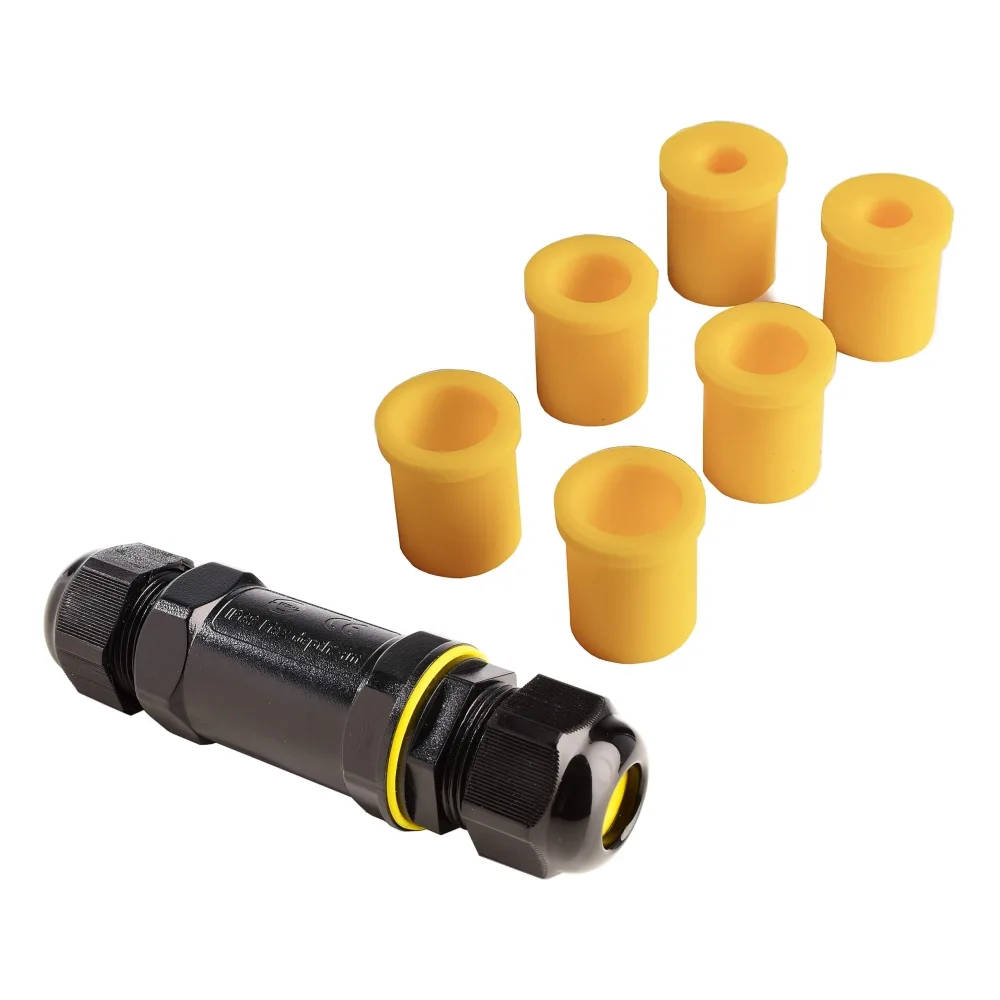

The scope of delivery includes practical bushings that allow flexible adjustment to different cable diameters. There are a total of six rubber reducing pieces: two for cables with 4-8 mm diameter, two for 8-12 mm, and two for 10-12 mm. These adapters ensure a firm hold and secure sealing, regardless of the cable thickness used. This makes the connector versatile and optimally adaptable to various requirements.

Technical Details and Professional Quality from Deko-Light

The multi cable connector is designed for a maximum current of 24 A and supports an operating voltage from 12 to 450 volts AC at a network frequency of 50/60 Hz. With compact dimensions of 11.25 x 2.95 x 3.26 cm and a weight of only 82 grams, the connector can be easily integrated. Deko-Light offers a professional solution with this product for wiring low-voltage and high-voltage components, suitable for both private and professional projects.
