Pluggable LED rod LED Stick F, with area light, CRi>95, 30cm, 36 LED, 2.4W 3000K 150°

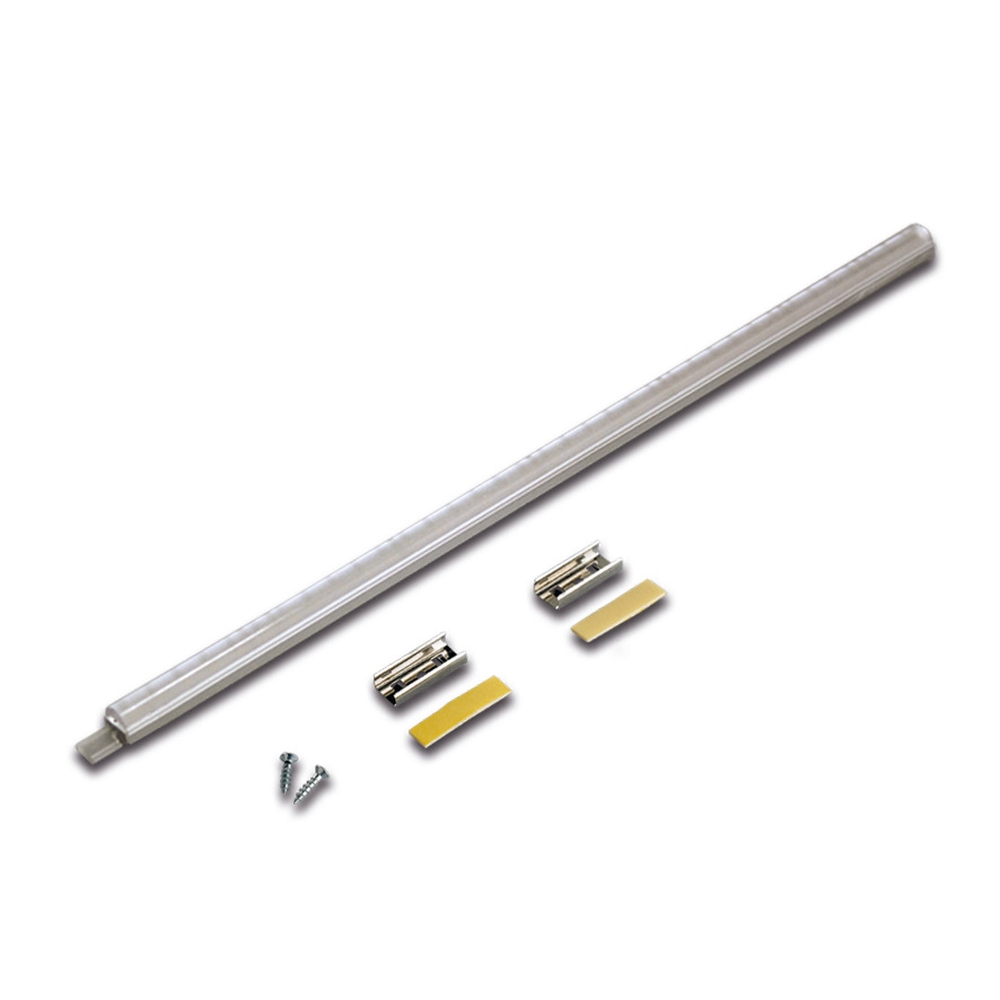

Plug-in LED Stick LED Stick F

The plug-in LED stick LED Stick F offers pleasant area light with a color rendering index of over 95. With a size of 30 cm length, 1.1 cm width, and 1.1 cm height, it is ideal for use in furniture and walls indoors. The color of the stick is aluminum with opal light and a color rendering level of 1A.

Technical Data

The LED stick operates with an operating voltage of 24V and a constant current of 100mA. The power consumption is 2.4W with a light output of 84lm/W. The light color is warm white with a luminous flux of 205lm and a symmetrical light distribution.

Installation and Use

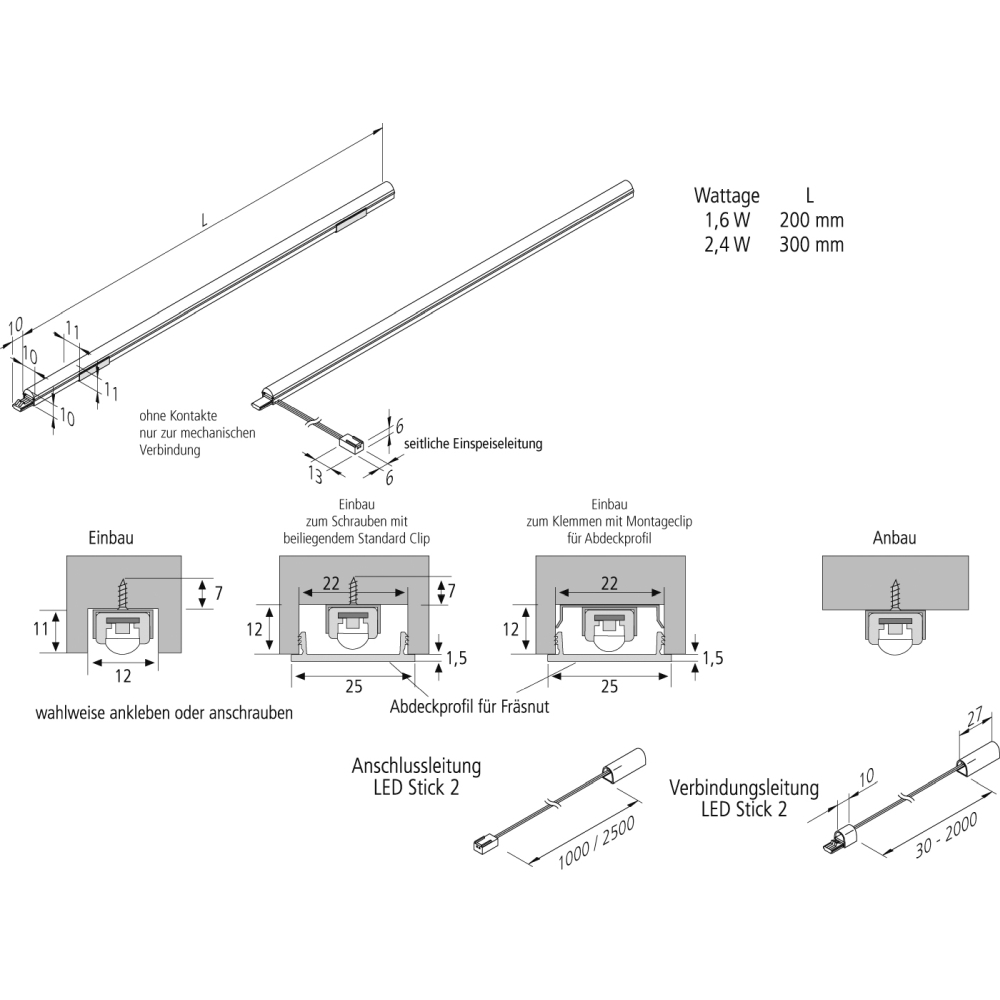

Thanks to various mounting options such as recessed, surface-mounted, or track system, the installation is flexible and easy. The LED stick can be mounted with accessories and is suitable for use in light band configurations. Additionally, dimming function with corresponding accessories is possible.

Additional Information

The LED stick features an LED-24 plug system for the power connection and can be operated at ambient temperatures of -5 to 35°C. The average lamp life is 60000 hours and the material consists of aluminum and plastic. The stick is not suitable for LED replacement.

Accessories and Safety

The operating device is not included in the delivery. The protection class of the stick is 3 and the IP protection rating is 20. Additional information such as the glow wire test according to IEC 60695-2-11 and energy efficiency class G are also available. The LED stick is ideal for indoor use and provides efficient lighting.
