pole luminaire STREET A MINI IP66, grey

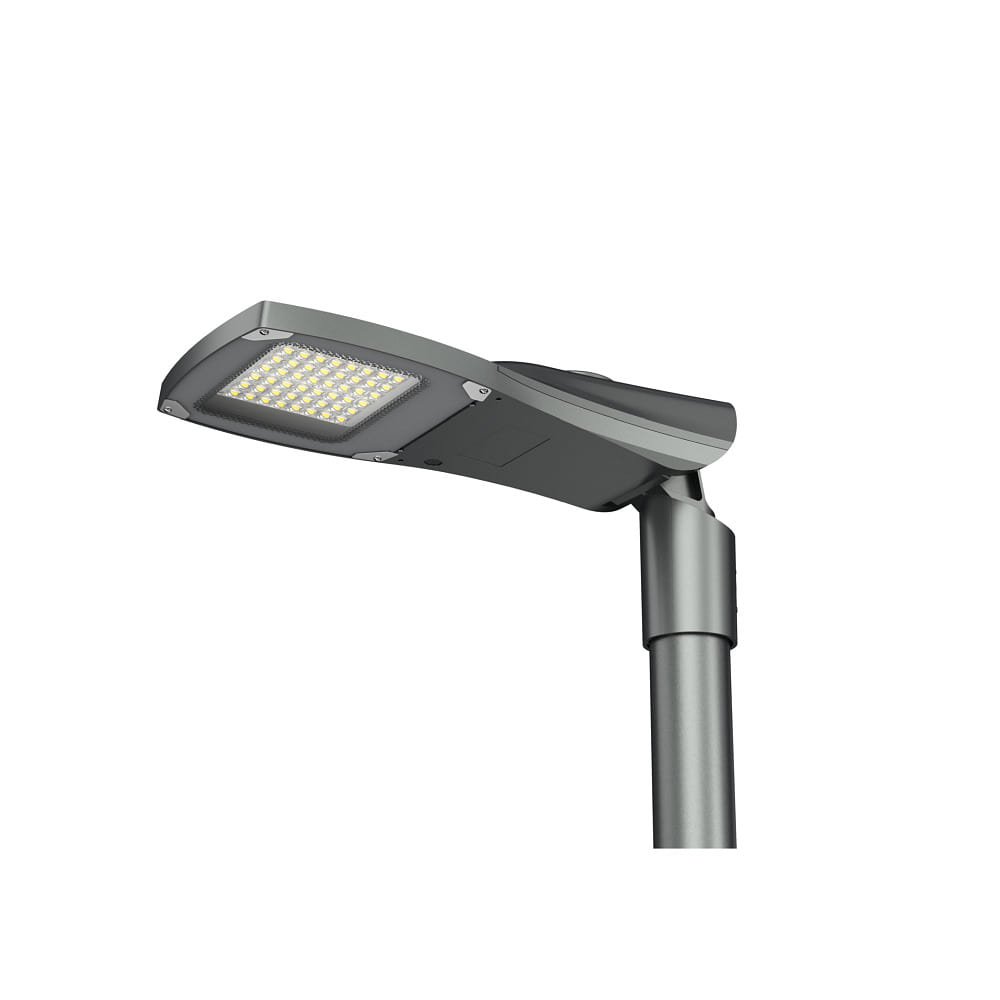

Efficient LED Mast Light STREET A MINI

The LED mast light STREET A MINI from SLV impresses with its high efficiency and modern technology. With a power consumption of 90 watts, it delivers a strong luminous flux of 13,500 lumens at a luminous efficacy of 150 lumens per watt. The light color is neutral white with a color temperature of 4000 Kelvin, providing pleasant and clear illumination. The slim design in gray and the sturdy aluminum housing make the luminaire a durable and reliable solution.

Robust Construction and Protection Class

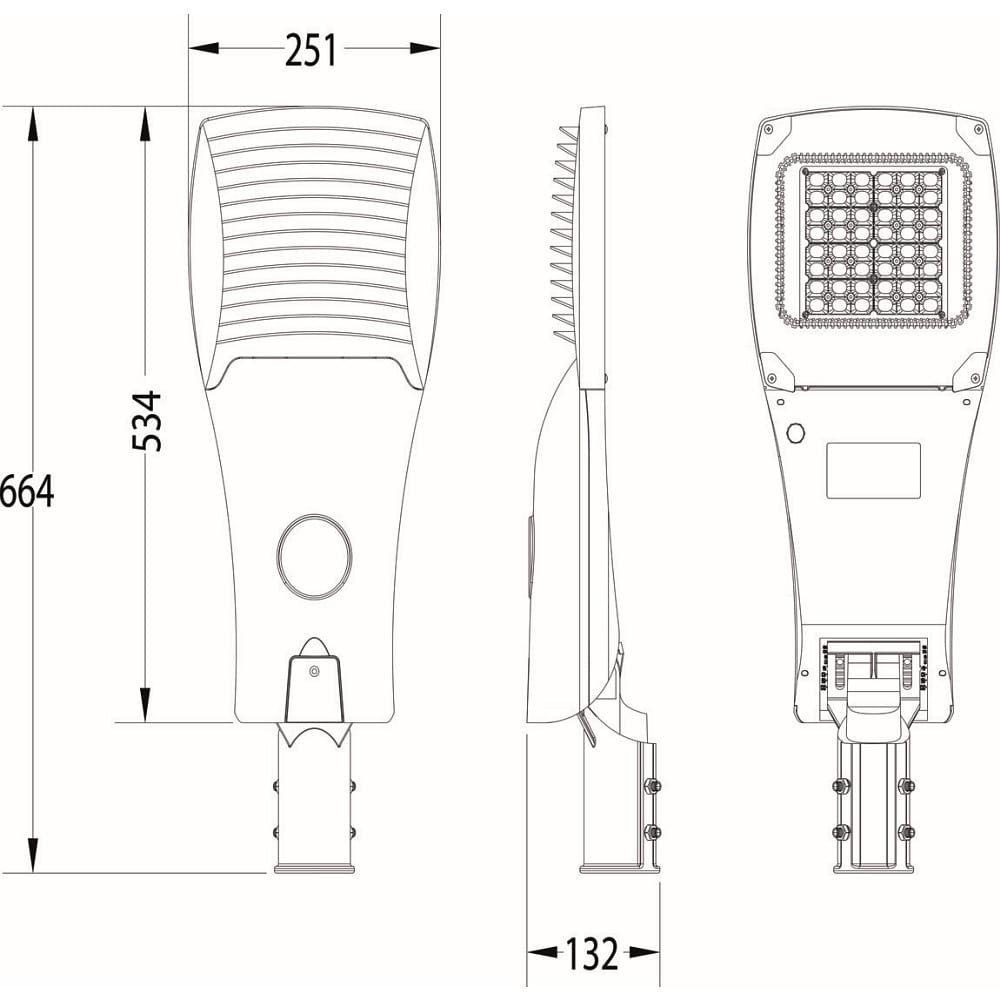

The mast light is certified according to IP66, which means it is well protected against dust and water. Protection class 1 guarantees additional safety during electrical installation. The aluminum housing offers high stability and resistance to mechanical impacts. With dimensions of 53.4 cm length, 25.1 cm width, and 13.2 cm height, as well as a pole clamp diameter of 7.6 cm, the luminaire fits numerous standard poles.

Technical Details and Accessories

The scope of delivery for the STREET A MINI includes a current-controlled LED driver that is replaceable and allows for easy maintenance. The operating voltage is 220 to 240 volts, which enables flexible integration into existing power grids. The recommended conductor cross-section for the electrical connection is 2.5 mm². The mast light supports up to 12 luminaires with a B16 circuit breaker and up to 20 luminaires with a C16 circuit breaker, ensuring efficient circuit protection.

Versatile Applications

Thanks to its technical features and neutral design, the STREET A MINI is suitable for a variety of lighting requirements. The stable construction and high protection rating make it a reliable solution for various lighting tasks that require strong, uniform illumination. The easy installation and replaceable driver components increase user-friendliness and ease of maintenance.

Sustainability and Energy Savings

With a power of 90 watts and a luminous efficacy of 150 lm/W, the STREET A MINI is particularly energy-efficient. This means it achieves high light output with low power consumption, saving costs and protecting the environment. The durable LED light sources reduce maintenance effort and contribute to a sustainable lighting solution. Overall, this product offers a modern combination of performance, efficiency, and robustness.
