Rotatable, round LED surface moount luminaire LED PIPE F, homogeneous area light, 31cm, 5.8W 4000K

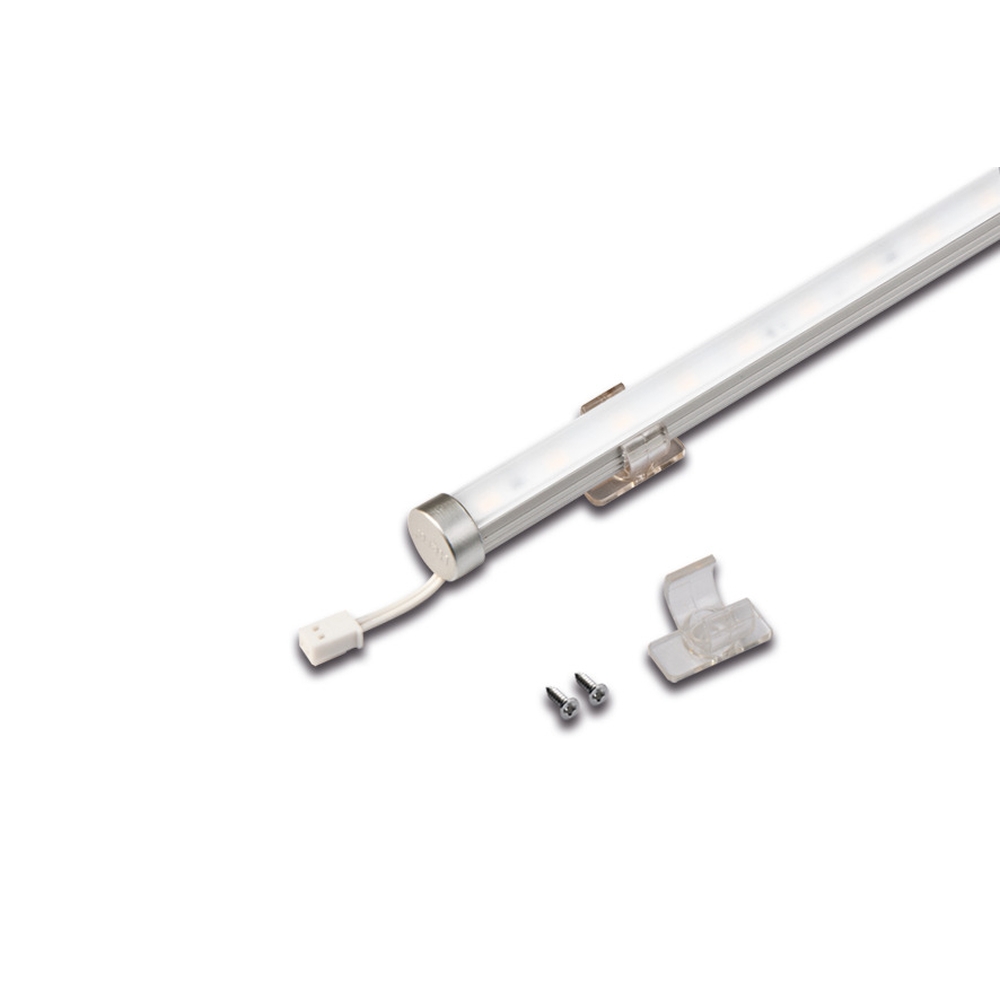

Rotatable, round LED surface-mounted luminaire LED PIPE F

The LED PIPE F from Hera is a rotatable, round surface-mounted luminaire with homogeneous surface light. With a diameter of 31 cm and an LED-24 plug, it is a practical lighting solution for use in furniture and on walls indoors. The luminaire has a power consumption of 6.5W and a luminous flux of 345lm, ensuring bright and efficient lighting.

Technical details and applications

The LED PIPE F has an operating voltage of 24V= and a constant current of 271mA. With a color rendering index of 90-100Ra and a color rendering grade of 1A, it provides natural and accurate light reproduction. The luminaire is available in aluminum color with opal light and has an energy efficiency class of G. It is particularly suitable for use indoors and can be dimmed with the appropriate accessories.

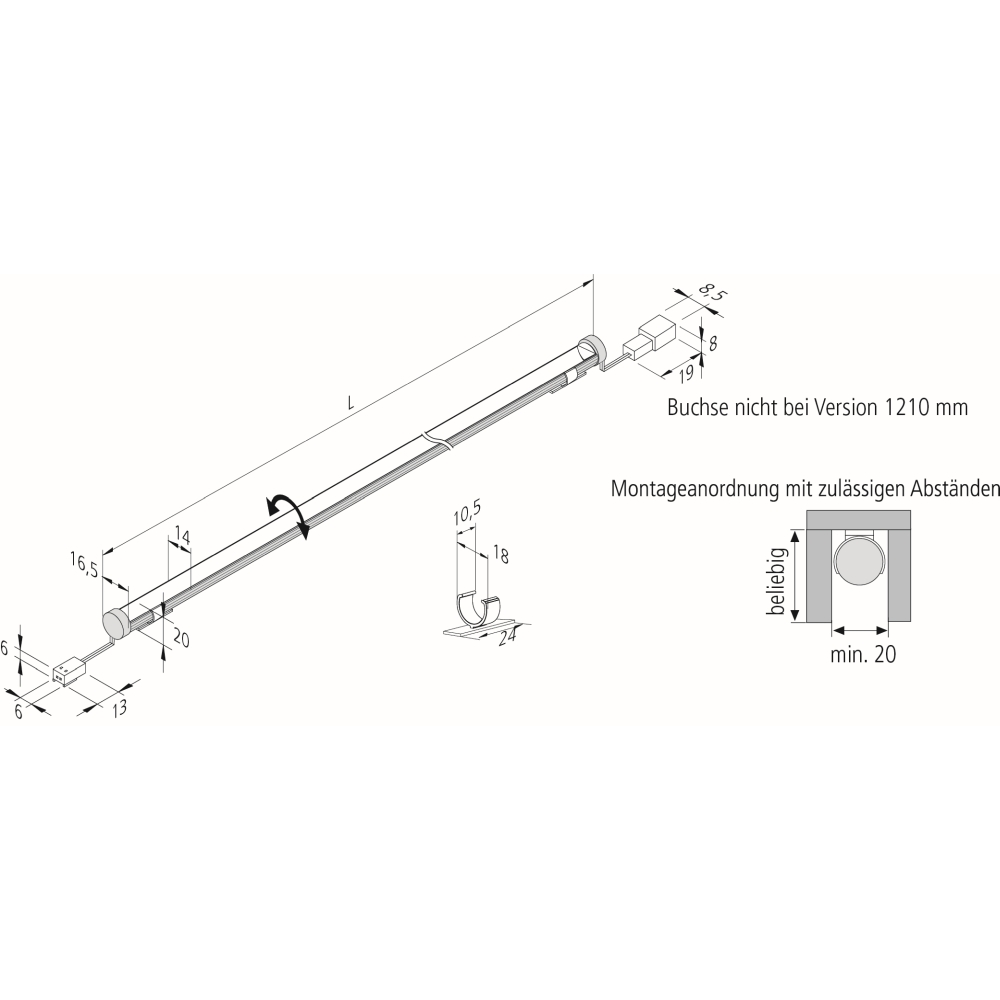

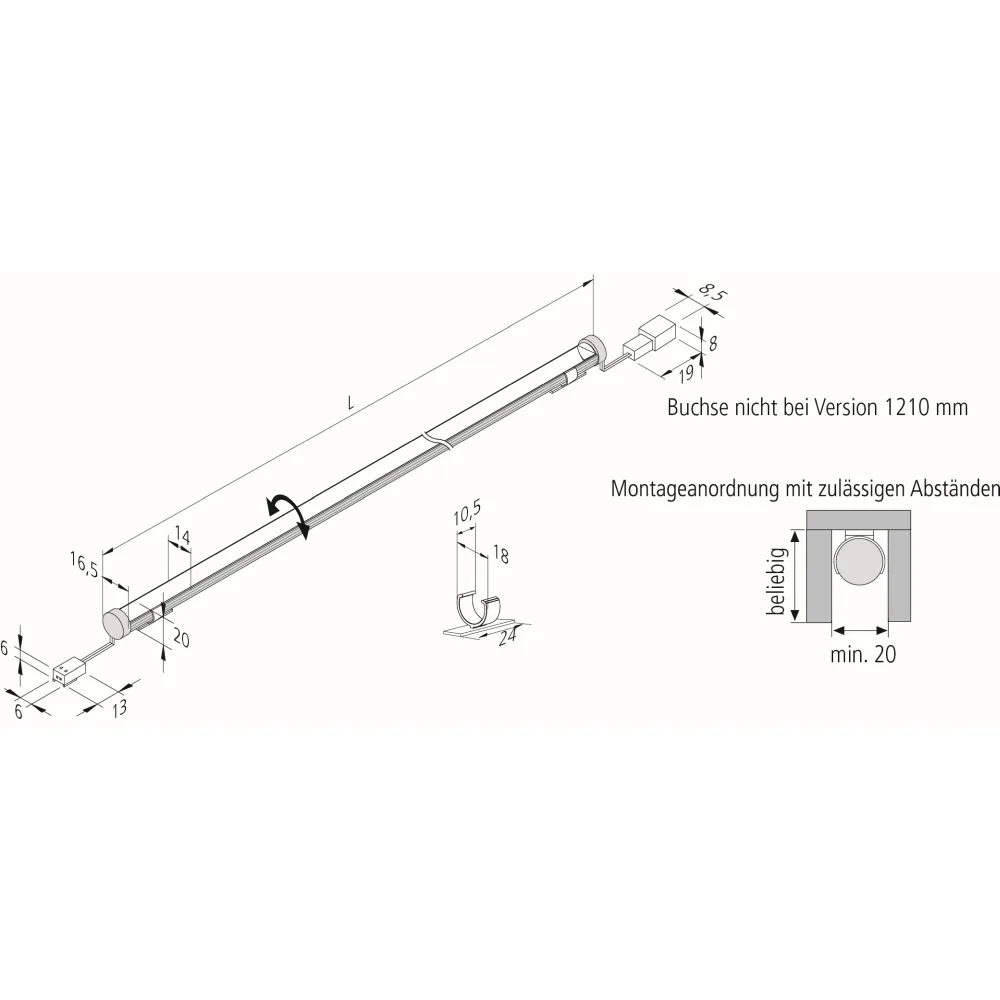

Installation and design

The LED surface-mounted luminaire can be installed both as a recessed and surface-mounted luminaire. The luminaire has an LED-24 plug system and can be easily connected. With an extremely wide beam angle of over 80° and a symmetrical light distribution, it provides uniform illumination of the room. The housing is made of aluminum and plastic, and the luminaire has a mean lamp life of 60000 hours.

Accessories and additional information

The LED PIPE F comes with a light source and cannot be replaced. The color temperature is 4000K and the light color is neutral white. The luminaire has an IP protection rating of 20 and has a LED-24 plug type. Additionally, it offers the possibility of light band configuration and features a diffuser lens for uniform light distribution.

Quality and safety

The LED PIPE F meets the highest quality standards and safety requirements. With a protection class of 3 and an ambient temperature of -5 to 35°C, it is robust and durable. The luminaire has through-wiring, an LED control gear, and complies with the glow wire tests according to IEC 60695-2-11. With an energy efficiency class of G and an EPREL number of 944547, the LED PIPE F is a reliable and efficient lighting solution for indoor use.
