Rotatable, round LED surface mount luminaire LED PIPE, Ø1.4cm, 91cm, 22.5W 2700K

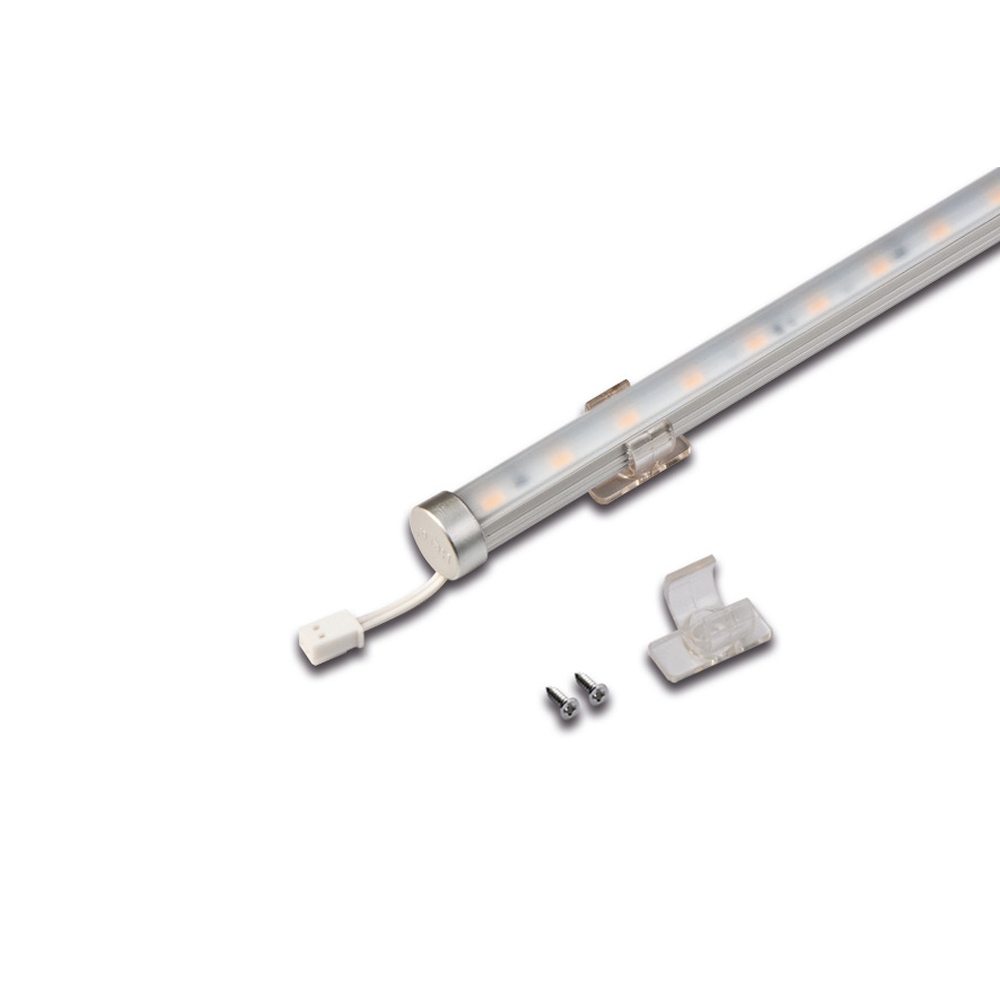

Rotatable, round LED surface-mounted luminaire LED PIPE

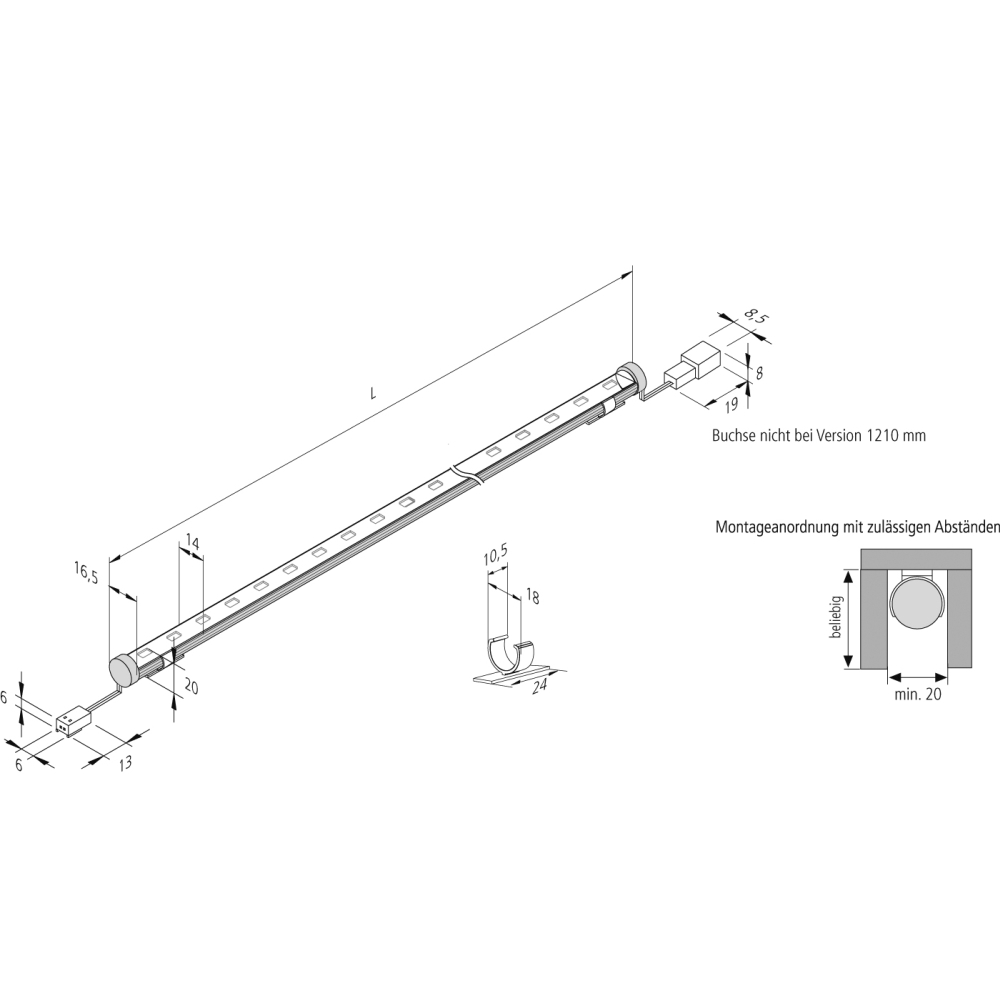

The round LED surface-mounted luminaire LED PIPE is a versatile lighting solution for indoor spaces. With a diameter of 1.4 cm and a length of 91 cm, it fits perfectly into furniture or on the wall. The luminaire is made of aluminum and plastic and features a color scheme in aluminum and opal.

Technical details and applications

The operating voltage of the LED PIPE is 24V= and the constant current is 940mA. The luminaire has a power consumption of 22.5W and a light color of extra warm white. With a color rendering index of 90-100Ra and a color rendering grade of 1A, it provides natural and clear lighting. The IP protection class is 20, making it suitable for indoor use.

Installation and accessories

The LED surface-mounted luminaire can be mounted as a recessed or surface-mounted luminaire. The LED-24 plug system allows for easy connection to the power supply. The operating device is not included but can be purchased separately. The luminaire has a average lamp lifespan of 50000 hours and an energy efficiency class of G.

Light quality and customization options

With a luminous efficacy of 61lm/W and a luminous flux of 1395lm, the LED PIPE offers bright and uniform lighting. The beam angle is over 80°, allowing for a wide light distribution. The luminaire is dimmable with the appropriate accessories and is suitable for light strip configurations.

Additional information and certifications

The LED surface-mounted luminaire complies with applicable standards and regulations and has an EPREL No. of 897486. It is not suitable for replacing the LED and has a protection class of 3. With an ambient temperature of -5 to 35°C, it is suitable for various applications and provides a reliable lighting solution for indoor spaces.
