3-phase adapter SURFACE (DALI) DALI controllable, universal

Universal 3-Phase Rail Adapter for Flexible Lighting Solutions

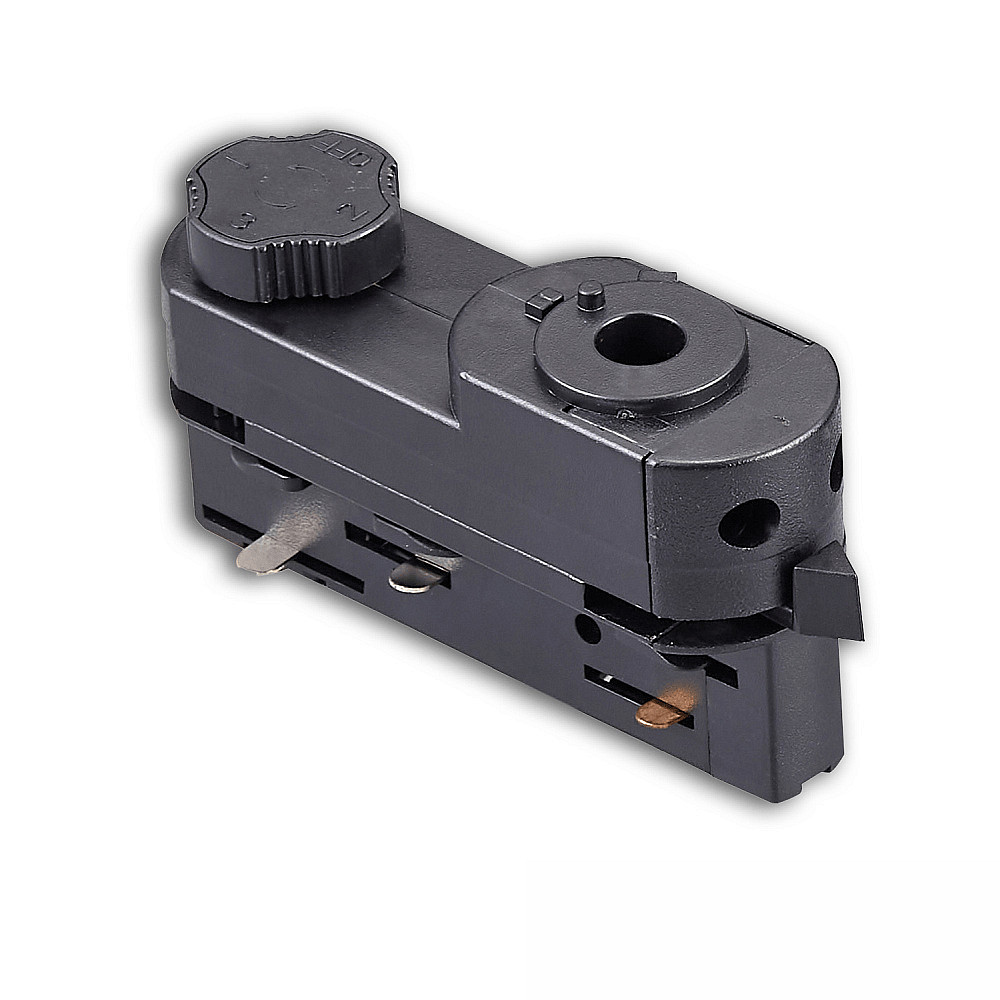

The 3-phase universal rail adapter from ISOLED is the ideal solution for safely and easily integrating luminaires with open cables into standard 3-phase high-voltage rail systems. With an operating voltage of 220-240V~ and a mains frequency of 50/60Hz, it perfectly fits various rail systems such as EUTRAC, GLOBALtrac, or ECO. Thanks to its white color and modern aluminum-plastic material blend, the adapter blends discreetly and stylishly into any lighting installation.

Easy Installation and Comprehensive Accessories

The adapter is mounted in a system-specific manner, ensuring secure and stable fastening. The delivery includes not only the 3-phase adapter but also a switch and strain relief, providing additional safety and convenience during installation. The 3-phase rail itself as well as the luminaire are not included but can be easily added to realize the desired lighting solution.

Compatibility and Controllability with DALI Systems

The adapter supports DALI DT6 controllable and dimmable systems, enabling easy integration into modern lighting management systems. This allows luminaires to be individually adjusted and controlled to create the perfect lighting atmosphere. Control via DALI ensures efficient energy use and convenient operation of the lighting.

Technical Data Explained Simply

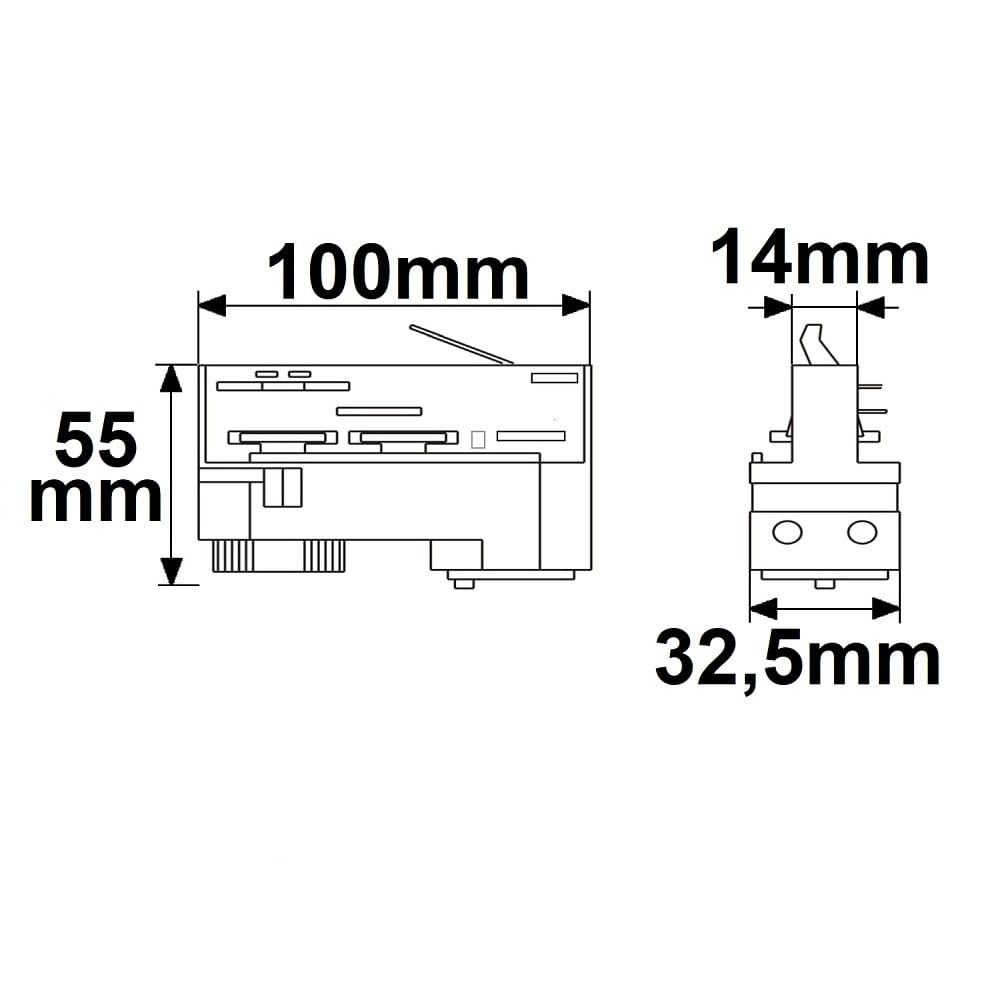

With a maximum mechanical load capacity of 10 kilograms per adapter, the rail adapter is suitable for many pendant luminaires and other luminaires with open cables. The actual load capacity also depends on the distance between the mounting points of the power rail. Protection class 1 and IP20 protection rating guarantee safe operation under normal environmental conditions. The adapter has compact dimensions of 10 x 3.25 x 5.5 cm and is particularly lightweight at only 72 grams.

Flexibility and Color Options for Individual Requirements

The 3-phase universal rail adapter is available in white and black, allowing it to perfectly match various interior styles. Optionally, an insulated screw adapter in a matching color can be purchased to safely connect other 230V AC luminaires with open cables. This product thus offers maximum flexibility in designing modern lighting concepts.
