3-phase surface-mounted track DALI SURFACE 200CM DALI controllable

Innovative 3-Phase Surface-Mounted Track for Flexible Lighting

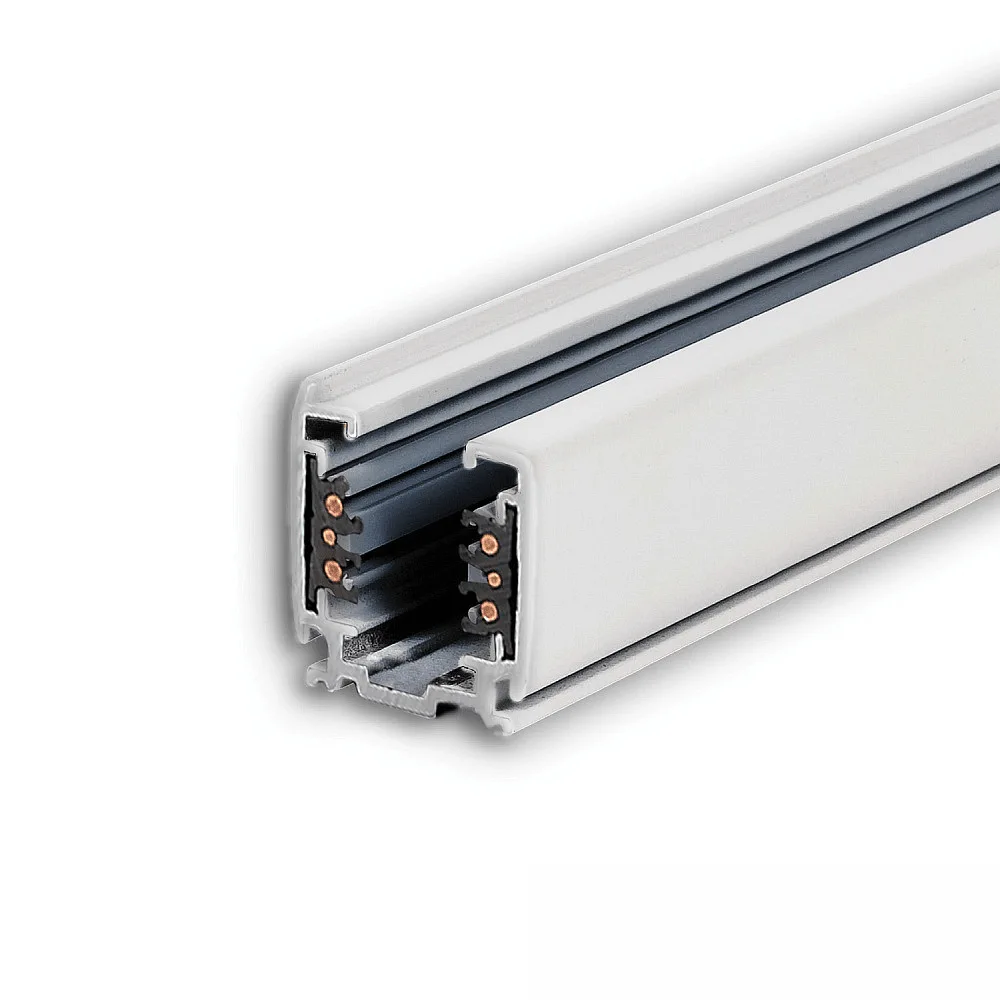

The 3-phase surface-mounted track SURFACE from ISOLED offers a modern solution for flexible positioning of luminaires. With a length of 200 cm and a sleek design made of robust aluminum, the track seamlessly integrates into a variety of lighting concepts. It is specially designed for a smart high-voltage lighting system and allows for easy installation via surface mounting. This way, the lighting can be individually adjusted and optimally aligned.

Compatibility and Control via DALI Technology

The system supports DALI (Digital Addressable Lighting Interface), meaning the track is compatible with DALI-switchable and dimmable components. This digital control allows precise light regulation and easy integration into modern building automation systems. The 3-phase surface-mounted track is designed for loads up to 3600 watts and operates with the standard mains voltage of 220-240V AC.

High Load Capacity and Easy Adjustment

Thanks to its sturdy aluminum construction, the track withstands high loads. It offers a load capacity of up to 5 kg per 20 cm with a maximum distance of 40 cm between mounting points. Alternatively, with a larger spacing of 80 cm, a load capacity of up to 2 kg is possible. Additionally, the surface-mounted track can be easily cut to the desired length using a metal hand hacksaw, allowing it to be perfectly adapted to your spatial requirements.

Extensive Accessories for Individual Lighting Concepts

A wide range of accessories is available for the 3-phase surface-mounted track, facilitating the design of individual lighting solutions. These include various adapters for luminaires without a 3-phase adapter, such as adapters for open cables, socket adapters, or mechanical insulated adapters for secure fastening in the track. A pendant set is also available, providing additional flexibility in lighting design. Mounting accessories and power feeders are sold separately, so you can assemble your setup according to your needs.

Reliable Technology for Versatile Applications

With protection class 1 and an operating temperature range from -20 to +40 °C, the surface-mounted track is technically designed for reliable performance. The mains frequency of 50/60 Hz ensures a stable power supply. The low weight of only 1.82 kg makes handling and installation easier. Thanks to DALI control and a high current load capacity of 16 amperes, the 3-phase surface-mounted track SURFACE from ISOLED is an excellent choice for intelligent and flexible lighting systems.
