3-phase CLASSIC - recessedpower track, 200cm, white

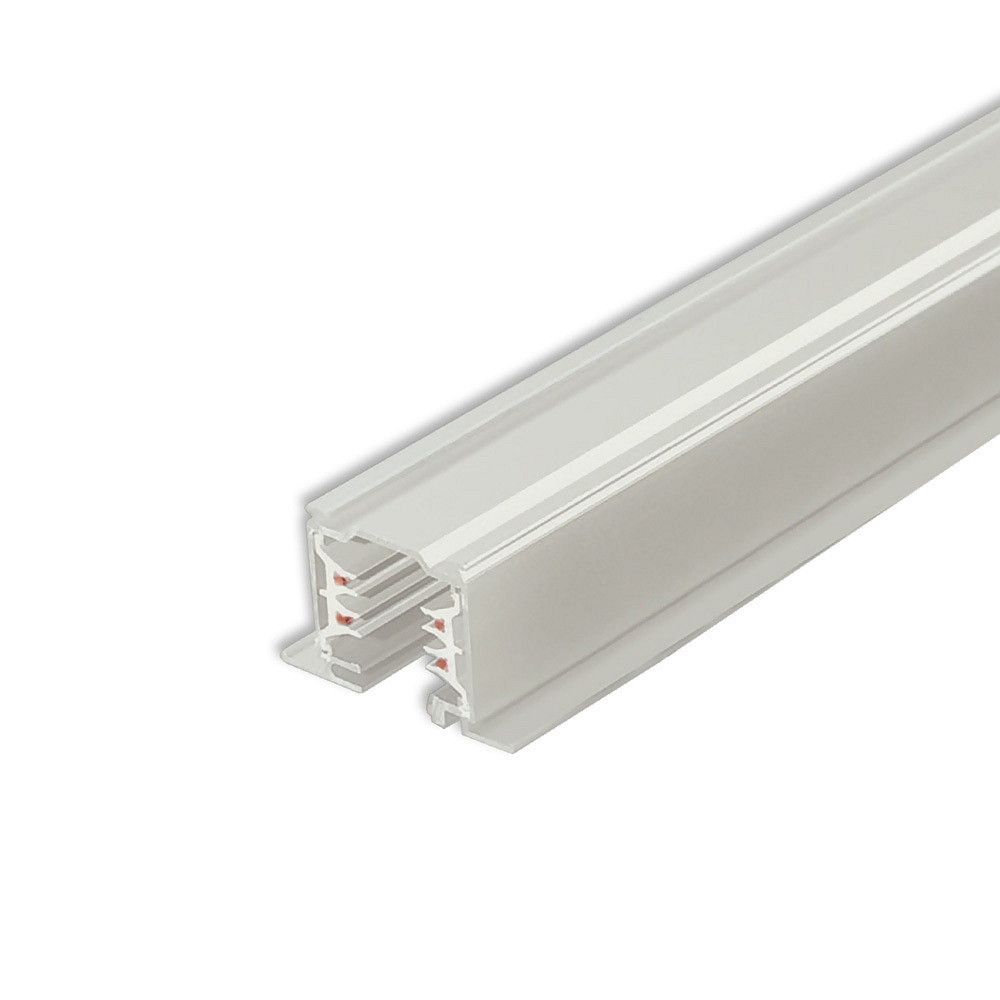

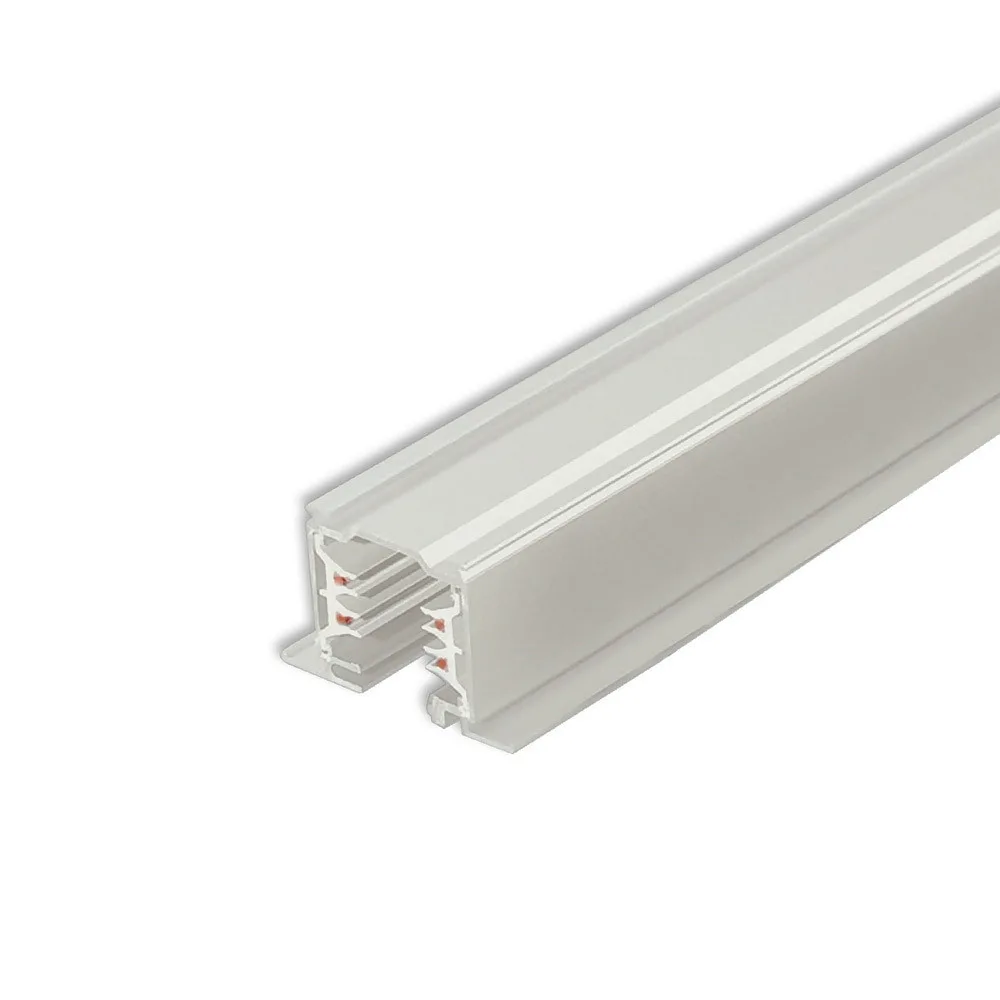

Robust 3-Phase Recessed Track Lighting CLASSIC by ISOLED

The 3-phase recessed track lighting CLASSIC by ISOLED impresses with its high-quality workmanship made of sturdy aluminum and is specially designed for installation in hollow ceilings. With a length of 200 cm and an installation depth of only 3.2 cm, the track lighting fits elegantly into your ceiling. The white color ensures a discreet appearance that blends subtly into various room designs. Weighing 1.92 kg, the track is stable yet still easy to handle.

Technical Details and Performance

The track lighting is designed for a maximum current load of 16 amperes and operates with a supply voltage of 220-240 volts alternating current at a mains frequency of 50/60 Hz. It is suitable for ambient temperatures from -20 to +40 degrees Celsius and reliably protects your installation through protection class 1. The load capacity is 2 kg per 20 cm with a maximum mounting distance of 80 cm, or 5 kg per 20 cm at a maximum distance of 40 cm. This provides sufficient stability for various luminaires and lighting systems.

Compatibility and Adaptability

The CLASSIC recessed track lighting is ideal for high-voltage lighting systems and supports switchable as well as analog dimmable components, including phase cut-off, phase cut-on, and TRIAC. It is compatible with luminaires and components that feature a 3-phase adapter with a DALI signal bus, enabling flexible control and positioning of the lighting. For luminaires without a 3-phase adapter, various adapters are available, including adapters for open cables, socket adapters, as well as mechanical insulated adapters for secure mounting in the track.

Easy Installation and Flexible Adjustment

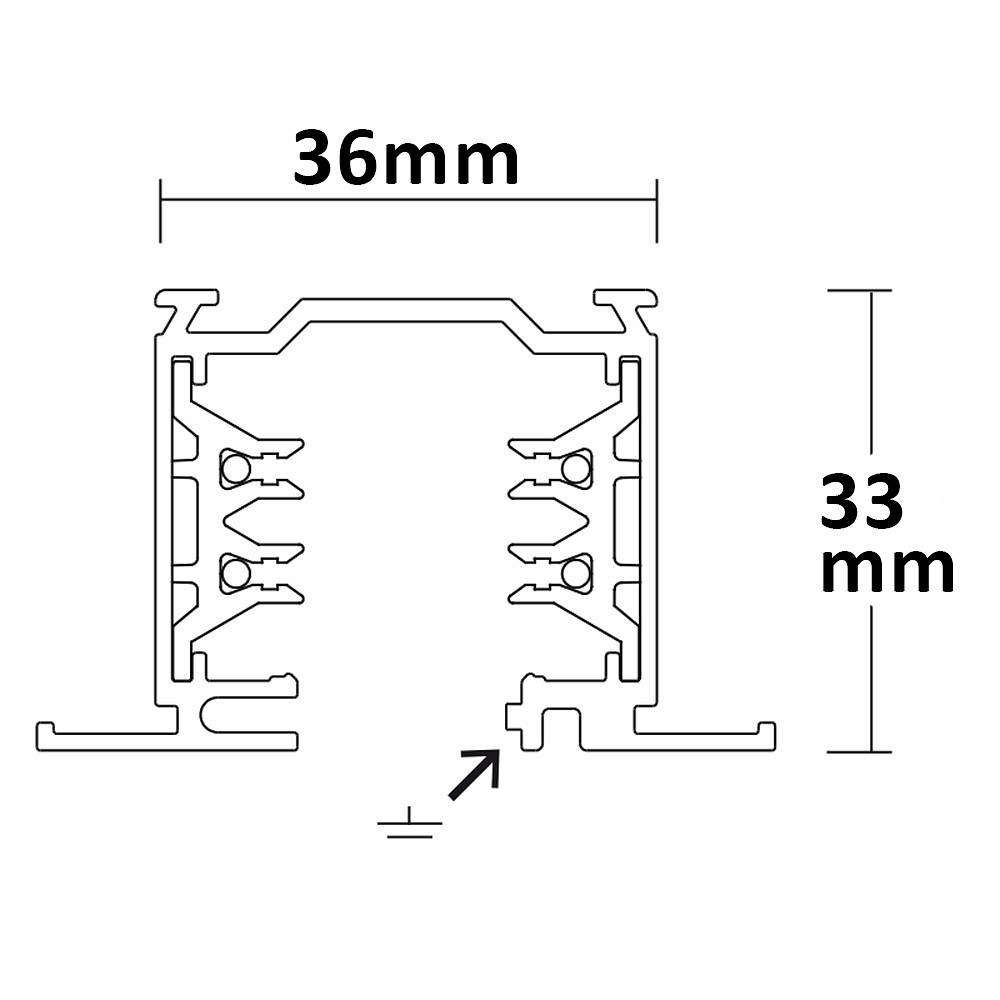

The installation of the track lighting is done through a rectangular recessed opening with a width of 3.6 cm. Extensive mounting accessories are available for easy attachment, including a mounting clamp as an alternative fastening option. Thanks to the aluminum material, the track can be easily cut to the desired length with a metal hand hacksaw, allowing individual adjustments without much effort. Accessories for power feed, luminaires, and mounting are available separately to create customized lighting solutions.

Versatile Applications and Accessories

With a maximum power of up to 3600 watts, the track lighting is suitable for a wide range of lighting applications. The ability to position lighting fixtures freely within the track creates flexible design possibilities. A comprehensive range of accessories supports the creation of individual lighting concepts and ensures smooth integration into existing systems. The track lighting thus offers a modern and versatile solution that can be easily adapted to changing requirements.
