3-phase CLASSIC - power track, recessed mount, 200cm, black

ISOLED


£ 66,76

excl. Shipping costs / incl. 20 % VAT
RRP (manufacturer): £ 109.08

Price below RRP

Shipping time: 10-13 days

Product no.: ISO-127512
EAN: 9009377065309
In stock: 50


Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

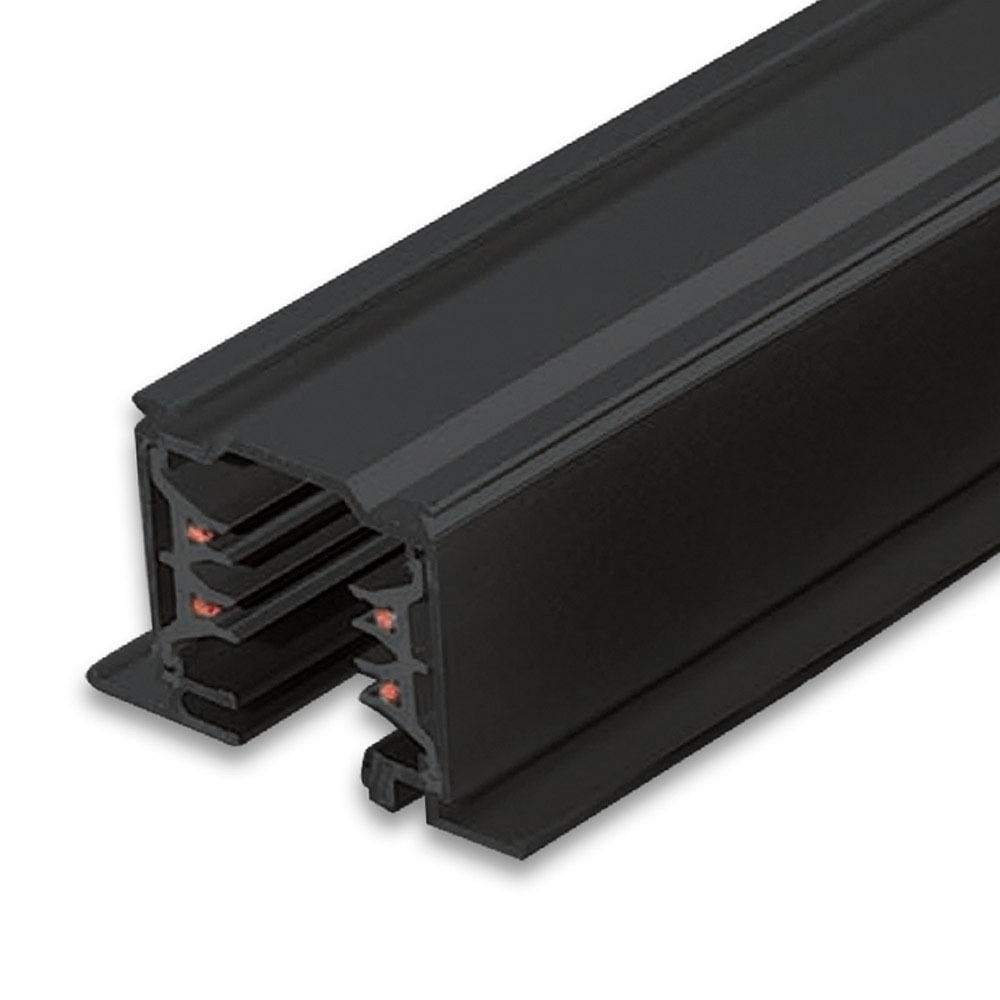

Robust 3-Phase Recessed Busbar CLASSIC

The 3-phase recessed busbar CLASSIC from ISOLED impresses with its high-quality workmanship made of robust aluminum. With a length of 200 cm and a slim installation height of only 3.3 cm, it fits perfectly into a wide variety of installation situations. The busbar offers a maximum current load capacity of 16 amperes and is designed for an operating voltage of 220-240 volts. This makes it ideal for use with high-voltage lighting systems and ensures reliable power supply for various lighting applications.

Flexible Lighting System with Diverse Connection Options

The system is compatible with switchable and analog dimmable components such as phase-cut, leading-edge, and TRIAC dimmers. In addition, the busbar is suitable for loads up to 3600 watts. The integrated 3-phase technology allows flexible positioning of luminaires along the rail, making individual lighting concepts easy and efficient to implement. For luminaires without a 3-phase adapter, various adapters are available, for example for open cables, sockets, or mechanical insulated mounts.

Simple and Secure Installation

The recessed busbar is designed for surface mounting and can be installed in hollow ceilings. Thanks to the rectangular installation opening of 3.6 cm width and an installation depth of 3.2 cm, installation is straightforward. Optimal fastening is ensured by the mounting clamp, which is available as an accessory. If needed, the busbar can be cut to the desired length with a metal hand hacksaw, allowing flexible adaptation to different room sizes. The load capacity is up to 5 kg per 20 cm with a maximum distance of 40 cm between fastening points.

High-Quality Protection Class and Reliable Operation

The busbar belongs to protection class 1 and is designed for operation with a mains frequency of 50/60 Hz. It operates reliably within a temperature range of -20 to +40 degrees Celsius. Its black aluminum housing is not only robust but also visually appealing. The combination of high load capacity and safe operation makes this product an excellent choice for demanding lighting installations.

Extensive Accessories for Individual Lighting Solutions

Whether power supplies, luminaires, or mounting accessories – this product is supplied without accessories but offers a wide range of compatible additions. Especially for complex lighting concepts with DALI signal bus, the 3-phase recessed busbar CLASSIC is ideally suited. The possibility to use various adapters and mounting systems enables individual design and easy expansion of your lighting system. This way, you benefit from a versatile and future-proof busbar system.

Colour:
black
Dimension:
L∕ W∕ H: 200∕ 4,2∕ 3,3 cm
Material:
aluminium
Weight:
1,92 kg
Product type:
3-phase recessed track
Accessories:
feeder - not included in delivery
luminaire - not included in delivery
mounting accessories - not included in delivery
Application area:
only suitable for indoor use
Operating voltage:
220-240 V~
Power frequency:
50/60 Hz
Maximum lamp wattage:
3600
Fitting depth:
3,2 cm
Fitting opening square/rectangular length:
3,6 cm
Max. current carrying capacity:
16 A
Mounting:
surfaced mounting
Protection class:
1
ambient temperature:
-20 ... +40 °C
Article number:
ISO-127512
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
