3-phase spot MATRIX DALI square, UGR < 19, with lens optics, on/off, cardanic swivelling IP20, white dimmable

High-Quality LED 3-Phase Spotlight MATRIX for Precise Lighting

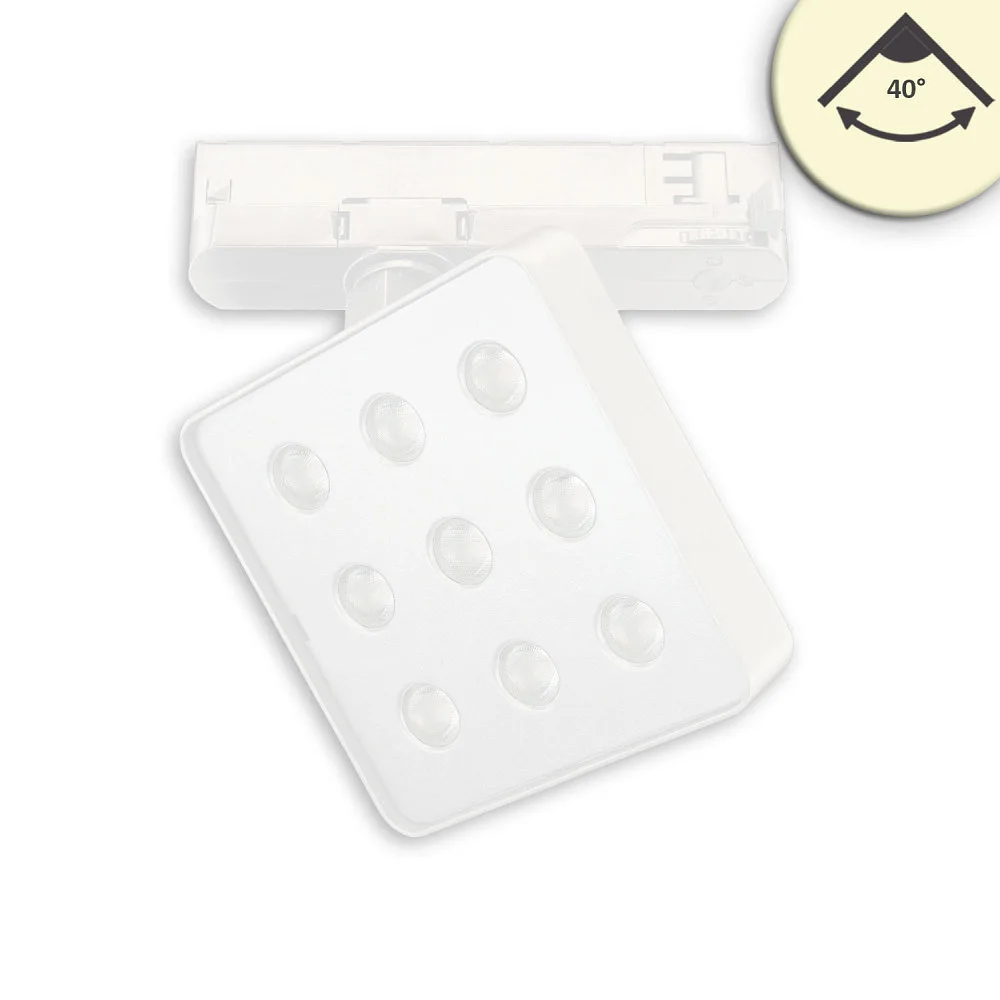

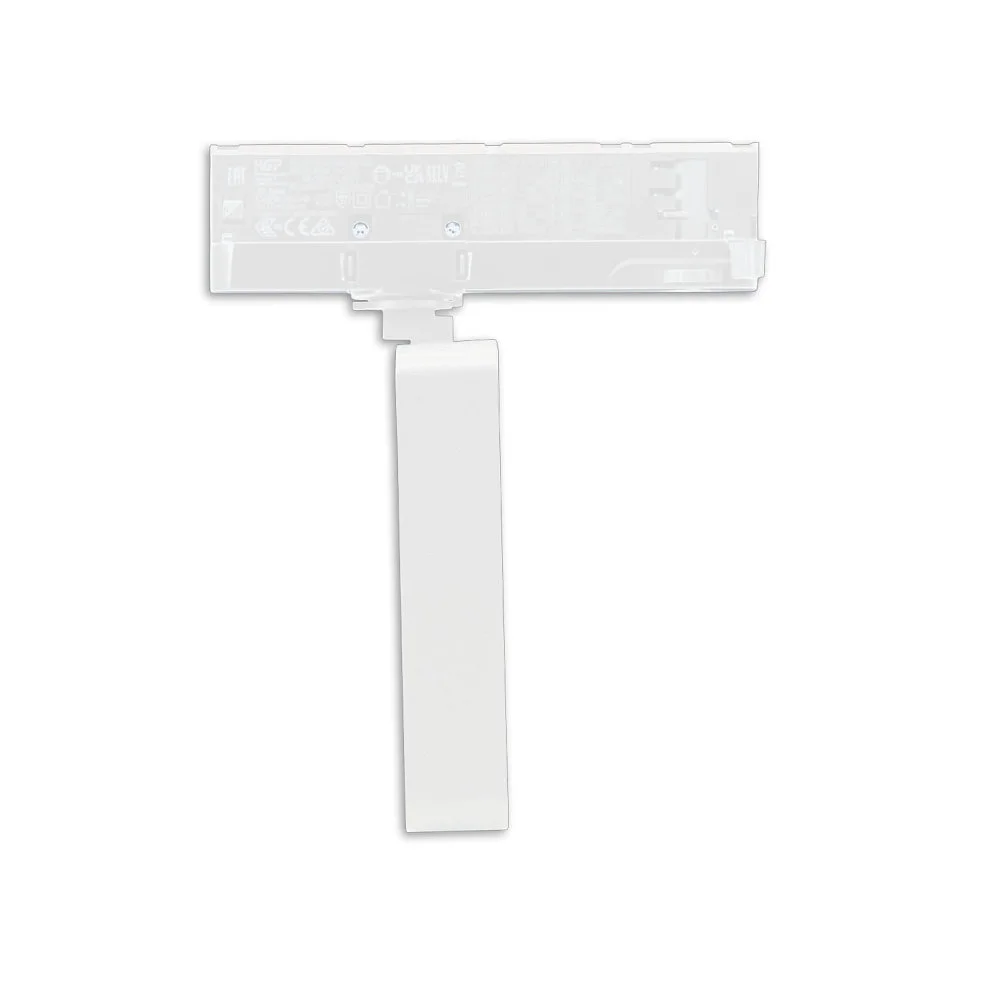

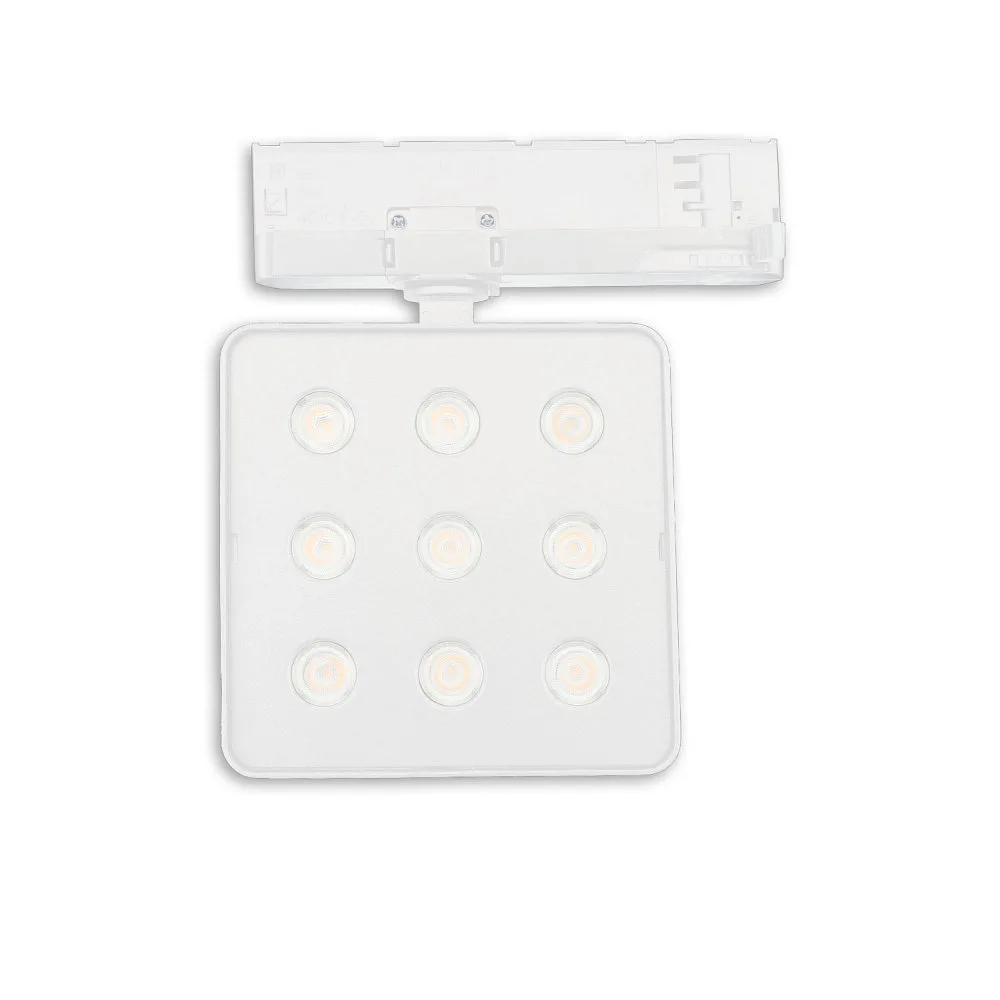

The LED 3-Phase Spotlight MATRIX from ISOLED impresses with its modern, angular, and flat design. With a power output of 20 watts, it produces a luminous flux of 2100 lumens at a warm white color temperature of 3000K. The integrated 9-lens optics ensure a precise beam angle of 40°, making it ideal for targeted object lighting and product presentation. Thanks to the gimbal-mounted, rotatable and tiltable lamp head, the light beam can be flexibly directed and adapted to various requirements.

Excellent Light Quality and Color Rendering

With a color rendering index (CRI) of over 92Ra, the MATRIX spotlight offers very high color rendering quality, especially suited for demanding lighting tasks. The color consistency is extremely precise thanks to SDCM3, minimizing color deviations among multiple fixtures of the same type. The result is a uniform, natural light effect that makes colors appear vivid and detailed. The light color remains stable even with DALI dimming, creating a pleasant atmosphere.

Efficient Technology and Long Service Life

The spotlight is particularly energy-efficient with 105 lm/W and consumes only 20 kWh per 1000 operating hours. The average lifespan of 76,000 hours guarantees long-term and reliable use without frequent lamp replacements. The operating voltage is 220-240V with a mains frequency of 50/60 Hz, enabling easy integration into existing 3-phase rail systems. The robust housing made of die-cast aluminum ensures stability with a weight of 1.35 kg.

Flexible Control and Comfort through DALI Dimming Function

The LED spotlight is DALI dimmable and can thus be conveniently integrated into modern digital building automation systems. The DALI control allows stepless brightness adjustment, which can be tailored to individual lighting needs. The scope of delivery includes both a 3-phase adapter and a driver, simplifying installation. Optional accessories such as a honeycomb filter can further reduce glare and lower the UGR value from below 19 to below 16, ideal for screen workplaces with increased glare requirements.

Practical Accessories and Versatile Applications

The MATRIX 3-phase spotlight is available in white and blends harmoniously into various environments thanks to its slim design. In addition to the included 3-phase adapter and driver, additional components such as controllers, dimmers, or rails can be purchased separately to customize the lighting solution. Protection class 1 and IP20 protection rating ensure safe use under the intended conditions. With compact dimensions of 28 x 12.7 x 18.3 cm, the spotlight is easy to mount and offers versatile options for professional lighting.
