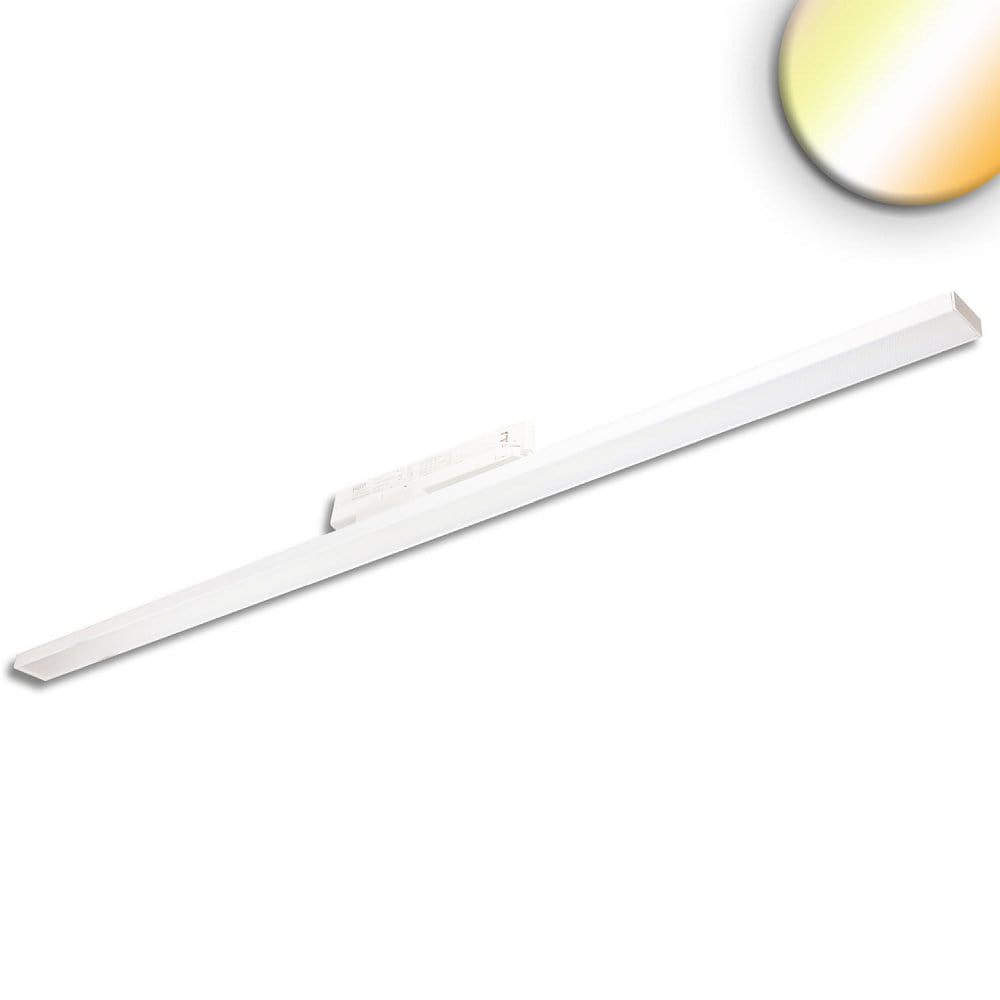

3-phase luminaire LINEAR 120CM (DALI) rigid, DALI controllable, CCT Switch, prismatic IP20, white dimmable

Versatile 3-Phase LED Linear Light with DALI Technology

The 3-phase LED linear light from ISOLED offers an efficient and powerful lighting solution with a length of 120 cm and a power output of 40 watts. Thanks to the 3-phase track mounting, the luminaire is easy and flexible to install. The modern white design and high-quality aluminum construction ensure a durable and elegant appearance that seamlessly integrates into various environments.

Individually Adjustable Light Colors for Optimal Lighting Conditions

With the innovative CCT switch function, you can choose between three color temperatures: 3000K (warm white), 3500K, and 4000K (neutral white). This allows you to precisely adapt the light to your needs. The luminaire produces a luminous flux of 5100 lumens and distributes the light diffusely with a generous beam angle of 120°. This ensures pleasant and even illumination without casting shadows.

High Energy Efficiency and Long Service Life

The LED technology guarantees high energy efficiency with a consumption of only 40 kWh per 1000 hours. The average lifespan of the luminaire is an impressive 38,000 hours, significantly reducing maintenance effort and replacement costs. With a color rendering index of over 90, the luminaire also offers excellent color rendering, making colors appear natural and vibrant.

DALI Dimming Function for Flexible Light Control

The luminaire is equipped with a DALI dimming function that enables stepless brightness control, allowing for individual adjustment of light intensity. The included driver optimally supports this function. Accessories such as controllers, dimmers, and the 3-phase track are available separately to expand and control the system as needed.

Technical Details and Protection Class

Weighing only 0.99 kg and featuring a compact design measuring 118.1 cm in length and 4.5 cm in width, the LED linear light is easy to handle. It operates reliably at a supply voltage of 220-240V and a mains frequency of 50/60 Hz. Protection class 1 and IP20 rating ensure safe operation under the specified conditions. The luminaire is designed for ambient temperatures from -20 to +40 degrees Celsius.
