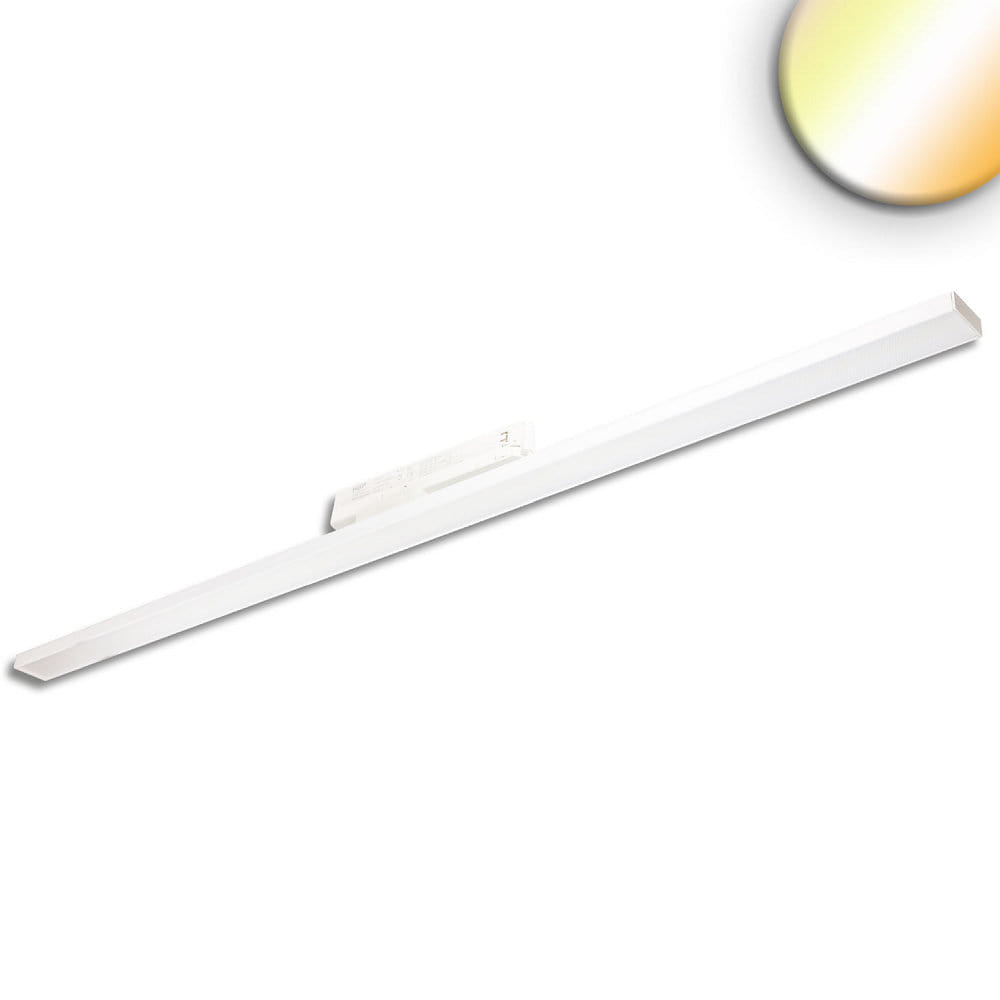

3-phase luminaire LINEAR 120CM rigid, CCT Switch, switchable, multipower, prismatic IP20, white

Versatile 3-Phase LED Linear Light with Adjustable Color Temperature

The 3-phase LED linear light ON-OFF from ISOLED impresses with its flexible color temperature, which can be set in three levels: 3000K (warm white), 3500K, and 4000K (neutral white). This adjustment option ensures an optimal lighting atmosphere that can be individually adapted to different requirements. With a length of 120 cm and a simple white aluminum housing, the luminaire blends harmoniously into many environments.

High Light Quality and Energy Efficiency

The luminaire offers an impressive luminous intensity of 2133 candela and distributes the light diffusely with a beam angle of 120 degrees. With a luminous flux of 6900 lumens, it provides bright and uniform illumination. A high color rendering index of Ra 90 guarantees that colors are displayed naturally and vividly. At the same time, the LED technology is particularly energy-efficient, consuming only 56 watts and an energy consumption of 56 kWh per 1,000 hours.

Durability and Reliability

ISOLED relies on a long lifespan of an average of 38,000 hours for this linear light. The robust aluminum housing reliably protects the technology and ensures stable heat dissipation. The luminaire operates at a supply voltage of 220-240 volts and is designed for a mains frequency of 50 to 60 Hz. Protection class 1 and IP20 protection guarantee safe operation under normal conditions.

Easy Installation and Practical Features

The luminaire is designed for mounting on a 3-phase track system, allowing flexible positioning. The required LED driver is already included in the scope of delivery, while the track must be purchased separately. Weighing only 0.99 kg, installation is straightforward and quick. The prismatic design of the cover ensures glare-free light distribution and increases comfort during use.

Technical Details Summarized

The linear light measures 118.1 cm in length and 4.5 cm in width. It offers a switchable function that makes turning the light on and off easy. The integrated LED technology guarantees high efficiency and environmental friendliness. With an operating temperature range of -20 to +40 degrees Celsius, the luminaire is flexible in use. Overall, the ISOLED 3-phase LED linear light represents a modern, energy-efficient, and versatile lighting solution.
