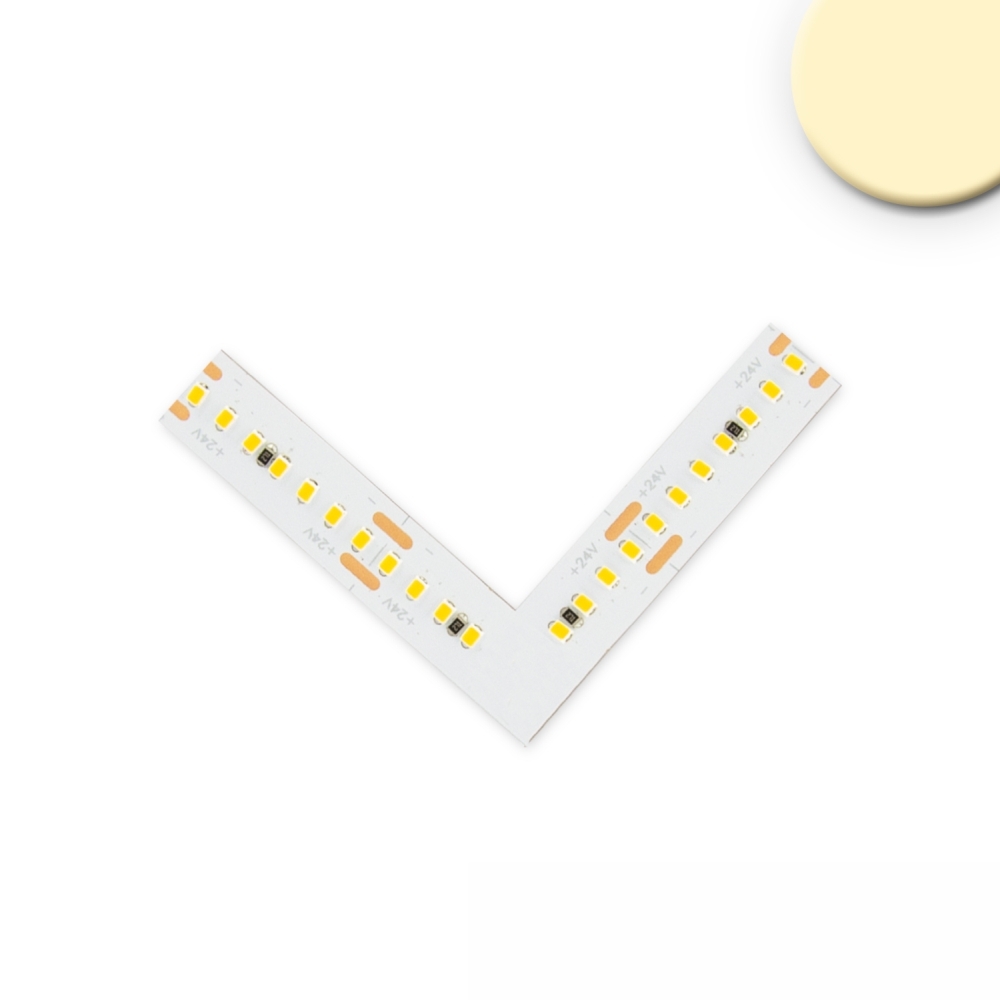

corner connector LINEAR10 FLEX - 0.8W 24V CRI927 with lighting, white

High-Quality Corner Connector for LED Strips

The Linear10-Flexband corner connector from ISOLED is specially designed for seamless connection of LED strips on the same level. With a compact size of 3.4 x 3.4 x 0.2 cm, it enables an easy and secure connection, ideal for a wide range of lighting projects. The product is made from durable plastic and copper, ensuring long-lasting durability and reliable electrical conductivity.

Technical Details and Performance

This corner connector operates at a voltage of 24V and a power consumption of 15W. It is designed for use with electronic transformers and requires a separate power supply unit, which is not included. The contact spacing of 0.7 mm and the cable diameter of 0.5 mm² ensure a stable electrical connection. The connector is rated for a maximum ambient temperature of 40°C and offers a service life of up to 50,000 hours.

Optimal Light Quality and Energy Efficiency

The light color of the corner connector is extra warm white at 2700K, creating a pleasant and cozy atmosphere. With a color rendering index (CRI) of over 90, the connector delivers excellent color reproduction, making colors appear particularly natural and vivid. The beam angle is 120°, ensuring even light distribution. Additionally, the product impresses with high energy efficiency, consuming only 15 kWh per 1,000 hours.

Easy Installation and Flexible Applications

The installation of the corner connector is versatile and can be done as recessed, surface-mounted, or system-bound installation. The connector is specifically designed for indoor use and is protected against dust and contact by the IP20 rating. The dimming function is enabled via pulse-width modulation (PWM), with the corresponding dimmer needing to be purchased separately. This allows the light intensity to be flexibly adjusted to individual requirements.

Accessories and Compatibility

This corner connector is compatible with various LED strips and can be ordered in multiple light colors. It is important to note that the LED strip, dimmer, and driver are not included and must be ordered separately. The power connection is made by soldering, ensuring a secure and durable connection. With a power factor of 1 and an energy efficiency index of A1 BAT, the connector is particularly efficient and sustainable in operation.
