Flat surface mount LED luminaire LED Top-Stick HR, IP20, with LED 24 connecting cable, CRi> 95, 31cm, 7.5W 3000K

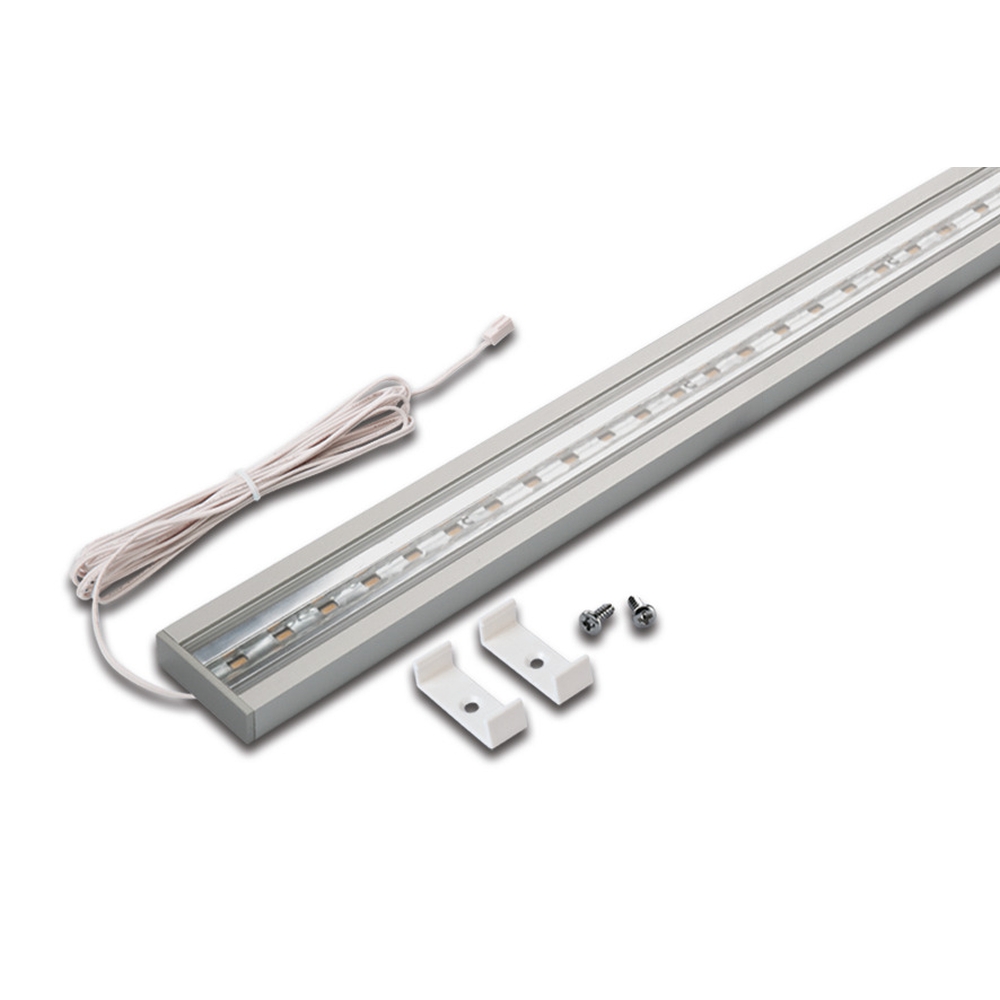

Flat LED surface-mounted luminaire LED TOP-STICK HR

The flat LED surface-mounted luminaire LED TOP-STICK HR from Hera is ideal for use in furniture and wall areas. With dimensions of 31 x 4 x 1.2 cm and a power consumption of 7.5W, it provides a warm white light color and a luminous flux of 404lm. The color rendering index is 90-100Ra and the color rendering level is 1A.

Technical details

The surface-mounted luminaire has an operating voltage of 24V= and a constant current of 315mA. The LED-24 connection allows for easy installation. The material is made of aluminum and plastic, ensuring a long service life. The average lamp life is 60000 hours.

IP protection rating and application area

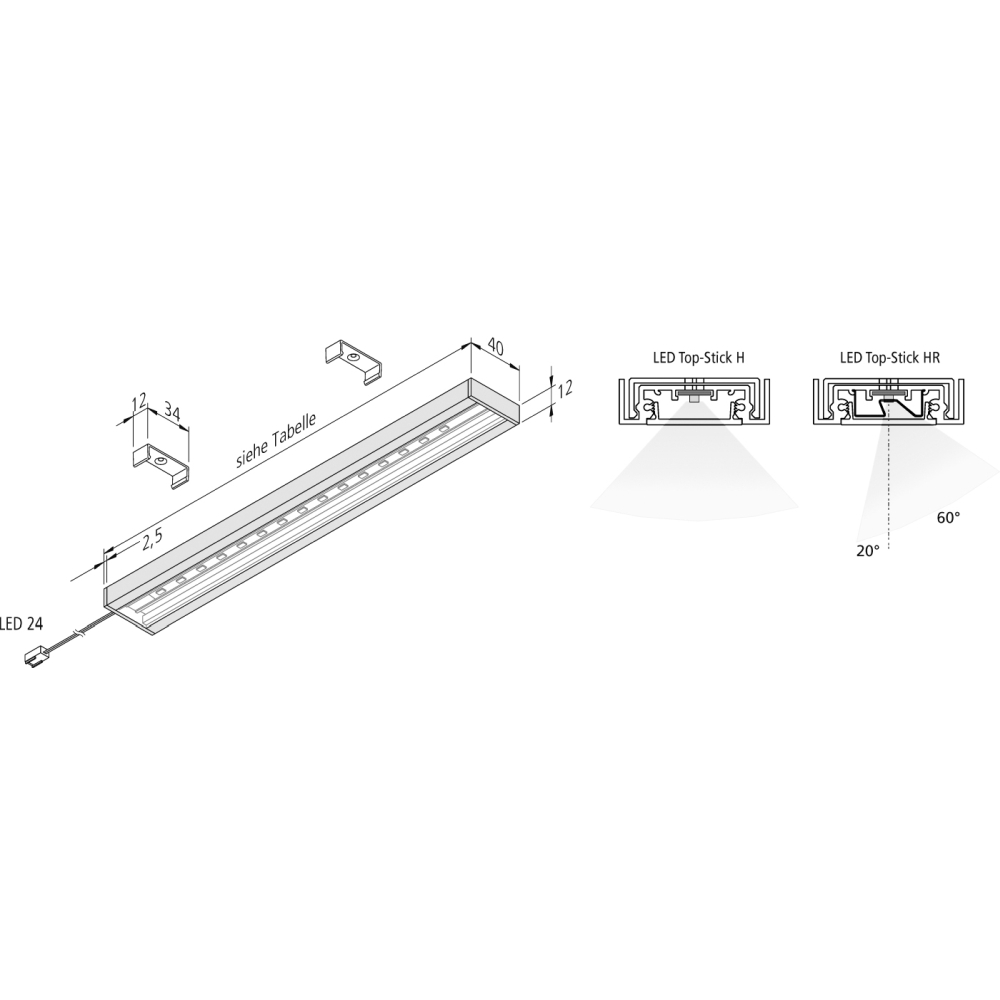

The surface-mounted luminaire has an IP protection rating of 20 and is therefore suitable for indoor use. The application area includes furniture and walls, with asymmetric light distribution. The beam angle is 40-80° and the reflector ensures even light distribution.

Additional information

The LED TOP-STICK HR features an LED-24 plug system and can be dimmed with appropriate accessories. The plug type is also LED-24, allowing for easy installation. The energy efficiency class is G and the color temperature is 3000K. The surface-mounted luminaire is a high-quality product with an EPREL No. of 933151.

Accessories and installation

The luminaire does not include the operating device in the scope of delivery. Installation is done through surface mounting and the LED operating device is voltage-controlled. With a protection class of 3 and an operating device excl accessory, the LED TOP-STICK HR is a reliable and durable lighting solution for indoor areas.
