Flat surface mount LED luminaire LED Top-Stick HR, IP20, with LED 24 connecting cable, CRi> 95, 91cm, 22.5W 3000K

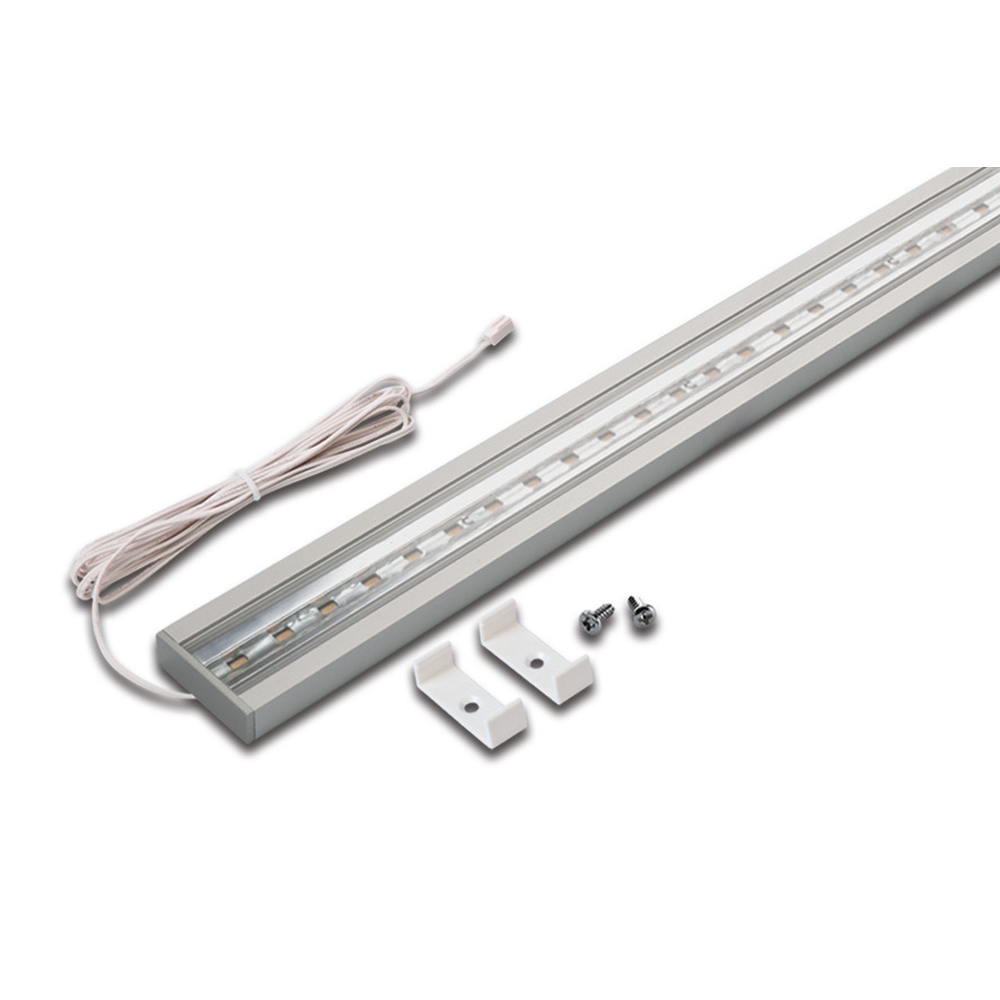

Flat LED surface-mounted luminaire LED TOP-STICK HR

The flat LED surface-mounted luminaire LED TOP-STICK HR from Hera is ideal for use in furniture and on walls indoors. With a power consumption of 22.5W and a luminous flux of 1185lm, it provides pleasant lighting. The color temperature is 3000K and the color rendering index is 90-100Ra, ensuring high-quality color reproduction.

Technical details

The surface-mounted luminaire has a constant current of 940mA and an average lamp life of 60000 hours. The color rendering grade is rated 1A and the protection class is 3. The IP protection rating is 20, which means the luminaire is protected against dust. The LED is not replaceable, but the light source is included in the delivery.

Design and Material

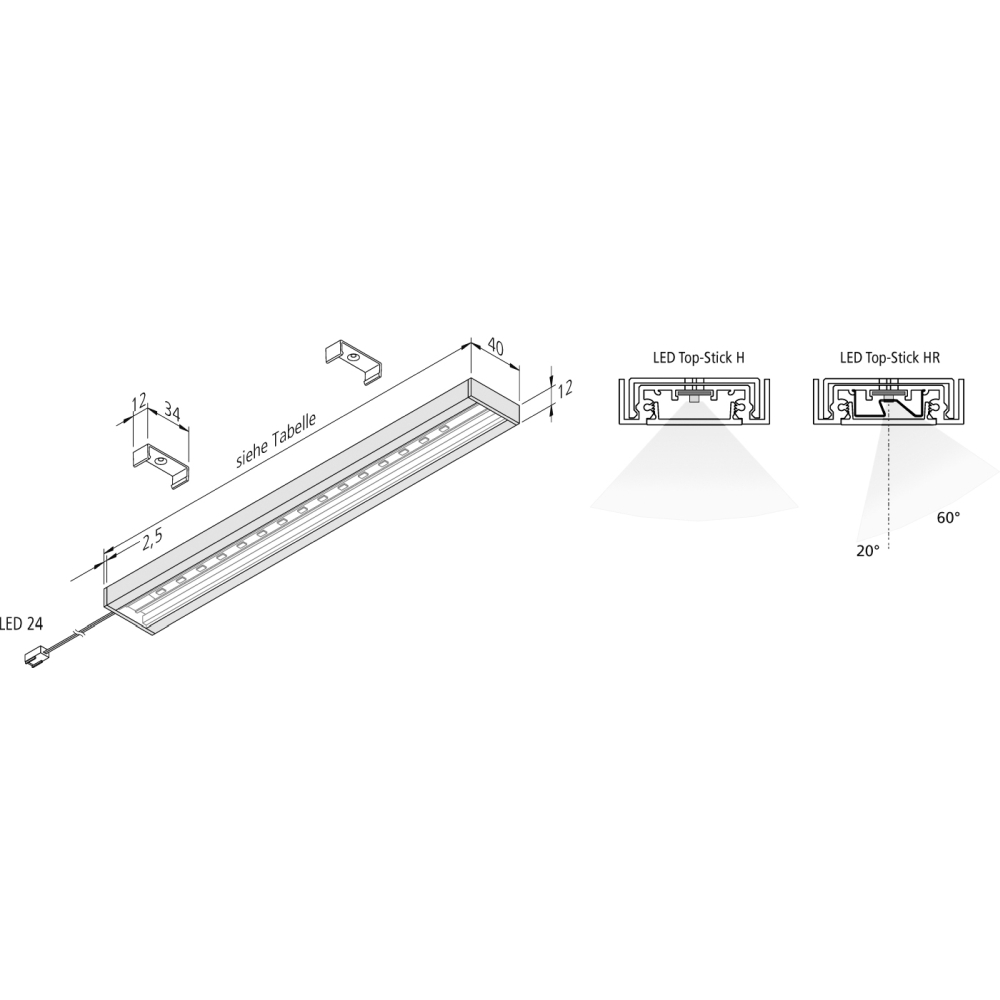

The flat LED surface-mounted luminaire is made in a modern design from aluminum and plastic. The size is L/W/H: 91/4/1.2 cm and the color is in an elegant aluminum tone. The light distribution is asymmetrical and the beam angle is 40-80°, allowing for wide-ranging illumination.

Installation and Connection

The installation is simple using the surface-mounted installation system. The operating voltage is 24V and the power connection is made via the LED-24 plug system. The plug type is also suitable for the LED-24 plug system. With the appropriate accessories, the luminaire can be dimmed to create individual lighting atmospheres.

Energy Efficiency and Certifications

The flat LED surface-mounted luminaire LED TOP-STICK HR is classified in energy efficiency class G. It complies with the guidelines of EPREL No. 933151 and has a voltage-controlled LED operating device. The glow wire test according to IEC 60695-2-11 has been carried out without any objections, confirming the safety of the luminaire.
