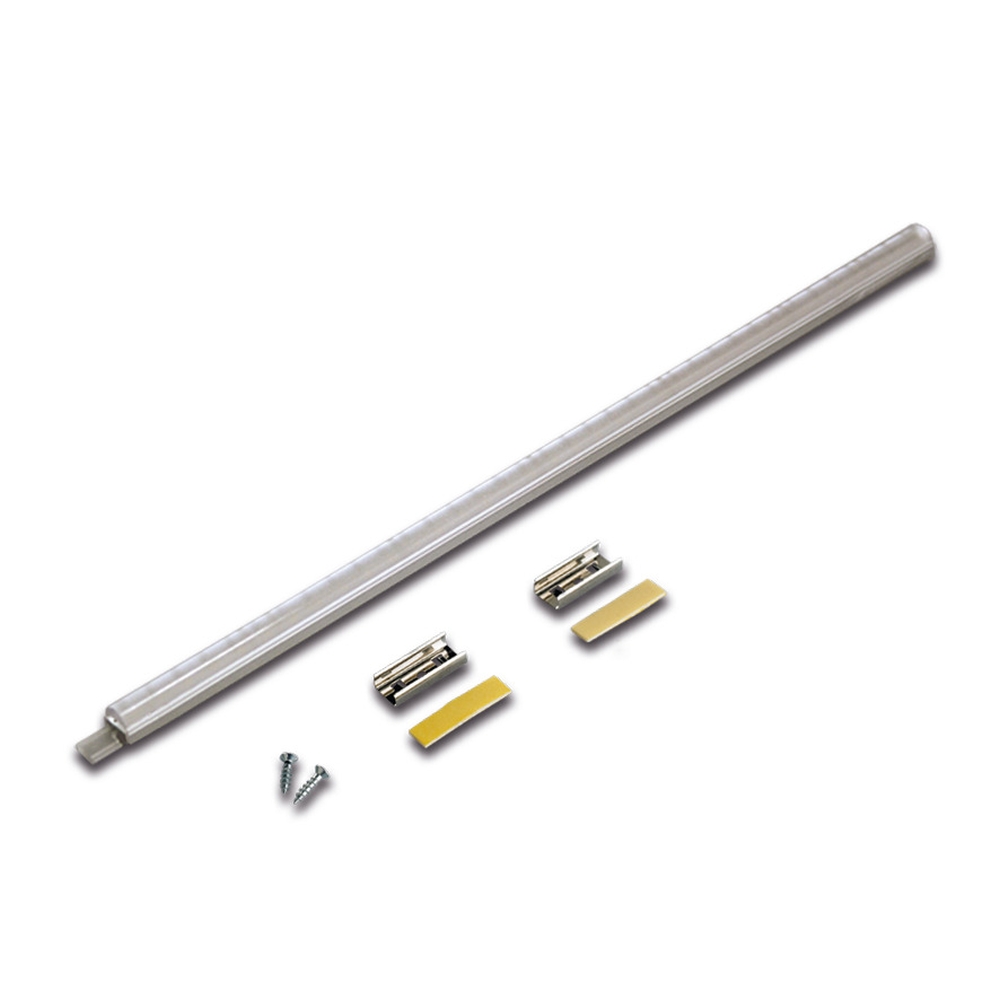

Pluggable LED rod LED Stick 2, without dark zones, 20cm, 24 LED, 1.6W 5000K 55°, CRi >80

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Plugable LED Stick LED Stick 2

The plugable LED Stick LED Stick 2 provides even illumination without dark zones. With a length of 20cm and 24 LEDs, it provides bright light in any room.

Technical Details

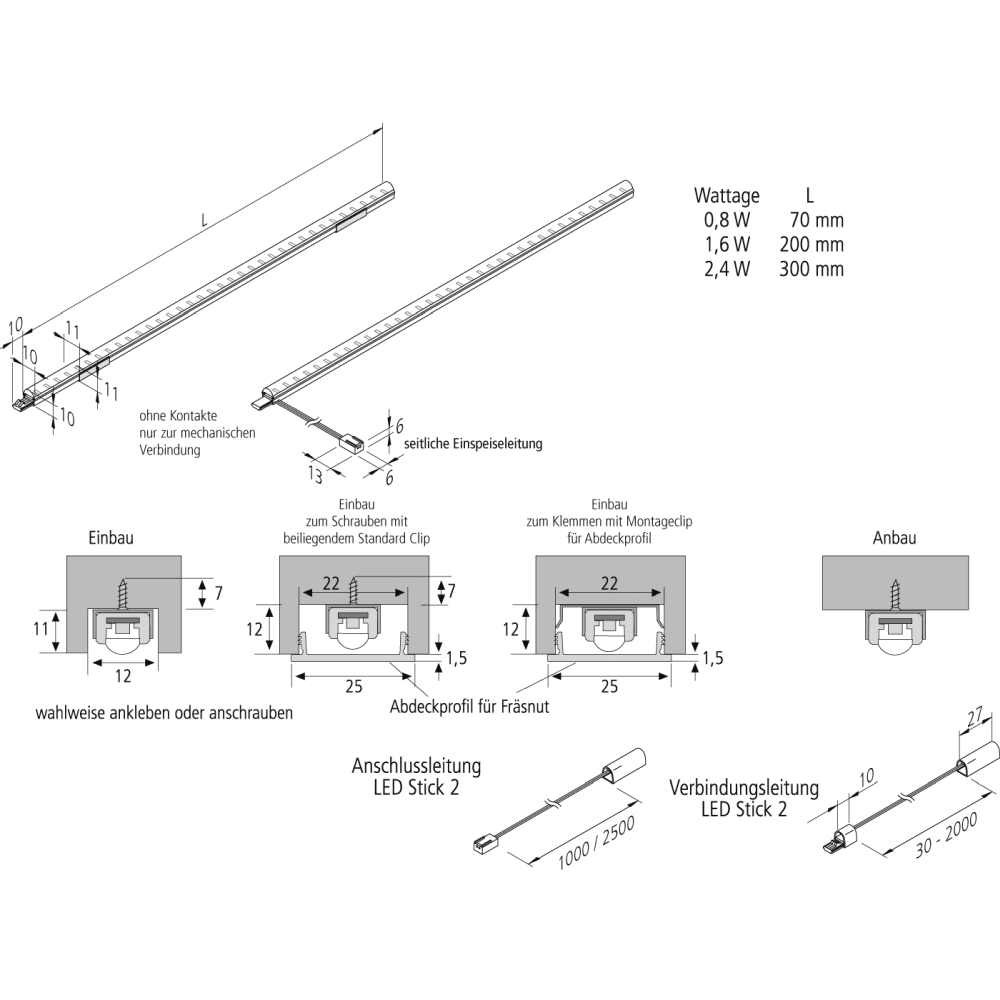

The operating voltage is 24V, the constant current is 67mA. The size of the LED stick is 20 x 1.1 x 1.1 cm. It is suitable for use in furniture and on walls indoors.

Light Quality and Color Reproduction

The color rendering index is 80-89Ra and the color rendering level is 1B. The light color is cool white with a luminous flux of 120lm and a light output of 75lm/W.

Material and Installation

The LED stick is made of aluminum and plastic. It can be installed as both a recessed and surface mount. The power connection is made through the LED-24 plug system.

Additional Information and Energy Efficiency

The LED stick has a wide beam angle of 40-80° and is suitable for light band configurations. It has an energy efficiency class of G and a color temperature of 5000K.

Colour:
housing aluminum / cover transparent
Dimension:
L∕ B∕ H: 20∕ 1,1∕ 1,1 cm
Material:
aluminium
plastic
Product type:
light bar
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
wall
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Constant current:
67 mA
Power consumption:
1,6 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
cool white
Light emission:
symmetriccal
Light flux:
120.00 lm
Light yield:
75 lm/W
Colour temperature:
5000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK00 no impact resistance
Lamp current:
67 mA
Fitting opening square/rectangular width:
23 cm
Fitting opening square/rectangular length:
1,2 cm
Mounting:
surfaced mounting
recessed mounting
Protection class:
3
IP-protection class:
20
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
874065
Article number:
HE-20202122201
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
