Pluggable LED rod LED Stick 2, without dark zones, 20cm, 24 LED, 1.6W 3000K 55°, CRi >95

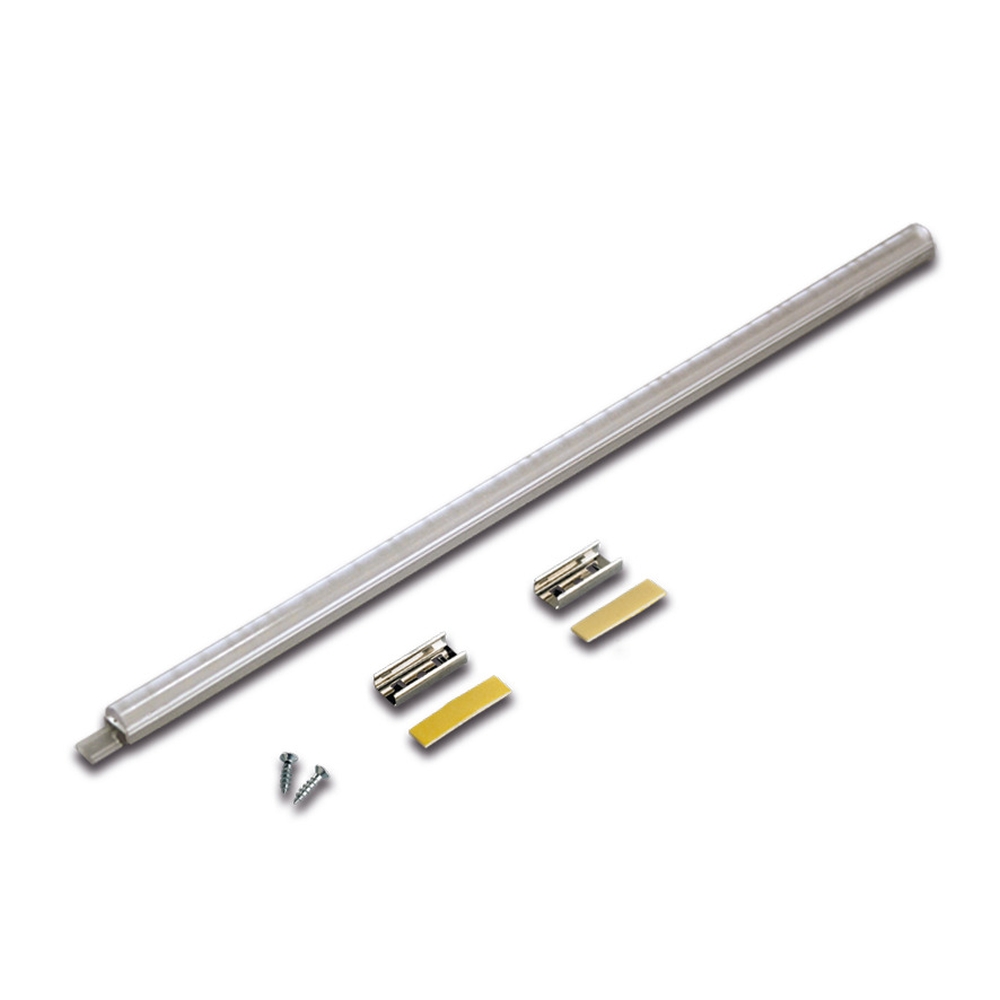

Plug-in LED Bar LED Stick 2

The plug-in LED bar from Hera, model LED Stick 2, is equipped with 24 LEDs and provides uniform illumination without dark zones. With a length of 20 cm and an operating voltage of 24V=, it is ideal for use in furniture and on walls indoors.

Technical Details

The LED light bar has a power consumption of 1.6W and a lamp rated current of 67mA. The color rendering index is between 90-100Ra and the light color is warm white. The luminous efficacy is 75lm/W and the luminous flux is 120lm. The LED Stick 2 cannot be replaced and has an average lamp lifespan of 60000 hours.

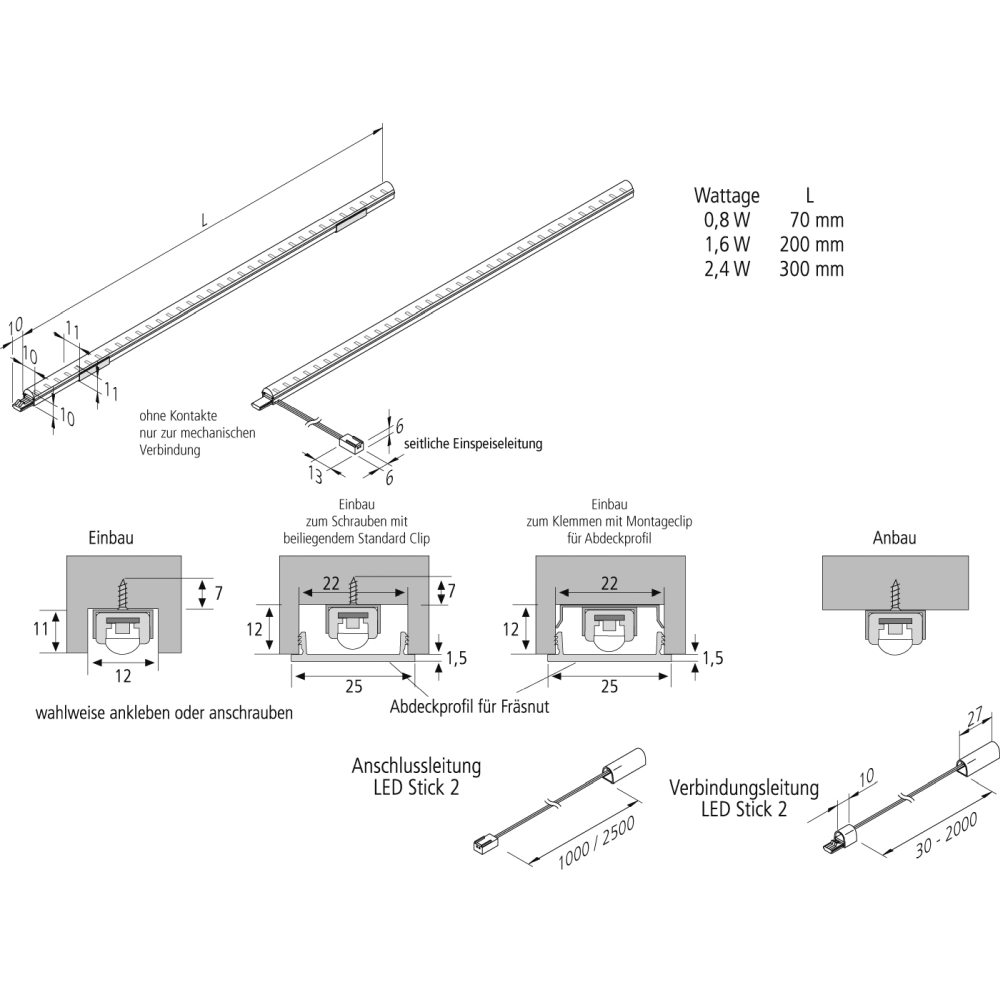

Installation and Connection

The installation of the LED bar can be done as both recessed and surface-mounted. The connection is made via the LED-24 plug-in system, which allows for easy installation. The connector type is also LED-24 plug-in system.

Additional Information

The LED bar has a wide beam angle of 40-80° and is suitable for light band configurations. It is delivered without a light distributor and has through-wiring. The operating device is voltage-controlled and the glow wire test according to IEC 60695-2-11 is 960°C for 30 seconds.

Energy Efficiency and Certifications

The LED Stick 2 is in energy efficiency class G and is provided with an EPREL number 874065. The color temperature is 3000K and the LED bar is dimmable with appropriate accessories. The protection class is 3 and the IP protection rating is 20.
