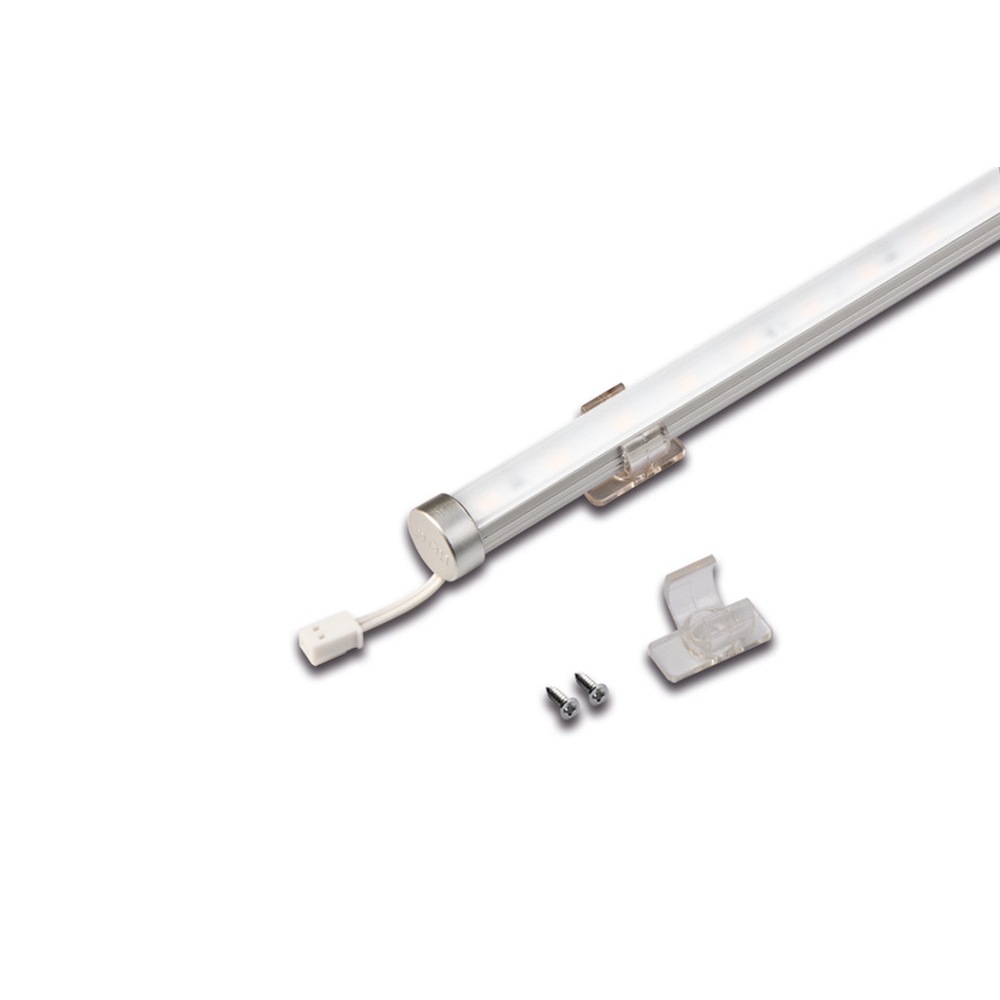

Rotatable, round LED surface moount luminaire LED PIPE F, homogeneous area light, 91cm, 17.0W 4000K

Hera



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Energy-efficient LED surface-mounted luminaire for indoor use

The rotatable, round LED surface-mounted luminaire LED PIPE F from Hera offers homogeneous area lighting and is equipped with an LED-24 plug. With a size of Ø 16.5 cm and a length of 91 cm, this luminaire is ideal for use in furniture and on walls indoors. The color combination of aluminum and opal gives the luminaire a modern design.

Technical details and applications

The LED surface-mounted luminaire operates with an operating voltage of 24V= and a constant current of 815mA. With a power consumption of 19.5W and a light color of neutral white, the luminaire generates a luminous flux of 1005lm. The color rendering index is between 90-100Ra, which indicates high color rendering quality. The LED technology ensures a long service life of up to 60000 hours.

Easy installation and versatile application possibilities

The LED surface-mounted luminaire can be mounted both as a recessed and surface-mounted luminaire. Thanks to the LED-24 plug system, the connection is uncomplicated and quick to perform. The luminaire offers a symmetrical light distribution with an extremely wide beam angle of over 80°. It is ideal for light band configurations and has a diffuser for uniform light distribution.

Safety and environmental awareness

The LED surface-mounted luminaire complies with protection class 3 and is suitable for ambient temperatures from -5 to 35°C. With an energy efficiency class of G and a color temperature of 4000K, the luminaire offers an energy-saving lighting solution. Due to the use of LED technology, the luminaire is particularly environmentally friendly and resource-efficient.

Accessories and additional information

The required light sources are already included in the delivery of the LED surface-mounted luminaire. The luminaire is not suitable for replacing the LEDs, but it offers the option for dimming with corresponding accessories. For more information on wiring, operating device, and technical details, please refer to the additional product information.

Colour:
housing aluminum / cover opal
Dimension:

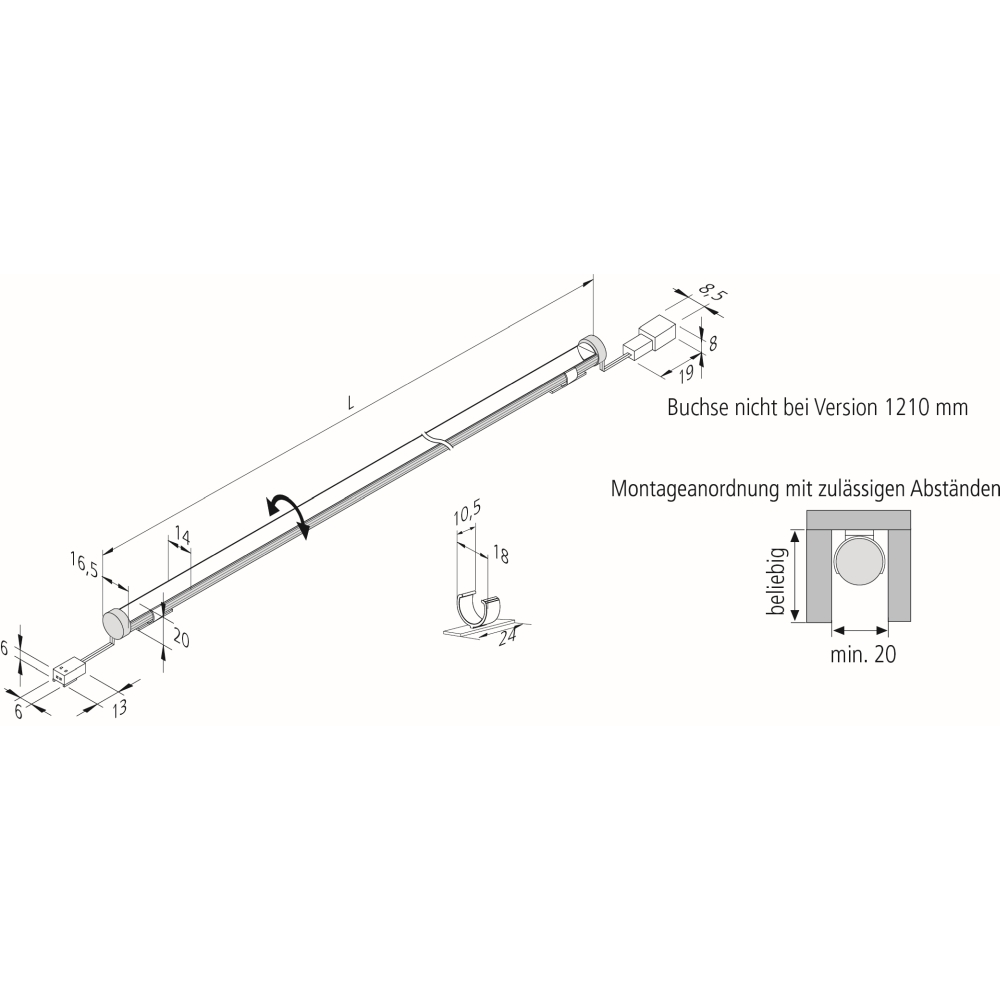

Ø∕ L: 16,5∕ 91 cm
Material:
aluminium
plastic
Product type:
surface luminaire
Bulbs in delivery:
yes
Accessories:
control gear - not included in delivery
Application area:
only suitable for indoor use
Field of application:
wall
furniture
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only
Constant current:
815 mA
Power consumption:
19,5 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
1005 lm
Light yield:
51 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Lamp current:
815 mA
Fitting opening square/rectangular width:
91 cm
Fitting opening square/rectangular length:
2 cm
Mounting:
surfaced mounting
recessed mounting
Protection class:
3
IP-protection class:
20
Additional information:
Transformer power: 21 VA
ambient temperature:
-5 - 35 °C
Energy efficiency category:
G
EPREL No:
944547
Article number:
HE-61001610303
Brand:
Hera
Manufacturer:
Hera
Manufacturer information
Hera GmbH & Co. KG, Dieselstraße 9, 32130, Enger, Germany, mail@hera-online.de, https://www.hera-shop.com
