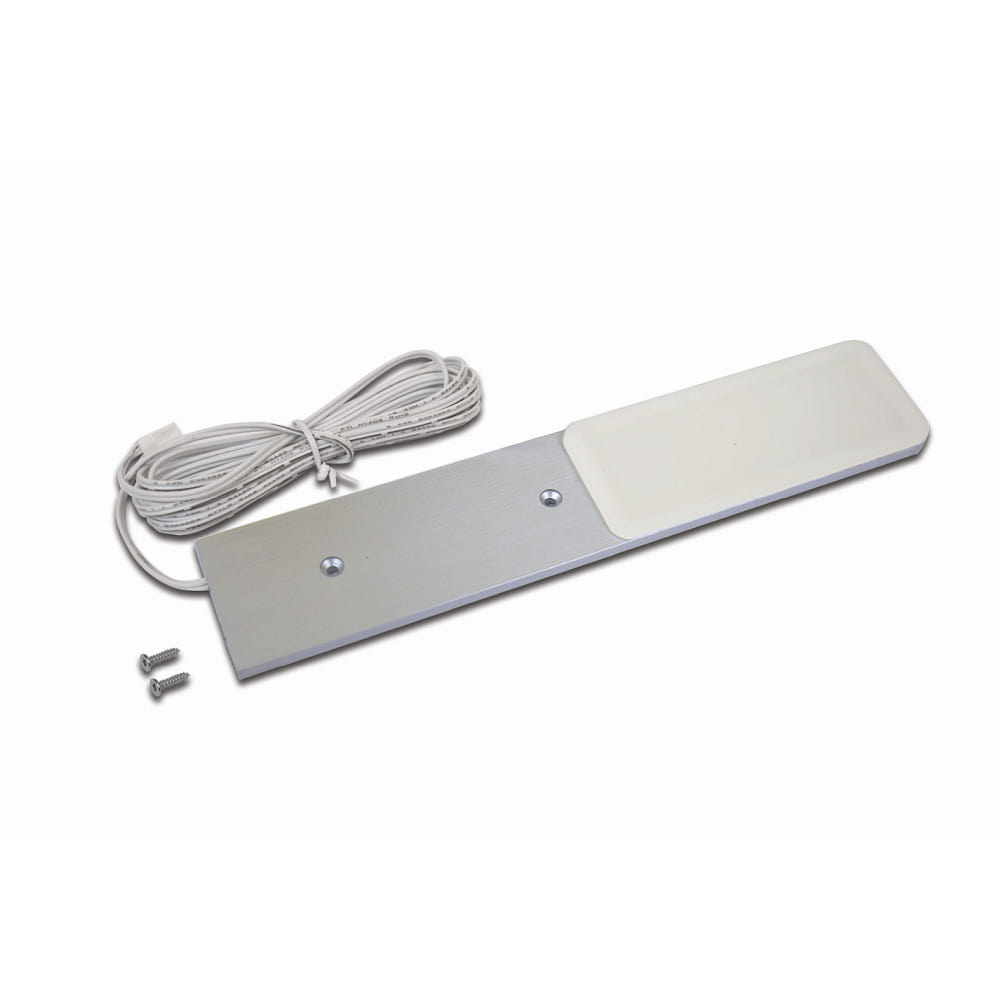

under-cabinet luminaire S-PAD F flat, with plug IP20, anodised aluminium dimmable 3W 270lm 3000K 115° 115° CRI >90 20cm

LED Under Cabinet Light S-PAD F, IP20, with surface light, individual, 250cm LED 24-pin cable, CRI >90, dimmable

The LED Under Cabinet Light S-PAD F offers homogeneous surface light and very good color reproduction with a color rendering index of over 90Ra. The light is available individually and comes with a 250cm long LED 24-pin cable. It has an energy consumption of 3kWh/1,000h and is dimmable.

Technical Details

The light has a beam angle of 115° and a power consumption of 3W. The luminous flux is 270lm and the luminous efficacy is 90lm/W. The average lamp lifespan is 50,000 hours and the color temperature is 3000K.

Energy Efficiency and Accessories

The LED Under Cabinet Light S-PAD F has energy efficiency class F and comes with connection cable and plug. A dimmer, plug transformer, and splitter are not included. The operating voltage is 24V=.

Application and Installation

The under cabinet light is ideal for easy addition to existing installations or as part of an S-PAD F set. Installation is simple using the LED 24-pin system. The light has a protection class of 3 and can be dimmed with appropriate accessories.

Design and Material

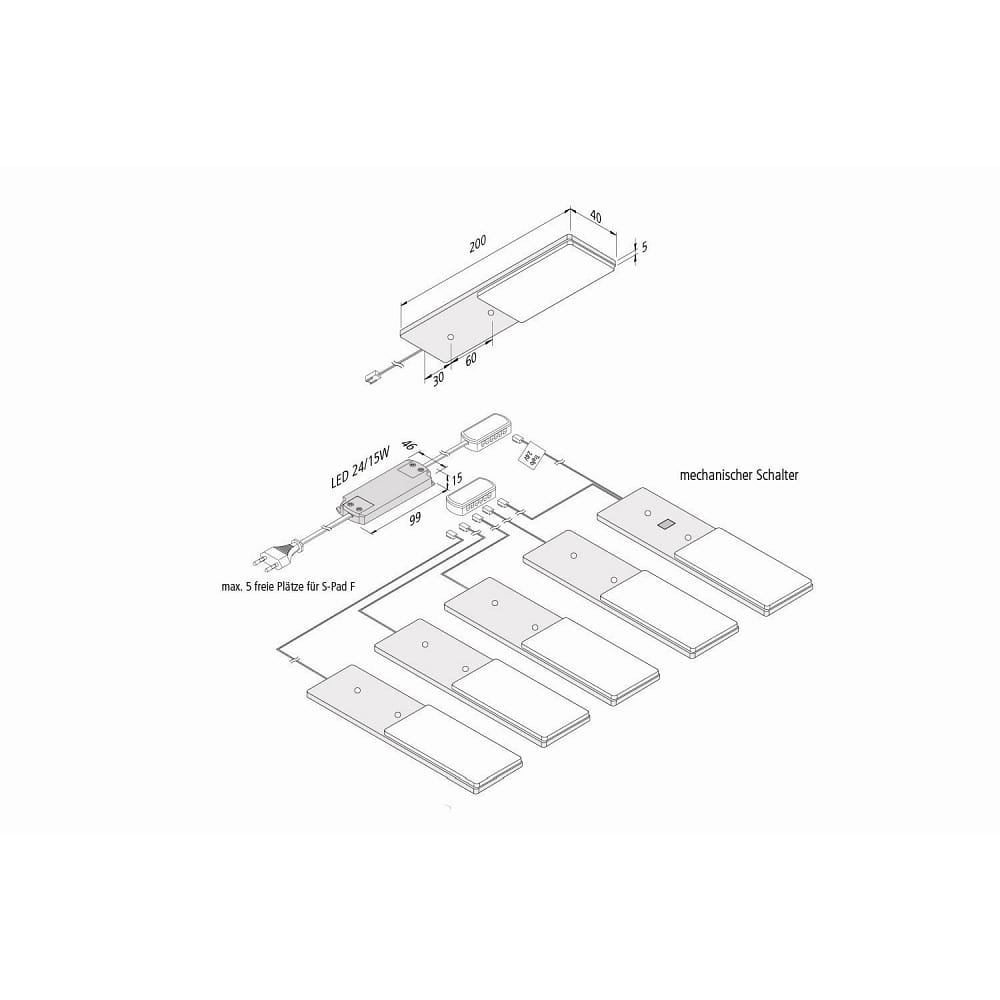

The super flat under cabinet light has a size of 20 x 4 x 0.5 cm and is available in black or anodized aluminum. It offers easy mounting with 3x13mm TX10 countersunk screws and has a cutout for the invisible routing of cables with a diameter of 8mm. The minimum material thickness of the mounting surface should be 18mm.
