under-cabinet luminaire S-PAD F flat, with plug IP20, black dimmable 3W 270lm 3000K 115° 115° CRI >90 20cm

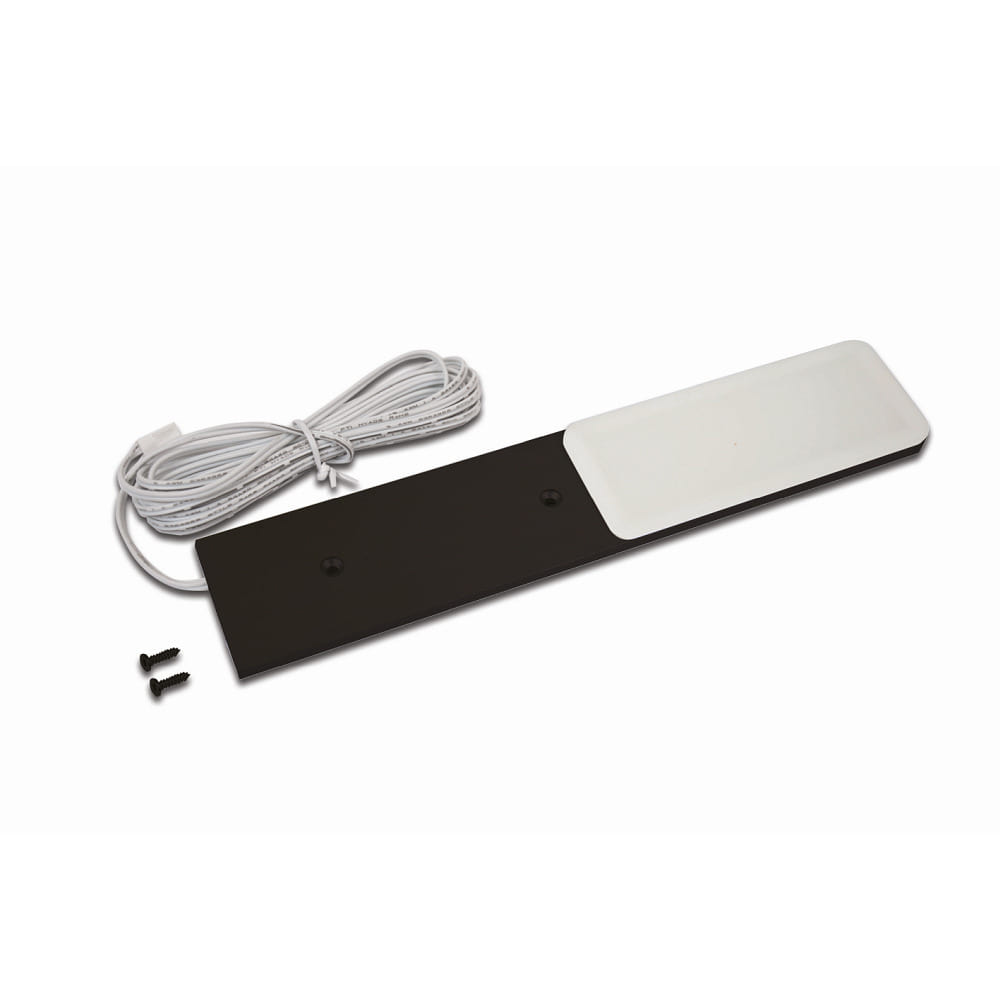

LED Under Cabinet Light S-PAD F

The LED Under Cabinet Light S-PAD F offers a homogeneous surface light and is available individually. With a length of 250cm and a LED 24 plug cable, it is easy to install and expand. With a color rendering index of over 90Ra and a color temperature of 3000K, it provides very good color reproduction.

Technical Details

The power consumption of the under cabinet light is 3W, with a light efficiency of 90lm/W and a luminous flux of 270lm. The average lamp lifespan is 50000 hours. The operating voltage is 24V= and the ambient temperature can range between -5 and +35°C.

Energy Efficiency and Accessories

The LED Under Cabinet Light S-PAD F belongs to energy efficiency class F and comes with a connection cable and plug. A dimmer, plug transformer, and distributor are not included in the delivery. The luminaire has protection class 3 and is suitable for indoor use with the IP protection class IP20.

Design and Installation

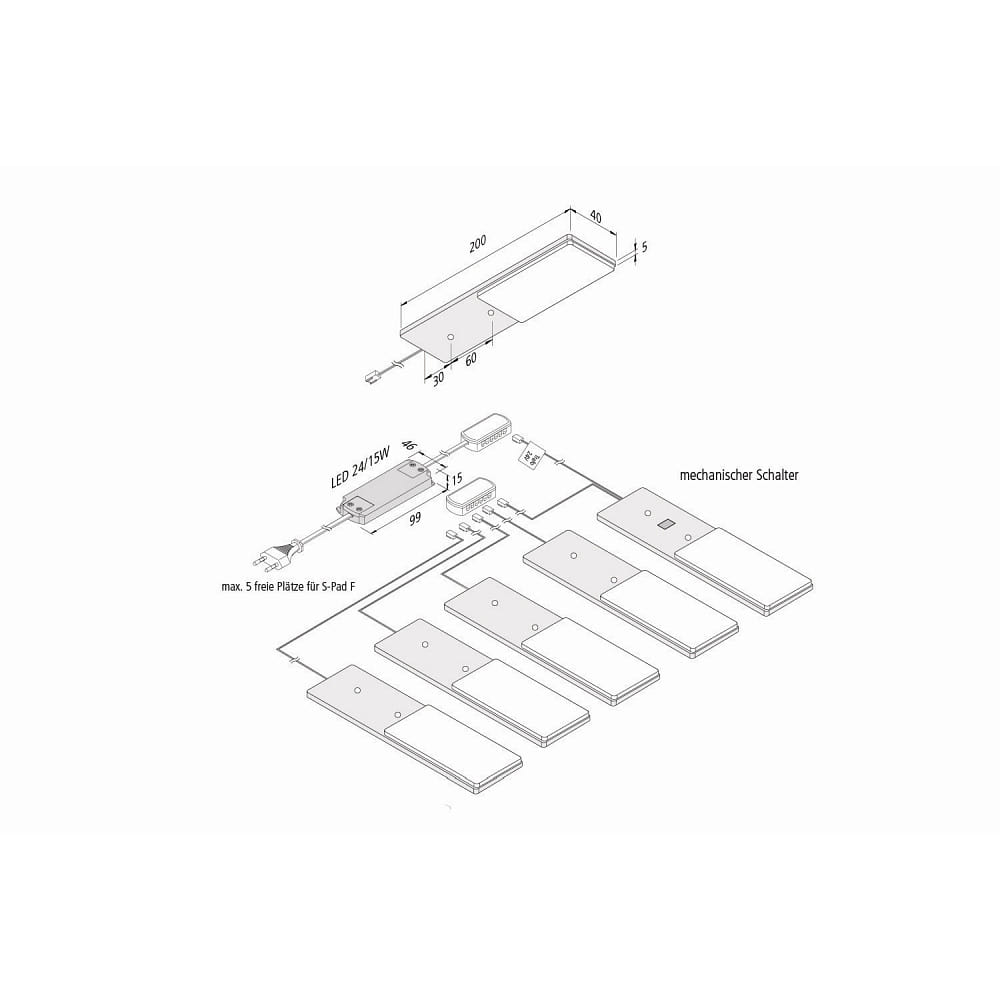

The super flat under cabinet light has dimensions of 20x4x0.5 cm and can be easily connected to a suitable distributor with the LED-24 plug system. It is mounted with 3x13mm TX10 countersunk screws and a cutout with a diameter of 8mm is provided for cable routing. The luminaire is available in black or anodized aluminum.

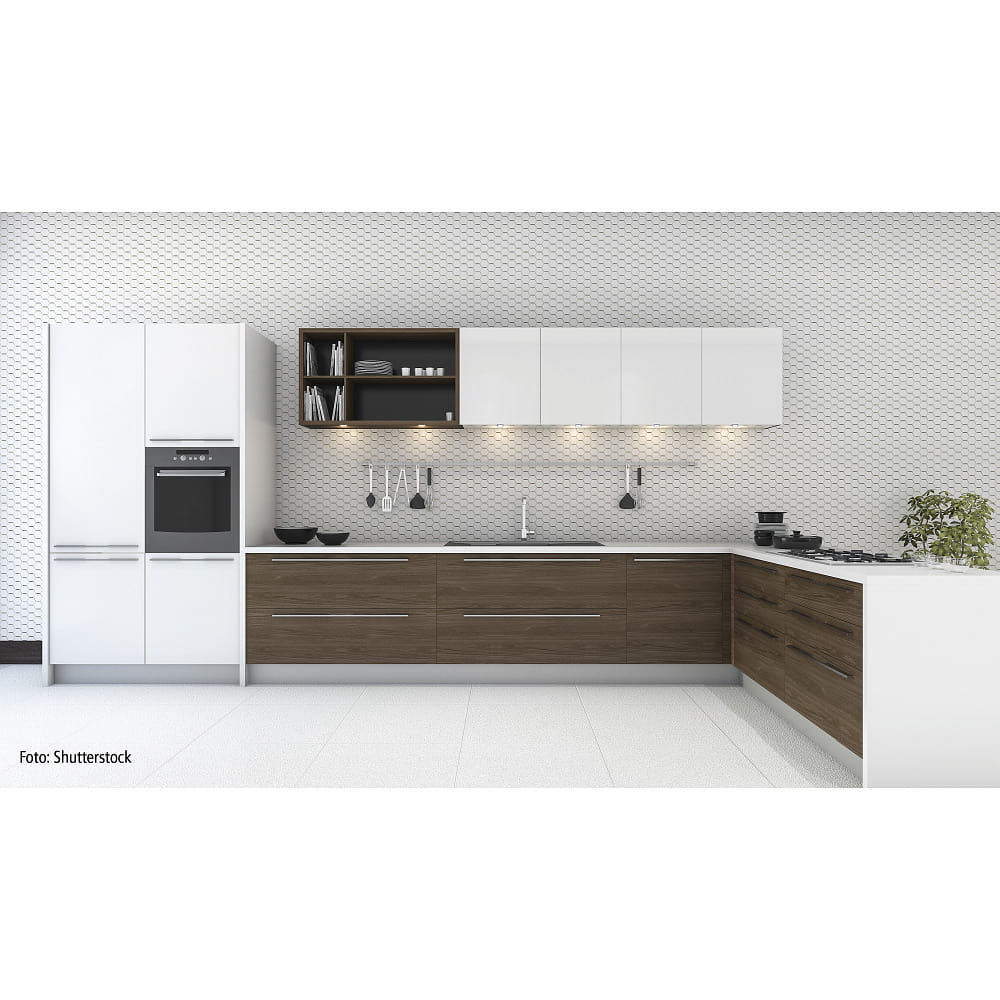

Areas of Application

The LED Under Cabinet Light S-PAD F is ideal for complementing existing installations or as a single luminaire. With very good color rendering and homogeneous light, it is suitable for various indoor applications. Thanks to the safe operating voltage of 24V DC, safe operation is guaranteed.
